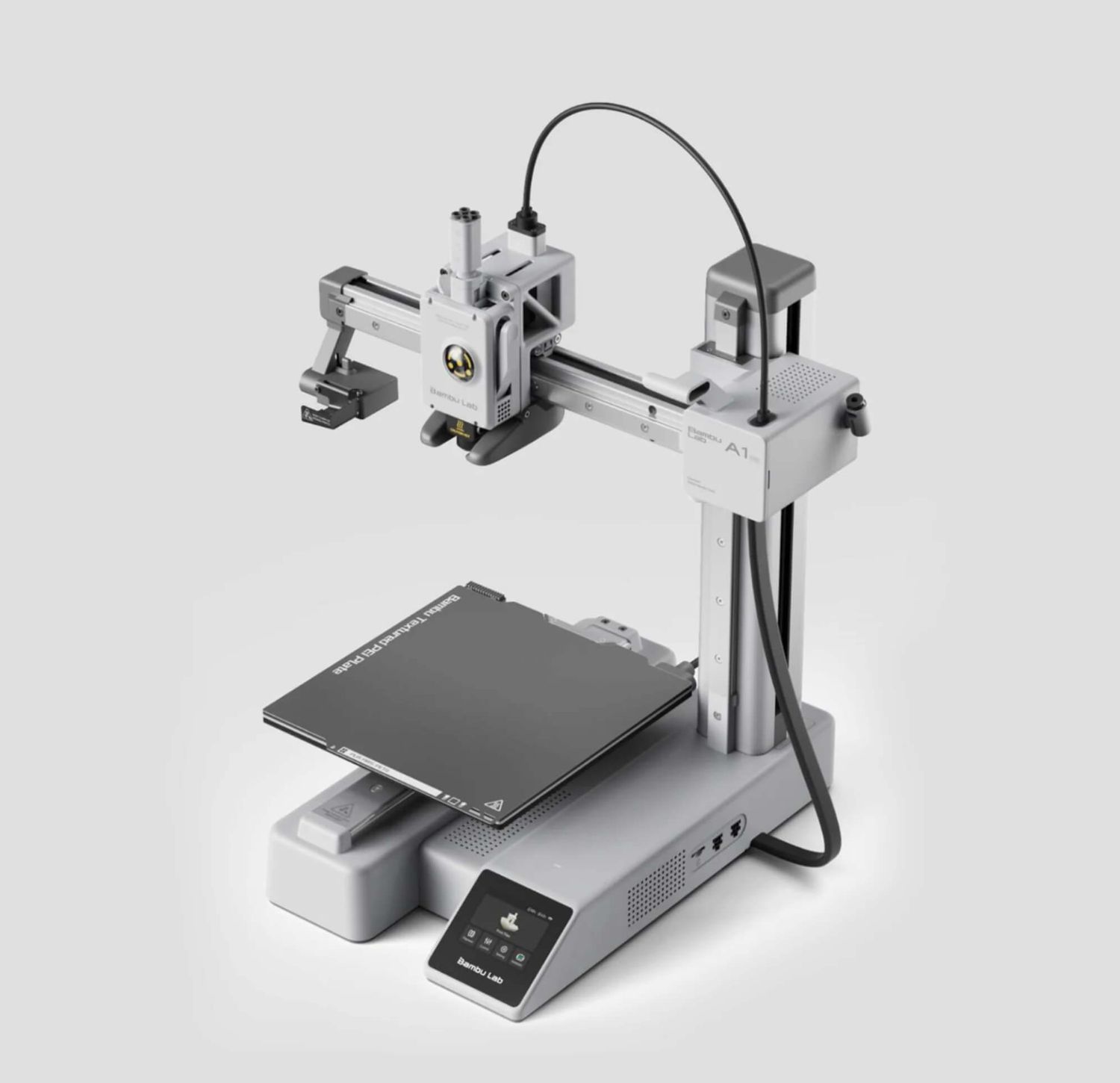

The Bambu Lab A1 mini has quickly established itself as a top-tier choice for entry-level and beginner 3D printing enthusiasts. It offers a unique combination of high-speed performance, advanced automation features, and an optional multi-color system at an accessible price point, making it a powerful gateway into the world of 3D printing.
Key Takeaways (TL;DR)
- Target Audience: Beginners, hobbyists, or users with limited space.
- Core Advantage: High-speed (500 mm/s max), full-auto calibration, and optional 4-color printing.
- Build Volume: Compact $180 \times 180 \times 180 \text{ mm}^3$.
- Price Point: Highly competitive, starting at $249 USD (standalone printer).
- Ease of Use: Near plug-and-play setup, simplified UI, and remote control via app.
Core Technical Specifications and Performance
The Bambu Lab A1 mini challenges the traditional notion that entry-level printers are slow or require extensive manual calibration.
Technical Specifications
- Body and Structure:
- Build Volume: $180 \times 180 \times 180 \text{ mm}^3$ (Compact size ideal for desktops/small spaces).
- Chassis: Steel + Extruded Aluminum, utilizing a cantilever design.
- Physical Dimensions: $347 \times 315 \times 365 \text{ mm}^3$.
- Toolhead and Temperature:
- Extruder: Direct Drive with All-Metal Hot End.
- Max Hot End Temperature: $300^\circ \text{C}$.
- Nozzle (Included): 0.4 mm Stainless Steel.
- Heatbed:
- Compatible Build Plate: Bambu Textured PEI Plate (Included).
- Max Build Plate Temperature: $80^\circ \text{C}$.
- Supported Filament:
- Ideal: PLA, PETG, TPU, PVA.
- Not Recommended: ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced Polymer.
Speed and Precision
- Max Print Speed: $\mathbf{500 \text{ mm/s}}$ (Exceptional speed for an entry-level bedslinger).
- Max Acceleration: $10,000 \text{ mm/s}^2$.
- Flow Rate: Max Hot End Flow of $28 \text{ mm}^3/\text{s}$ (with ABS).
- Compensation Technology: Incorporates Vibration Compensation and Active Flow Rate Compensation to ensure print quality is maintained at high speeds.
Automated Features: Making Printing Simple
The A1 mini’s strength lies in its automation, which minimizes the traditionally frustrating setup process for beginners, offering a true “plug-and-play” experience.
Full-Auto Calibration System
- No Manual Bed Leveling: Automatic Bed Leveling is executed using a strain gauge sensor.
- Z-Offset Calibration: Automated for precise first-layer adhesion.
- Dynamic Flow Calibration: Utilizes a sensor to measure and adjust filament flow rate in real-time, ensuring consistent extrusion and print uniformity.
Integrated Sensors & Monitoring
- Filament Status Sensors: Includes a Filament Run-Out Sensor, a Filament Tangle Sensor, and Filament Odometry to monitor filament usage and prevent print failures.
- Remote Monitoring: Features a built-in low-rate Monitoring Camera (up to 1080P) that supports remote viewing and time-lapses.
- Recovery: Equipped with a Power Loss Recover function.
Multi-Color Printing Capability: The AMS Lite
The optional AMS Lite (Automated Material System) is a significant feature that democratizes multi-color 3D printing for the entry-level market.
A1 mini Combo ($399 USD approx.)
- Multi-Color Capacity: The AMS Lite allows the printer to automatically switch between up to four different colors or material types within a single print.
- System Design: The AMS Lite is an external, simplified, non-enclosed system that sits beside the printer.
- Benefit: Provides a fun and easy way for beginners to create visually complex, multi-colored models without requiring constant manual intervention.
- Consideration: Multi-color printing inherently requires purging material, which results in increased filament waste and significantly longer print times.
Competition and Positioning
The A1 mini is positioned as the G.O.A.T. of Entry-Level 3D Printers due to its feature set, which is typically found in much more expensive machines.
A1 mini vs. Budget Competitors
- Speed & Quality: The A1 mini’s $\mathbf{500 \text{ mm/s}}$ speed and advanced compensation technologies deliver faster, more consistently high-quality prints than competitors like the Creality Ender 3 V3 SE.
- Ecosystem: Integration with the Bambu Studio slicer and the Bambu Handy mobile app provides a seamless, connected user experience for remote control and monitoring.
- Limitation: The $180 \times 180 \times 180 \text{ mm}^3$ build volume is smaller than some competitors (e.g., the standard $220 \times 220 \times 250 \text{ mm}^3$), which is the main trade-off for its compact size and high speed.
