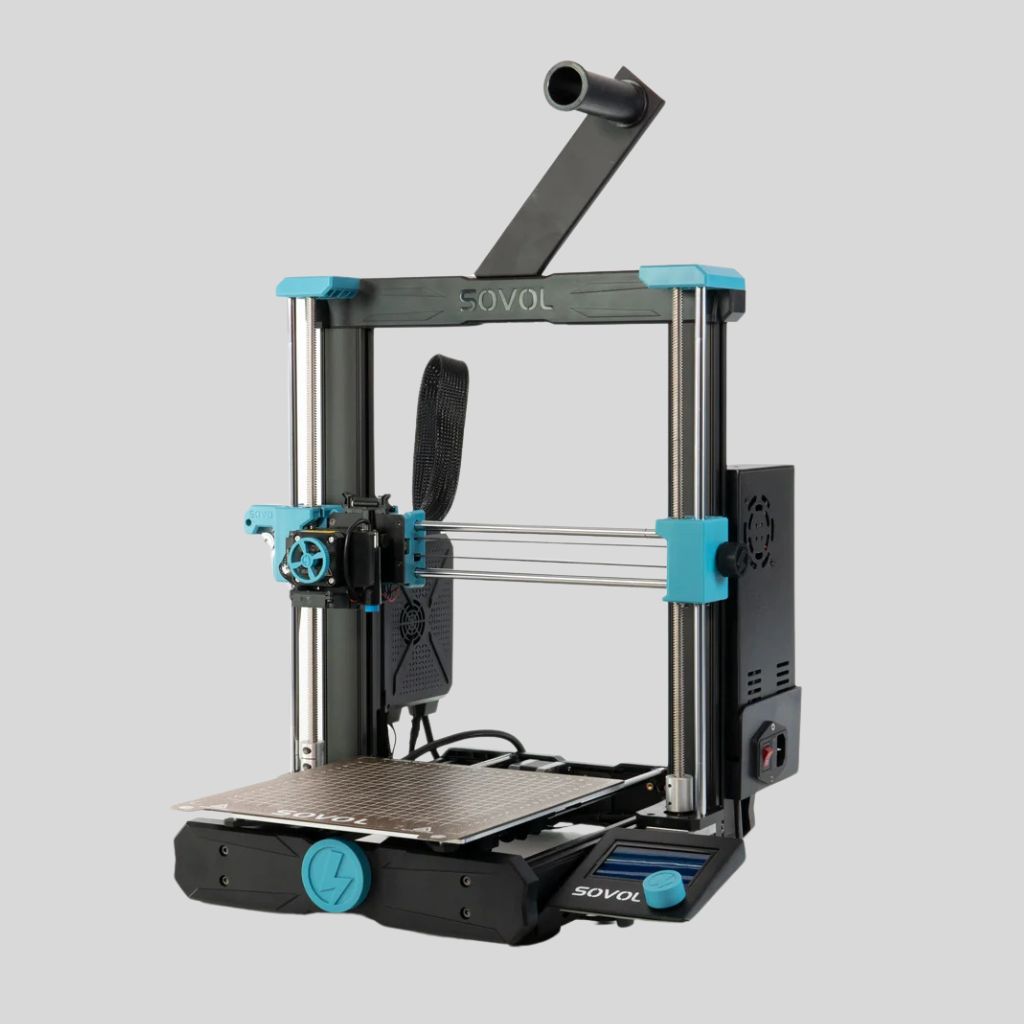

The Sovol SV06 3D Printer has carved out a strong reputation in the competitive budget 3D printer market. It is an excellent, open-source machine, highly recommended for beginners and hobbyists who need advanced features without a high price tag.
Key Highlights for Quick Understanding
The Sovol SV06’s appeal lies in its three premium features that stand out in its price class:
- All-Metal Planetary Direct Drive Extruder: Superior control for flexible materials (like TPU).
- $300\text{°C}$ High-Temp All-Metal Hotend: Capability to print high-strength engineering filaments (like PC and Nylon).
- 25-Point Auto Leveling & Dual Z-Axis: Ensures quick setup and greater print stability.
Its standard build volume is $220 \times 220 \times 250\text{ mm}$, making it perfectly adequate for most everyday projects.
In-Depth Feature Breakdown
1. Advanced Extrusion System
The SV06’s core strength is its self-developed, high-quality tool head.
- Planetary Dual Gear Direct Drive: Unlike many budget printers, the Sovol SV06 3D Printer uses a direct-drive system with a planetary gearset. This design provides a stronger drive ratio and precise material feeding. This is crucial for achieving excellent retraction performance and successfully handling soft, flexible filaments like TPU.
- $300\text{°C}$ All-Metal Hotend: This feature is a game-changer for a budget printer. The all-metal design means the PTFE tube does not extend into the hot zone, allowing for safe printing of high-temperature filaments such as ABS, ASA, PC, and Nylon. This broad material compatibility makes the SV06 highly versatile.
2. Stability and Calibration Made Easy
The printer is engineered to make the startup process as simple as possible, greatly benefiting new users.
- 25-Point Auto Leveling: It uses an inductive sensor to probe 25 points across the heated bed automatically. This innovative system compensates for any microscopic unevenness in the print surface, ensuring your first layer adheres perfectly every time.
- Dual Z-Axis with Auto Z-Align (G34): The machine features two Z-axis lead screws and motors, a major stability upgrade. Furthermore, the G34 Auto Z Align function automatically aligns the X-gantry with the print bed, virtually eliminating the hassle of manual gantry leveling.
3. Key Specifications Summary
- Printing Technology: Fused Deposition Modeling (FDM).
- Build Volume: $220 \times 220 \times 250\text{ mm}$.
- Print Surface: Flexible, Magnetic, PEI-Coated Spring Steel Sheet. Prints stick well and can be removed effortlessly by flexing the plate.
- Silent Operation: Equipped with a 32-bit mainboard utilizing silent TMC2209 stepper drivers, which keeps printing noise to a minimum.
- Speed: Recommended print speed is up to $80\text{ mm/s}$, with the capability to reach up to $150\text{ mm/s}$ with the latest firmware.
Buying Guide: SV06 vs. SV06 Plus
When deciding, the primary consideration is size and quality-of-life features.
- Choose the standard Sovol SV06 if:
- You are on a strict budget.
- A build volume of $220 \times 220 \times 250\text{ mm}$ is sufficient for your projects.
- You don’t mind the basic monochrome screen interface.
- You can manage without a built-in filament runout sensor.
- Consider the Sovol SV06 Plus if:
- You need a much larger build volume ($300 \times 300 \times 340\text{ mm}$).
- You want a modern interface, as the Plus includes a $4.3\text{-inch}$ Color Touchscreen.
- You prioritize print reliability with a built-in Filament Runout Sensor and a higher-flow hotend for faster printing.
