The Anycubic Kobra 3 Max is a large-format 3D printer that achieves multicolor printing through its optional accessory, the Anycubic ACE Pro. The printer’s large build volume of 420 x 420 x 500 mm supports big, single-piece projects, while the ACE Pro provides up to 8-color printing capabilities.
Unleash HUGE prints FAST! The Anycubic Kobra 3 Max boasts a massive 420*420*500mm volume & blazing 600mm/s speed. Easy to use! Learn more.
Related internal pages:
- anycubic-kobra-2-max-slicer/
- anycubic-kobra-3-max-combo/
- anycubic-kobra-2-max/
- elegoo-neptune-4-max-3d-printer-review/
- anycubic-kobra-3/
Product Features
● 420*420*500mm Print Volume

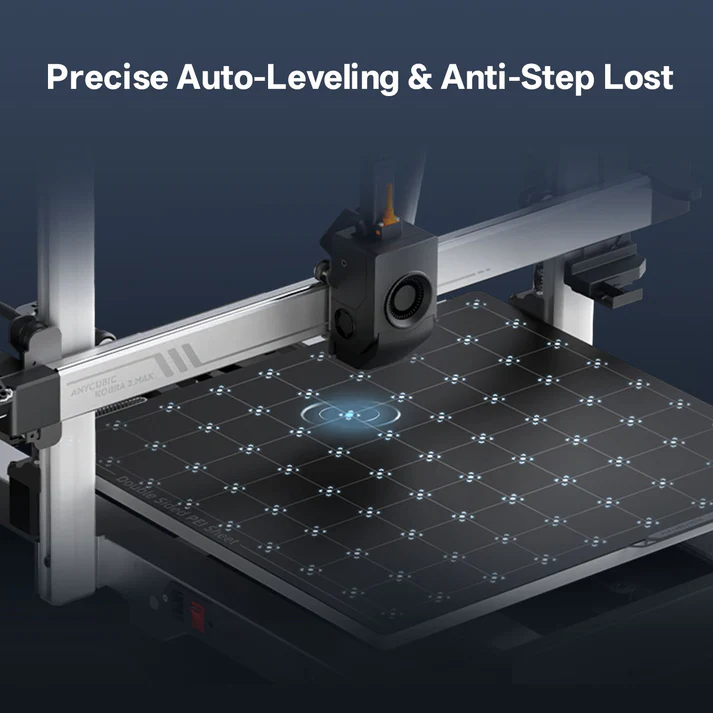

● Precise Auto-Leveling & Anti-Step Lost

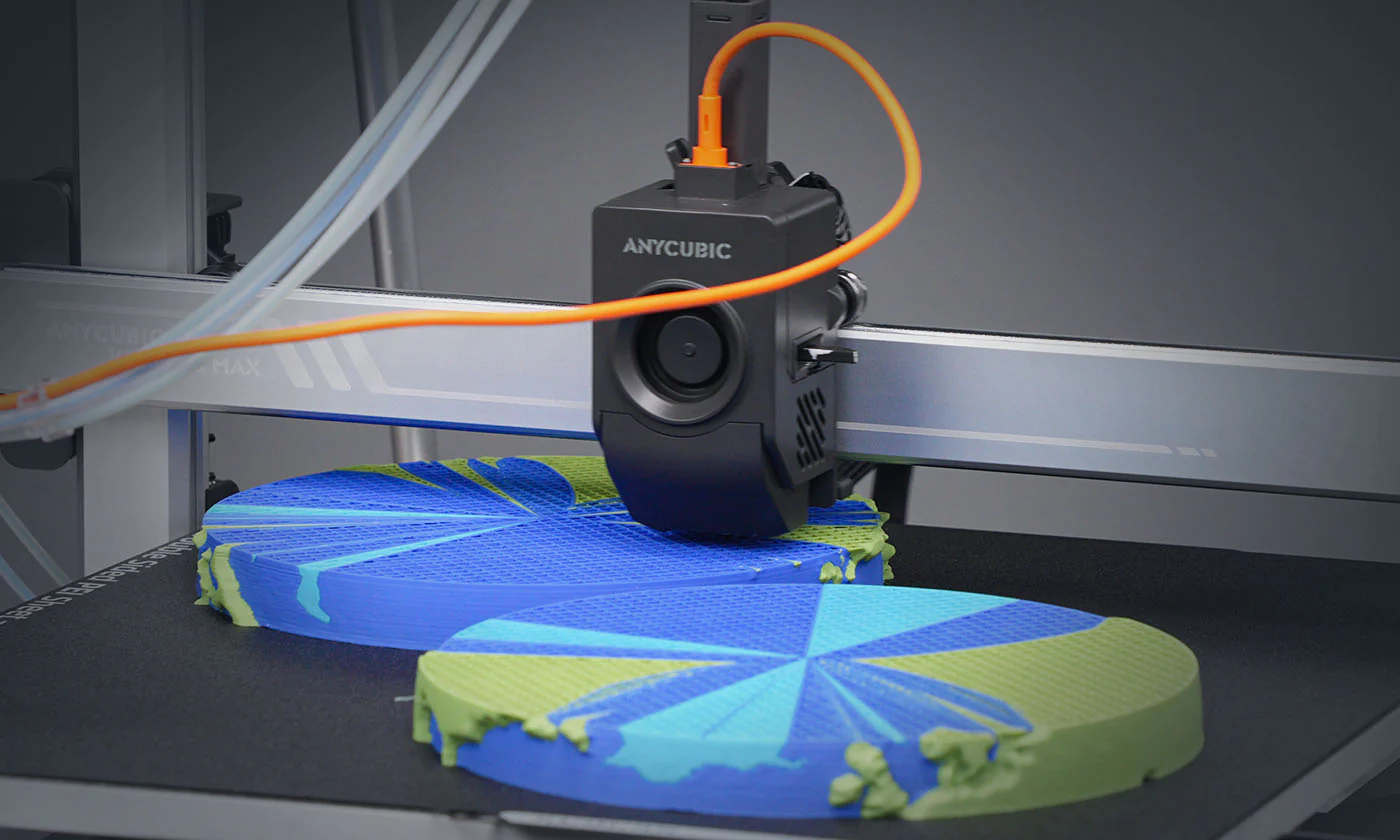

● Printing Speed Up to 600mm/s
● Anycubic Slicer Next & App Upgrade

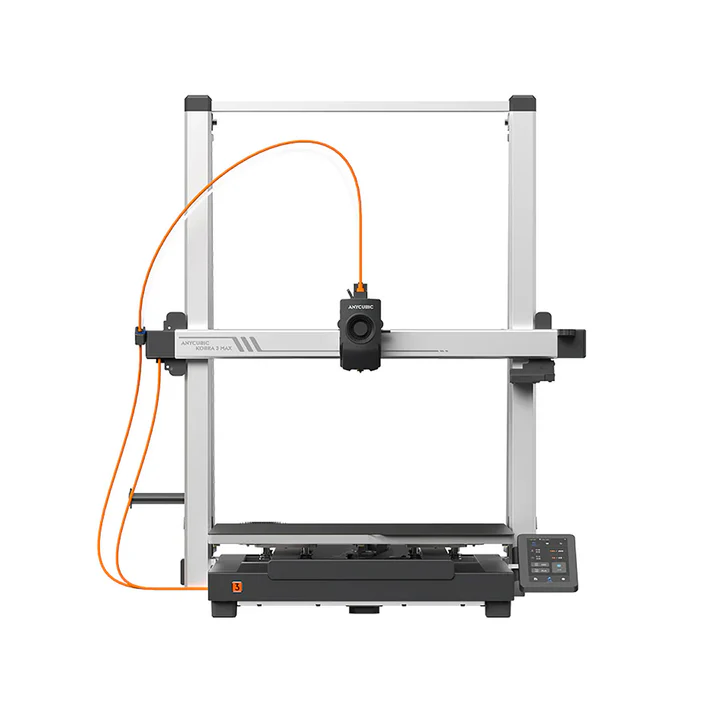

Kobra 3 Max
Multicolor printing with the Kobra 3 Max
Unlike some 3D printers that come with multicolor features built-in, the Kobra 3 Max requires the separate purchase of one or two ACE Pro units.
- 4-color printing: Requires one Anycubic ACE Pro unit.
- 8-color printing: Requires two Anycubic ACE Pro units, which connect to an 8-color filament hub.
The ACE Pro also includes an active filament drying function to improve print quality.
Models
Key specifications
- Build volume: 420 x 420 x 500 mm.

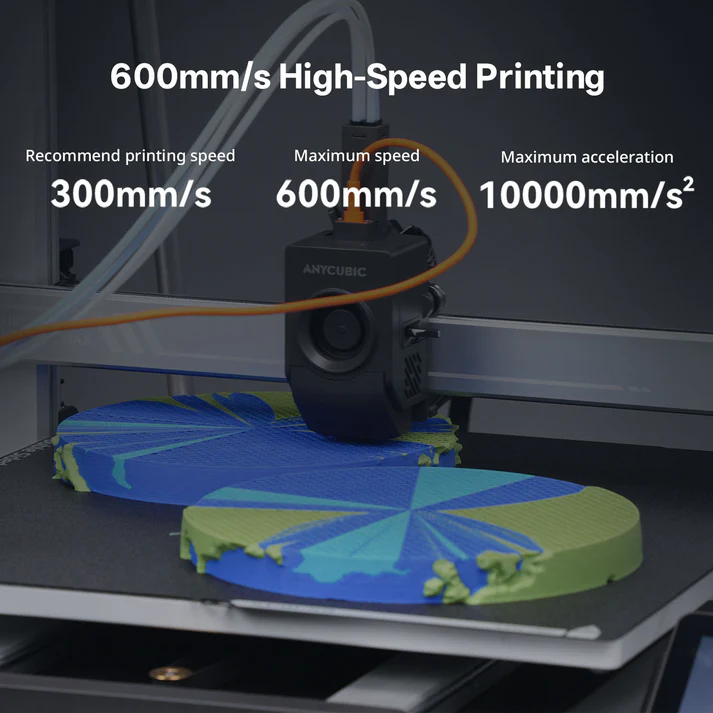

- Maximum print speed: 600 mm/s.
- Maximum acceleration: 10,000 mm/s².
- Compatible materials: PLA, PETG, TPU, ABS, and ASA are supported.

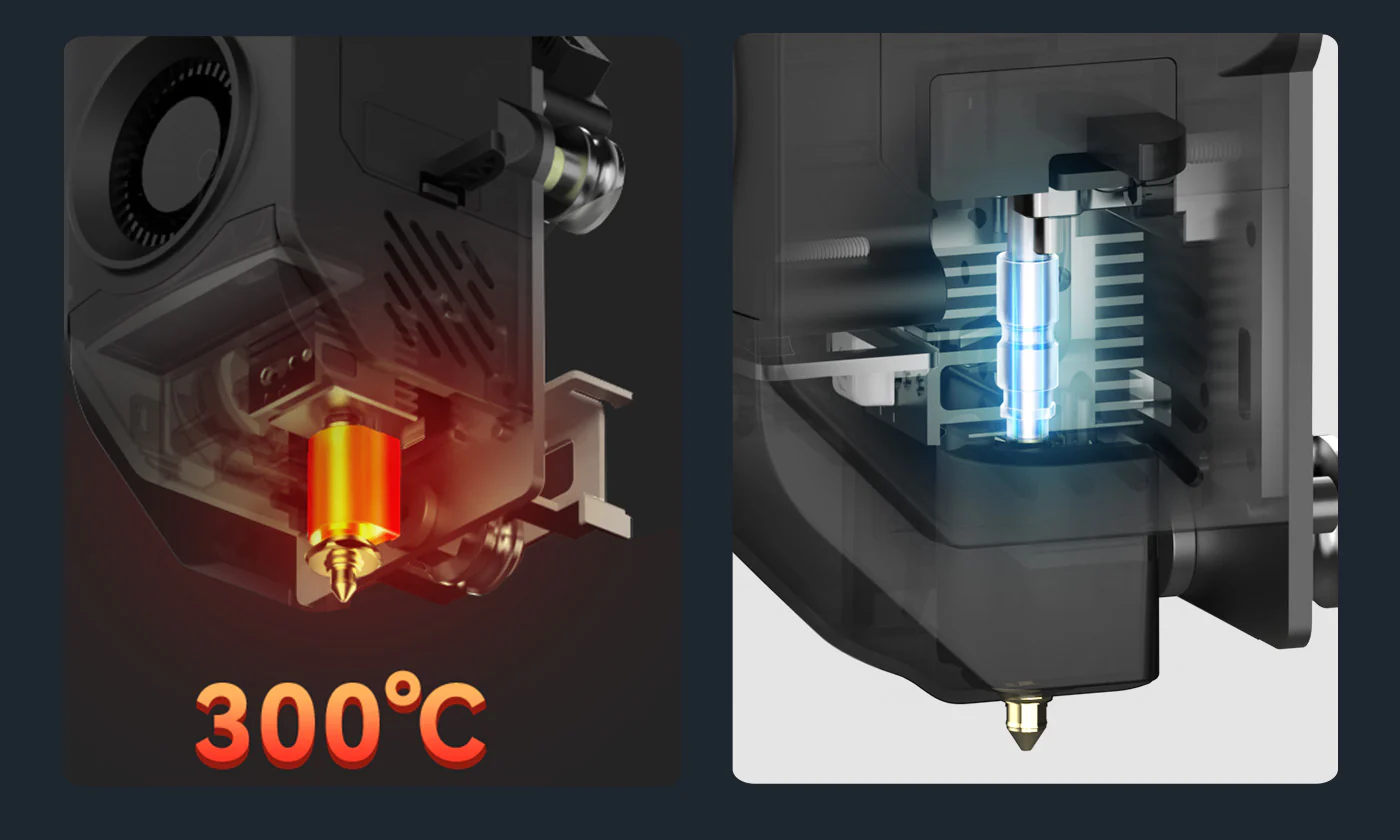

- Hotend temperature: Up to 300°C.
- Filament size: Supports 1.75mm filaments from any brand.
- Leveling: Features LeviQ 3.0, a fully automatic leveling system.
- Additional features: Includes AI-powered “spaghetti” detection and a “Skip Objects” function (to be launched).
Why Choose Kobra 3 Max

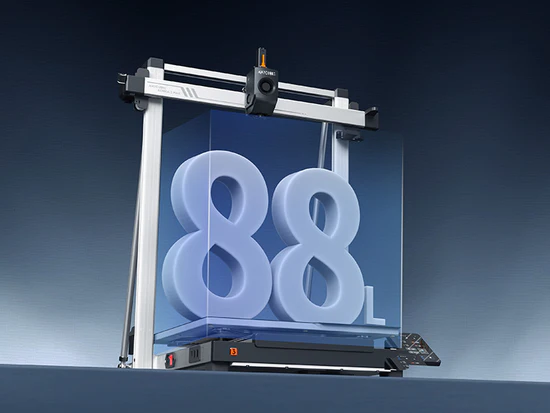

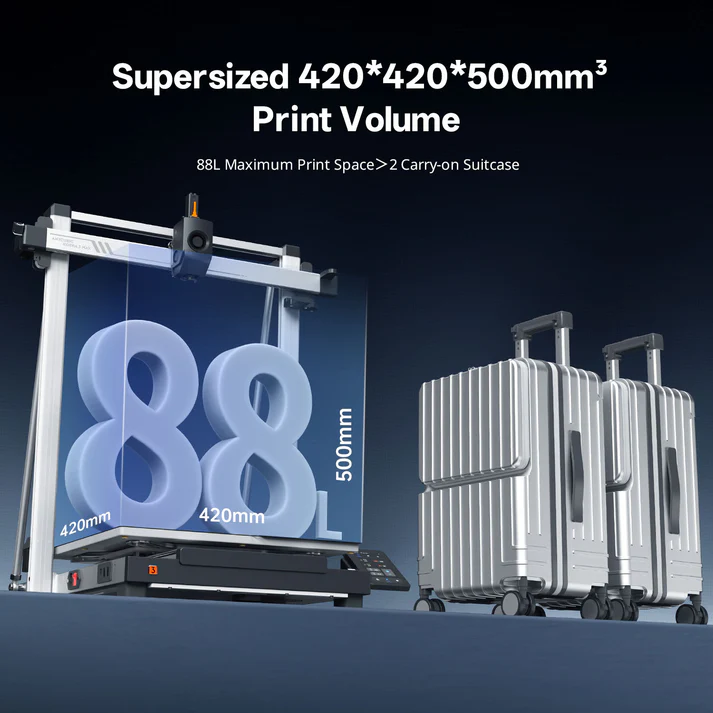

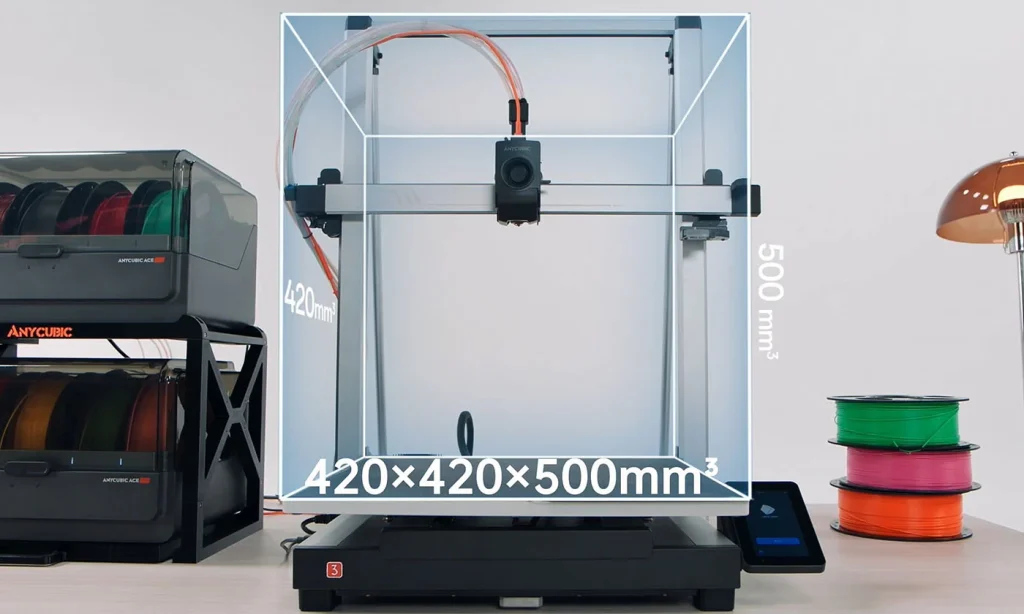

420*420*500mm³ Print Space ＞ 2 Carry-on Suitcases
Ultra-Large Model in a Single Print
Reduce Filament Wastage during Mass Productions
Skip Objects Function Boosts Efficiency & Cuts Costs[1]

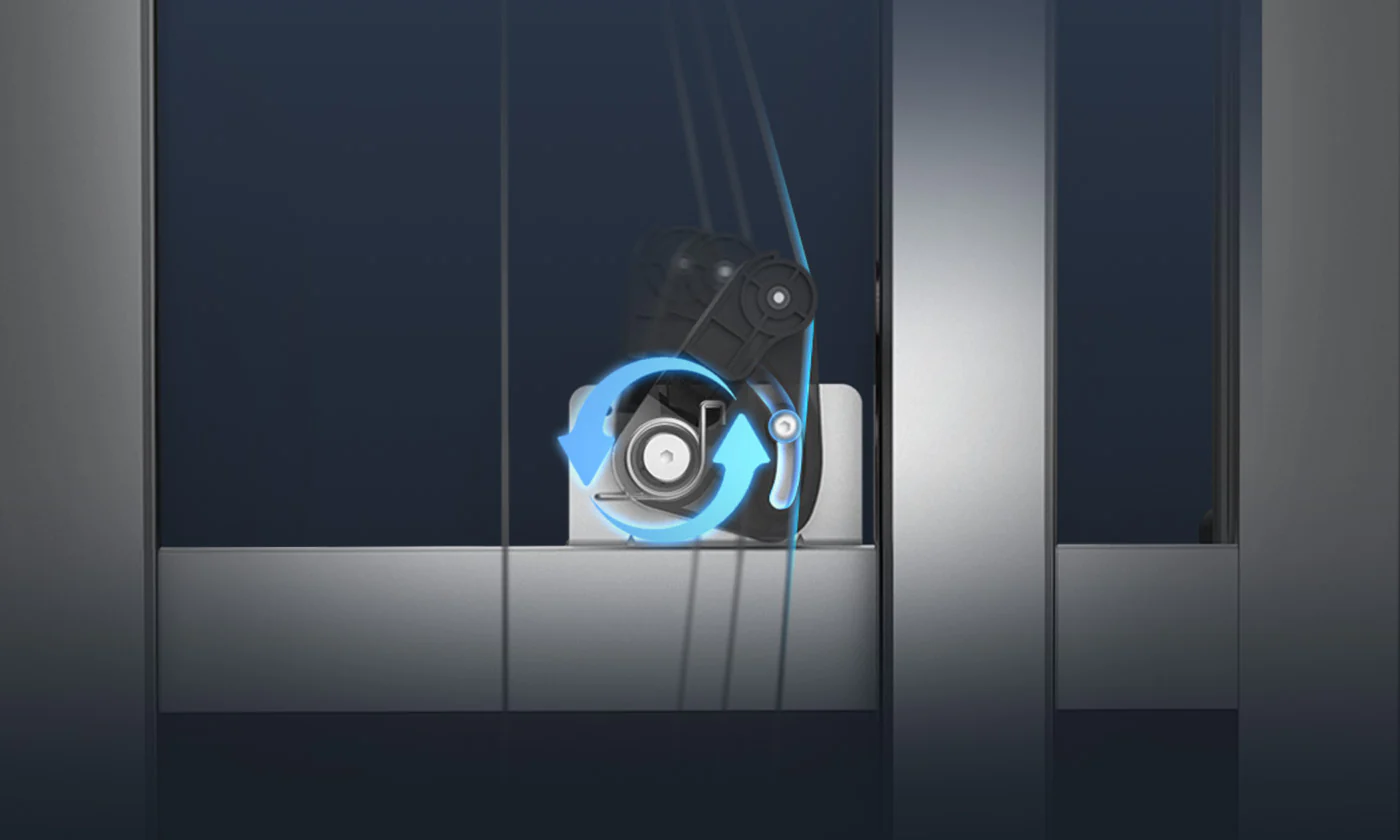

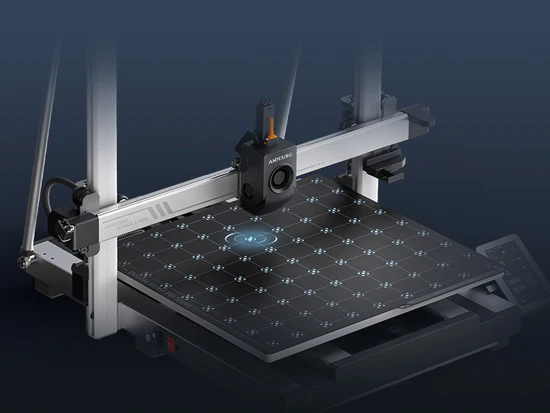

Auto-Leveling & Anti-Skip
Modular multicolor system
The multicolor functionality is provided by the separately purchased Anycubic ACE Pro accessory.
- 4- or 8-color printing: A single ACE Pro allows for four-color printing. Connecting two ACE Pro units with an eight-color feeder hub enables up to 8-color printing.
- Integrated drying: The ACE Pro doubles as an active filament dryer, using a dual 200-watt PTC heater and fans to ensure filaments stay moisture-free during printing and storage.
- Automatic filament management: For prints requiring multiple spools of the same color, the system can automatically switch to a backup spool to ensure prints continue uninterrupted. It also uses intelligent detection to recognize Anycubic’s RFID-chipped filaments.
- Purge management: When swapping colors, the hotend purges a small amount of filament. The Anycubic Slicer Next allows users to manage this waste by purging into the infill of the part or into a separate “purge object”.
- Filament compatibility: The ACE Pro is compatible with a range of filaments, but flexible materials like TPU are not supported with the multicolor system due to a risk of tangling.
Performance, to the Max
Smart features and software

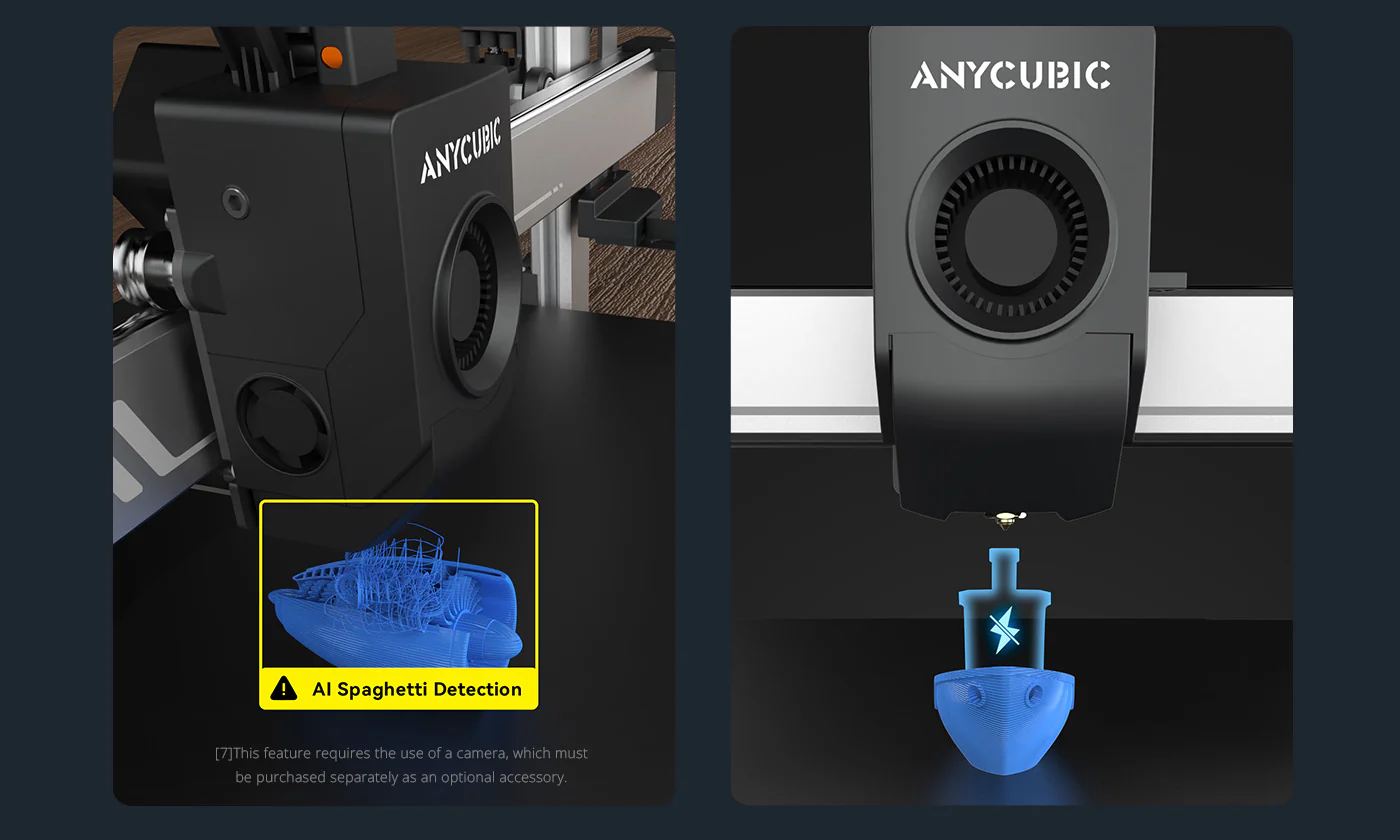

- Artificial intelligence (AI) monitoring: With an optional camera accessory, AI can detect printing errors like “spaghetti” failures and automatically pause the print to save material. The optional camera also enables time-lapse photography and remote monitoring.
- Kobra OS: The printer runs on Anycubic’s proprietary, closed-source Kobra OS. While functional, this custom firmware has less community support and customization options compared to open-source alternatives like Klipper.
- Anycubic Slicer Next: Based on the popular Orca Slicer, this software is optimized for Anycubic’s printers. Later updates addressed initial launch issues and added features like purge management to reduce filament waste during color changes.
- Anycubic App: This companion app offers features like remote monitoring, cloud printing, and a model library.
The Anycubic Software Ecosystem
Anycubic Slicer Next
Anycubic Slicer Next is built upon the open-source software Orca, tailored and optimized specifically for Anycubic printers. It incorporates advanced algorithms refined from various open-source iterations to elevate slicing precision and enhance the overall print quality of models.
Anycubic App
A mobile app specially designed for Anycubic printers, including remote control, remote monitoring, real-time printing records and other intelligent functions.
Community Feedback and Potential Issues
Based on user reviews, the Anycubic Kobra 3 Max is generally well-received for its large size and printing capabilities. However, some common points of discussion include:
- Slicer Software: Anycubic’s proprietary slicer, while improving with updates, has been noted by some users as a point of frustration compared to more established options like PrusaSlicer or Cura.
- Nozzle Quality: Some initial reports mentioned issues with the included 0.4 mm nozzle clogging frequently. Anycubic has since worked to address this, but having spare nozzles is a good idea.
- Physical Footprint: The “bedslinger” design means the printer requires significant space, as the bed moves forward and backward. It cannot be placed flush against a wall.
Overall, the Anycubic Kobra 3 Max is seen as a powerful tool for creators who need to produce large-scale, multi-color projects and are willing to handle some initial setup and optimization.
Specifications
| Core Printing Performance | |||
| Multicolor Printing Sold separately | Printing Volume 420*420*500mm (88L) | Supporting Filaments PLA/PETG/TPU | Printing Speed Recommended 300 mm/s, Maximum 600 mm/s |
| Acceleration Maximum 10,000 mm/s² | Nozzle Specs Max Temperature 300°C, Diameter Standard 0.4 mm, expandable to 0.2 / 0.6 / 0.8 mm | Hotbed Specs Max Temperature 90°C, Material PEI spring steel build plate | |
| System & Mechanical Design | |||
| Firmware solution Kobra OS | Construction Gantry System | Extruder Type Short distance extrusion | Machine Leveling LeviQ3.0 Auto-leveling, Z-Offset |
| Pressure Advance / Flow Calibration Supported | Power Loss Resume Supported | Filament Detection & Auto Resume Supported | Filament Entanglement Detection Supported |
| AI Spaghetti Detection Supported | Object-Skip & Area Leveling Supported | Control & Print Methods Via printer, slicing software, Anycubic APP, USB (print only) | |
| User Experience & Features | |||
| Touchscreen 4.3-inch capacitive touch screen | Noise ≤60dB (Standard mode) | Video Monitoring – | Machine Weight 19kg |
| Package Weight 22.1kg | Machine dimensions 706*640*753mm | Packaging dimensions 830*700*205mm |

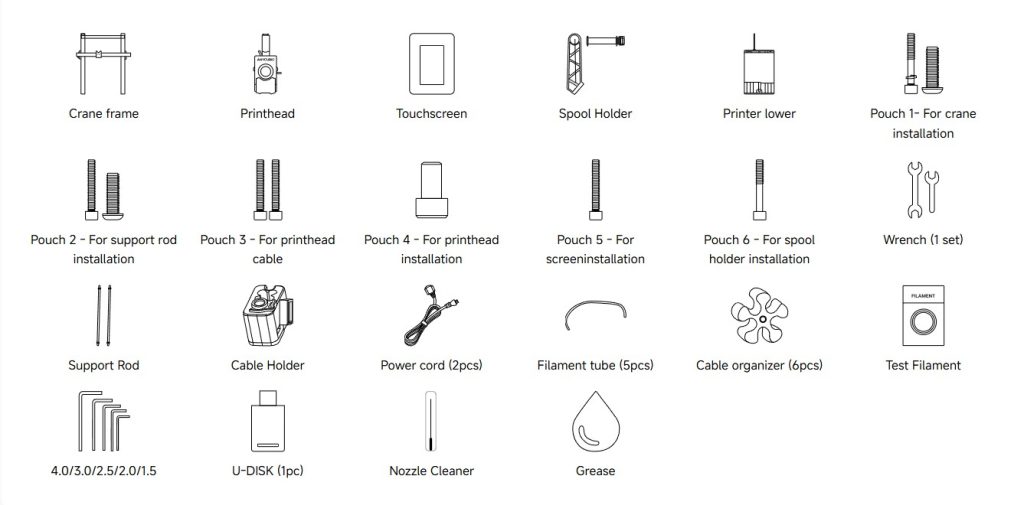

What’s In Box
Kobra Max Series Tech Specs
| Anycubic Kobra 3 Max | Anycubic Kobra 2 Max | |
| Core Printing Performance | ||
| Multicolor Printing | Sold separately | Supports single-filament color printing |
| Printing Volume | 420*420*500mm (88L) | 420*420*500mm (88.2L) |
| Supporting Filaments | PLA/PETG/TPU | PLA/ABS/PETG/TPU |
| Printing Speed | Recommended 300 mm/s, Maximum 600 mm/s | Recommended 300 mm/s, Maximum 500 mm/s |
| Acceleration | Maximum 10,000 mm/s² | Maximum 10,000 mm/s² |
| Nozzle Specs | Max Temperature 300°C, Diameter Standard 0.4 mm, expandable to 0.2 / 0.6 / 0.8 mm | Max Temperature 260°C, Diameter Standard 0.4 mm |
| Hotbed Specs | Max Temperature 90°C, Material PEI spring steel build plate | Max Temperature 90°C, Material PEI spring steel build plate |
| System & Mechanical Design | ||
| Firmware solution | Kobra OS | Kobra OS |
| Construction | Gantry System | Gantry System |
| Extruder Type | Short distance extrusion | Short distance extrusion |
| Motion System X-axis | Dual shaft core + SG15 bearings | X-axis Dual shaft core + SG15 bearings |

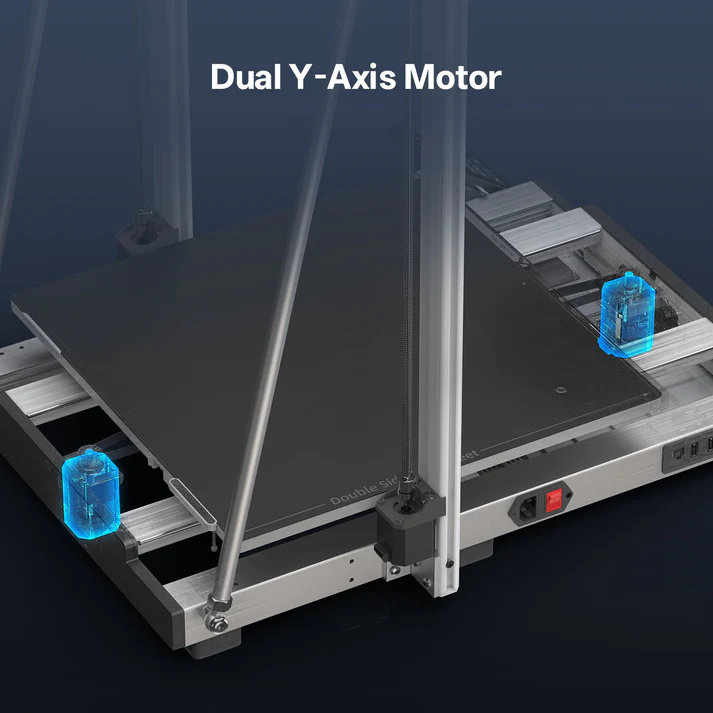

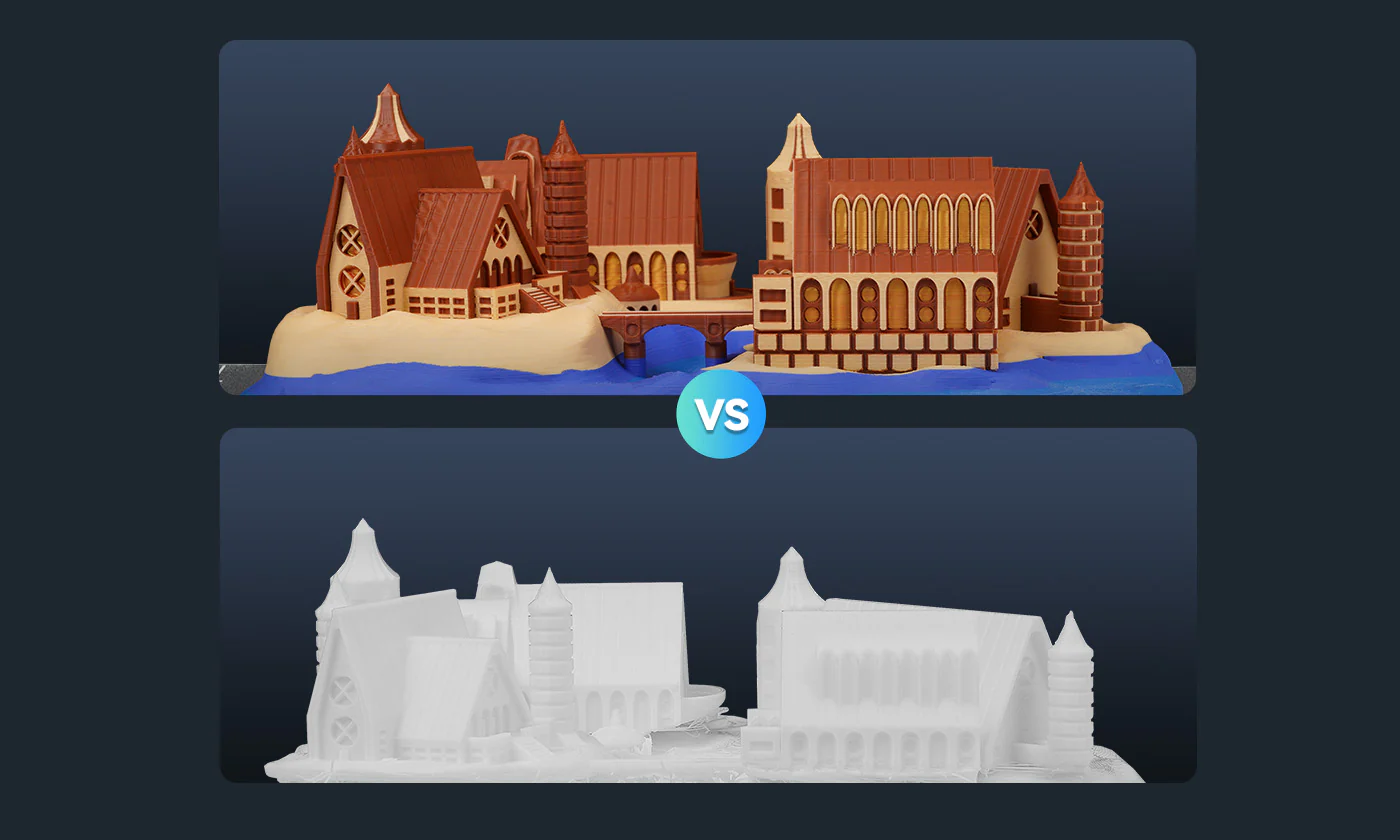

| Motion System Y-axis | Dual shaft core + SG15 bearings + dual motor | Dual shaft core + SG15 bearing + dual motor |
| Motion System Z-axis | Dual motor dual screw | Dual motor dual screw |
| Machine Leveling | LeviQ3.0 Auto-leveling, Z-Offset | Auto Z-Offset |
| Pressure Advance / Flow Calibration | Supported | Supported |
| Power Loss Resume | Supported | Not supported |
| Filament Detection & Auto Resume | Supported | Not supported |
| Filament Entanglement Detection | Supported | Not supported |
| AI Spaghetti Detection | Supported | Not supported |
| Object-Skip & Area Leveling | Supported | Not supported |
| Control & Print Methods | Via printer, slicing software, Anycubic APP, USB (print only) | Via printer, slicing software, Anycubic APP, USB (print only) |
| User Experience & Features | ||
| Touchscreen | 4.3-inch capacitive touch screen | 4.3-inch capacitive touch screen |
| Noise | ≤60dB (Standard mode) | – |
| Video Monitoring | – | – |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP / KO | EN / CN |
| Machine Weight | 19kg | 17.6kg |
| Package Weight | 22.1kg | 21.3kg |
| Machine dimensions | 706*640*753mm | 640*735*740mm |
| Packaging dimensions | 830*700*205mm | 830*740*190mm |
FAQs
What do the [1][2][3][4][5]annotations in the product details mean?
The numbered annotations on the product page correspond to the following explanations:
[1] The Skip Object function is expected to be launched in Q1 2025.

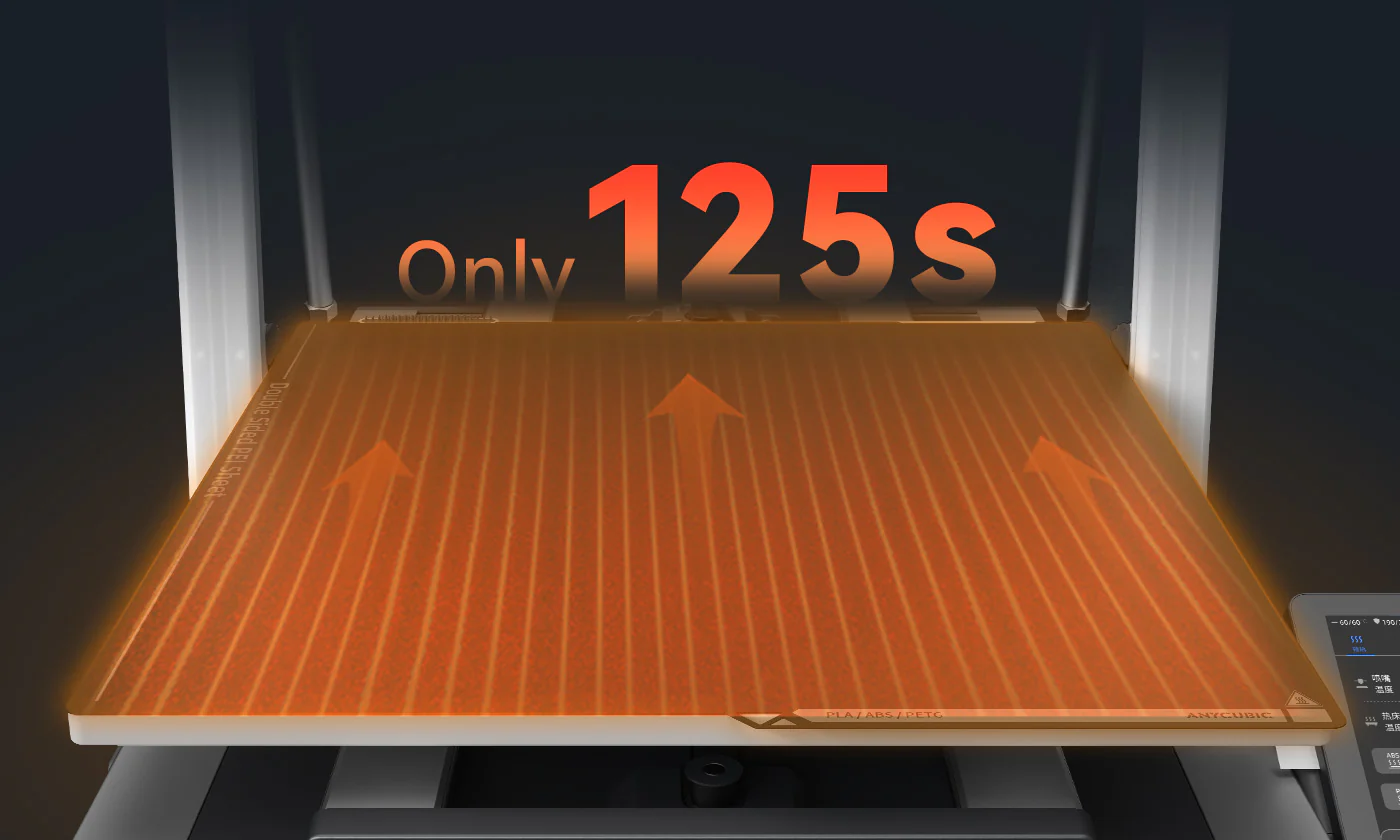

[2] Heating from 25°C to 60°C takes only 125 seconds.
[3] A camera is needed for this function.
[4] A camera is needed for this function.
[5] When selecting models on Makeronline, use a PC with Anycubic Slicer software pre-installed.
Can the Kobra 3 Max use 3mm diameter filaments? What types of filaments can it print?
Kobra 3 Max only supports 1.75mm diameter filaments. It can print PLA, PETG, ABS and TPU.
What is the layer thickness of the Kobra 3 Max?
The original nozzle is 0.4mm (replaceable with 0.2mm, 0.6mm, or 0.8mm nozzles), supporting a precision range of 0.05-0.3mm.
How many languages does the Kobra 3 Max support?
The Kobra 3 Max currently supports 9 languages: Chinese, English, German, French, Italian, Spanish, Russian, Japanese, and Korean.
Does the Kobra 3 Max support 1.75mm filament from other brands?
You can use filaments from any brand or other filaments. The Kobra 3 Max only supports PLA series filaments, PETG, ABS, and TPU.
Can the Kobra 3 Max connect to a computer for printing? Are there any system requirements for connecting to a computer?
Yes, it supports computer connection. While connected, G-code files can be uploaded to the cloud server and pushed to the 3D printer via the cloud after slicing is completed. It supports Windows 10 and above.
