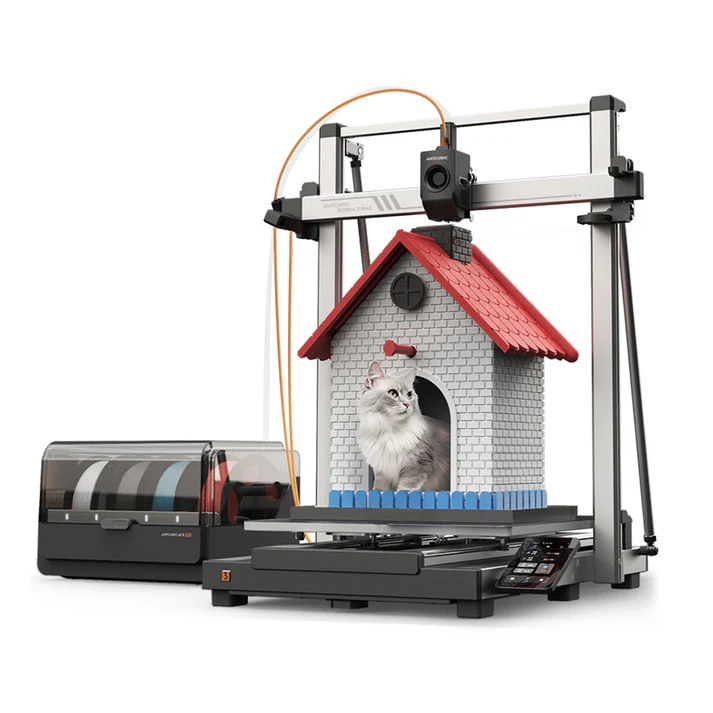

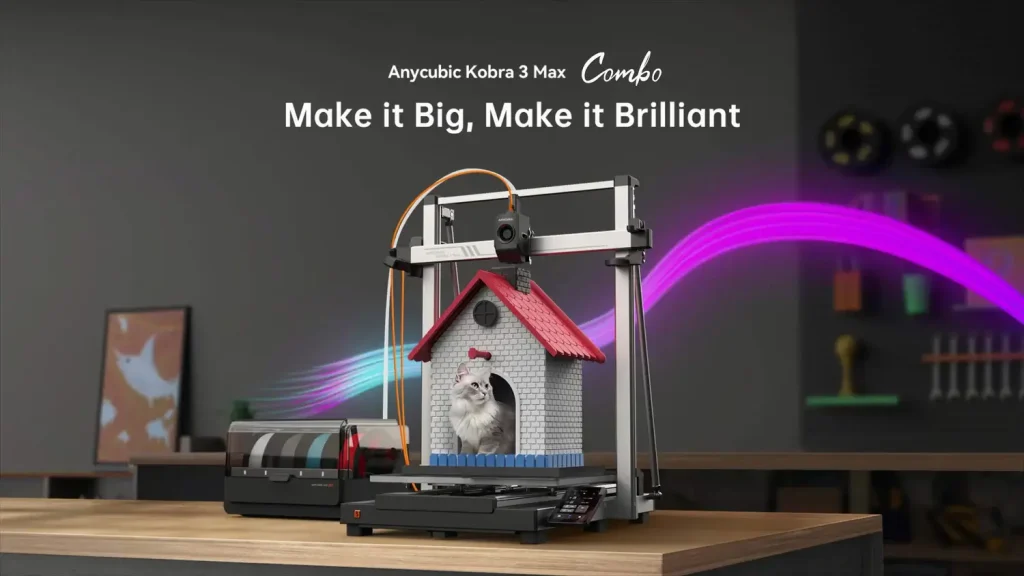

The Anycubic Kobra 3 Max Combo is a large-format 3D printer known for its massive 420 x 420 x 500mm build volume and high-speed, multicolor printing capabilities. It comes with the Anycubic ACE Pro filament unit, enabling 4-color printing, and can be upgraded to 8 colors by adding a second ACE Pro. The product’s pre-orders began in December 2024, with shipping starting in spring 2025.
Discover the power of Anycubic Kobra 3 Max Combo for large 3D prints, fast setup, and high precision—perfect for hobbyists and businesses.
Related internal pages:
- anycubic-kobra-3-combo/
- anycubic-kobra-s1-combo/
- anycubic-kobra-2-max/
- anycubic-kobra-3/
- anycubic-kobra-3-max/
Product Features
● The Largest Consumer-Grade Multicolor 3D Printer
● 420*420*500mm Print Volume

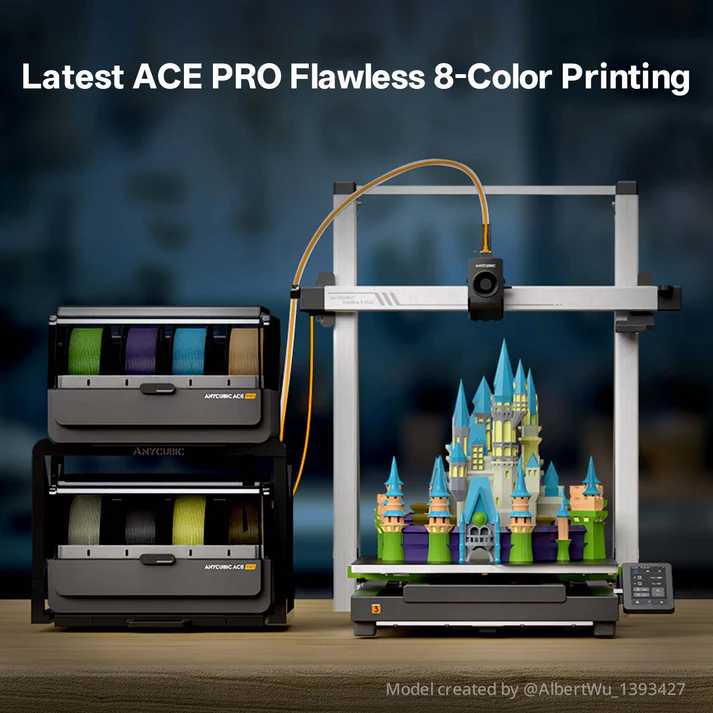

● Latest ACE PRO Flawless 8-Color Printing
● Precise Auto-Leveling & Anti-Skip

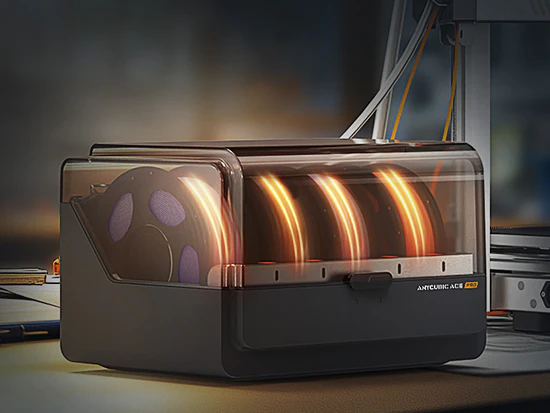

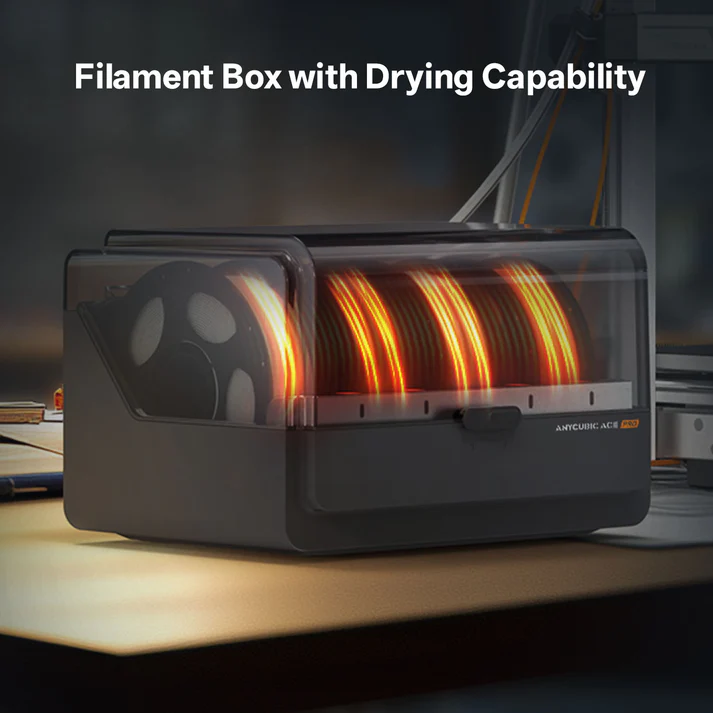

● Filament Box with Drying Capability

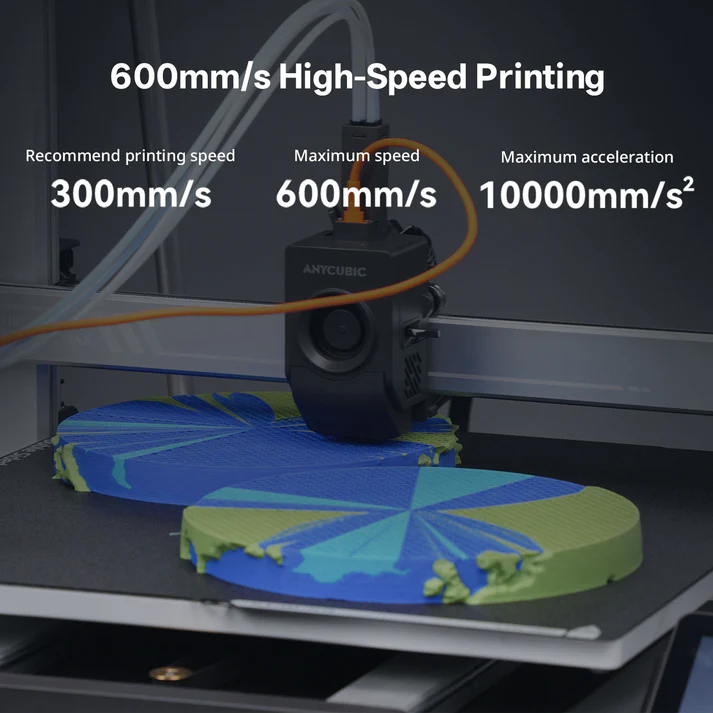

● Printing Speed Up to 600mm/s
● Anycubic Slicer Next & Anycubic App Upgrade

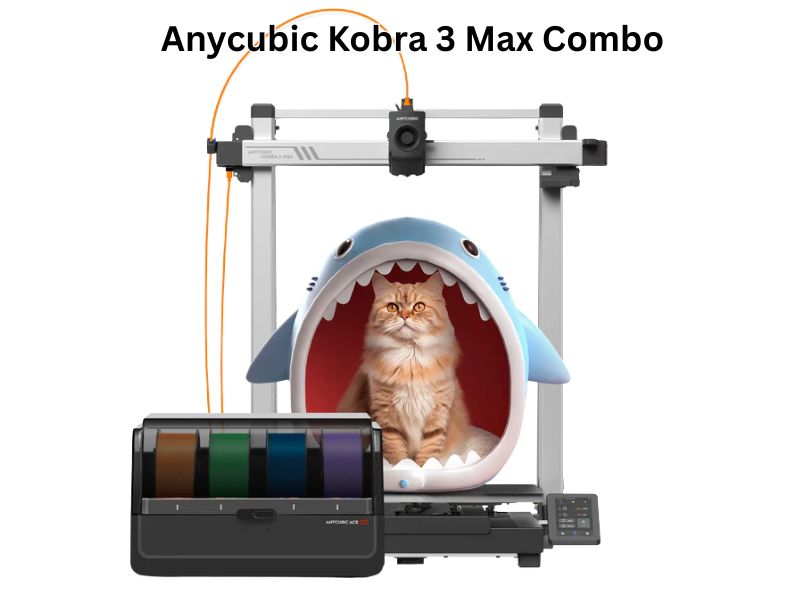

Overview: What Is the Anycubic Kobra 3 Max Combo?
The Anycubic Kobra 3 Max Combo is a high-speed, multicolor FDM 3D printer designed for large-format consumer printing. It combines a massive build volume with advanced multicolor capabilities, making it suitable for hobbyists, designers, and small-scale manufacturers.
Key specifications
- Multicolor Printing: Prints up to 4 colors with the included ACE Pro filament box, which also has a filament drying function. A second ACE Pro unit can be added to increase the color count to 8.
- Build Volume: Features an extra-large build volume of 420 x 420 x 500mm, allowing for life-sized projects or multiple items at once.
- Speed: Offers a high-speed printing experience with a maximum speed of 600 mm/s and acceleration of 10,000 mm/s².

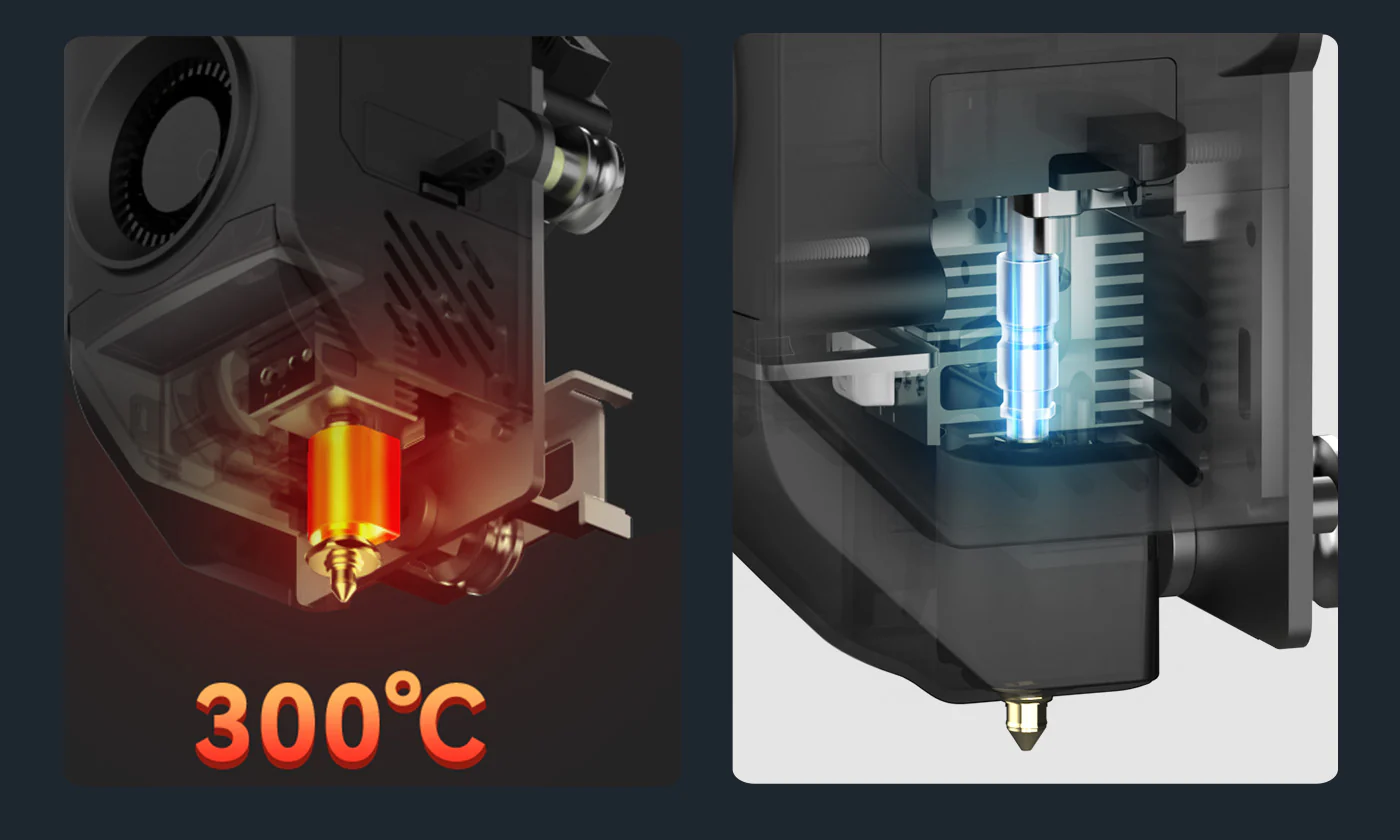

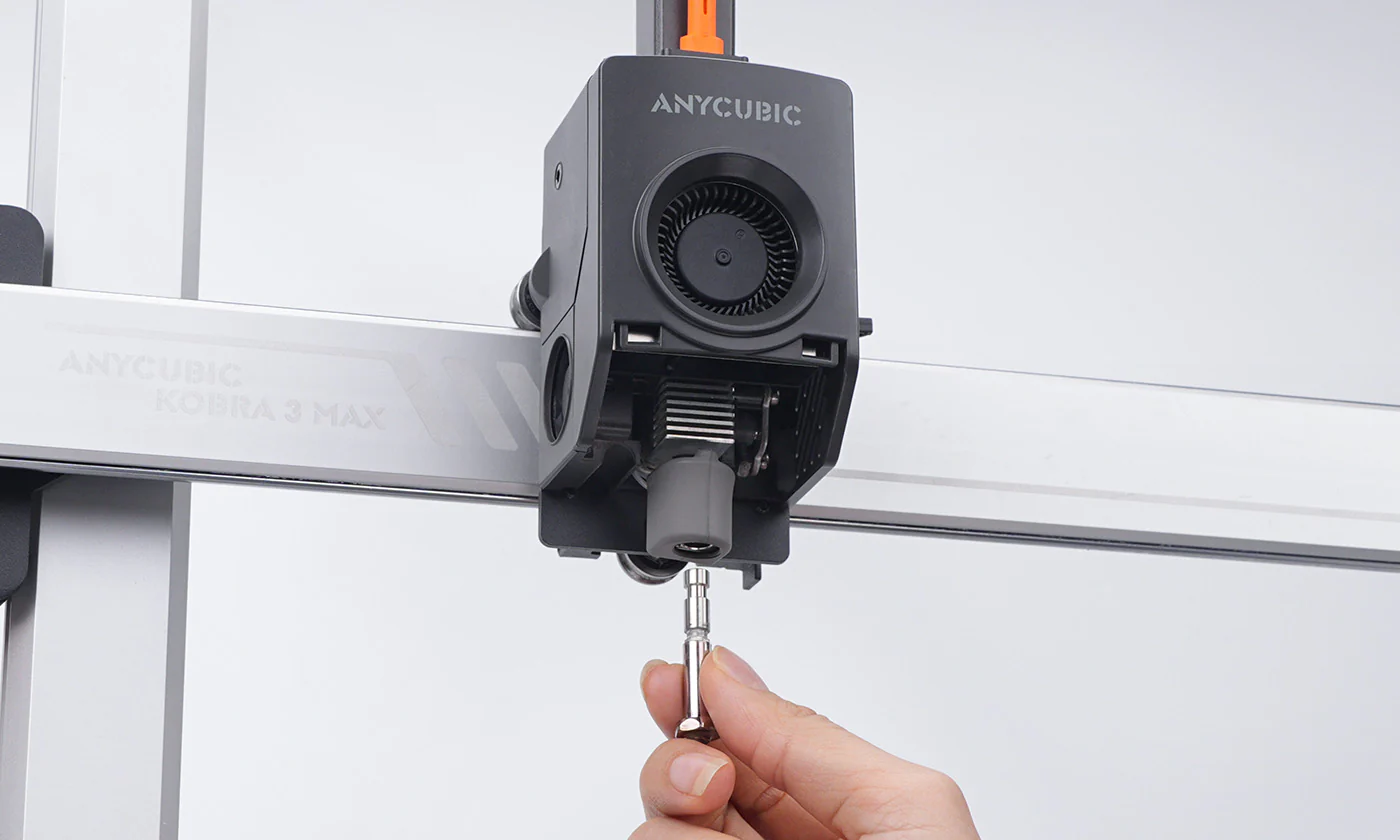

- Extruder and Hotend: Equipped with a direct-drive extruder and a 300°C quick-release, high-temperature hotend, which allows it to print a variety of materials.

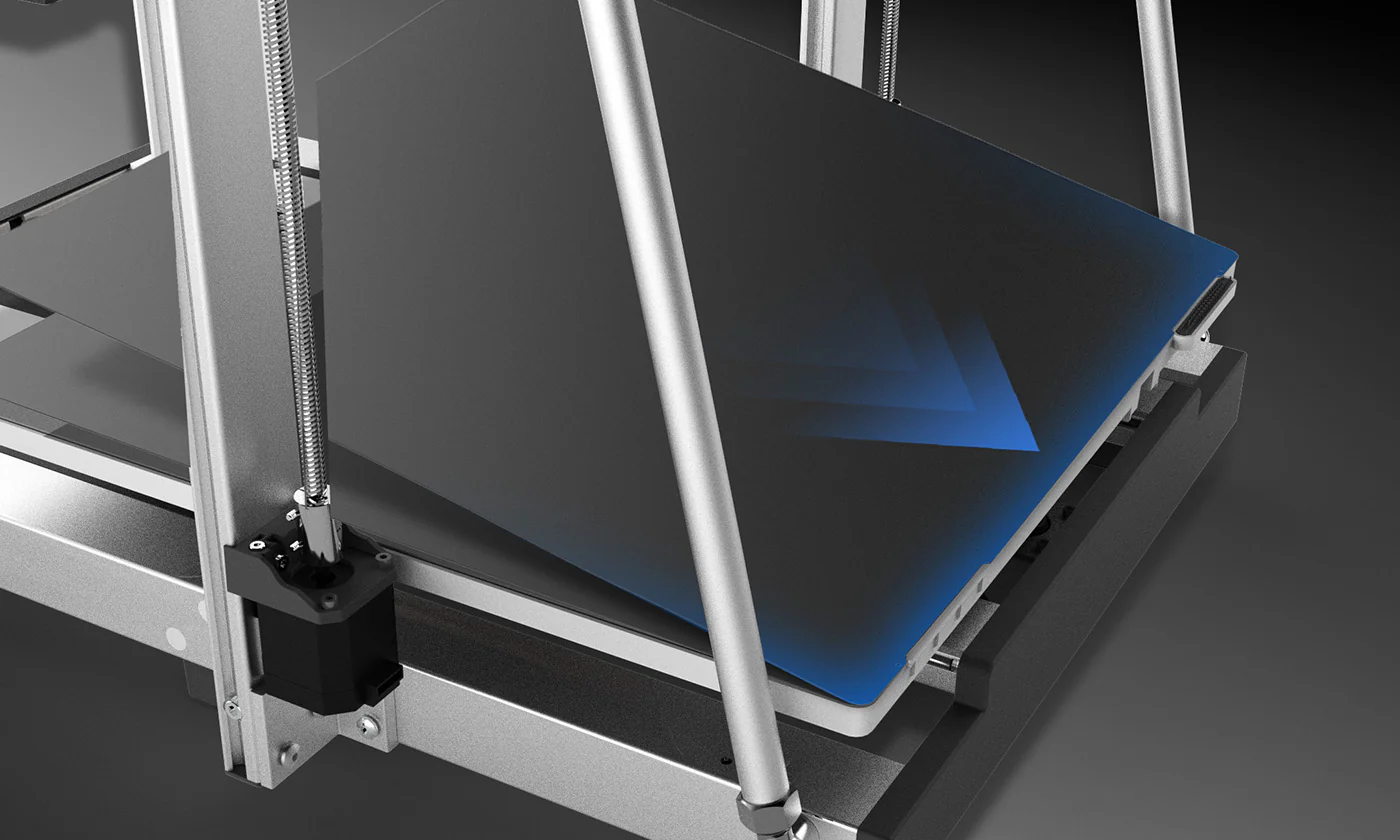

- Bed: Uses a flexible, textured PEI spring steel build plate that heats up quickly.
- AI Detection: Includes AI “spaghetti” detection and a smart pause function to monitor the print process and alert the user to potential failures (requires an optional camera).
- Software and Connectivity: Operates on the custom Kobra OS firmware and integrates with the Anycubic Slicer Next software and the Anycubic mobile app for remote control and monitoring.
Why Choose Kobra 3 Max Combo
Included in the combo package
- Anycubic Kobra 3 Max 3D Printer
- Anycubic ACE Pro filament box
- Tools, grease, and a small sample of PLA filament
- USB stick with software and digital manual

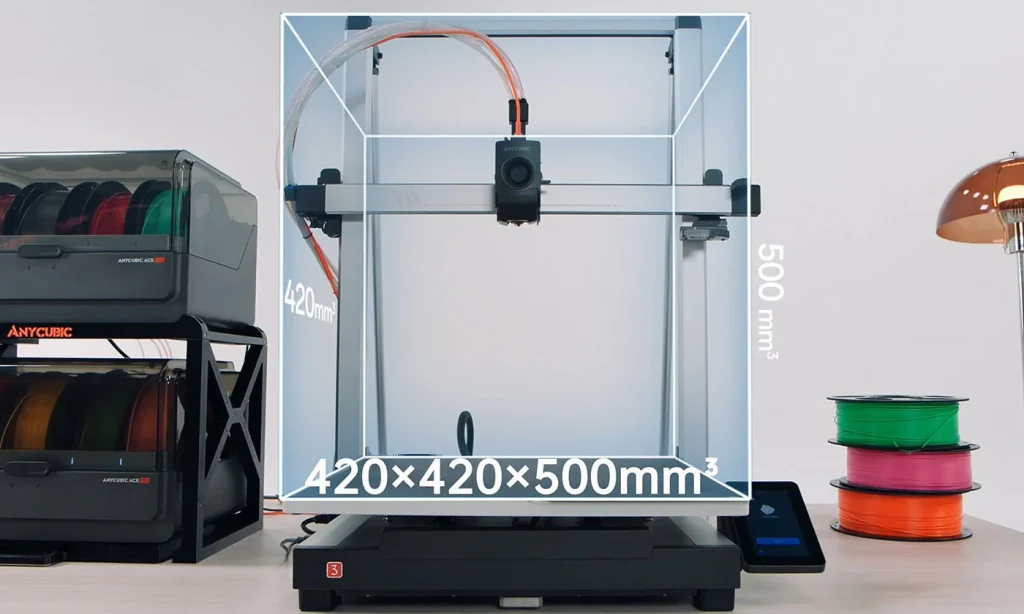

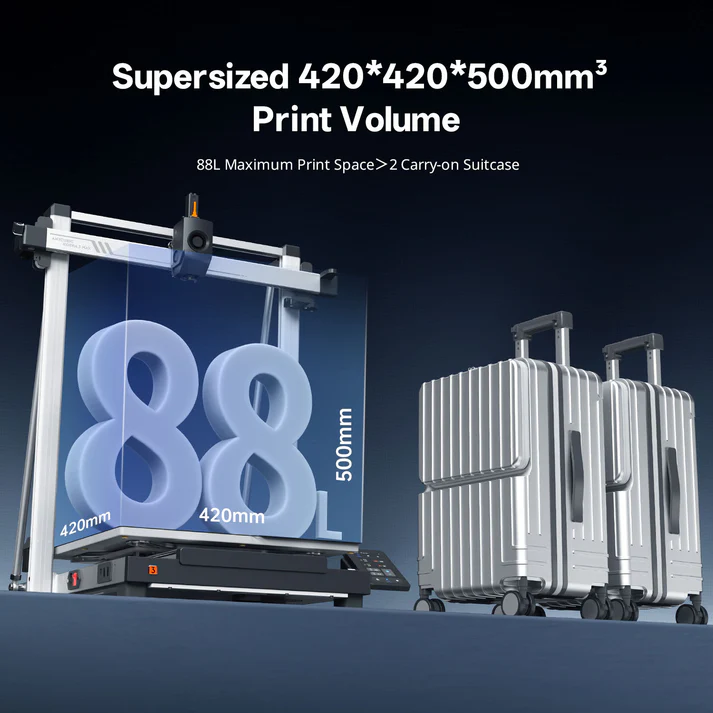

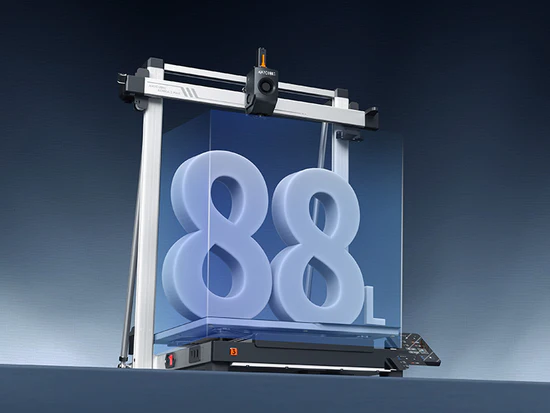

420*420*500mm³ Print Space ＞ 2 Carry-on Suitcases
Ultra-Large Model in a Single Print
Reduce Filament Wastage during Mass Productions
Skip Objects Function Boosts Efficiency & Cuts Costs[1]
ACE Pro Cr8ing Stunning Colors
Supports 4-/8-Color Printing
How it compares to competitors
- Cost: At a price point around $1,000 (often on sale), the Kobra 3 Max Combo offers a large, multicolor build volume at a much lower cost than high-end competitors like the Prusa XL.
- Speed vs. Precision: Though fast for a bed slinger of its size, its speed is not as extreme as a Core XY printer like a Bambu Lab. Some users have reported minor bed adhesion issues, which can be fixed with glue stick or a plate upgrade.
- Material Handling: While the multicolor system works well with PLA and PETG, TPU filament is not compatible with the ACE Pro and must be printed as a single color.

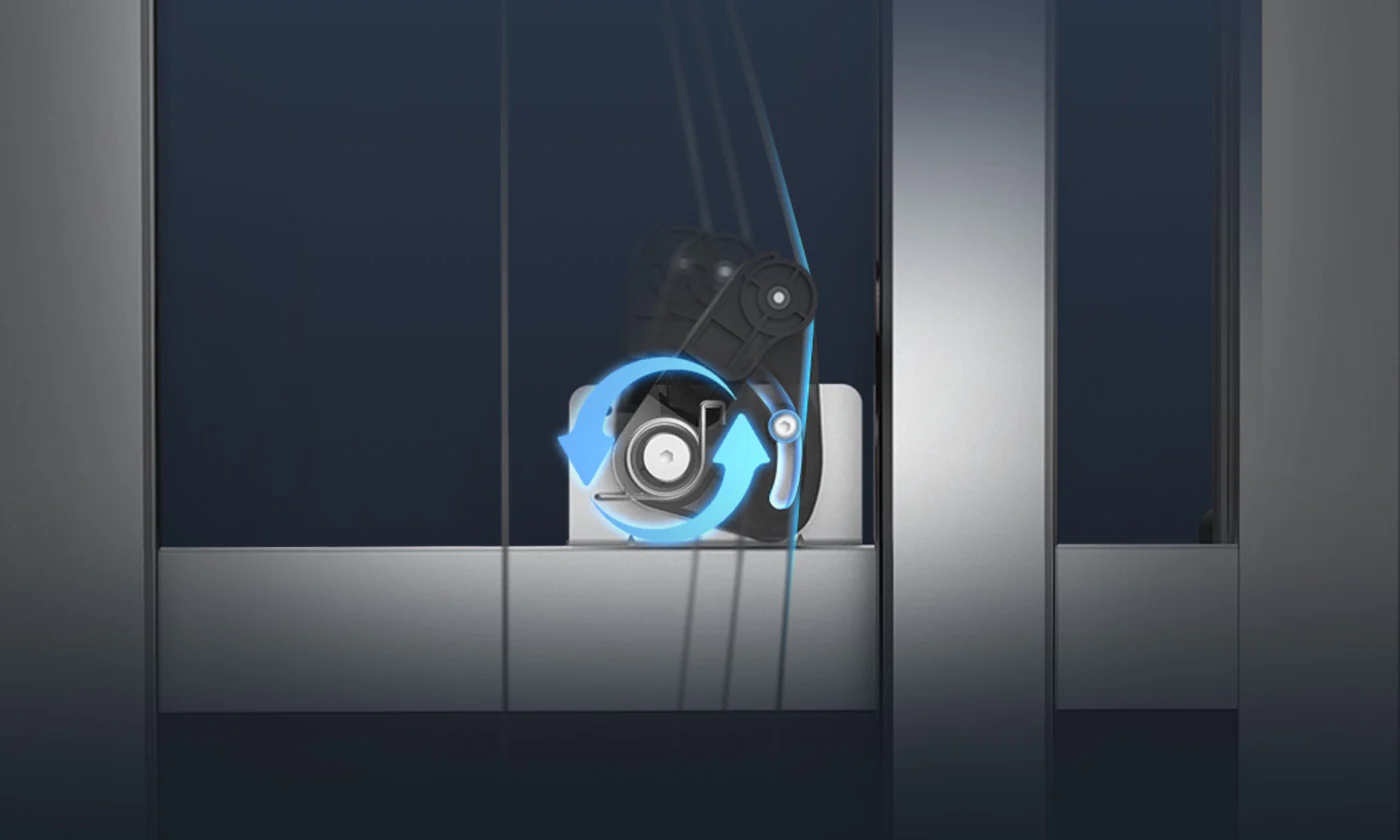

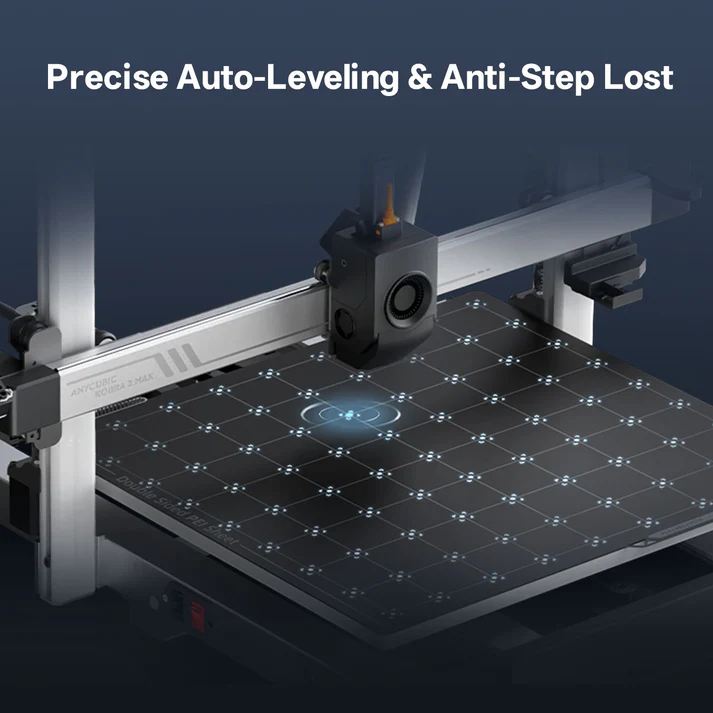

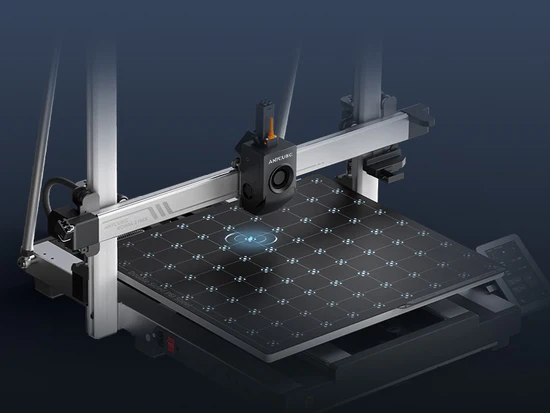

Auto-Leveling & Anti-Skip

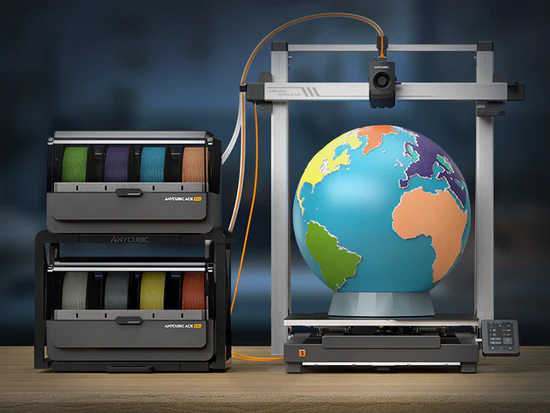

Multicolor Printing Explained

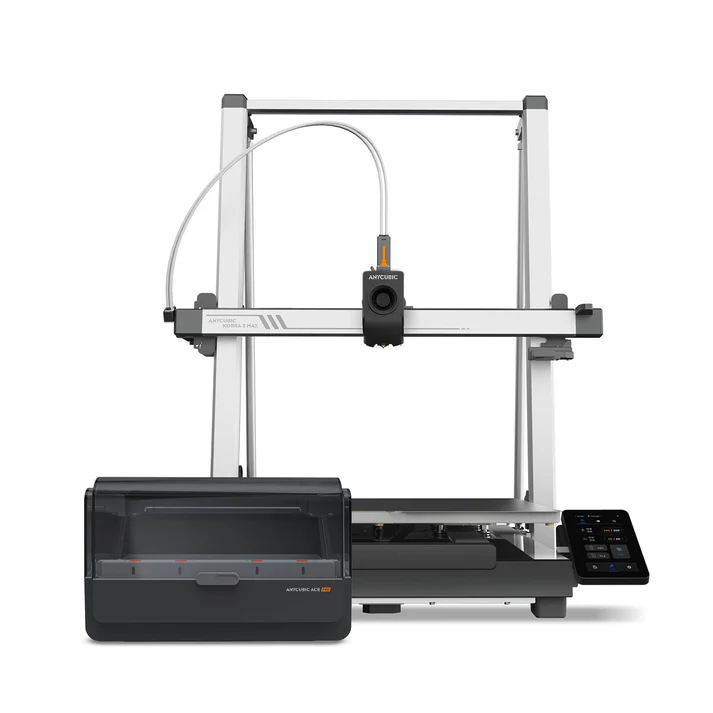

- ACE Pro Unit: Enables 4-color printing

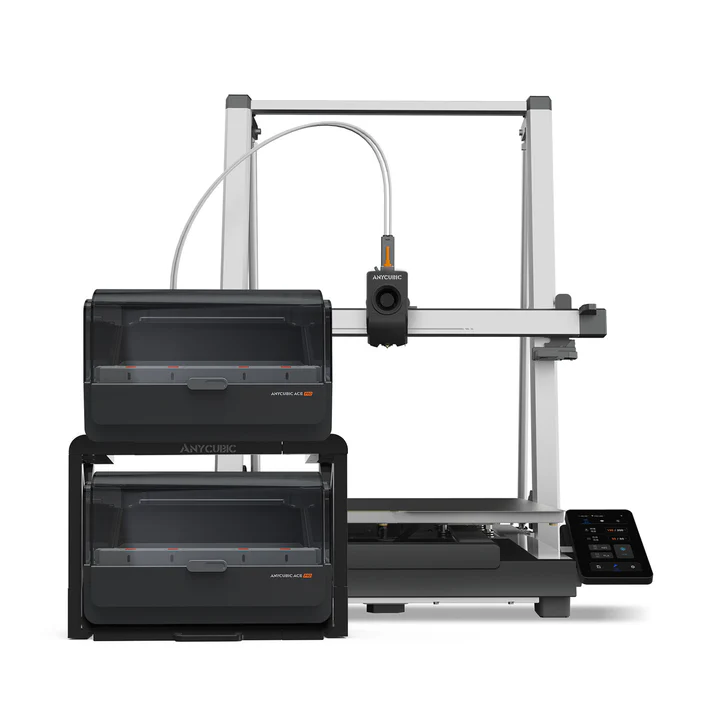

- Dual ACE Pro Setup: Enables 8-color printing
- Feeder Assembly: Connects multiple filaments for seamless switching
- Use Case: Print vibrant models like wall art, toys, cosplay gear, and signage
Speed & Efficiency

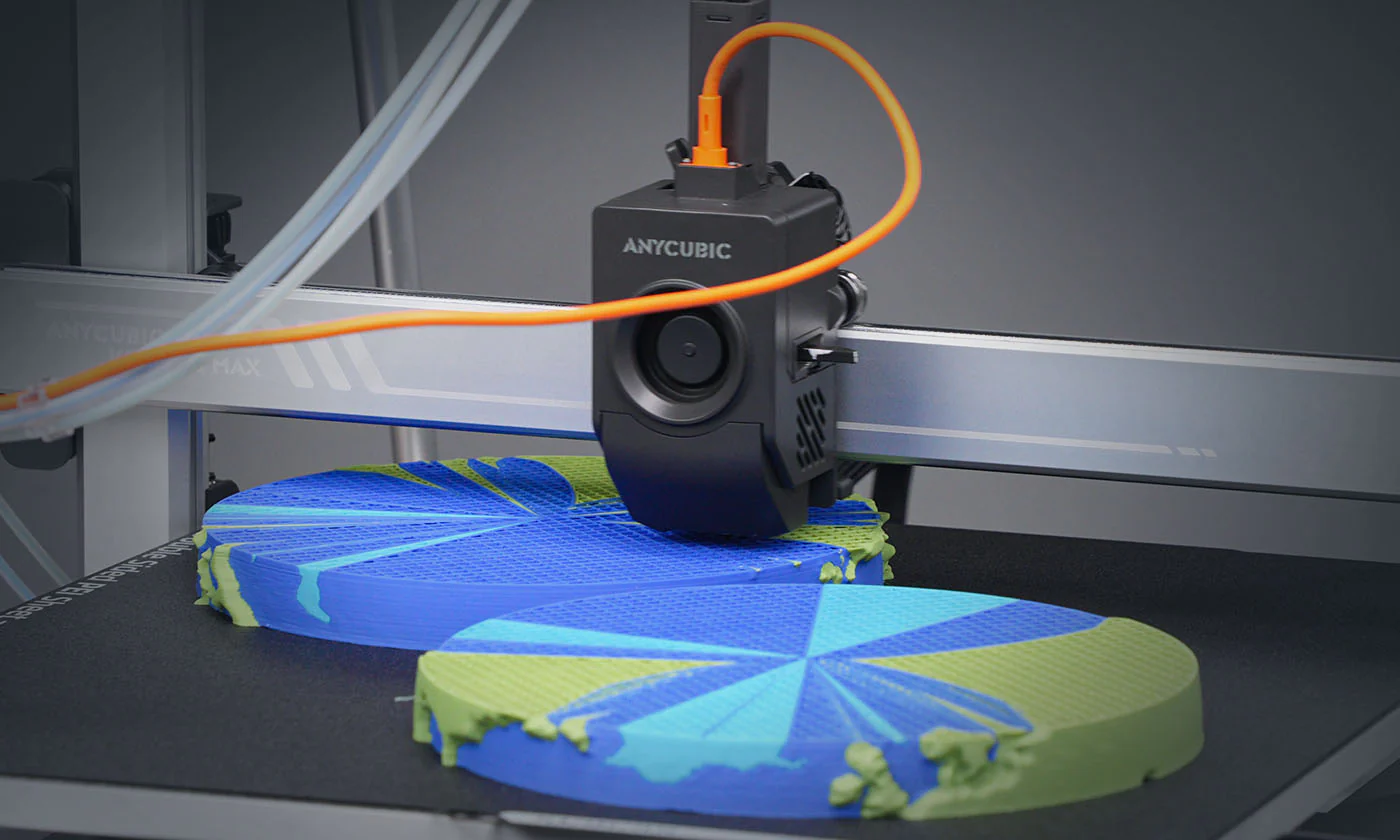

- 600mm/s Print Speed: Among the fastest in its class
- Dual-Axis Core Design: Enhances stability and precision
- Bulk Printing Advantage:
- Print multiple models in one batch
- Reduce filament waste via AI error detection
- Save time with fewer cycles
Effortless, Effective, Efficient
Multi-Filament Intelligent Drying & Filament Auto-Refill & Filament Anti-Entanglement
Performance, to the Max
The Anycubic Software Ecosystem
Anycubic Slicer Next
Anycubic Slicer Next is built upon the open-source software Orca, tailored and optimized specifically for Anycubic printers. It incorporates advanced algorithms refined from various open-source iterations to elevate slicing precision and enhance the overall print quality of models.
Anycubic App
A mobile app specially designed for Anycubic printers, including remote control, remote monitoring, real-time printing records and other intelligent functions.
Specifications
| Core Printing Performance | |||
| Multicolor Printing Supports 4- or 8-color printing | Printing Volume 420*420*500mm (88L) | Supporting Filaments PLA/PETG/TPU (TPU is not compatible with the ACE Pro) | Printing Speed Recommended 300 mm/s, Maximum 600 mm/s |
| Acceleration Maximum 10,000 mm/s² | Nozzle Specs Max Temperature 300°C, Diameter Standard 0.4 mm, expandable to 0.2 / 0.6 / 0.8 mm | Hotbed Specs Max Temperature 90°C, Material PEI spring steel build plate | |
| System & Mechanical Design | |||
| Firmware solution Kobra OS | Kobra OS Construction Gantry System | Extruder Type Short distance extrusion | Machine Leveling LeviQ3.0 Auto-leveling, Z-Offset |
| Pressure Advance / Flow Calibration Supported | Power Loss Resume Supported | Filament Detection & Auto Resume Supported | Filament Entanglement Detection Supported |
| AI Spaghetti Detection Supported | Object-Skip & Area Leveling Supported | Control & Print Methods Via printer, slicing software, Anycubic APP, USB (print only) | |
| User Experience & Features | |||
| Touchscreen 4.3-inch capacitive touch screen | Noise ≤60dB (Standard mode) | Video Monitoring – | Machine Weight Kobra 3 Max – 19kg, ACE Pro – 4.6kg |
| Package Weight Kobra 3 Max – 22.1kg, ACE Pro – 5.7kg | Machine dimensions Kobra 3 Max 706*640*753mm, ACE Pro 365.94*282.84*234.5mm | Packaging dimensions Kobra 3 Max 830*700*205mm, ACE Pro 430*335*305mm |

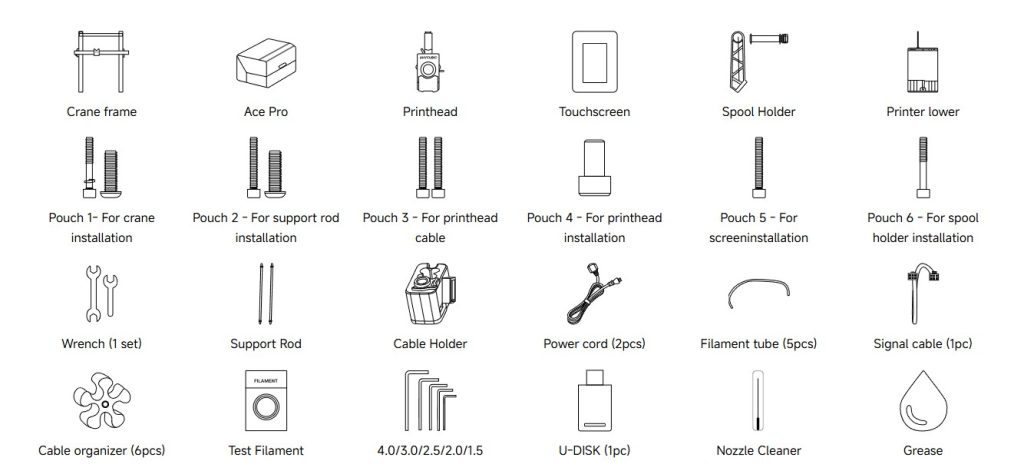

What’s In Box
Smart Features

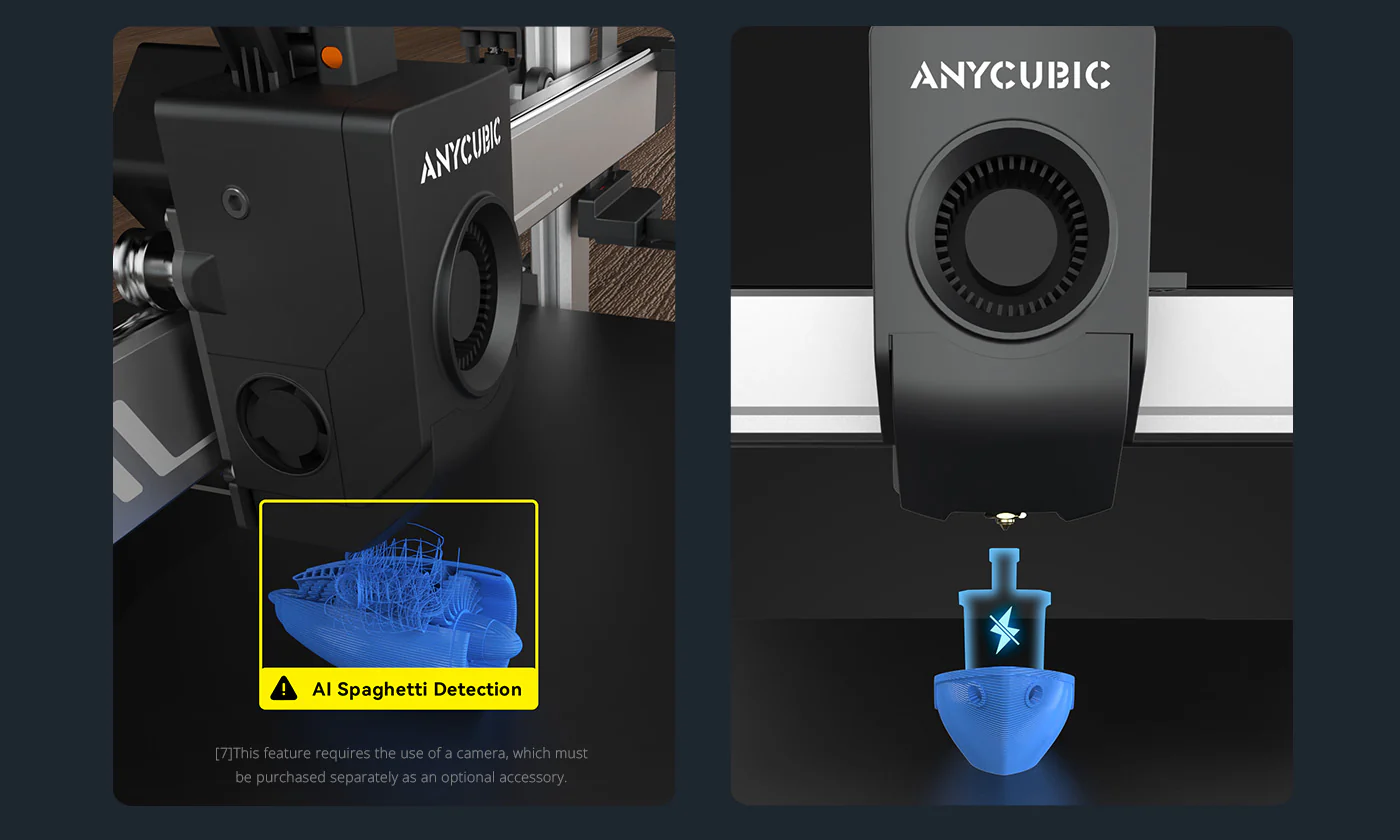

- AI Spaghetti Detection: Pauses print if errors are detected
- Skip Object Function: Skips failed prints during batch jobs
- Auto-Leveling: LeviQ 3.0 system ensures precise bed leveling
- Filament Management:
- Auto-refill
- Anti-entanglement
- Intelligent drying box
Software Ecosystem
- Anycubic Slicer Next:
- Based on Orca open-source slicer
- Optimized for multicolor slicing
- Anycubic App:
- Remote monitoring
- Print status updates
- Cloud connectivity
Kobra 3 Max Series Tech Specs
| Anycubic Kobra 3 Max Combo | Anycubic Kobra 3 Max | Anycubic Kobra 2 Max | |
| Core Printing Performance | |||
| Multicolor Printing | Supports 4- or 8-color printing | Sold separately | |
| Printing Volume | 420*420*500mm (88L) | 420*420*500mm (88L) | |
| Supporting Filaments | PLA/PETG/TPU (TPU is not compatible with the ACE Pro) | PLA/PETG/TPU | |
| Printing Speed | Recommended 300 mm/s, Maximum 600 mm/s | Recommended 300 mm/s, Maximum 600 mm/s | |
| Acceleration | Maximum 10,000 mm/s² | Maximum 10,000 mm/s² | |
| Nozzle Specs | Max Temperature 300°C, Diameter Standard 0.4 mm, expandable to 0.2 / 0.6 / 0.8 mm | Max Temperature 300°C, Diameter Standard 0.4 mm, expandable to 0.2 / 0.6 / 0.8 mm | |
| Hotbed Specs | Max Temperature 90°C, Material PEI spring steel build plate | Max Temperature 90°C, Material PEI spring steel build plate | |
| System & Mechanical Design | |||
| Firmware solution | Kobra OS | Kobra OS | Kobra OS |
| Construction | Gantry System | Gantry System | Gantry System |
| Extruder Type | Short distance extrusion | Short distance extrusion | Short distance extrusion |
| Motion System X-axis | Dual shaft core + SG15 bearings | Dual shaft core + SG15 bearings | X-axis Dual shaft core + SG15 bearings |

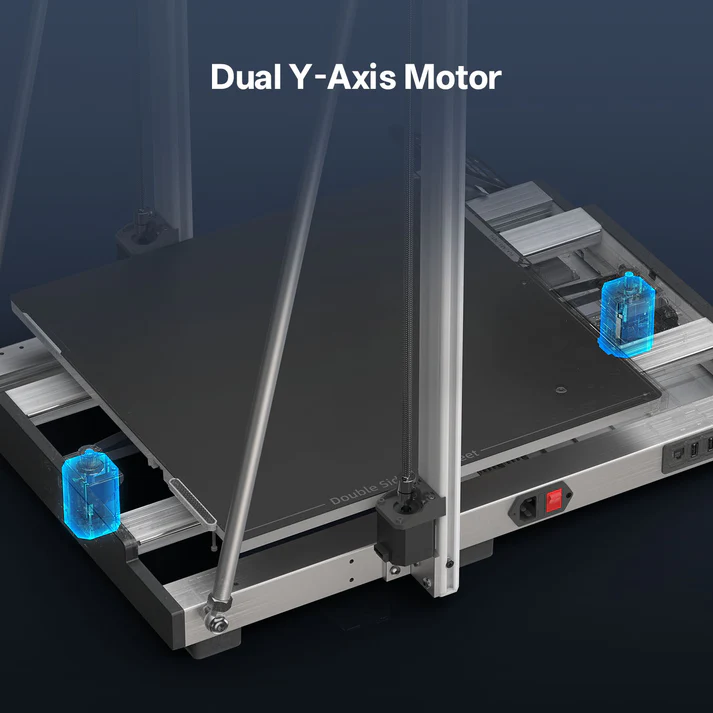

| Motion System Y-axis | Dual shaft core + SG15 bearings + dual motor | Dual shaft core + SG15 bearings + dual motor | Dual shaft core + SG15 bearing + dual motor |
| Motion System Z-axis | Dual motor dual screw | Dual motor dual screw | Dual motor dual screw |
| Machine Leveling | LeviQ3.0 Auto-leveling, Z-Offset | LeviQ3.0 Auto-leveling, Z-Offset | Auto Z-Offset |
| Pressure Advance / Flow Calibration | Supported | Supported | Supported |
| Power Loss Resume | Supported | Supported | Supported |
| Filament Detection & Auto Resume | Supported | Supported | Supported |
| Filament Entanglement Detection | Supported | Supported | Supported |
| AI Spaghetti Detection | Supported | Supported | Supported |
| Object-Skip & Area Leveling | Supported | Supported | Supported |
| Control & Print Methods | Via printer, slicing software, Anycubic APP, USB (print only) | Via printer, slicing software, Anycubic APP, USB (print only) | Via printer, slicing software, Anycubic APP, USB (print only) |
| User Experience & Features | |||
| Touchscreen | 4.3-inch capacitive touch screen | 4.3-inch capacitive touch screen | 4.3-inch capacitive touch screen |
| Noise | ≤60dB (Standard mode) | ≤60dB (Standard mode) | – |
| Video Monitoring | – | – | – |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP / KO | EN / CN / DE / FR / IT / ES / RU / JP / KO | EN / CN |
| Machine Weight | Kobra 3 Max – 19kg, ACE Pro – 4.6kg | 19kg | 17.6kg |
| Package Weight | Kobra 3 Max – 22.1kg, ACE Pro – 5.7kg | 22.1kg | 21.3kg |
| Machine dimensions | Kobra 3 Max 706*640*753mm, ACE Pro 365.94*282.84*234.5mm | 706*640*753mm | 640*735*740mm |
| Packaging dimensions | Kobra 3 Max 830*700*205mm, ACE Pro 430*335*305mm | 830*700*205mm | 830*740*190mm |
What’s in the Box?
- Kobra 3 Max Printer
- ACE Pro Unit(s)
- Filament Drying Box
- Tools & Accessories
- Quick-Release Hotend
- User Manual & Warranty Card
FAQs
What do the [1][2][3][4][5][6][7][8] annotations in the product details mean?
The numbered annotations on the product page correspond to the following explanations:
[1] The Skip Object function is expected to be launched in Q1 2025.
[2] Two ACE Pro units need to be connected using the eight-color feed module.
[3] To achieve a smoother multicolor printing, please prioritize the use of plastic filament spools.

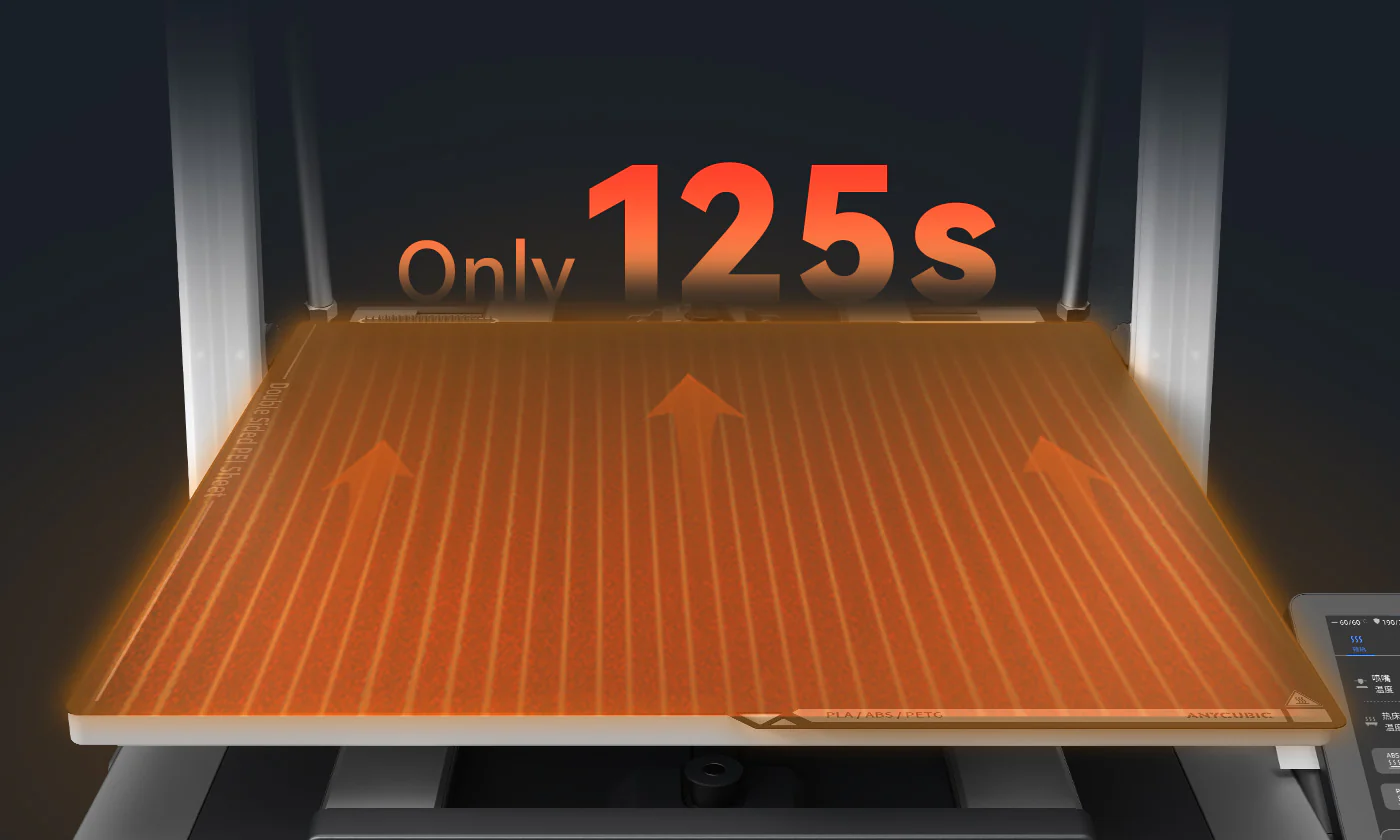

[4] Heating from 25°C to 60°C takes only 125 seconds.
[5] A camera is needed for this function.
[6] A camera is needed for this function.
[7] When selecting models on Makeronline, use a PC with Anycubic Slicer software pre-installed.
[8] The characteristics of TPU filaments make them only suitable for single-color, and they cannot be used together with ACE Pro for dual printing.
Can the Kobra 3 Max Combo use 3mm diameter filaments? What types of filaments can it print?
Kobra 3 Max Combo only supports 1.75mm diameter filaments. It can print PLA, PETG, ABS and TPU.
Does the Kobra 3 Max Combo support 1.75mm filament from other brands? Can the ACE Pro be used with filaments without intelligent identification?
You can use filaments from any brand or other filaments. The Kobra 3 Max only supports PLA series filaments, PETG, ABS, and TPU. The ACE Pro can precisely detect intelligent identification filaments, automatically optimizing printer settings for the best results. If users use filaments without intelligent identification, the ACE Pro will not automatically recognize the material and color.
What is the layer thickness of the Kobra 3 Max Combo?
The original nozzle is 0.4mm (replaceable with 0.2mm, 0.6mm, or 0.8mm nozzles), supporting a precision range of 0.05-0.3mm.
Can the Kobra 3 Max Combo connect to a computer for printing? Are there any system requirements for connecting to a computer?
Yes, it supports computer connection. While connected, Gcode files can be uploaded to the cloud server and pushed to the 3D printer via the cloud after slicing is completed. It supports Windows 10 and above.
How does the filament auto refill function work on the ACE Pro?
1. Materials with intelligent identification are automatically detected as the same material and color, requiring no operation (default automatic feeding).
2. Manual settings for the same material and color also require no operation, defaulting to automatic feeding.
3. Manual settings can require automatic feeding.
How many languages does the Kobra 3 Max Combo support?
The Kobra 3 Max Combo currently supports 9 languages: Chinese, English, German, French, Italian, Spanish, Russian, Japanese, and Korean.
