The Anycubic Photon Mono M7 Max is a large-format resin 3D printer for both hobbyists and professionals, featuring a 14.7L build volume and intelligent resin management. It is the successor to the Photon Mono M3 Max and was released in 2024–2025. The slogan “Bigger, Better, Beyond” refers to its larger print volume, improved features, and upgraded performance.
Visit the Anycubic Photon Mono M7 Max – a high-speed, large-format resin 3D printer delivering precision, reliability, and stunning print quality.
Related internal pages:
- anycubic-photon-mono-m7/
- anycubic-photon-mono-m7-pro/
- anycubic-photon-mono-4/
- anycubic-photon-mono-4-ultra/
- anycubic-photon-mono-2-3d-printer-review/
Photon Mono M7 Max Product Features
● Maximum print speed of 4 Sec per layer (0.05mm layer height)
● LighTurbo 3.0 High-Precision Light Source System
● Intelligent Release 2.0 Precision Control
● 14.7L Ultra-Large Print Volume
● 20-40°C Resin Temperature Control, Resin Auto-Recycling Management
● 8 User-Friendly Improvements

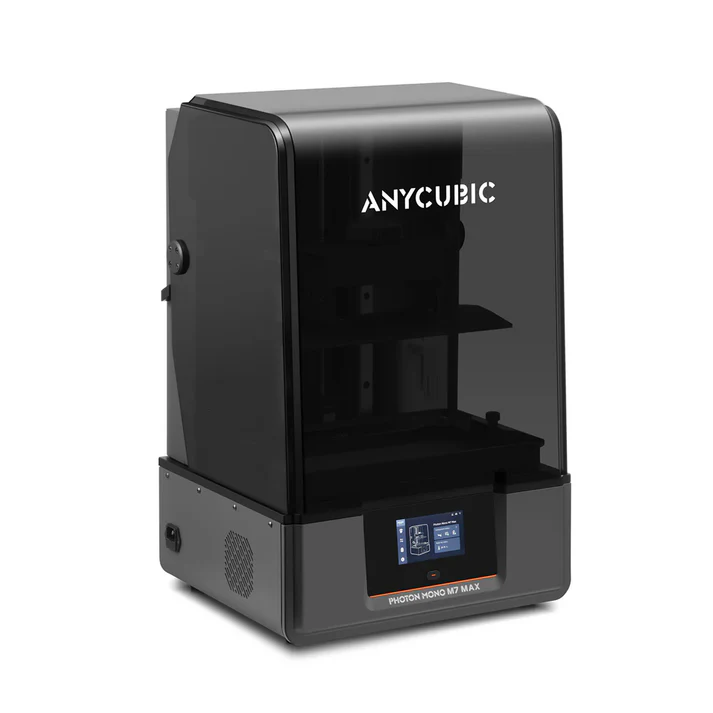

Anycubic Photon Mono M7 Max
Key specifications

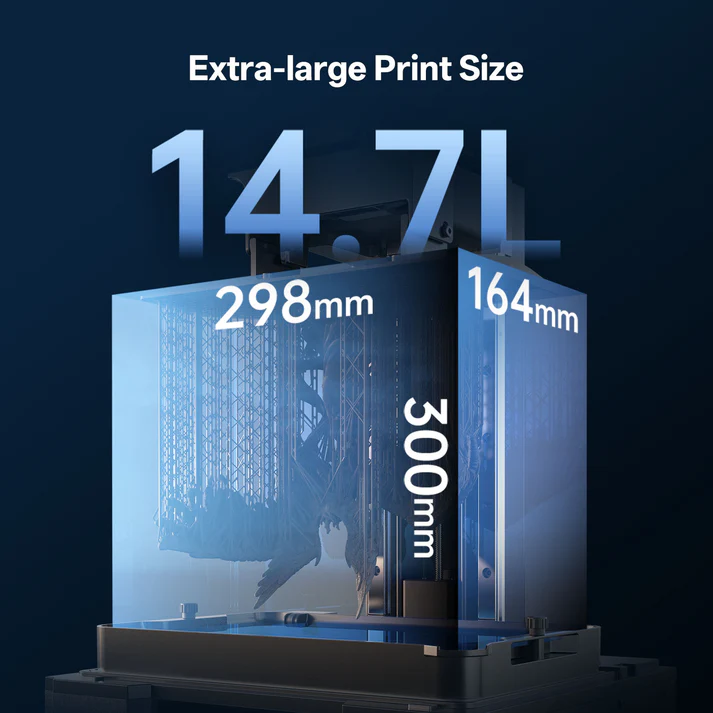

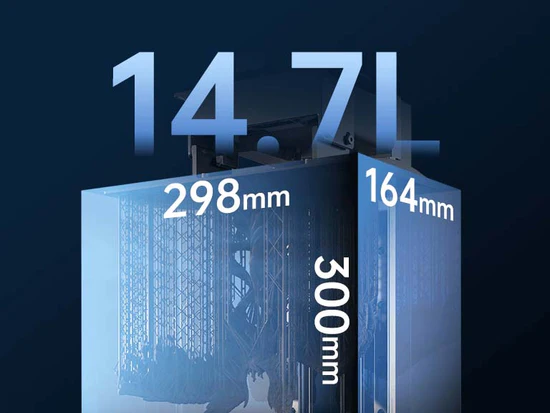

- Build volume: 298 x 164 x 300 mm, or 14.7 liters, for printing large models in a single piece.
- Resolution: A 13.6-inch 7K monochrome LCD screen provides an XY resolution of 46µm for detailed prints.
- Light source: The upgraded LighTurbo 3.0 system provides highly uniform UV light, which improves print consistency and accuracy.
- Speed: It achieves a maximum print speed of 60mm/h with standard resins, which is up to 200% faster than the M3 Max. Faster speeds are possible with specialized high-speed resins.
Why Choose Photon Mono M7 Max
Notable features

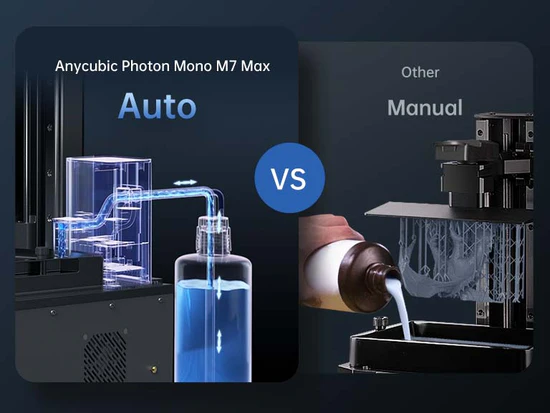

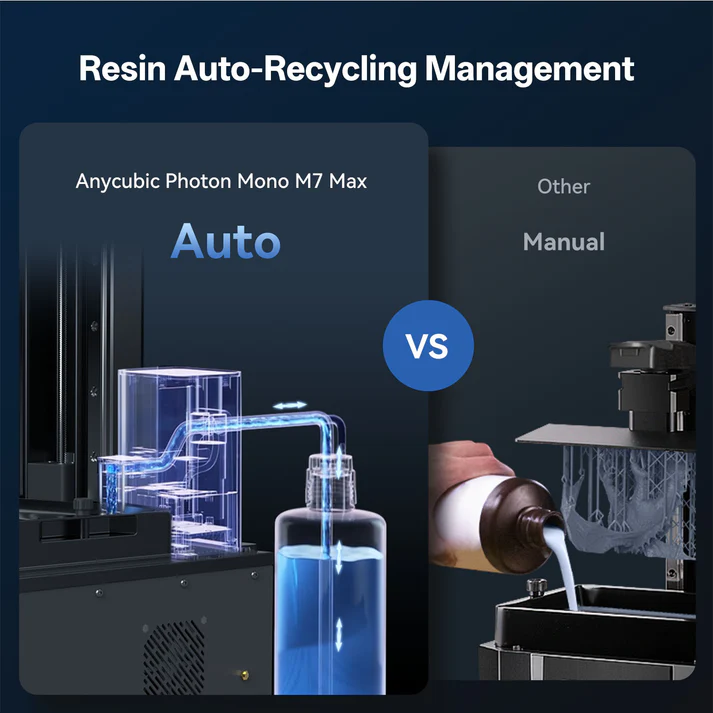

- Intelligent Resin Management: A built-in air pump and sensor system automatically monitors and refills the resin. It can also assist with recycling leftover resin after a print is finished.

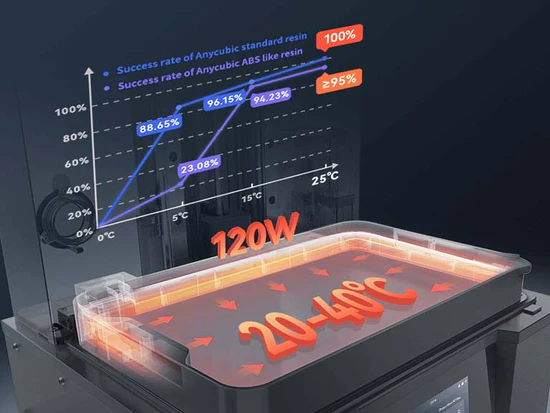

- Dynamic Temperature Control: The resin vat has a 120W heating belt to automatically preheat the resin to an optimal 25°C, which helps improve print success rates.
- Intelligent Release 2.0: A dynamic process that adjusts the light-off time based on slicing data to improve peeling and speed up printing.
- Intelligent Detection: The printer performs a “360° Self-Check” and uses sensors to detect failed prints, resin residue, low resin levels, and film lifespan.
- Usability Improvements:

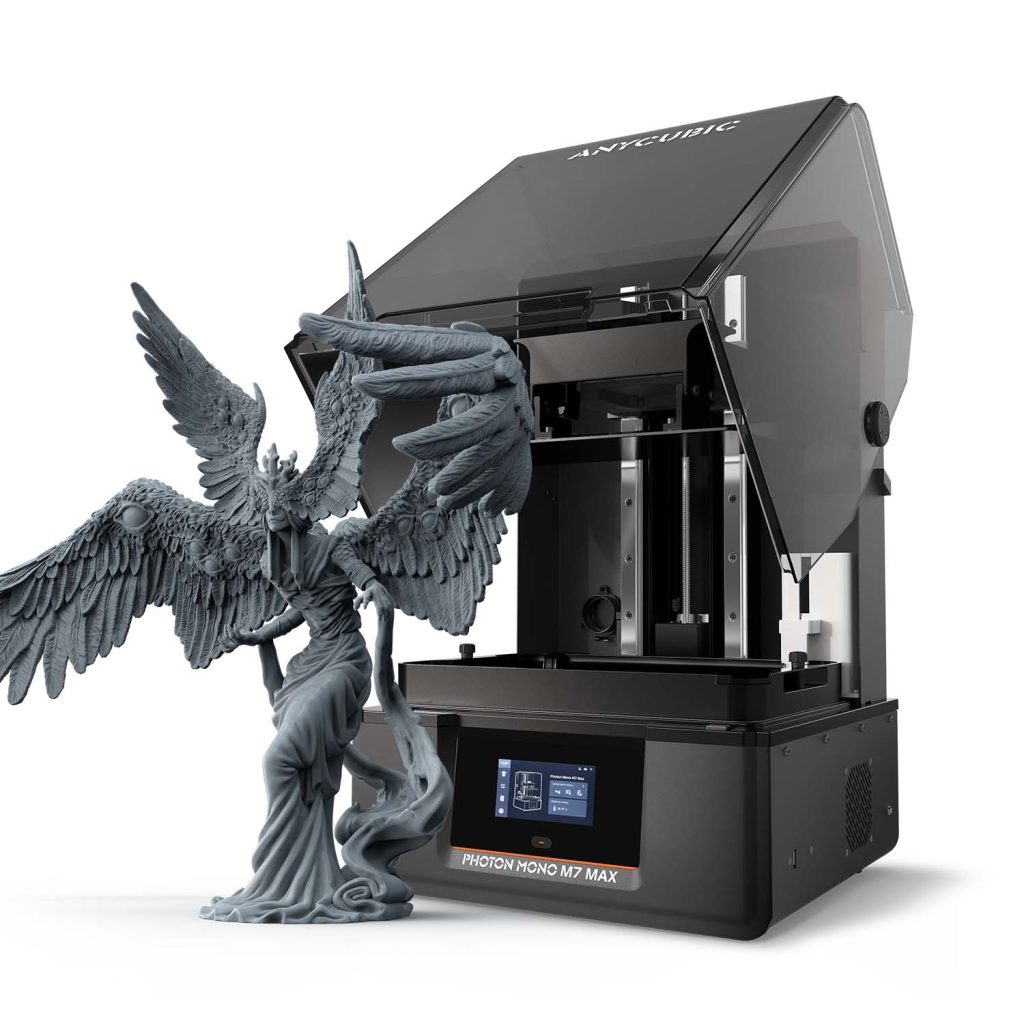

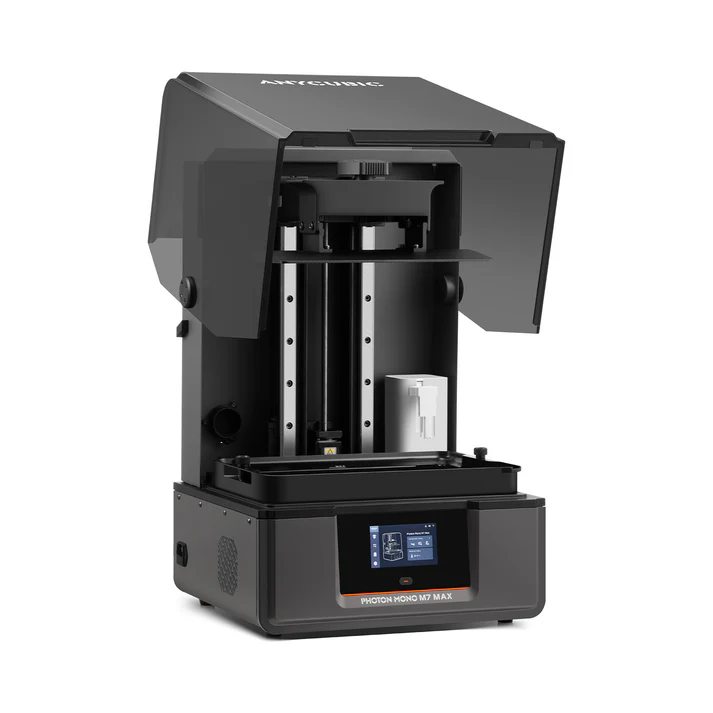

- Flip-open cover: The hinged, UV-blocking cover stays open at an angle greater than 45° for one-handed operation.

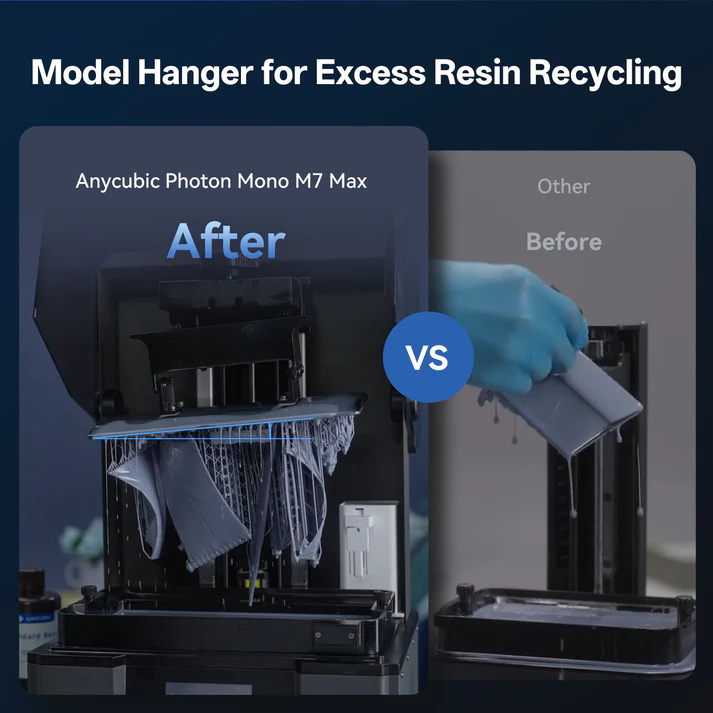

- Suspension drip: After a print finishes, the platform tilts slightly to let excess resin drip back into the vat.
- ACF film: An improved film in the resin vat is designed for smoother and faster layer release.

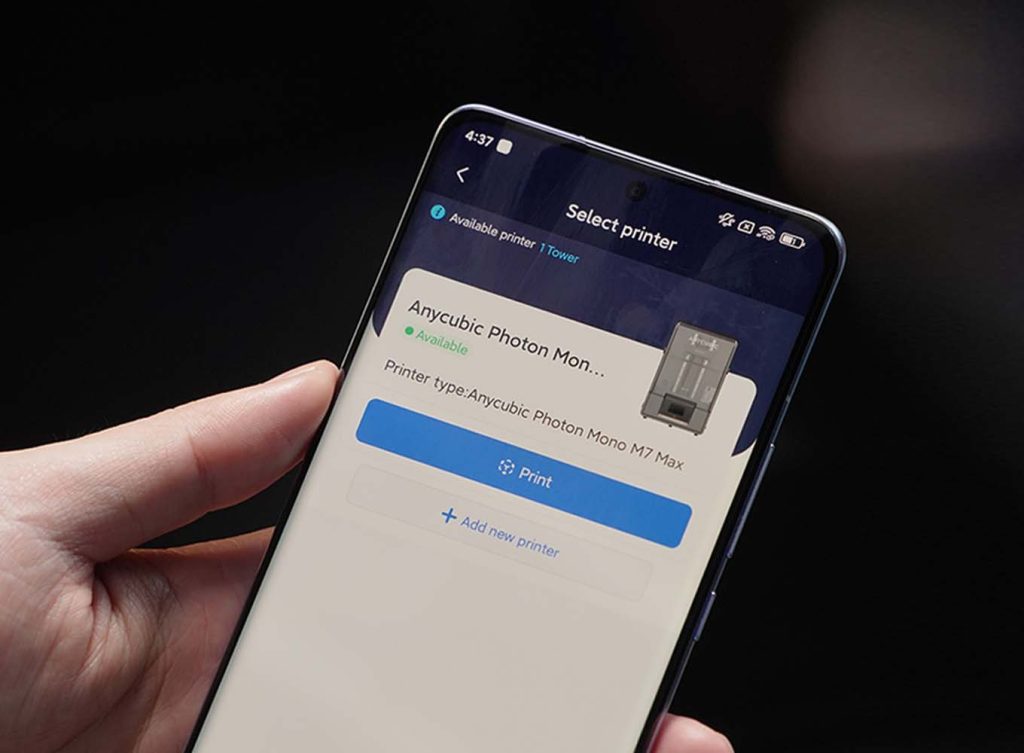

- Connectivity: Supports file transfer via USB or Wi-Fi, and offers app-based remote control and monitoring.
Bigger. Better. Beyond.

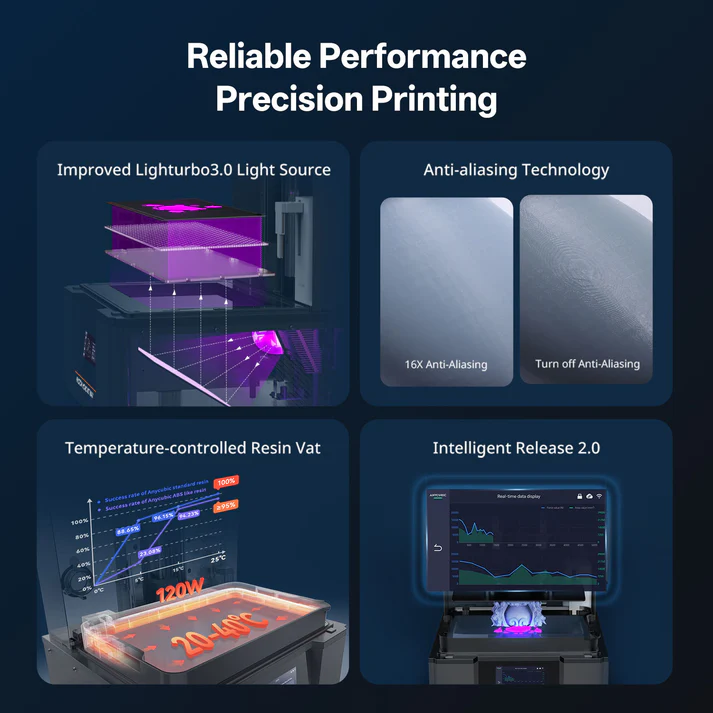

Reliable Performance. Precision Printing.
About this item
- 【Huge Build Volume】 Anycubic Photon Mono M7 Max offers a spacious printing size of 298mm × 164mm × 300mm, allowing for the creation of full-size masks, intricate game terrains, detailed cosplay props, and various models without the hassle of cutting and assembling

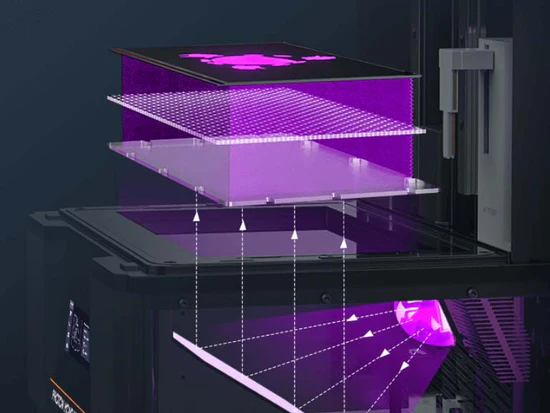

- 【Upgraded Light Source】 LighTurbo 3.0 combines a COB light source and Fresnel lens and factory calibrate technology can reach the light angle within 3°, and light uniformity is more than 90%. With the anti-aliasing feature activated and paired with high-precision positioning lead screws, it effectively minimizes layer lines and aliasing to achieve a higher level of precision
- 【Speedy and Convenient】 The Photon Mono M7 reaches a maximum speed of 60mm/h thanks to intelligent release 2.0. A 200% speed increase comparing to the previous M3 Max printer. In addition, the flip-open cover design supports one-hand opening and hovering angles anywhere greater than 45°that can save time and space
- 【Resin Management Features】 The dynamic temperature control resin vat adjusts the temperature of the resin material to maintain the optimal print temperature at all times, ensuring print success. The resin auto-fill feature allows for automatic filling and one-key recycling of remaining resin. The release film uses an integrated design for easier replacement
- 【User-Friendly Improvements】After printing is completed, the model can be suspended above the platform with a slight angle, allowing the resin to flow back into the resin vat. And a bigger resin vat with 1300ml volume for large models
More Upgrades. More User-friendly.
Intelligent Detection. Seamless Printing.

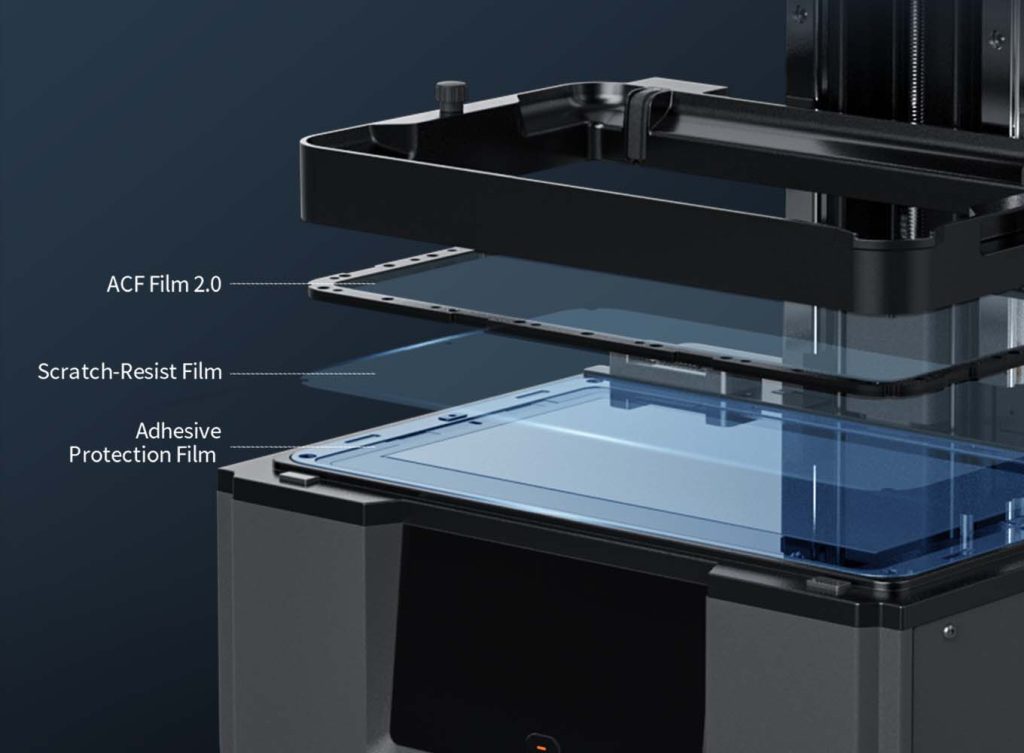

Exposure Screen Protection.
·Reduce the Risk of Resin Leakage

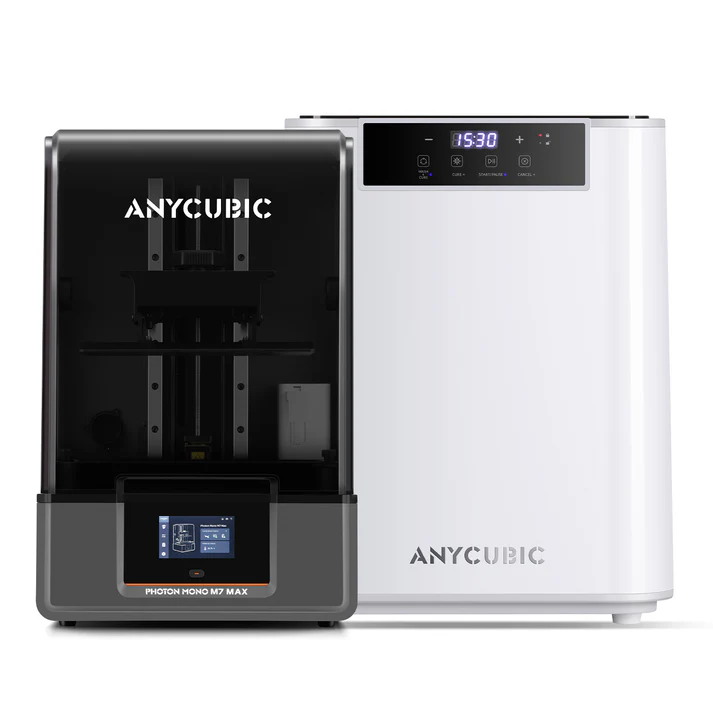

The Anycubic Ecosystem.
Specifications
| Core Printing Performance | |||
| Printing Volume 298*164*300mm (14.7L) | Printing Speed Max Speed ≤63mm/h; Standard Resin (0.05mm): ≤31mm/h; Standard Resin (0.1mm): ≤63mm/h; High-Speed Resin (0.1mm): ≤86mm/h | Layer Height Range 0.01 – 0.15mm | X/Y Axis Resolution 46 × 46μm |
| Light Source COB light source+ Fresnel lens+Light uniformity algorithm | Light Intensity 4500 ±10% μW/cm² | Material Compatibility High-speed, water-washable, standard, ABS-like, and plant-based resins, etc | |
| System & Mechanical Design | |||
| Build Platform Laser-engraved aluminum build plate | Laser-engraved aluminum build plate Release film Improved ACF film | Z-axis Dual linear rails with 10 μm precision | Resin Vat ≤1.3 L, unibody design with scale markings |
| Machine Leveling 4-point manual leveling | Power Loss Resume Supported | Power Supply 180W | Protection Film Replaceable scratch-resistant film |
| Resin Auto-fill Unit Supported | Dynamic Temperature Control Resin Vat Supported | ||
| User Experience & Features | |||
| Hinged Cover UV-blocking; supports one-handed operation and hover at angles > 45° | Operating Screen 4.3″ Touch-Control | ||
| Anycubic App Supported | Multilingual Support EN / CN / DE / FR / IT / ES / RU / JP | ||
| Product Dimensions 425*362*652mm | Packaging Dimensions 785*520*490mm |

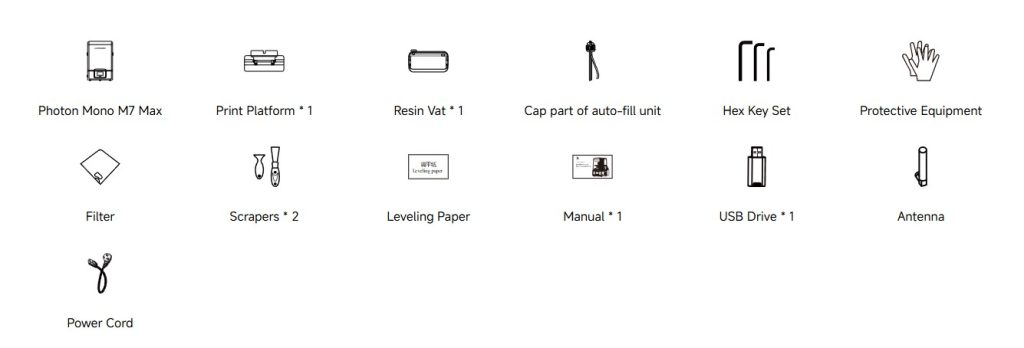

What’s In Box
Photon Mono M7 Series Tech Specs
| Anycubic Photon Mono M7 Max | Anycubic Photon Mono M7 Pro | Anycubic Photon Mono M7 | |
| Core Printing Performance | |||
| Printing Volume | 298*164*300mm (14.7L) | 223*126*230mm (6.5L) | 223*126*230mm (6.5L) |
| Printing Speed | Max Speed ≤63mm/h; Standard Resin (0.05mm): ≤31mm/h; Standard Resin (0.1mm): ≤63mm/h; High-Speed Resin (0.1mm): ≤86mm/h | Max Speed ≤130mm/h; Standard Resin (0.1mm): ≤130mm/h; High-Speed Resin (0.1mm): ≤170mm/h | Max Speed ≤90mm/h; Standard Resin (0.1mm): ≤90mm/h; High-Speed Resin (0.1mm): ≤150mm/h |
| Layer Height Range | 0.01 – 0.15mm | 0.01 – 0.15mm | 0.01 – 0.15mm |
| X/Y Axis Resolution | 46 × 46μm | 16.8 × 24.8μm | 16.8 × 24.8μm |
| Light Source | COB light source+ Fresnel lens+Light uniformity algorithm | COB light source+ Fresnel lens+Light uniformity algorithm | COB light source+ Fresnel lens+Light uniformity algorithm |
| Light Intensity | 4500 ±10% μW/cm² | 5500 ±10% μW/cm² | 4500 ±10% μW/cm² |
| Material Compatibility | High-speed, water-washable, standard, ABS-like, and plant-based resins, etc | High-speed, water-washable, standard, ABS-like, and plant-based resins, etc | High-speed, water-washable, standard, ABS-like, and plant-based resins, etc |
| System & Mechanical Design | |||
| Build Platform | Laser-engraved aluminum build plate | Laser-engraved build plate | Laser-engraved build plate |
| Release film | Improved ACF film | Improved ACF film | Improved ACF film |
| Z-axis | Dual linear rails with 10 μm precision | Dual linear rails with 10 μm precision | Dual linear rails with 10 μm precision |
| Resin Vat | ≤1.3 L, unibody design with scale markings | ≤1L | ≤1L |

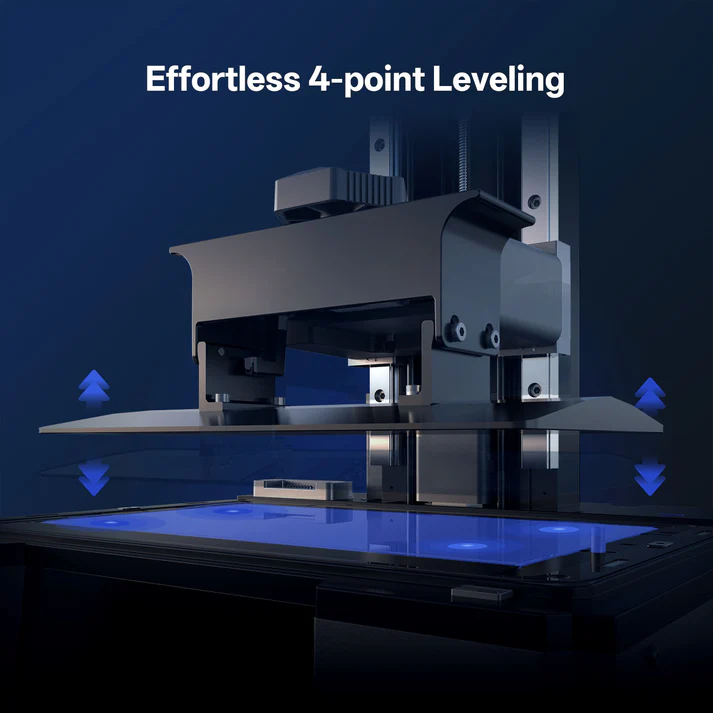

| Machine Leveling | 4-point manual leveling | Leveling-free | Leveling-free |
| Power Loss Resume | Supported | Not supported | Not supported |
| Power Supply | 180W | 240W | 135W |
| Protection Film | Replaceable scratch-resistant film | Replaceable scratch-resistant film | Replaceable scratch-resistant film |
| Resin Auto-fill Unit | Supported | Supported | Not supported |
| Dynamic Temperature Control Resin Vat | Supported | Supported | Not supported |

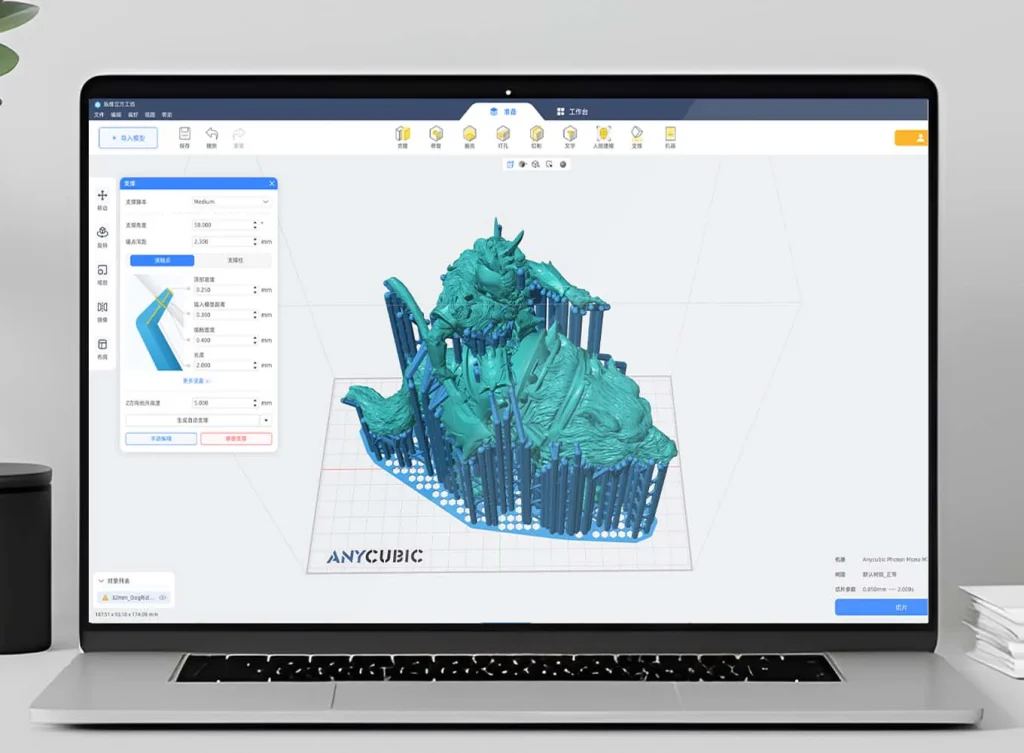

| Slicing Software | Photon Workshop, Chitubox, LycheeSlicer (Q4) | Photon Workshop, Chitubox, LycheeSlicer (Q4) | Photon Workshop, Chitubox, LycheeSlicer (Q4) |
| File Transfer | USB/WiFi/LAN (2025 Q1) | USB/WiFi/LAN | USB/WiFi/LAN (2025 Q1) |
| User Experience & Features | |||
| Hinged Cover | UV-blocking; supports one-handed operation and hover at angles > 45° | – | – |
| Operating Screen | 4.3″ Touch-Control | 4.3″ Touch-Control | 4.3″ Touch-Control |
| Air Purifier | Optional accessory | Optional accessory | Optional accessory |
| LCD Screen | 13.6-inch monochrome LCD, 7K resolution | 10.1-inch monochrome LCD, 14K resolution | 10.1-inch monochrome LCD, 14K resolution |
| Anycubic App | Supported | Supported | Supported |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP | EN / CN / DE / FR / IT / ES / RU / JP | EN / CN / DE / FR / IT / ES / RU / JP |
| Machine Weight | 24kg | 12.8kg | 12kg |
| Package Weight | 28.5kg | 15.2kg | 13kg |
| Product Dimensions | 425*362*652mm | 312*315*520mm | 312*315*520mm |
| Packaging Dimensions | 785*520*490mm | 620*395*395mm | 620*395*395mm |
FAQs
How many languages does the Photon Mono M7 Max support?
Supports 8 languages (Chinese, English, German, Russian, Spanish, French, Japanese, Italian).
Is there any environmental requirement for the Photon Mono M7 Max?
Recommended ambient temperature: 8℃-40℃. If the temperature falls below this range, it is recommended to enable the resin heating function. Humidity: 20%-50%. Avoid direct sunlight or exposure to other ultraviolet light sources.
Can automatic feeding and air purification be used simultaneously?
Currently, only one can be used at a time, as they share a single USB power interface. When using the air purifier, you can switch to Air Purification Mode in advanced settings to turn it off individually if needed.
Are there other slicing software options available?
Chitu and Tango can also be used (depending on their latest versions), but Lychee is currently not supported.
What should I do if the power suddenly goes out when the model is almost finished printing?
The Photon Mono M7 Max has a power-resume function, but it cannot guarantee a flawless print after resuming.
