The Anycubic Photon Mono M7 Pro is a high-speed resin 3D printer that achieves its accelerated performance through a combination of hardware and software innovations. Its “leap ahead” is based on faster print speeds, higher resolution, and a suite of smart features designed to improve print quality and reliability.
Product Features
● 170mm/h with High-speed Resin
● 10.1”, 14K (13320 * 5120) LighTurbo 3.0 (COB+Fresnel Lens)
● Auto-Adaptive Technology Control Heating
● Auto Resin Refill, Withdrawal
● Intelligent Workflow-Assist Printing
Anycubic Photon Mono M7 Pro offers ultra-fast resin 3D printing with high precision, larger build volume and user-friendly features for creators.
Related internal pages:
- anycubic-photon-mono-m7/
- anycubic-photon-mono-m7-max/
- anycubic-photon-mono-4/
- anycubic-photon-mono-4-ultra/
- anycubic-photon-mono-2-3d-printer-review/

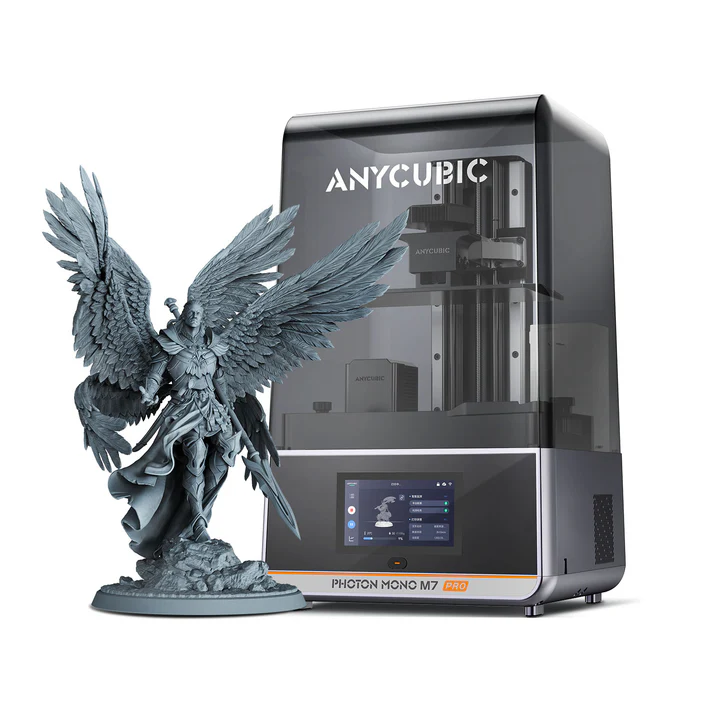

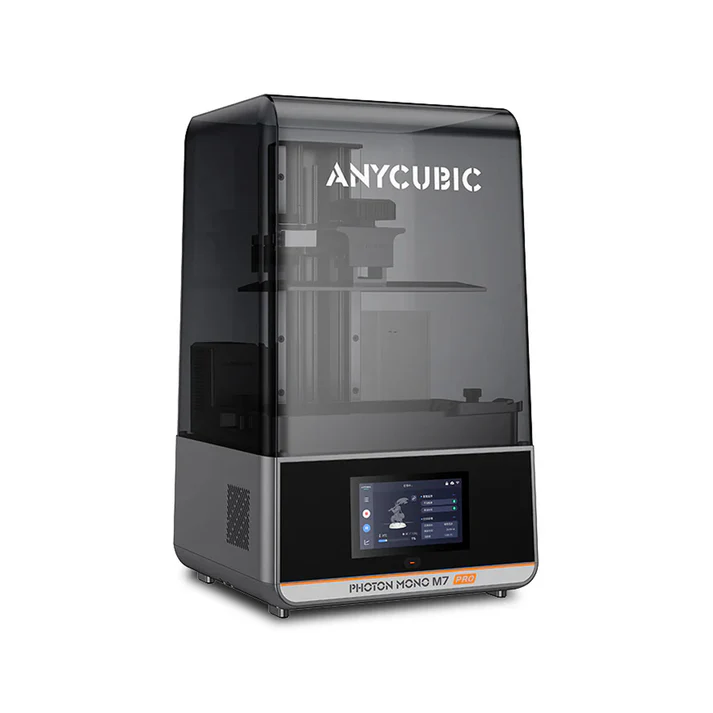

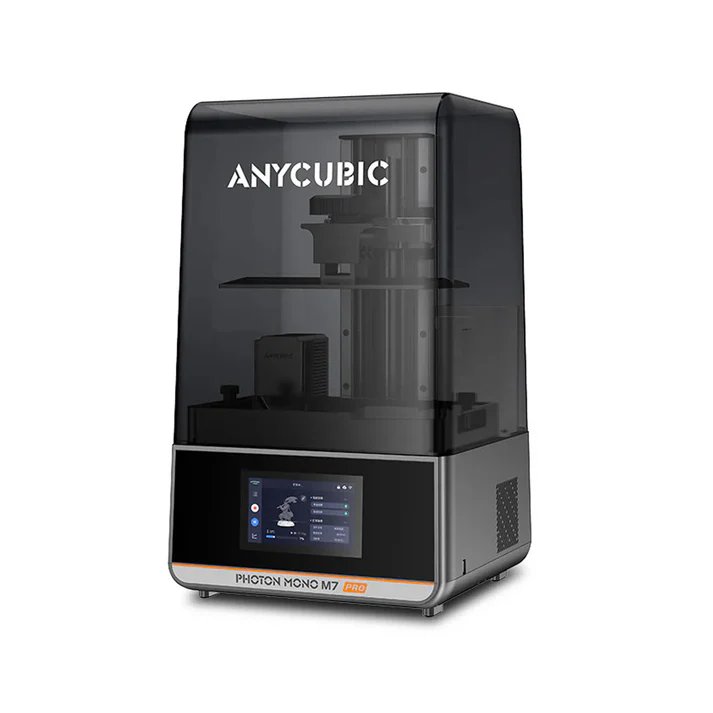

Anycubic Photon Mono M7 Pro
Key innovations for high speed and precision
- Ultra-fast printing speeds: The M7 Pro can reach speeds of up to 130mm/h with standard resin and an impressive 170mm/h when using Anycubic’s High-Speed Resin 2.0. This significantly improves efficiency and productivity compared to previous generations.

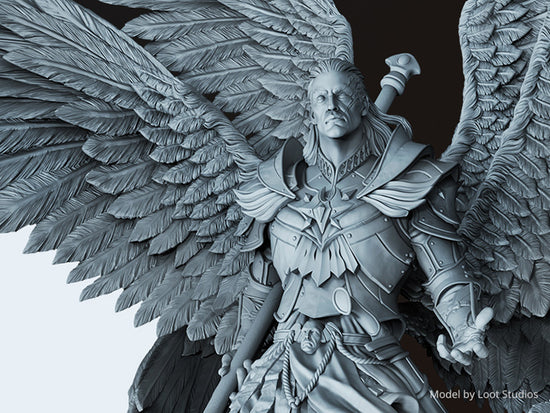

- 14K high-definition display: The 10.1-inch monochrome LCD screen features a 14K resolution (13312 x 5120 pixels), resulting in an XY resolution of just 16.8 x 24.8 µm. This allows the printer to produce highly detailed and intricate models with exceptional sharpness.
- LighTurbo 3.0 optical system: This advanced light source uses a COB (Chip-on-Board) system with Fresnel lenses and front-facing reflectors. This combination ensures high light uniformity, with over 90% across the build plate, and a tightly focused light angle of less than 3° to produce precise details and minimal stray light.

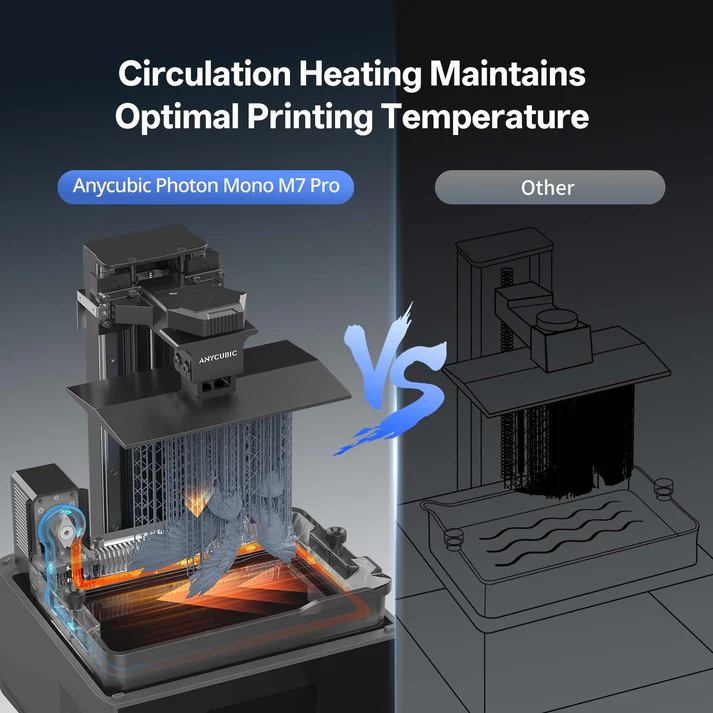

- Intelligent dynamic temperature control: The resin vat features an automatic heating and cooling system to maintain an optimal temperature of 25°C. This ensures consistent resin viscosity, which is critical for print success, especially when printing in colder environments.
- Light-off compensation algorithm: The printer can dynamically adjust the light-off time between layers based on the exposure area and resin flow rate. This ensures each layer is fully exposed and cleanly separates from the film, which boosts the success rate of prints.
Why choose Photon Mono M7 Pro
Enhanced features for convenience and reliability

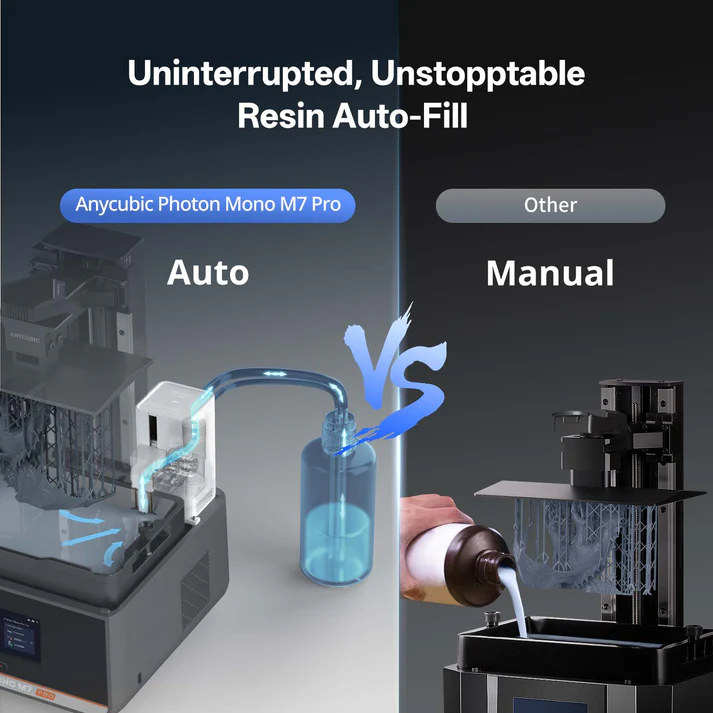

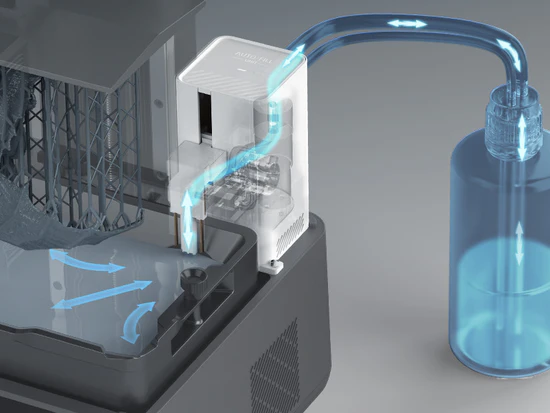

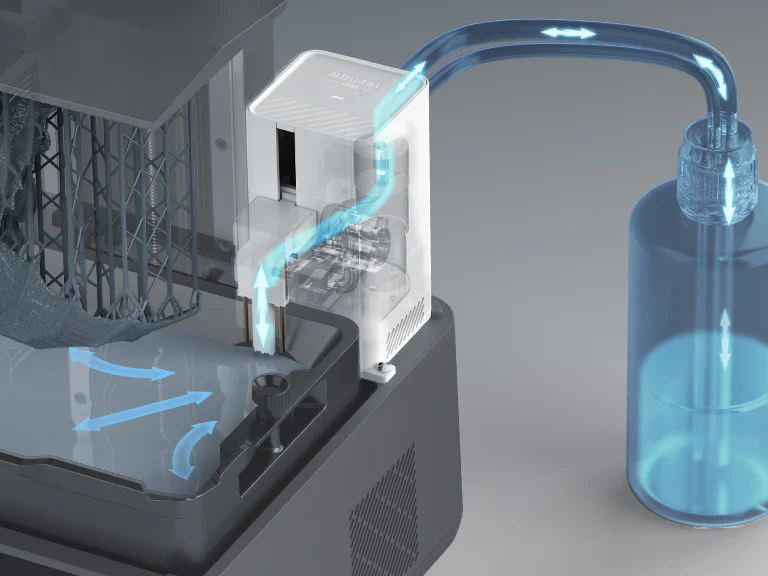

- Automatic resin management: An automated system is built in to handle the resin, including a unit for automatically refilling the vat during a print and a one-key function for recycling leftover resin after the print is finished.
- Zero-leveling experience: The M7 Pro offers automatic and precise leveling. This eliminates the need for manual calibration, simplifying the setup process for both beginners and experienced users.
- Smart detection and workflow: The printer includes multiple intelligent detection functions to improve the success rate of prints. These features can check for insufficient resin levels, detect potential print failures, and monitor the lifespan of the release film to remind you when it needs to be replaced.
- Air purification: An integrated Anycubic AirPure system with an activated carbon filter absorbs and filters up to 99% of VOCs and resin odors, creating a safer and more pleasant printing environment.
Full Speed Ahead
Who is the M7 Pro for?
The combination of speed, high resolution, and automated features makes the Photon Mono M7 Pro a powerful tool for a wide range of users, including:
- Professionals who need fast turnaround times for prototypes and final products.
- Hobbyists who want to step up their resin printing game with less-manual hassle.
- Jewelry makers, dental professionals, and miniature painters who require the highest level of detail and a reliable printing process.
The All-New 14K Optical Sources System LighTurbo 3.0
Expansive Space for Your Creativity

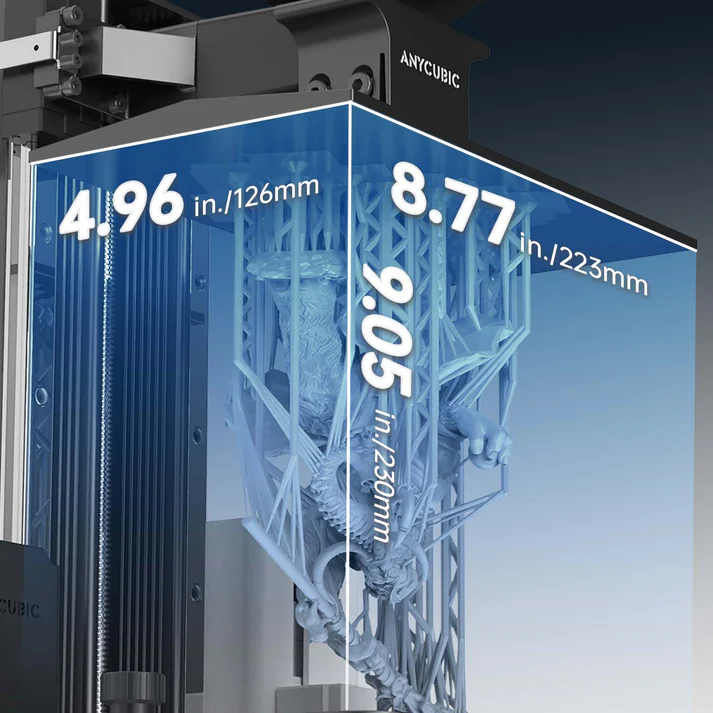

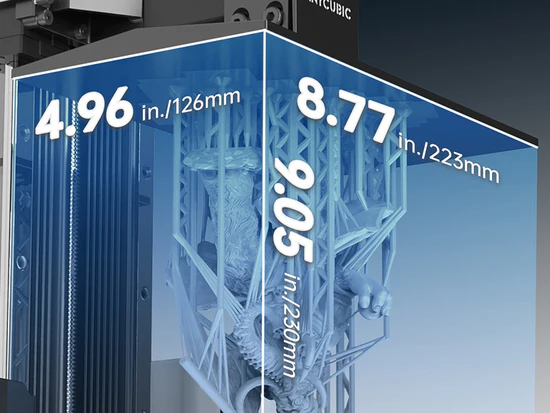

Photon Mono M7 Pro has a build volume of 223*126*230mm, providing ample space for your creativity.
Intelligence-Assisted Printing System
Efficiency.Leveling-free.

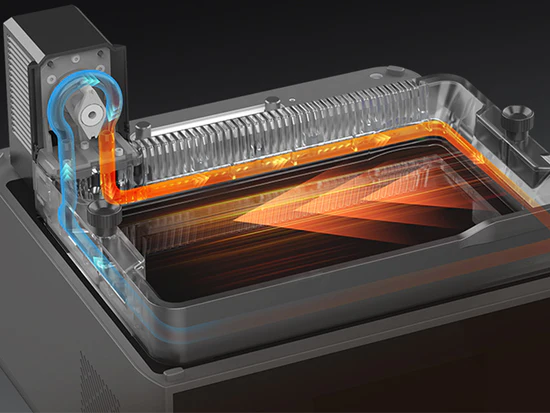

Dynamic Temperature Control Resin Vat Maintains Optimal Resin
Temperature.Automatic Resin Refill and Recycle, Cutting Costs while Boosting
About this item
- 【Ultra Fast Speed】Anycubic Photon Mono M7 Pro achieves a high speed of 170mm/h in a 0.1mm layer thickness test using high-speed resin. At the same time, the printing speed of standard resin reaches 130mm/h, breaking boundaries and greatly improving printing efficiency, achieving truly fast printing.
- 【High-Precision 14K】With a 14K monochrome LCD screen with 13312*5120 resolution and 16.8 ×24.8 μm XY resolution, the Photon Mono M7 Pro prints holes as small as 0.3 mm in diameter, which is more than enough to handle fine printing tasks and make your models stand out.
- 【Advanced COB LighTurbo 3.0】The COB light source system, combined with Fresnel lenses and front-facing reflectors can reach the light angle within 3°, and light uniformity is more than 90%. Anycubic LighTurbo 3.0 is also equipped with a light-off compensation algorithm, which ensures that every layer of the model is successfully exposed and removed from the mold, significantly improving the printing success rate.
- 【Upgraded Assisted Features】The dynamic temperature-controlled resin vat will adjust the temperature of the resin material to maintain the optimal print temperature at all times. And resin auto-fill feature enables automatic filling and one-key recycling of remaining resin.
- 【Intelligent Design】Building on component connection status detection, residue detection, resin level Detection, failed print detection, and release film lifespan management, Photon Mono M7 Pro has added build plate installation detection. 6 types of intelligent detection can achieve startup detection, simplify the printing process, and reduce problems caused by misoperation.

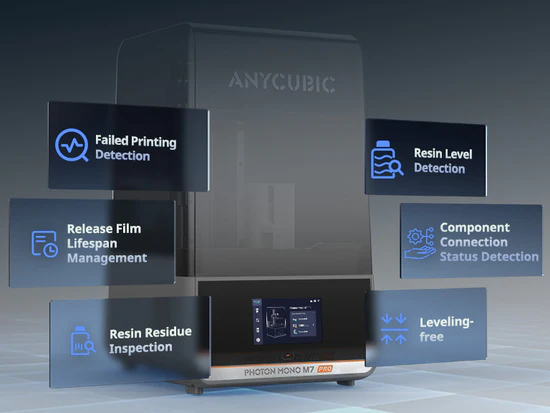

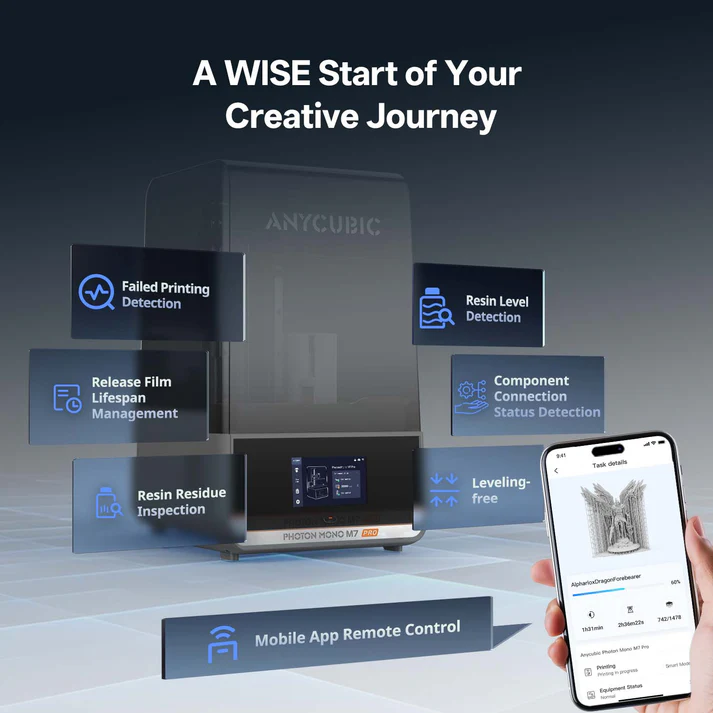

Automatic Intelligent Detections
A Refreshing Experience
Optional ventilation hose attachmentfor reduce resin odor and improve air quality.
Anycubic Photon Mono M7 Pro: Pros and Cons

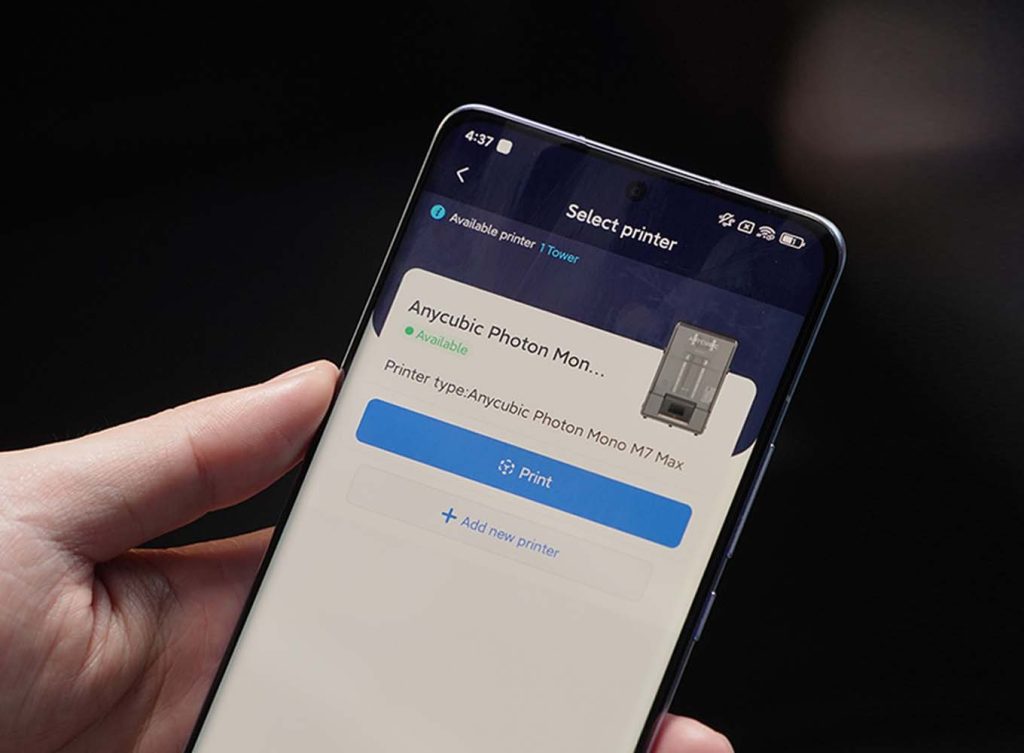

The Anycubic Ecosystem
Specifications
| Core Printing Performance | |||
| Printing Volume 223*126*230mm (6.5L) | Printing Speed Max Speed ≤130mm/h; Standard Resin (0.1mm): ≤130mm/h; High-Speed Resin (0.1mm): ≤170mm/h | Layer Height Range 0.01 – 0.15mm | X/Y Axis Resolution 16.8 × 24.8μm |
| Light Source COB light source+ Fresnel lens+Light uniformity algorithm | Light Intensity 5500 ±10% μW/cm² | Material Compatibility High-speed, water-washable, standard, ABS-like, and plant-based resins, etc | |
| System & Mechanical Design | |||
| Build Platform Laser-engraved build plate | Release film Improved ACF film | Z-axis Dual linear rails with 10 μm precision | Resin Vat ≤1L |
| Machine Leveling Leveling-free | Power Loss Resume Not supported | Power Supply 240W | Protection Film Replaceable scratch-resistant film |
| Resin Auto-fill Unit Supported | Dynamic Temperature Control Resin Vat Supported | Slicing Software Photon Workshop, Chitubox, LycheeSlicer (Q4) | File Transfer USB/WiFi/LAN |
| User Experience & Features | |||
| Hinged Cover – | Operating Screen 4.3″ Touch-Control | Air Purifier Optional accessory | LCD Screen 10.1-inch monochrome LCD, 14K resolution |
| Anycubic App Supported | Multilingual Support EN / CN / DE / FR / IT / ES / RU / JP | Machine Weight 12.8kg | Package Weight 15.2kg |
| Product Dimensions 312*315*520mm | Packaging Dimensions 620*395*395mm |

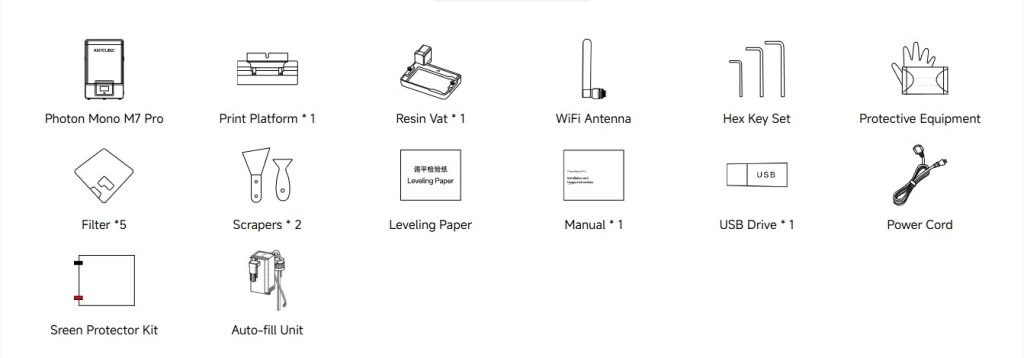

What’s In Box
Photon Mono M7 Series Tech Specs
| Anycubic Photon Mono M7 Pro | Anycubic Photon Mono M7 Max | Anycubic Photon Mono M7 | |
| Core Printing Performance | |||
| Printing Volume | 223*126*230mm (6.5L) | 298*164*300mm (14.7L) | 223*126*230mm (6.5L) |
| Printing Speed | Max Speed ≤130mm/h; Standard Resin (0.1mm): ≤130mm/h; High-Speed Resin (0.1mm): ≤170mm/h | Max Speed ≤63mm/h; Standard Resin (0.05mm): ≤31mm/h; Standard Resin (0.1mm): ≤63mm/h; High-Speed Resin (0.1mm): ≤86mm/h | Max Speed ≤90mm/h; Standard Resin (0.1mm): ≤90mm/h; High-Speed Resin (0.1mm): ≤150mm/h |
| Layer Height Range | 0.01 – 0.15mm | 0.01 – 0.15mm | 0.01 – 0.15mm |
| X/Y Axis Resolution | 16.8 × 24.8μm | 46 × 46μm | 16.8 × 24.8μm |
| Light Source | COB light source+ Fresnel lens+Light uniformity algorithm | COB light source+ Fresnel lens+Light uniformity algorithm | COB light source+ Fresnel lens+Light uniformity algorithm |
| Light Intensity | 5500 ±10% μW/cm² | 4500 ±10% μW/cm² | 4500 ±10% μW/cm² |
| Material Compatibility | High-speed, water-washable, standard, ABS-like, and plant-based resins, etc | High-speed, water-washable, standard, ABS-like, and plant-based resins, etc | High-speed, water-washable, standard, ABS-like, and plant-based resins, etc |
| System & Mechanical Design | |||
| Build Platform | Laser-engraved build plate | Laser-engraved aluminum build plate | Laser-engraved build plate |
| Release film | Improved ACF film | Improved ACF film | Improved ACF film |
| Z-axis | Dual linear rails with 10 μm precision | Dual linear rails with 10 μm precision | Dual linear rails with 10 μm precision |
| Resin Vat | ≤1L | ≤1.3 L, unibody design with scale markings | ≤1L |
| Machine Leveling | Leveling-free | 4-point manual leveling | Leveling-free |
| Power Loss Resume | Not supported | Supported | Not supported |
| Power Supply | 240W | 180W | 135W |
| Protection Film | Replaceable scratch-resistant film | Replaceable scratch-resistant film | Replaceable scratch-resistant film |
| Resin Auto-fill Unit | Supported | Supported | Not supported |
| Dynamic Temperature Control Resin Vat | Supported | Supported | Not supported |
| Slicing Software | Photon Workshop, Chitubox, LycheeSlicer (Q4) | Photon Workshop, Chitubox, LycheeSlicer (Q4) | Photon Workshop, Chitubox, LycheeSlicer (Q4) |
| File Transfer | USB/WiFi/LAN | USB/WiFi/LAN (2025 Q1) | USB/WiFi/LAN (2025 Q1) |
| User Experience & Features | |||
| Hinged Cover | – | UV-blocking; supports one-handed operation and hover at angles > 45° | – |
| Operating Screen | 4.3″ Touch-Control | 4.3″ Touch-Control | 4.3″ Touch-Control |
| Air Purifier | Optional accessory | Optional accessory | Optional accessory |
| LCD Screen | 10.1-inch monochrome LCD, 14K resolution | 13.6-inch monochrome LCD, 7K resolution | 10.1-inch monochrome LCD, 14K resolution |
| Anycubic App | Supported | Supported | Supported |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP | EN / CN / DE / FR / IT / ES / RU / JP | EN / CN / DE / FR / IT / ES / RU / JP |
| Machine Weight | 12.8kg | 24kg | 12kg |
| Package Weight | 15.2kg | 28.5kg | 13kg |
| Product Dimensions | 312*315*520mm | 425*362*652mm | 312*315*520mm |
| Packaging Dimensions | 620*395*395mm | 785*520*490mm | 620*395*395mm |
FAQs
What do the ①②③④⑤ annotations in the product details mean?
The numbered annotations on the product page correspond to the following explanations:
① The data was measured using Anycubic high speed resin and sourced from Anycubic lab.
② The data is the from Anycubic lab.
③ Millionth of a second.
④ When printing with a 0.05mm thickness in standard high-precision mode, the speed increase value may vary among different models.
⑤ Breakage and bottom dropout detection support a minimum area of 15*15mm.
What is the hottest temperature that the heater can heat the resin to? Is the temperature control adjustable?
It is adjustable.The default temperature is 25 centigrade, and can be set at 20-40 centigrade.
Can the auto fill unit be used while the cover is on?
Yes it can be used while the cover is on.
Do I need to buy high speed resin for the fast prints? Or this can print fast with the normal resin?
Photon Mono M7 Pro can support both High Speed Resin and Standard Resins. The print speed is different. Max Speed 130mm/hr, 0.1mm Layer With Standand Resin; Max Speed170mm/hr, 0.1mm Layer With High Speed Resin.
What hardware is required when using a printer to clean and cure printed parts?
To clean and cure printed parts using a printer, you will need Cleaning Kit and Wash & Cure Machine.
How about finding out what resins this machine can support and where to find the resin settings for this 3D printer?
For information on resin settings, please visit: Resin Settings for Anycubic 3D Printers.
