The Bambu Lab H2S isn’t just another 3D printer. It’s a full-fledged personal manufacturing hub built for creators who need more than just prototypes. With a massive build volume, lightning-fast motion control, and multifunctional capabilities, the H2S is designed to help you move from idea to production without compromise.

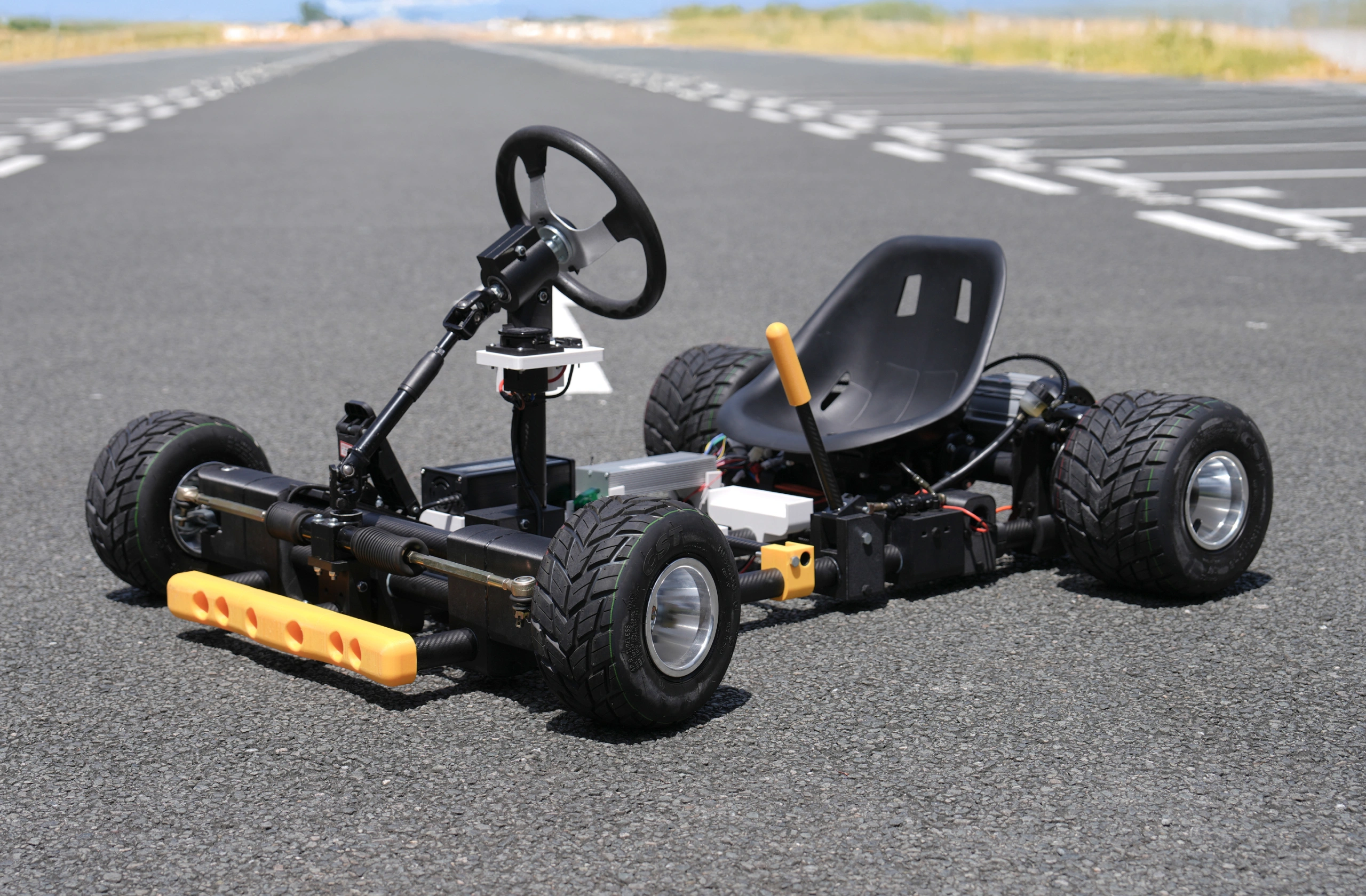

Whether you’re printing a go-kart frame, engraving signage, or building a cosplay masterpiece, the H2S delivers professional-grade results in a desktop-sized package.
Large-format 3D printing with ultra-fast speed, advanced precision, and multi-color capabilities creates bigger, better, and in full color.
Related internal pages:
- the-bambu-lab-x1c-a-comprehensive-technical-overview/
- anycubic-photon-mono-m7-max/
- anycubic-kobra-3-v2/
- t500-3d-printer/
- bambu-lab-h2d-pro-review/
Key features
- Large build volume: The H2S offers Bambu Lab’s largest print volume to date, measuring 340 x 320 x 340 mm³.
- High-speed printing: Equipped with a new Permanent Magnet Synchronous Motor (PMSM) servo extrusion system, the printer can reach speeds up to 1,000 mm/s with acceleration up to 20,000 mm/s², cutting print times by up to 30% compared to the X1C.
- Multi-purpose functionality: The H2S can be upgraded with additional modules to perform other tasks beyond 3D printing.

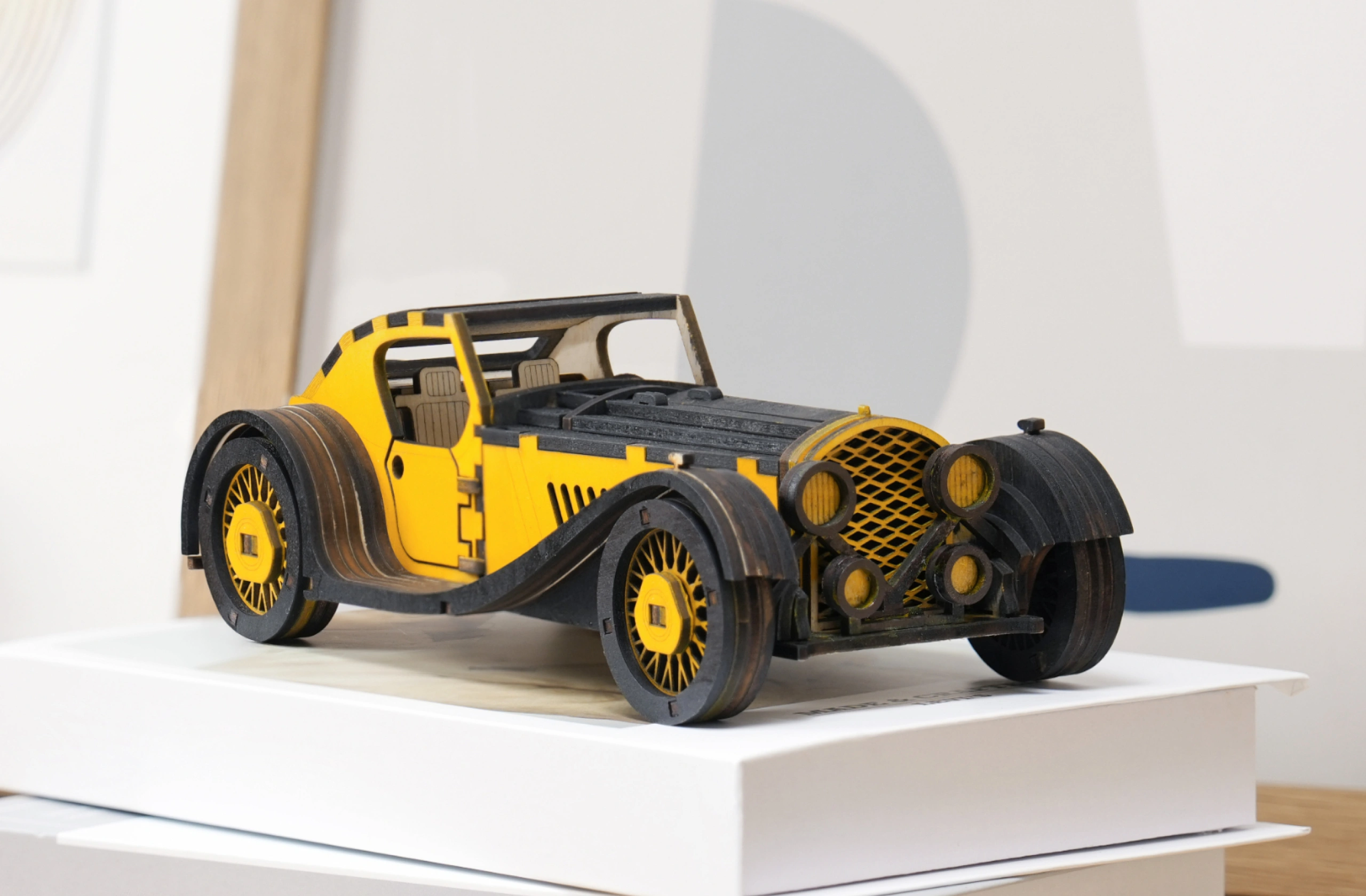

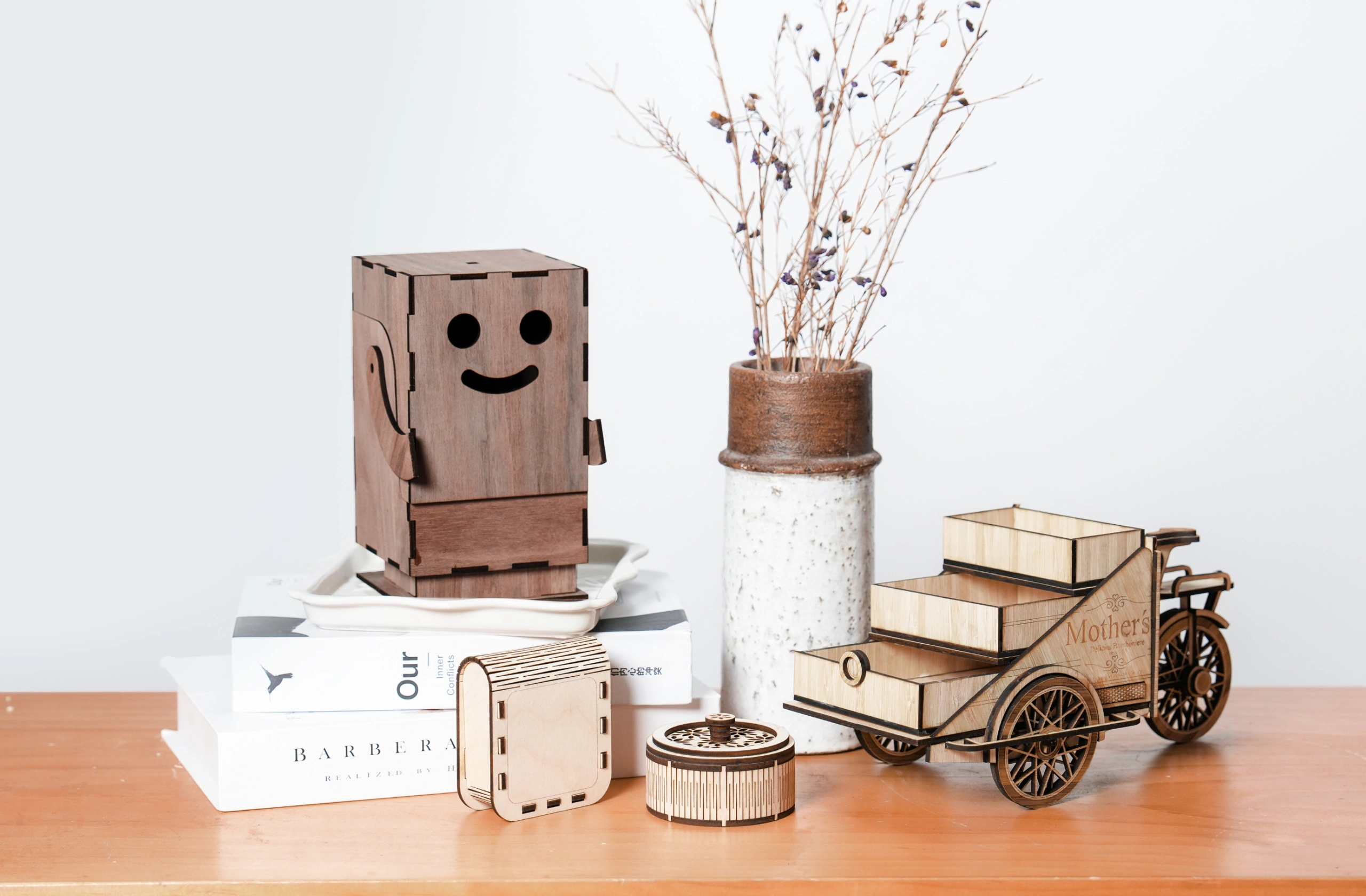

- 10W laser: Capable of cutting and engraving various materials up to 5mm thick.
- Digital cutting and drawing: A tool for cutting flexible materials and automating linework with a pen.
- Advanced temperature control: The H2S has a 350°C hotend and an actively heated chamber up to 65°C, enabling the use of high-performance engineering filaments like PC and PA, while minimising warping.
- Comprehensive AI sensing: An advanced sensor suite with 23 sensors and 3 cameras provides automated, AI-driven monitoring to detect and prevent issues like filament clumping, spaghetti failures, and nozzle pressure problems.

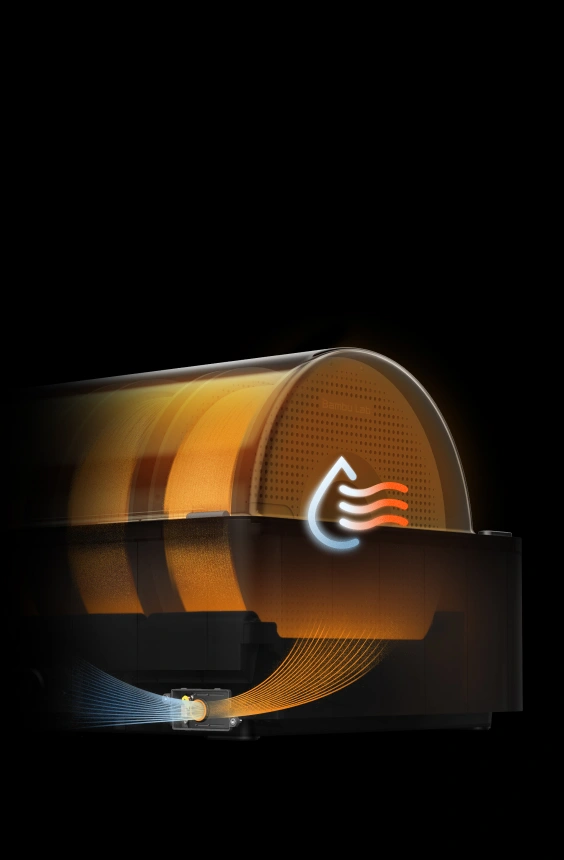

- Multi-colour support: The H2S is compatible with the second-generation Automatic Material System (AMS 2 Pro and AMS HT), allowing for up to 24-colour printing.
- Ease of use: The system features quick-swap nozzles, automatic calibrations for bed levelling and vibration, and offline operation capabilities.

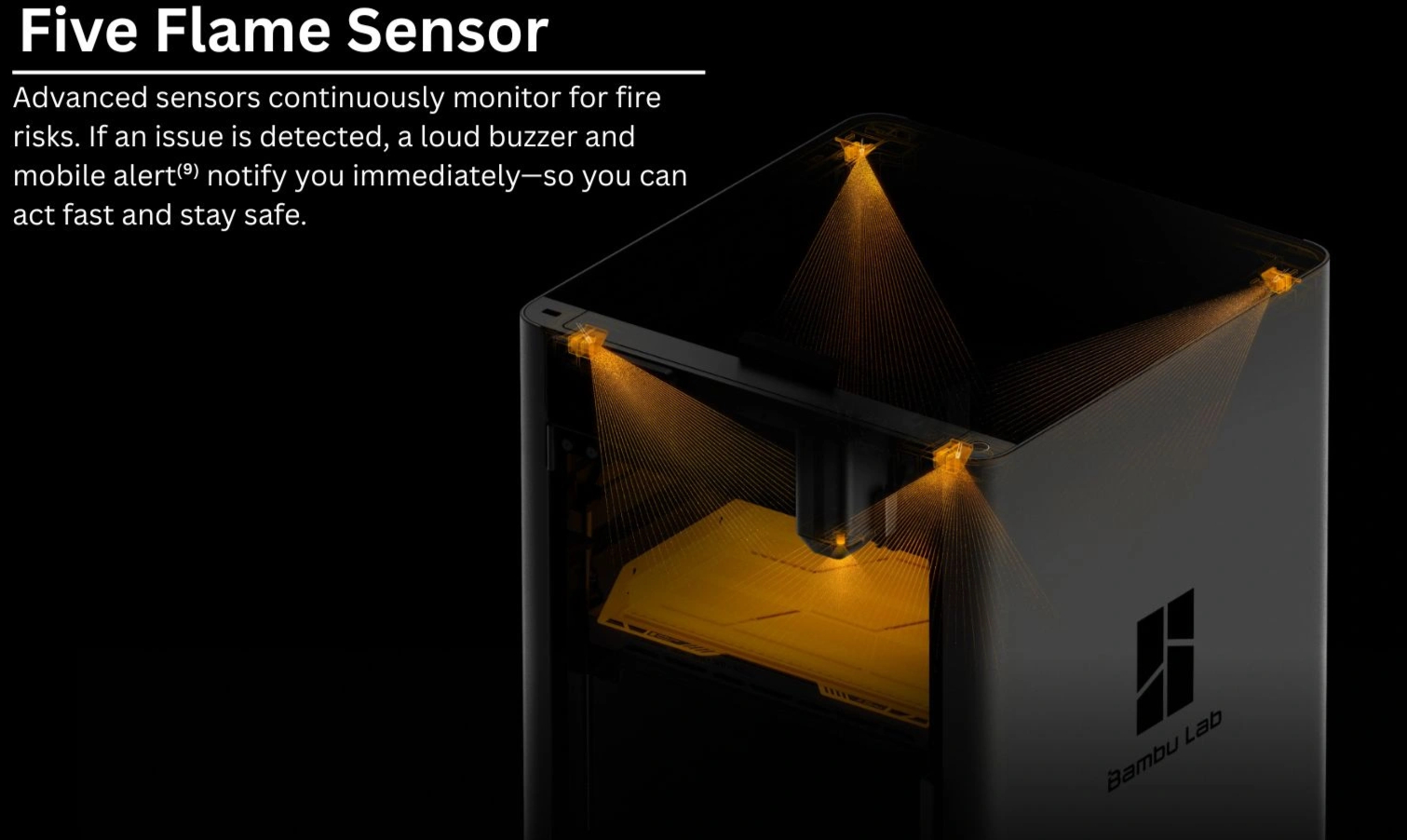

- Safety features: Includes multiple flame sensors and a fire-resistant chassis for enhanced safety, especially when using the optional laser.
Configurations and features
The H2S is offered in several configurations:
- Base Version: Includes the core single-nozzle printer.
- AMS Combo: Bundles the H2S with an AMS 2 Pro unit for multi-colour printing. The single-nozzle design results in more purging waste compared to the dual-nozzle H2D. Up to 24 colours are possible by linking multiple AMS units.
- Laser Full Combo: Adds a 10W 455nm laser for cutting and engraving materials, along with a digital cutting module and drawing functions.
Your Go-To Personal Manufacturing Hub
Performance on a larger scale

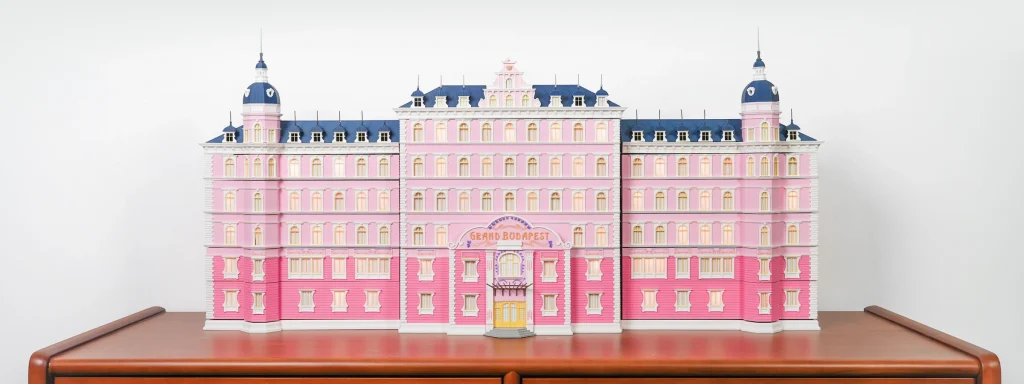

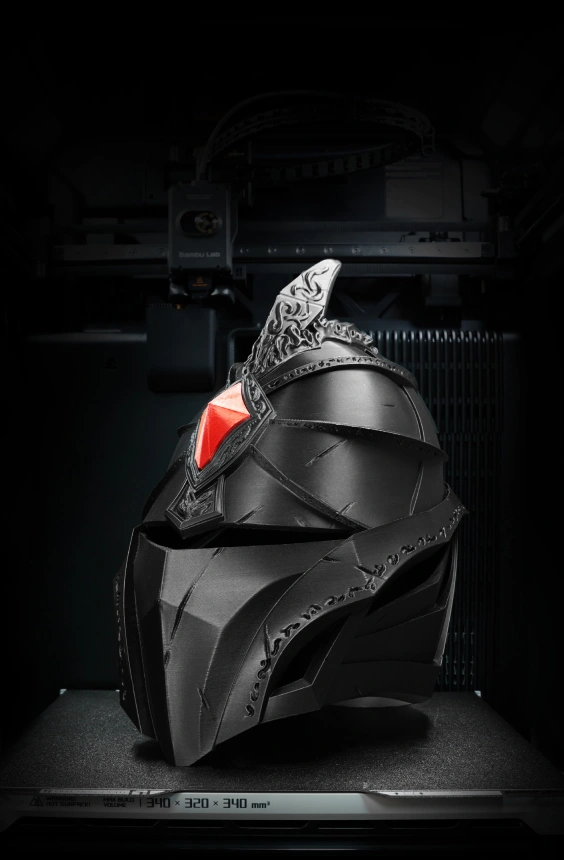

The most immediate and striking upgrade is the build volume, which measures a generous 340 x 320 x 340 mm³. This is a significant step up from the X1C, providing the largest print area in Bambu Lab’s lineup and allowing makers to produce ambitious, single-piece projects like helmets, functional prototypes, and large-scale architectural models.
Speed is another headline feature, driven by a new Permanent Magnet Synchronous Motor (PMSM) servo extrusion system. This powerful system delivers 67% more extrusion force than its predecessors, allowing the H2S to reach toolhead speeds of up to 1,000 mm/s and acceleration up to 20,000 mm/s². This translates to print times that are up to 30% faster than the X1C on certain models.
Advanced features

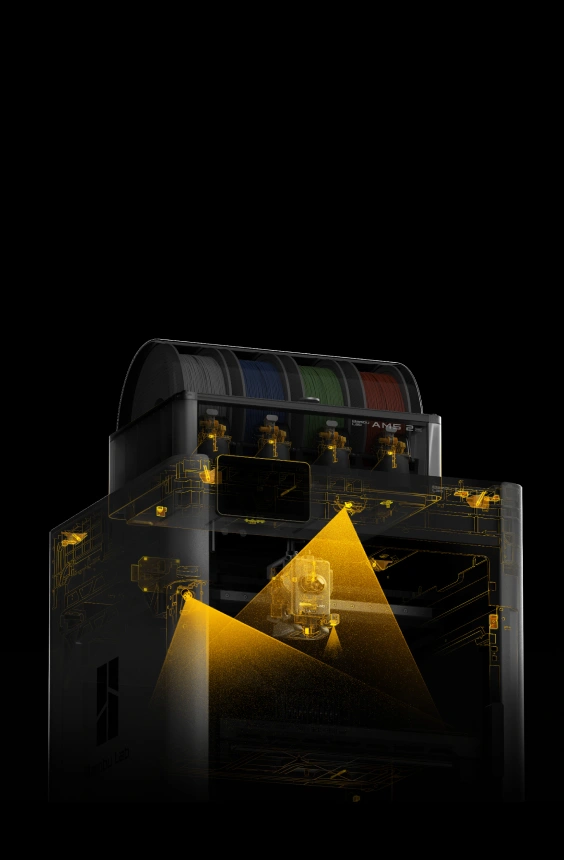

- AI monitoring: An array of 23 sensors and 3 cameras detects potential issues like clogging, tangles, and spaghetti failures, pausing the print to prevent critical problems.
- Optional Vision Encoder: A separately purchased upgrade that allows for ultra-high motion accuracy of less than 50 µm for dimensionally critical parts.
- Software integration: Compatible with Bambu Studio and Bambu Handy for easy slicing and remote control.
- Robust construction: Built on a die-cast aluminium alloy chassis for stability during high-speed printing.
H2S vs. H2D: Which One Fits Your Workflow?
The Bambu Lab H2S and H2D are part of the same high-performance H2 series, but they’re designed for different priorities. If you’re focused on speed and scale, the H2S is your go-to. If you need efficient multi-material printing, the H2D might be the better fit.
Here’s a side-by-side comparison to help you decide:
| Feature | Bambu Lab H2S | Bambu Lab H2D |
| Nozzle Configuration | Single-nozzle | Dual-nozzle |
| Build Volume | Larger overall print area | Slightly smaller |
| Multi-Material Efficiency | Requires AMS for multi-material support | Built-in dual extrusion |
| Purge Waste | Higher due to single-nozzle switching | Lower due to dedicated nozzles |
| Print Speed | Faster overall print speeds | Moderate, optimised for material switching |
| Ideal Use Case | Large-format, high-speed production | Multi-material prints with minimal waste |
Accuracy That Works for You
Correct Mechanical Deviations

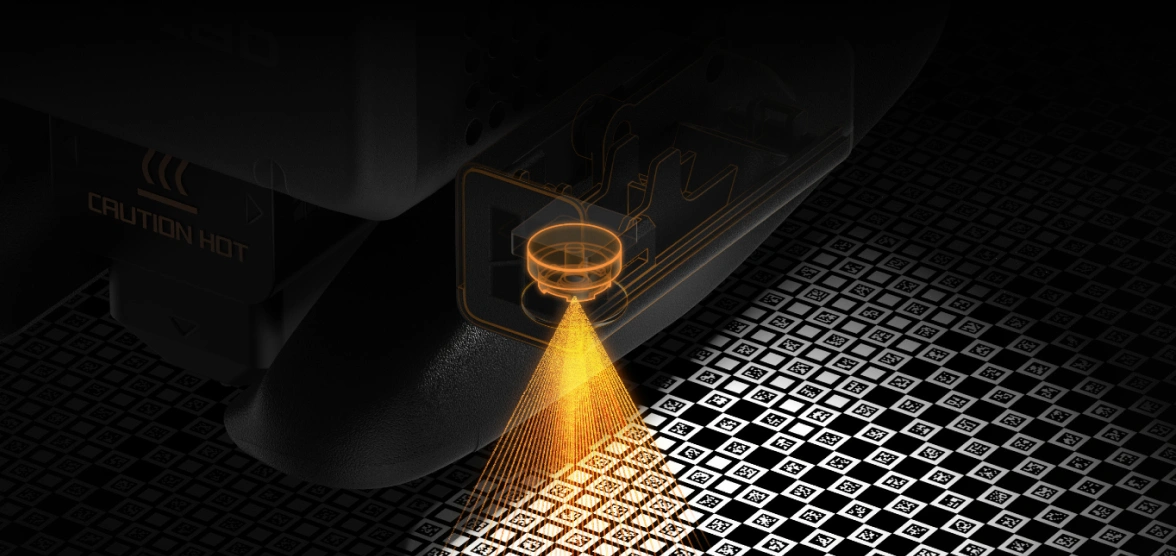

Even if the printer comes out of the factory with superb accuracy, mechanical wear and variances over time are inevitable—but now, for the first time in the industry, there’s a solution. With the Vision Encoder⁽¹⁾, the H2S achieves distance-independent motion accuracy under 50 μm—thinner than a human hair. During calibration, it automatically compensates for mechanical drift, ensuring consistent precision and peak performance over time.
One Print. Perfect Fit.
Bambu Lab’s Auto Hole/Contour Compensation⁽²⁾ minimises printing tolerances, delivering machine-shop-level precision for hole dimensions. Design fit-critical parts with confidence—integrate shafts, bearings, and fasteners without trial and error. Post-print assembly has never been easier.

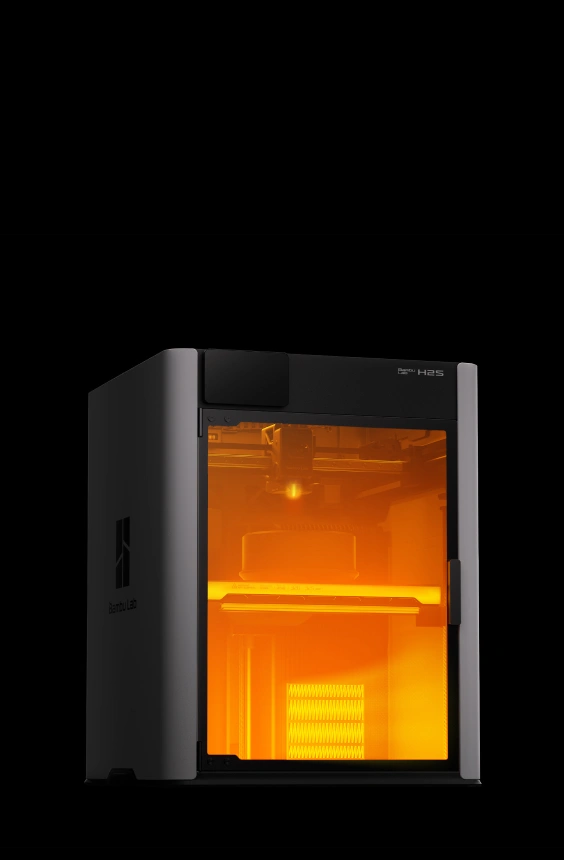

Ready for Engineering Filaments

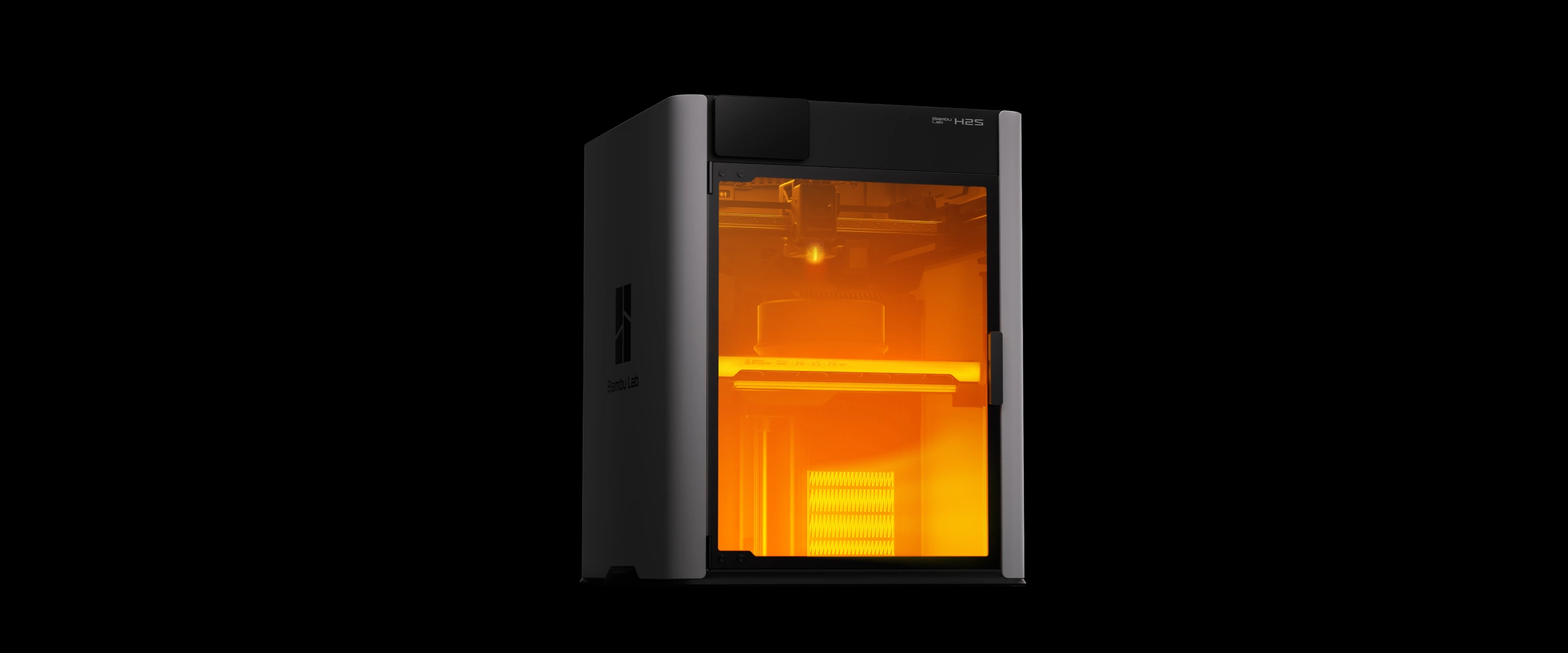

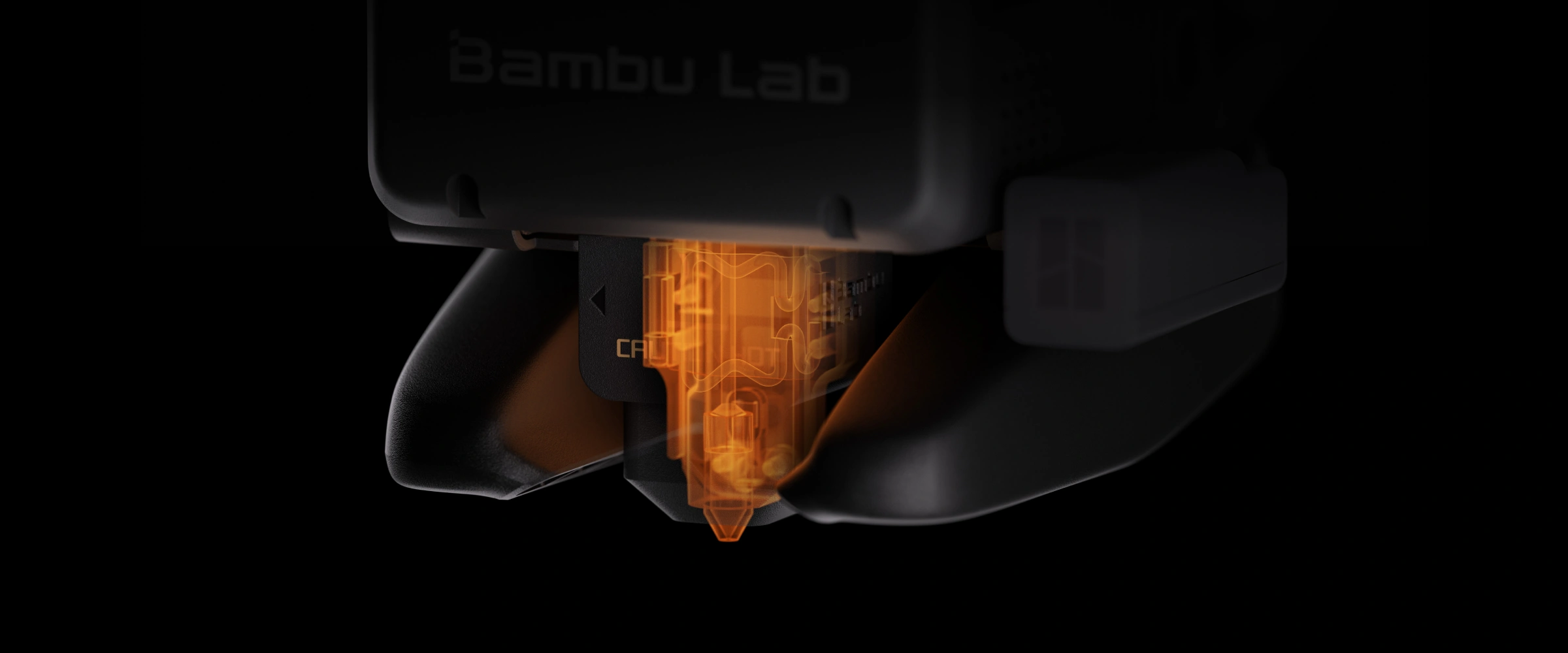

Featuring a 350 °C hotend and a 65 °C actively heated chamber, it supports the entire Bambu filament lineup—from PLA and PETG to PC and PPA. With closed-loop fan control and precise thermal management, the H2S minimises warping and deformation while improving layer adhesion. Build large, high-performance parts that are as functional as they are strong.

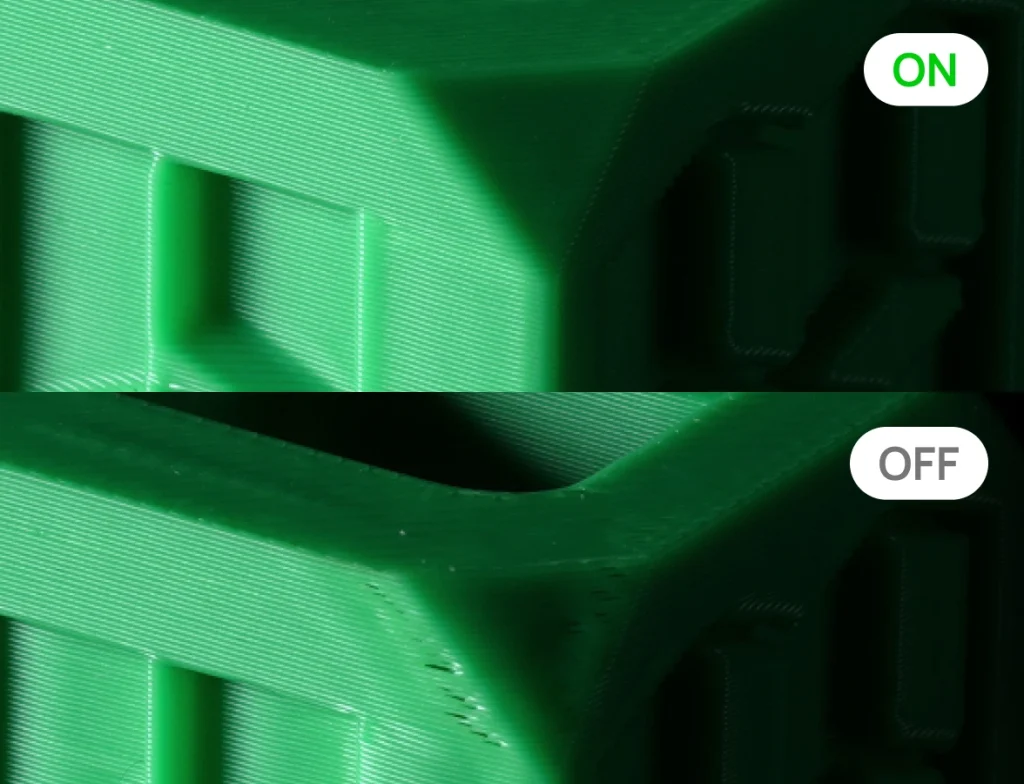

Precision in Motion
Active Vibration Compensation neutralises micro-vibrations and resonance in real time, enabling premium print quality at higher speeds.
Even Surfaces, Crisp Edges

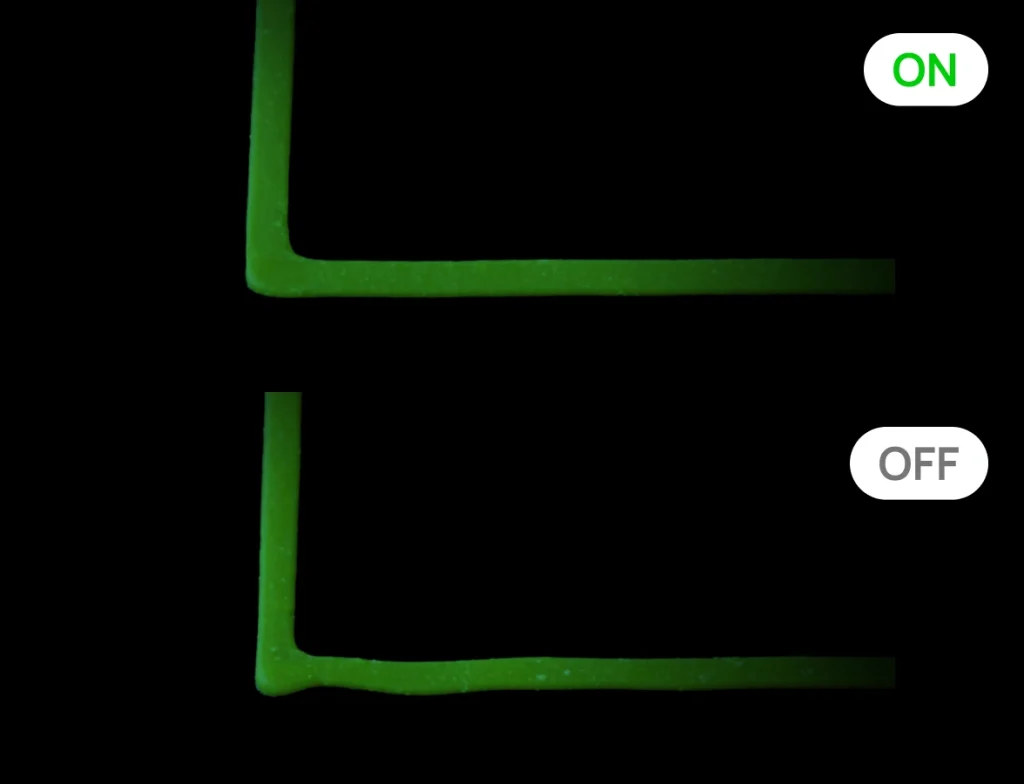

H2S uses both the sensing capability of its servo motor on the extruder and the high-resolution eddy current sensors on the nozzle to precisely control extrusion by measuring nozzle pressure and calibrating PA parameters for each filament, improving surface smoothness and edge sharpness.
Is the Bambu Lab H2S right for you?
For makers, designers, and small businesses seeking a premium, large-format 3D printer, the H2S offers an exceptional balance of performance and price. Its expanded build volume, rapid print speeds, and advanced material capabilities make it a versatile workhorse, especially for those who primarily print in a single colour or material. While multi-colour enthusiasts might find the dual-nozzle H2D more efficient for complex projects, the H2S is undoubtedly the large-scale Bambu printer the community has been asking for. Is the Bambu Lab H2S right for you?
Print Functional Designs
Deeper Dive into User Experience
Effortless Setup and Calibration
Getting started with the H2S feels refreshingly simple. You don’t need to wrestle with bed levelling or spend hours tweaking Z-offsets. Just unbox it, plug it in, and let the printer handle the rest. Within minutes, you’re watching your first big print come to life—no frustration, no guesswork.
Smart Software That Works With You
The H2S isn’t just a printer—it’s part of a well-oiled ecosystem. Bambu Studio makes slicing intuitive, even for beginners, with presets that actually work. And the Bambu Handy app? It’s like having a remote control for your printer in your pocket. You can start a job, check progress, or get alerts if something goes wrong—all without hovering over the machine.
Maintenance That Doesn’t Feel Like a Chore
Even the best printers need upkeep, but the H2S makes it painless. Swapping out the hotend or nozzle is quick and tool-friendly. The enclosed design keeps dust out, which means fewer surprises and more consistent performance over time. It’s built to last—and built to be looked after without a manual the size of a novel.
Real-World Use Cases That Make It Shine
Engineering Prototypes That Hold Up
If you’re an engineer or product designer, the H2S is more than just a prototyping tool—it’s a time-saver. You can print full-scale parts in one go, using tough materials like carbon fibre and nylon. These aren’t just visual models—they’re strong enough for hands-on testing.
Big Ideas for Creators and Makers
Artists, cosplayers, and makers finally have room to dream big. Want to print a full-size helmet or a detailed piece of armour? Go for it. The H2S handles large, complex prints with speed and precision, so you can focus on creativity instead of troubleshooting.
Small-Batch Production for Small Businesses
Do you need to produce custom parts or branded items without outsourcing? The H2S is fast and reliable enough to handle short-run manufacturing. Whether it’s promotional gear or specialised tools, you get pro-level results without the overhead.
Want me to tailor this for a specific audience—like small business owners, educators, or hobbyists? Or add SEO tags and interlinking suggestions for your content hub? Just say the word.
Top Speed. More Reliable Than Ever.

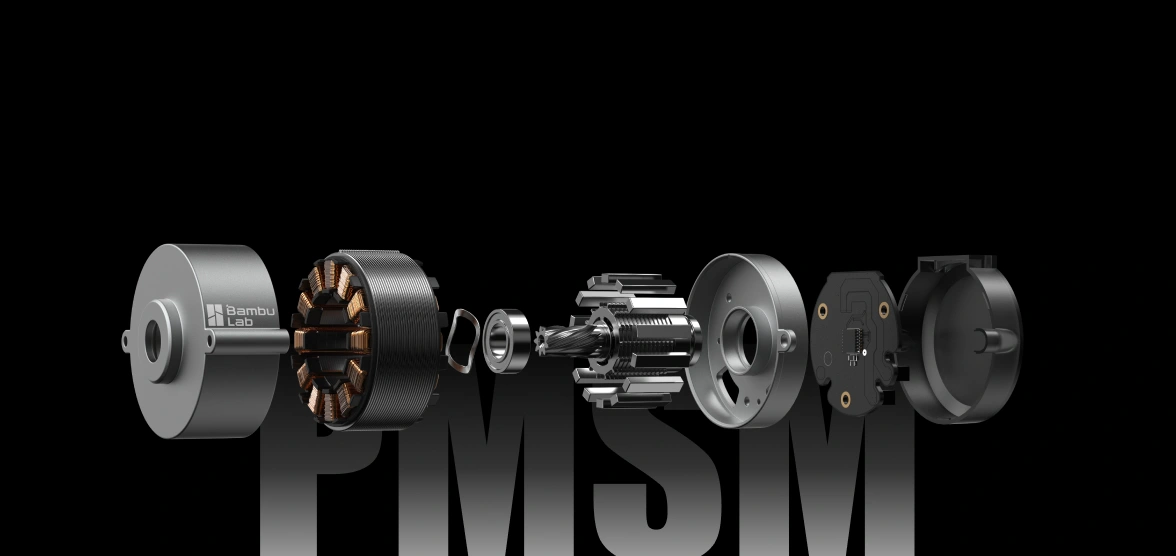

Bambu Lab’s proprietary PMSM⁽⁵⁾ servo extrusion system delivers 67% more extrusion force, providing solid support to high flow⁽⁶⁾ printing. Paired with up to 1000 mm/s toolhead speed and up to 20,000 mm/s² acceleration, your H2S can finally go full throttle—cutting your printing time by up to 30%⁽⁷⁾—while maintaining top-tier quality.
Not a Toolkit. A Production-Ready Platform.

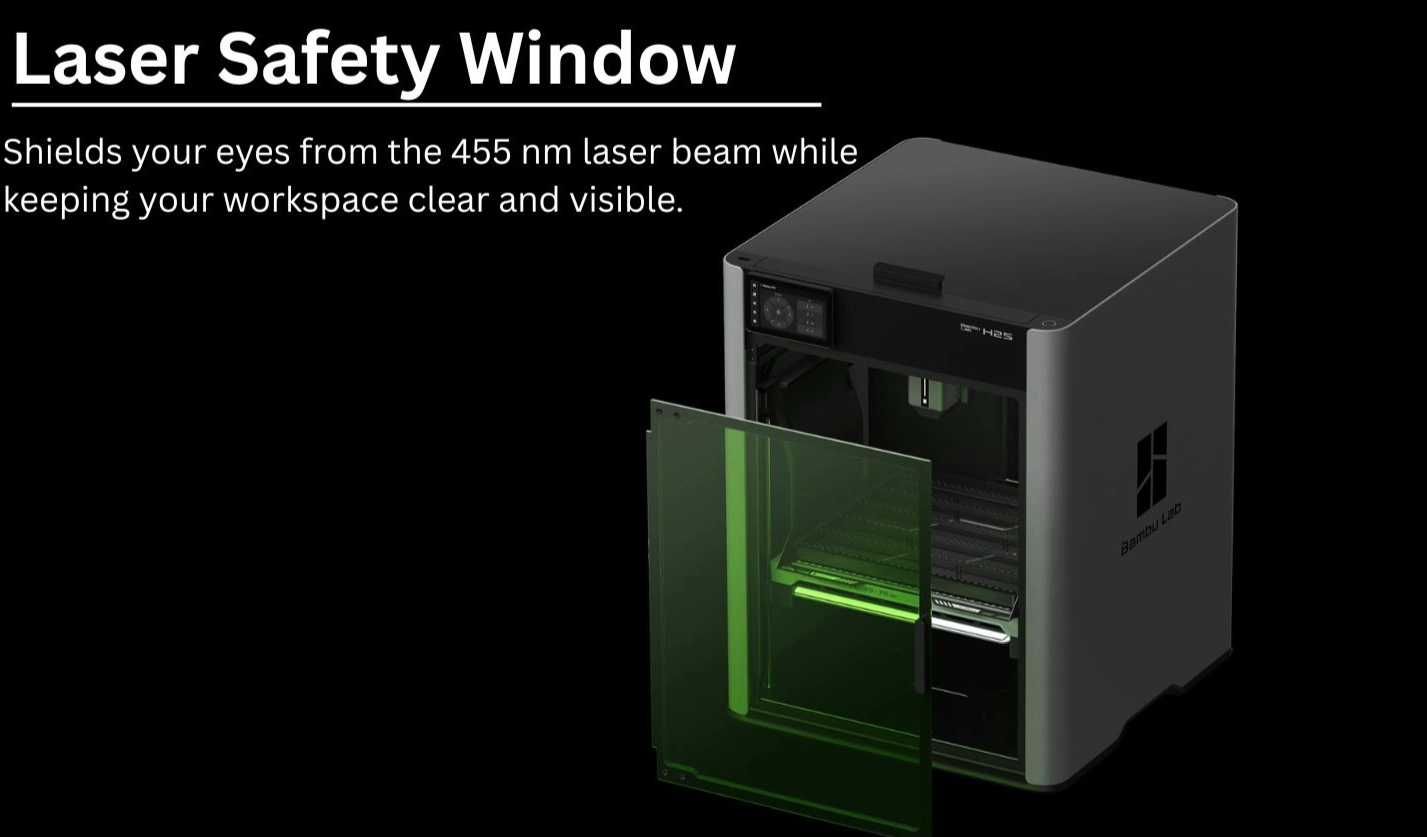

Protected Inside and Out

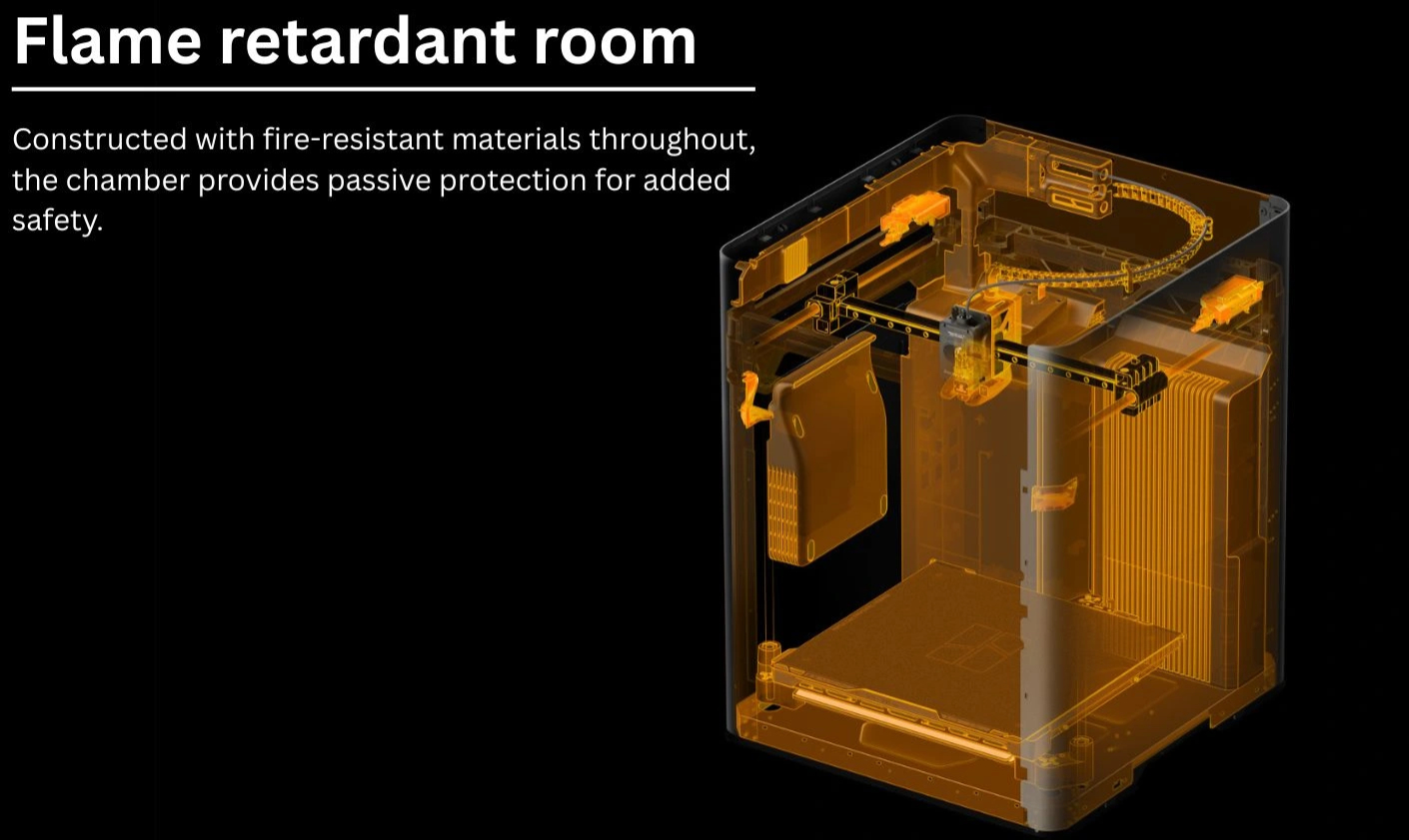

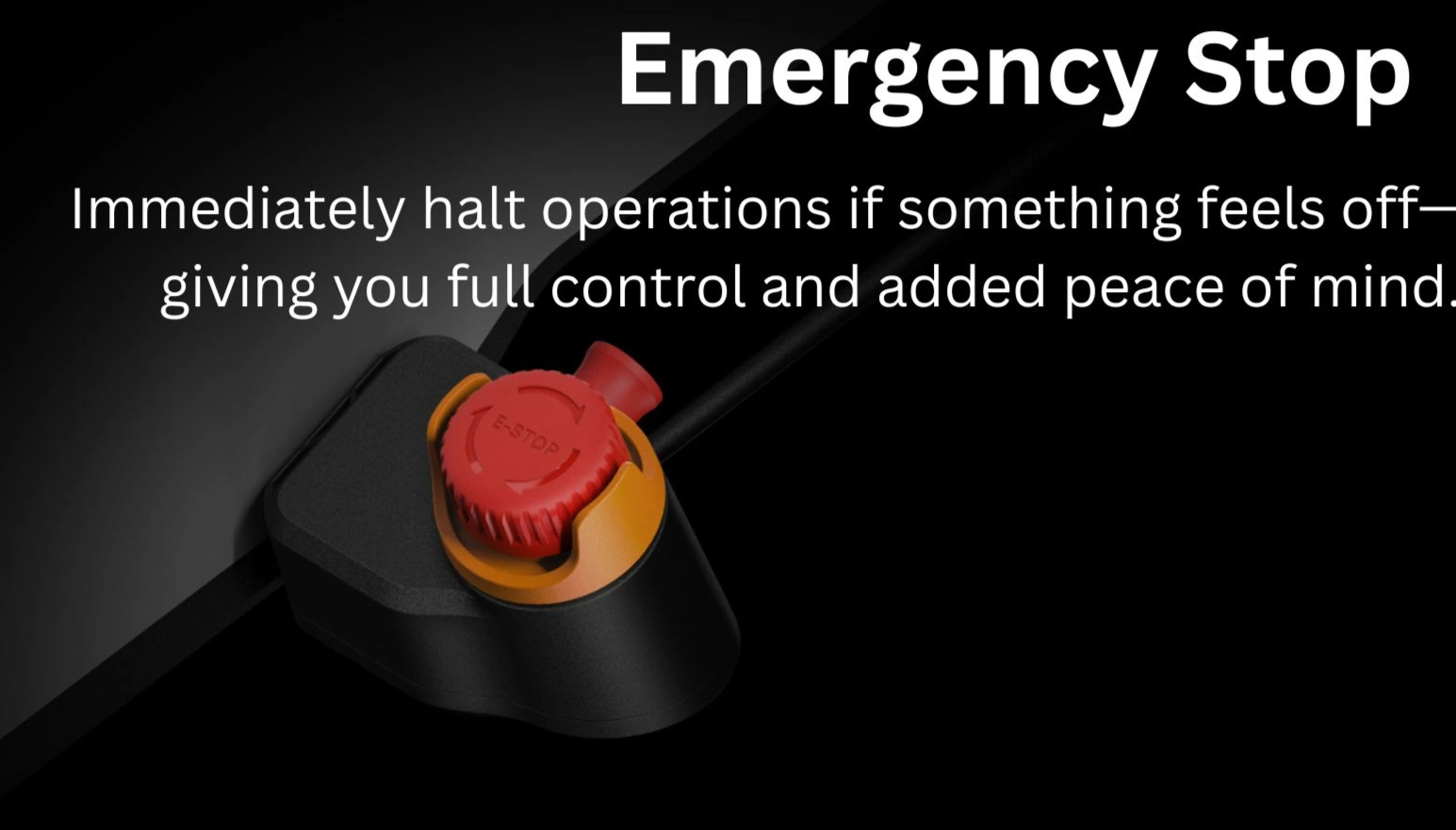

Safety, Built In
Conclusion
The Bambu Lab H2S isn’t just a machine—it’s a creative partner. It’s built for people who think big, move fast, and refuse to settle for “good enough.” Whether you’re prototyping a new product, teaching the next generation of engineers, or running a small business from your garage, the H2S gives you the tools to do more, faster, and with fewer limitations.
It’s not just about printing. It’s about cutting, engraving, drawing, and adapting to whatever challenge you throw at it. With its massive build volume, smart sensors, and support for advanced materials, the H2S turns your workspace into a full-scale production studio.
And the best part? You don’t need a factory to build like one.
So if you’re ready to stop outsourcing, stop compromising, and start creating on your own terms—the Bambu Lab H2S is ready when you are.
