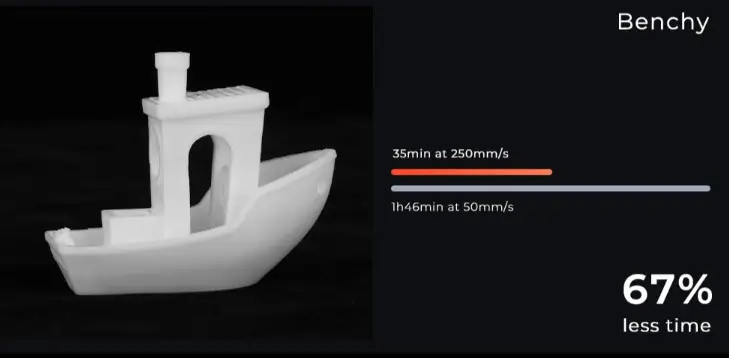

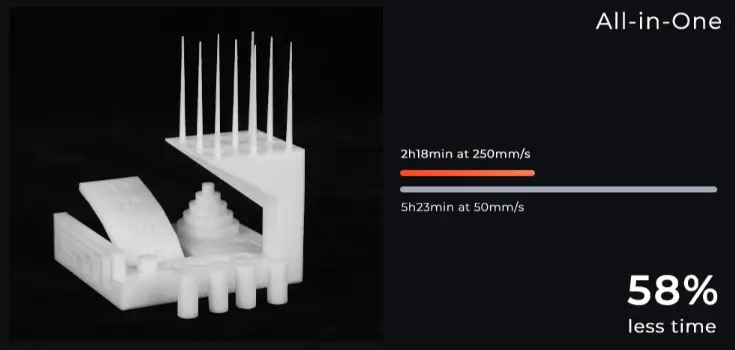

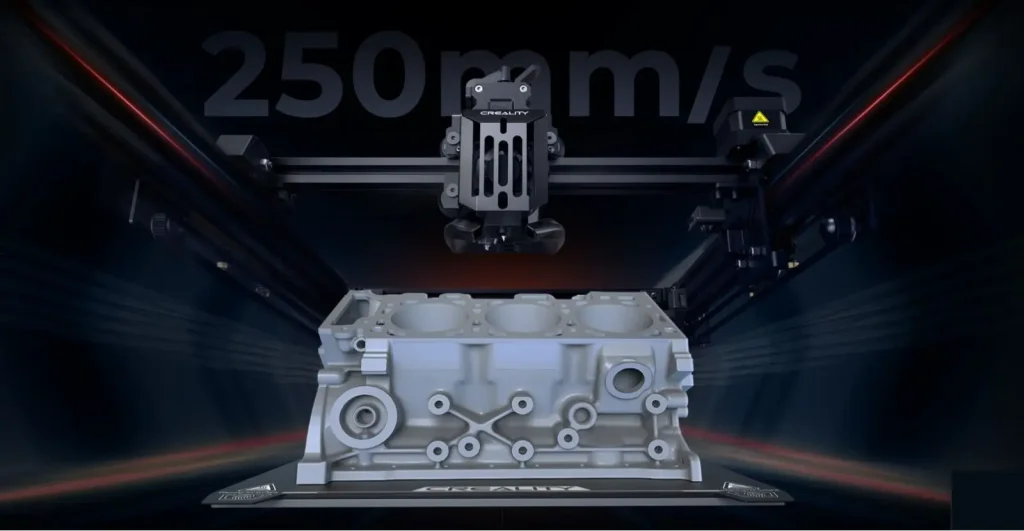

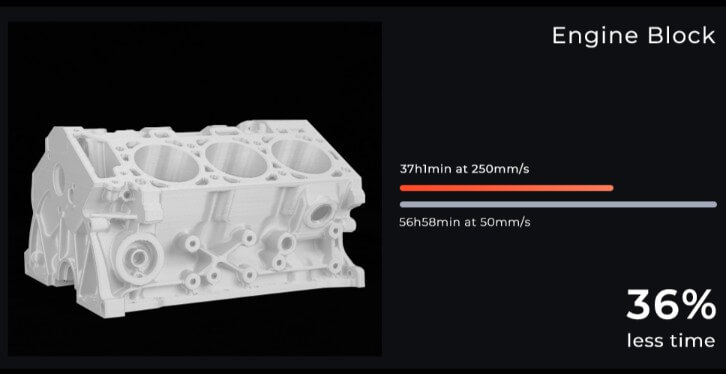

Creality Ender-5 S1 3D FDM Printer: The Creality Ender-5 S1 is a kind of mid-range DIY 3D printer design, resting between the Ender-3 variations and the far better carrying out Ender-6 as well as above versions, using a rectangular frame for security as well as having the ability to rise to 250mm/s in terms of publishing speed.
Every one of these goes over, but can it encourage the individuals to lastly leave the much enjoyed Ender-3 printers behind as well as choose variation 5 and above? I have no suggestion and also I state that since Creality recently provided the Ender 3 V2 Neo, the ‘entry-level’ design is still quite supported. And also the popularity of the Ender 3 3D printers is because of the customer’s participation right into developing different mods, boosting the efficiency of such an inexpensive maker.
As well as yes, Creality did strike a wonderful place with design 3 in regards to rate and also efficiency. However, that does not mean the Ender-5 S1 is a substandard item, quite the contrary. Yes, it’s still a cartesian design (not core xy) and the maker chose to opt for wheels for the Y axis as opposed to linear rods. Yet we do get a Sprite straight extruder which apparently can rise to 300 degrees C, so using most types of filaments must not be a problem and we obtain an auto-leveling bed which is an extremely welcomed addition.
The Creality Ender-5 S1 has a halfway decent-sized touchscreen screen where you can make added changes to the designs and overall the software application is good enough considering that Creality has been in this game for a long period, so it has a great deal of experience. However, there is already a function being done to the Marlin firmware from the area, so it might get back better soon. That being stated, let’s see how well the Creality Ender-5 S1 can publish.

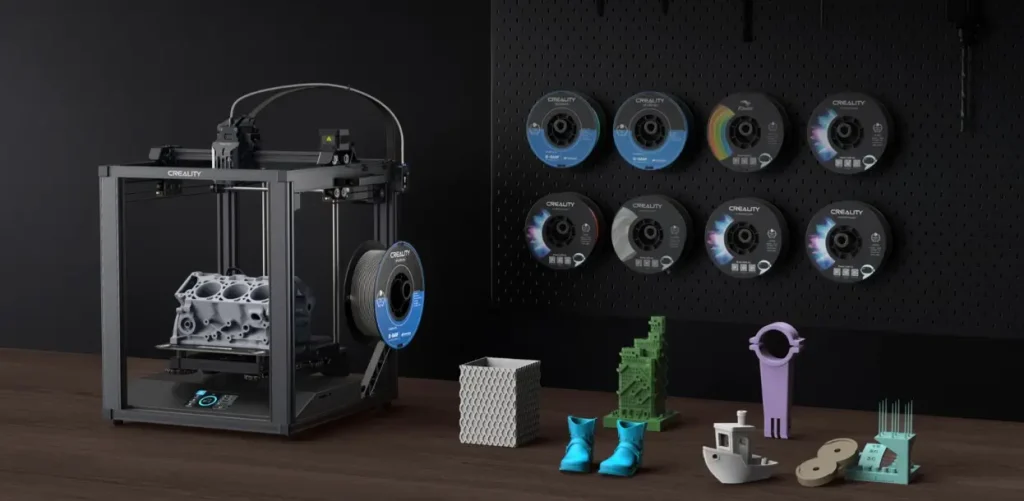

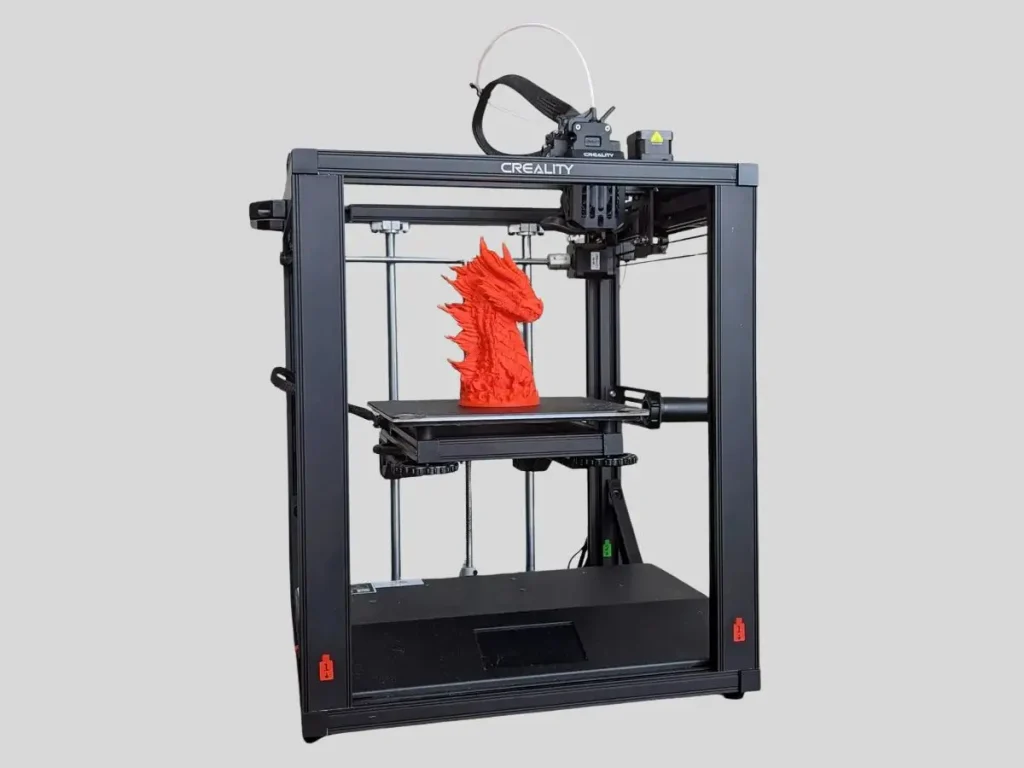

Creality Ender-5 S1 3D FDM Printer: The Design and also Build Quality

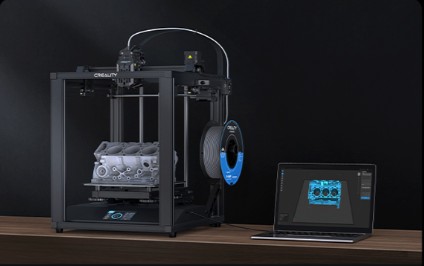

The Creality Ender-5 S1 is smaller sized than the Ender-5 Plus, but it will inhabit a little area from the desk considering that, after installation, it measures 22.4 x 18.1 x 16.7 inches (or 57.0 x 46.0 x 42.5 cm). But unlike other DIY/hobby 3D printers, everything is extremely nicely put together, so virtually nothing hangs outside the metal cuboid developed by the frame. Undoubtedly, it’s up to you to make certain that the cord monitoring is done right, but Creality does provide you everything you require to maintain things cool and tidy: zip connections, wire clips, the flat wire turns, and also there is even a reducing plier inside the bundle.

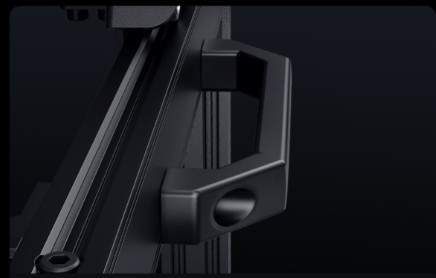

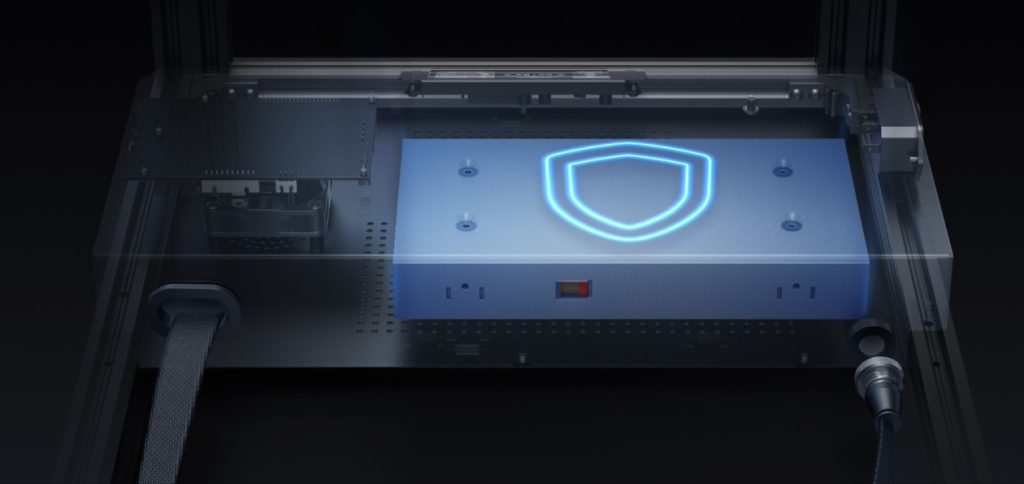

Generally, there is very little plastic, so the 3D printer feels well built, however, it’s most likely to be a bit heavy– I do value a whole lot the metallic deals with that the supplier added the sides which assist a great deal especially when assembling the 3D printer. The PSU, the main board, and the display screen, all are inside the big bottom piece that comes already attached to the all-time low frame and also has 4 feet to no scratch the surface it remains on. There are three stepper motors, one for every one of the three axes.

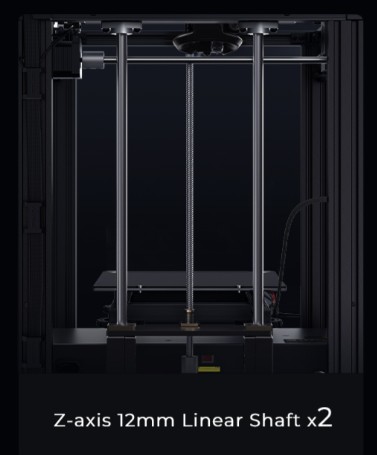

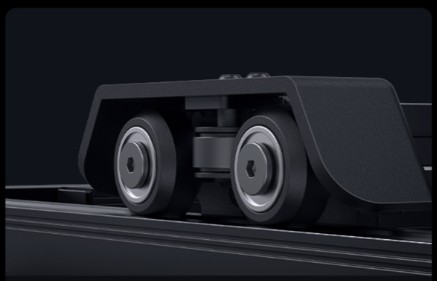

The Z-Axis goes up and also down along a metal pole and I did see an anti-backlash springtime there which I accidentally took out and also had to mount once more. I thought that I had two left hands, yet I later discovered that it was a QC concern and I had to change the flexible combining. The motors for the X and Y axes relocate with the help of belts and also wheels as well as there are far better options around– of course, the wheels do break at some point as well as need changing, so not an excellent means of doing points, especially taking into consideration the cost of the Creality Ender-5 S1.

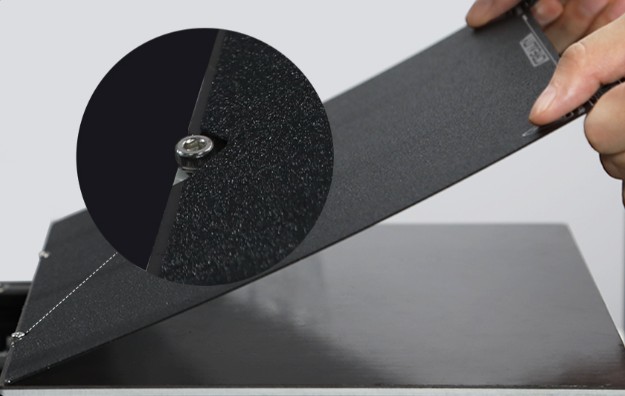

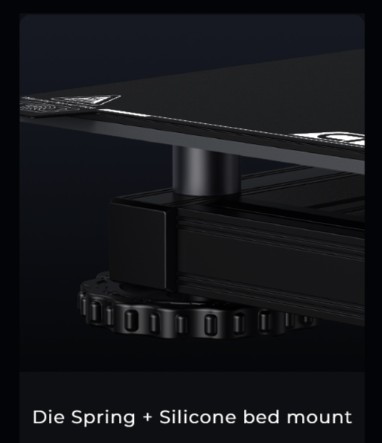

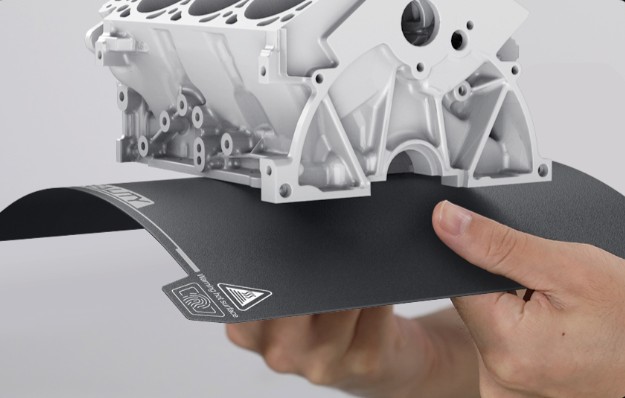

The printing plate can be changed utilizing the four wheels below it (they’re huge, so kudos to Creality), yet I do have one issue here. There is a PC springtime steel sheet which should be versatile sufficient to permit the prints to quickly come off.

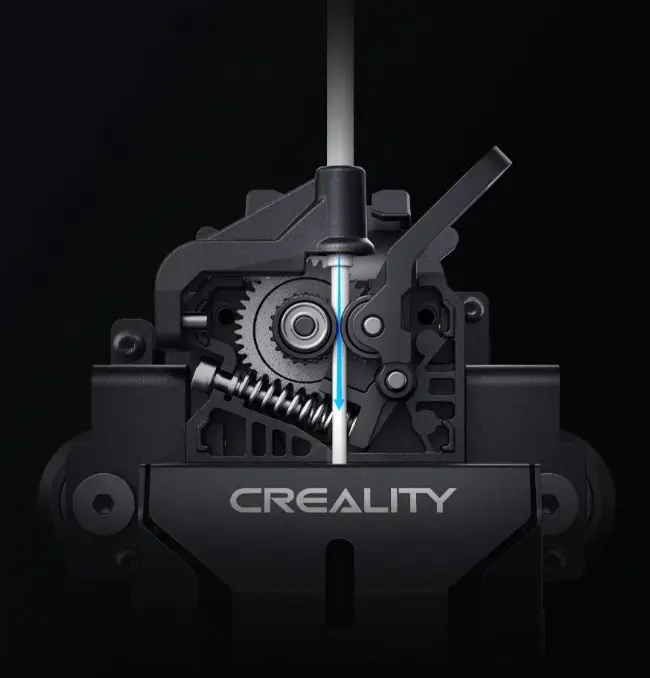

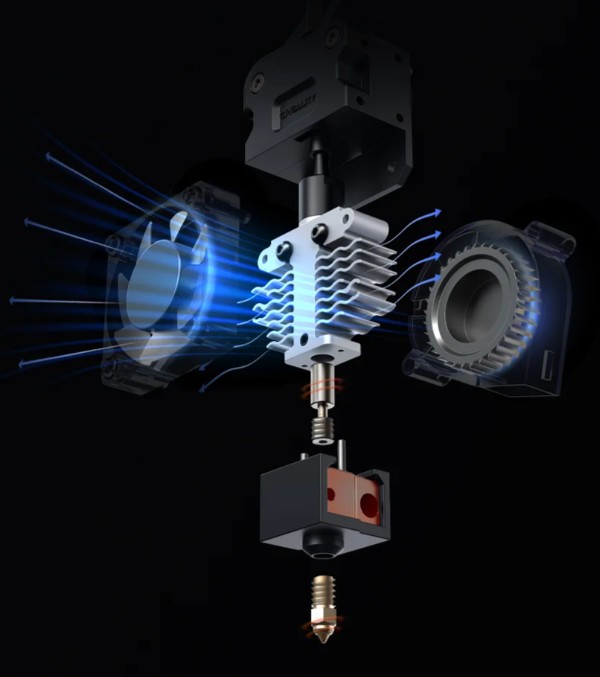

Likewise, the printing surface area itself is not truly that large, determining 11.0 x 8.6 x 8.6 inches (22.0 x 22.0 x 28.0 cm), but I expect the Ender-5 Plus to be an option for those that require even more room. Proceeding to the extruder setting up, we see that we’re taking care of an all-metal ‘Sprite’ dual-gear direct drive extruder which works extremely well with hard material (such as TPU– we’ll test it in a minute). The nozzle is constructed from brass and also I saw that I obtained an added item in the plan, which is a wonderful touch.

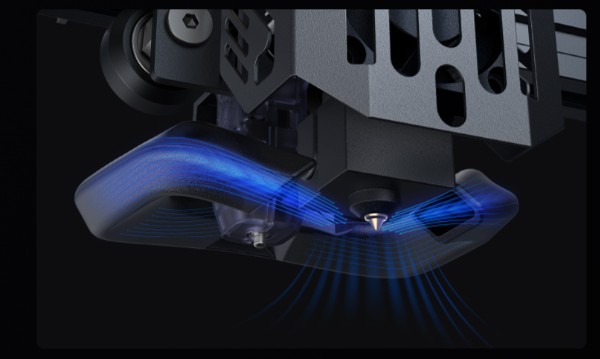

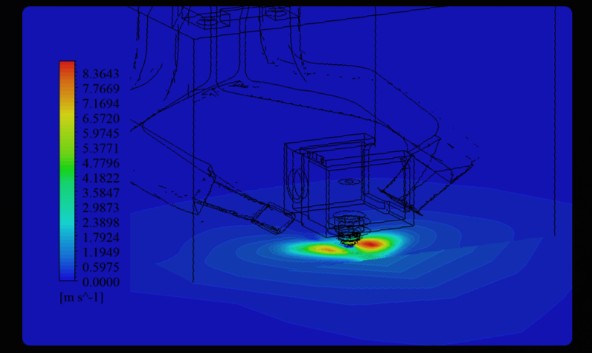

Some followers are audible, yet not very loud and I saw that Creality already included some extra exhaust pieces which various other suppliers have left for the individual to publish themselves (I such as that). The filament does obtain fed right into the maker by a Bowden tube and also the Creality Ender-5 S1 is the very first 3D printer that has a strong support for the filament and not some lightweight plastic point that flexes under a bigger roll.

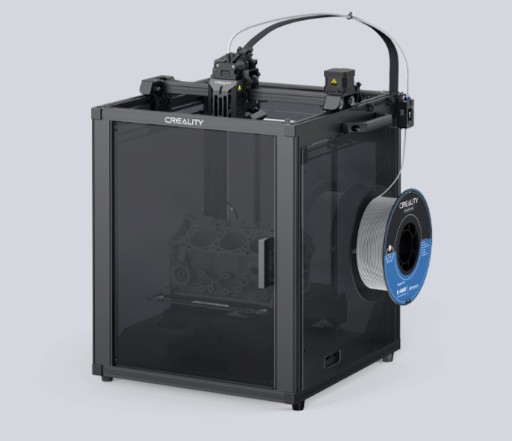

Keep in mind: It’s possible to add plexiglass panels to the sides of the 3D printer.
Creality Ender-5 S1 3D FDM Printer: The Creality Sonic Pad
The open-source Klipper firmware was created to operate on a different single-board computer (SBC) and also to function alongside the existing 3D printer board by supplying extra processing power hence lowering the printing time, without any penalty on the high quality. There is no disadvantage to utilizing this firmware with the exception that as in a lot of DIY jobs, it is required to by hand set up the software application, configure and also adjust it to make it work with the existing 3D printer.

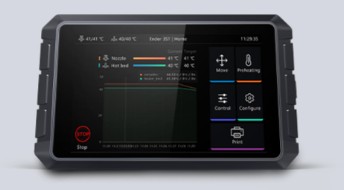

It’s still an extremely fun process and also a great use of a Raspberry Pi, however, for individuals that don’t have the moment or intend to trouble experiencing the hoops of setting up such a system, Creality has offered the Sonic Pad which includes the Klipper software program pre-installed and configured to work with not only the Creality Ender-5 S1, but a lot of other 3D printers. And indeed, you can utilize one Sonic Pad with approximately four Creality 3D printers at the same time, so while it’s not the most affordable option, it does make good sense when using greater than one 3D printer.
Inside the device, there is a 64-bit Creality T800 SoC, 2GB of RAM as well as 8GB of ROM. The Sonic Pad can be attached to the network either through the RJ45 Ethernet port or by counting on the WiFi component (802.11 b/g/n, so mainly, 2.4 GHz)– it’s rather helpful for rapidly mounting firmware updates, however, you don’t need to make use of the tool outside the neighborhood network.
On the rear panel of the Sonic Pad, there are two adjustable legs to keep the ‘tablet computer’ at an angle as well as there is also a Power port here along 2 USB ports, an Ethernet port as well as the G-sensor interface. There is additionally a recessed button for Resetting the Sonic Pad to its factory setups. There are 2 extra USB ports on the frame of the device (amounting to four USB ports for four 3D printers), while on the other side of the Sonic Pad, rests the Power switch as well as two LEDs, one for showing the status of the System, the other for showing that the gadget is powered up.
As soon as you link the Sonic Pad, it will change the built-in screen on the Creality Ender-5 S1, but I did not see a means to include it to the frame of the printer– the USB drive that includes the Pad does have the designs all set to be sliced.
Which defense attributes are on the Creality Ender-5 S1?
As anticipated taking into consideration the cost of the Creality Ender-5 S1, it does have the option to return to the print after a power failure enabled by default (it can be impaired from the Parameters if you don’t want to utilize it).
In addition, the printer has a filament runout sensor so when the filament runs out, the print will pause waiting for you to feed it a new product. Given that I have stated the Voxelab printer, just how does the Ender-5 S1 stand in regards to the thermal runaway protection?
Putting Everything Together
After putting together a couple of 3D printers, I can confidently state that the Creality Ender-5 S1 was the simplest DIY 3D printer I needed to create. It does not come already installed, however, there are only a couple of items that can conveniently be attached.

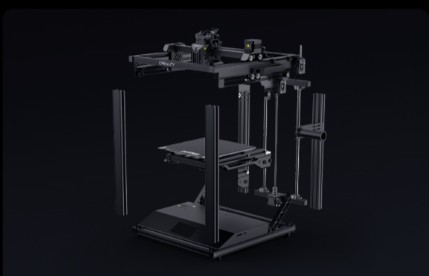

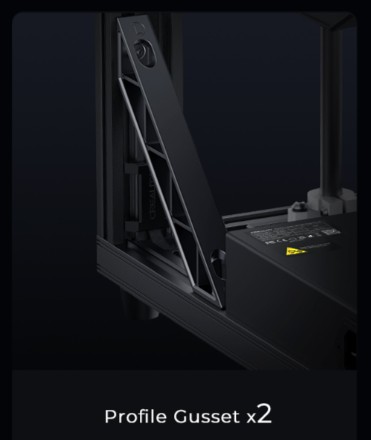

All you require to do is install the 4 profiles (each is labeled accordingly) to the bottom area utilizing the provided screws, then mount the top element similarly. The bed section is a little bit more complex because you require to connect it to the Z-Axis, yet it took about 5 minutes to install it as well as to place it into the metallic cage. I suppose the only word of warning would certainly be to be cautious concerning the anti-backlash spring which may require changing, so it can be essential to get the pole totally (by loosening up both screws that hold it near the bottom) and also re-insert the bounce back properly.
After that, it’s essential to affix all the wires to the appropriate ports. Creality has provided instructions on just how to maintain every little thing tidy, so make sure you utilize the clips to have great cord monitoring for a neat appearance.
I should also discuss the Bowden tube that you will need to insert by hand into the extruder mechanism and also it’s extremely crucial to switch over the PSU to the suitable voltage. If you’re in the United States, it’s more than likely 110V, however in the EU and also a lot of the globe, it’s most likely to be 230V. This is an extremely vital step as well as might bring about damaging the 3D printer if not done appropriately.
Creality Ender-5 S1 3D FDM Printer:
Leveling up the bed

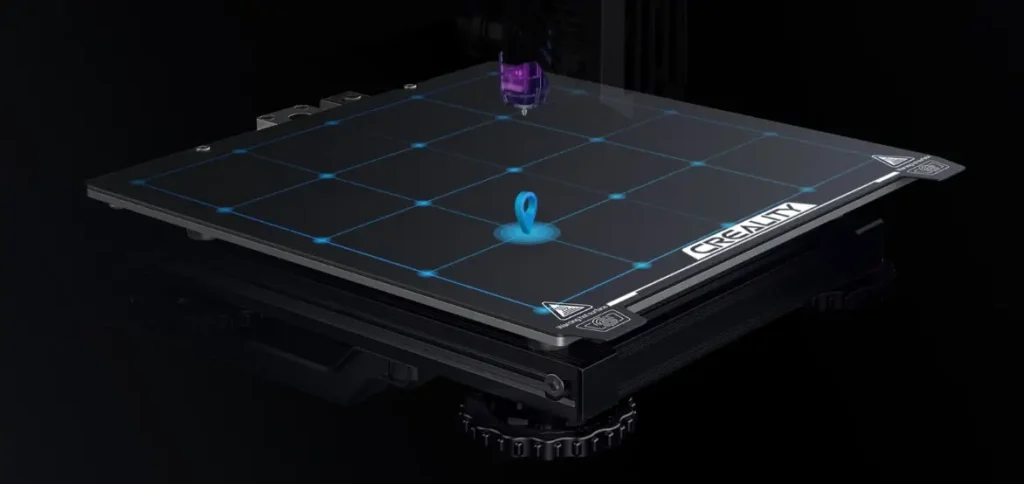

The procedure is not hard, yet rather on par with other, a lot more expensive 3D printers. Get hold of an item of slim paper or simply use the paper offered in the bundle as well as then select AUX LVL.
There are five points and also you will certainly need to manually experience all four, changing the knobs underneath up till the hard damages the paper. After that, tap on the AUTO LVL and also allow it to do its thing for about a minute approximately. That’s concerning, it needs to currently be properly leveled and also all set for printing. It’s worth discussing that this was the first time I realized just how obnoxiously loud the beeper can be. Every single time I touched the screen, a loud beep tried to deafen me– one more argument for the Sonic Pad.
Creality Ender-5 S1 3D FDM Printer:
The Built-In Display

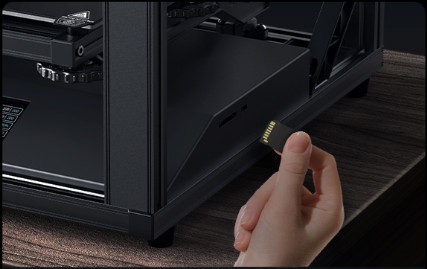

The integrated screen has four main sections, one is Home where you can see the temperature level of the bed and hot end, the rate of the print, and also the Z offset. After that, there’s the Print area where you can see the offered models on the microSD card– there is no WiFi connection built into the tool which is a pity. The 3rd area will certainly enable you to Prepare for the printing as well as the last is the Settings where you can choose between the PLA and ABS preheating settings, degree the bed, and transform the language.
Some Advanced settings allow you to disable the Runout sensor, return the Creality Ender-5 S1 to the default setups, readjust the Motion Settings, as well as the Temperature PID worths for the nozzle and bed.
The Sonic Pad Installation
Making Use Of the Sonic Pad is a different experience and I would have liked it if it would certainly have changed the existing system from the beginning. After starting up the tablet, I can pick the Language and after that, I was asked to accept the personal privacy Policy which mentions that when connected to the internet, the Sonic Pad will certainly collect geo-location, smartphone, press alerts as well as when you’re utilizing the Creality apps.
Considering that Klipper is open-source, I am not sure whether all this info collection is essential, yet what do I understand? On the next action, I could attach it to the WiFi network if I desired so I handled to install the brand-new available firmware (it can be done offline too). Then, I was asked to choose the version as well as I can see that the support covers almost all Creality printers. I selected the Ender-5 S1 and, after selecting USB interaction, I was asked to get in the microSD card viewers with the SD card affixed, so it can compose the firmware on it and then I needed to move it to the 3D printer.
