The Raise3D Pro3 HS Series is an industrial-grade Fused Filament Fabrication (FFF) 3D printer designed for high-speed, high-precision manufacturing, especially with high-performance composite materials.
It integrates Hyper FFF® Technology and a closed-loop stepper motor system to significantly boost production efficiency (30% to 70% faster than the standard Pro3) while maintaining accuracy and reliability for end-use parts and tooling.
Key features include automatic filament switching, compatibility with large 2.5kg spools, a high-flow hot end, and support for the new Hyper Core line of filaments.
Visit the Raise3D Pro3 HS Series—high-speed, dual-extruder 3D printers built for precision, reliability, and professional-grade performance.

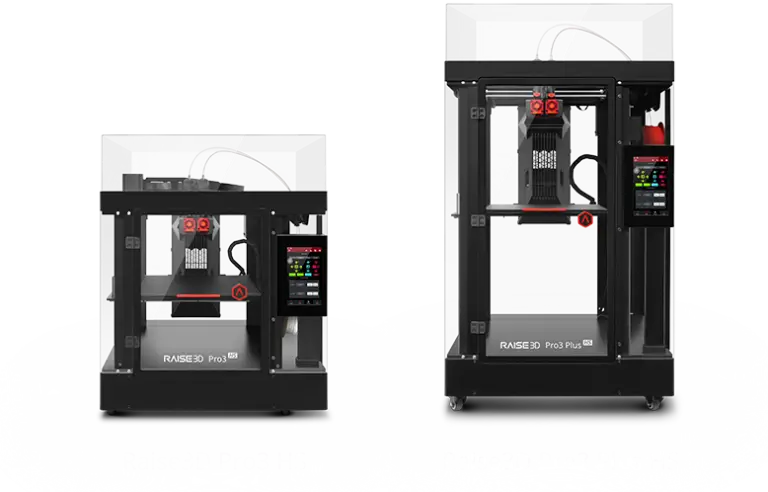

The Raise3D Pro3 HS Series is a powerful professional-grade 3D printer that builds upon the Pro3 Series with integrated Hyper FFF® technology. It features leading speeds for printing composite materials with high efficiency and reliability.
The upgraded motion control system with a closed-loop stepper motor further improves the precision and accuracy of high-speed printing, making it ideal for printing demanding industrial applications with minimal manual intervention.
Powered by Hyper FFF® Technology
The Raise3D Pro3 HS Series incorporates Hyper FFF® technology for precise and reliable high-speed printing, with Hyper Speed technology providing a high-flow-rate hot end and active vibration reduction algorithm.

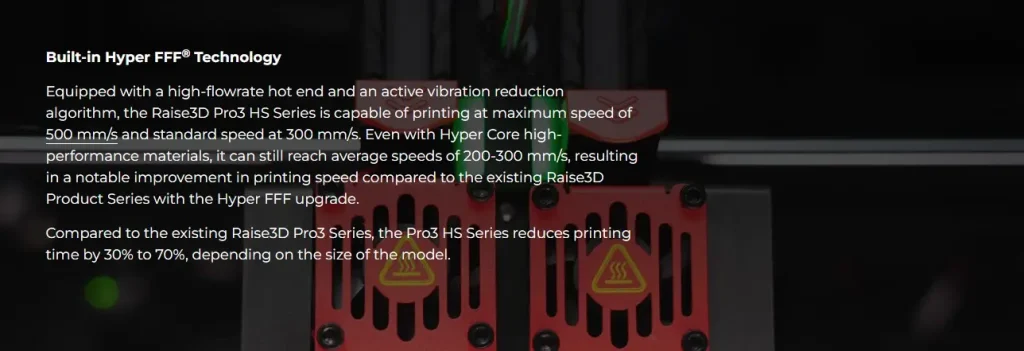

Built-in Hyper FFF® Technology
High Speed Printing with High-Performance Composite Materials
The Raise3D Pro3 HS Series supports 200-300 mm/s high-speed printing of Hyper Core high-performance composite materials, 100-150 mm/s speed of Industrial composite materials, meeting users’ high standards and requirements for end-use applications, enhancing both production efficiency and product quality. As a result of this high-performance composite material support, the resulting printed parts perform effectively even in the most demanding end-use applications.
Open Filament Program

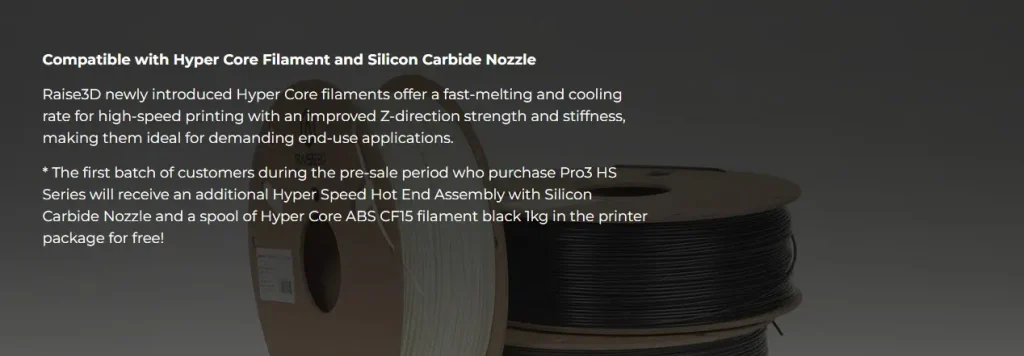

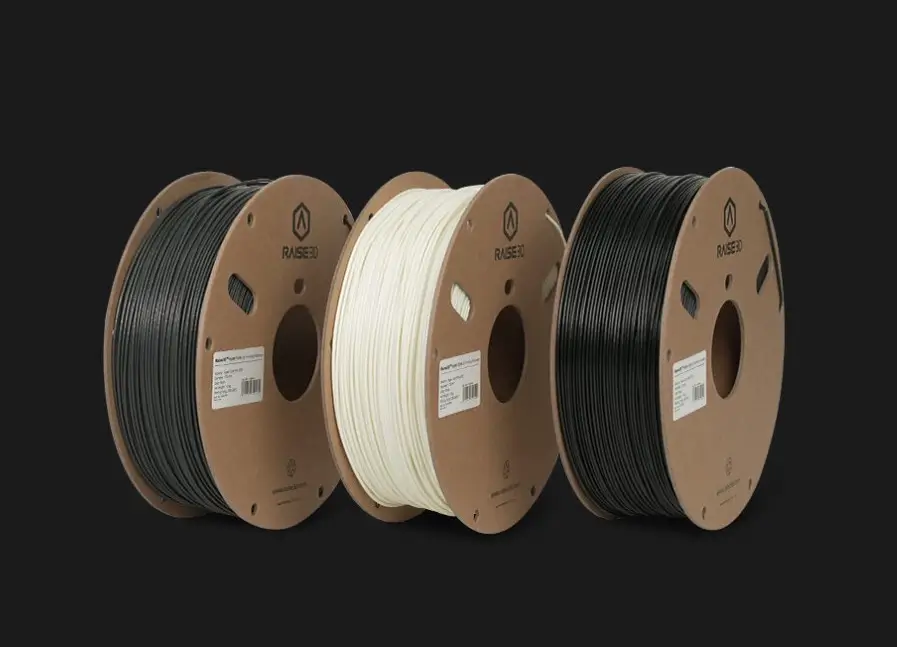

High-Performance Composite Materials
Enhanced Accuracy for Industrial Applications
Capable of printing at maximum speed of 500 mm/s and standard speeds of 300 mm/s, the Pro3 HS Series is equipped with a closed-loop stepper motor in the motion control system, enhancing extruder movement control to achieve more precise high-speed printing without losing steps. The new build plate offers uniform magnetic adhesion, reducing model warping. The optimized shaft provides better tightness and motion stability, while the robust all-metal frame ensures smooth movement and precise positioning, resulting in high-quality prints.
Tried and Tested All-Metal Framework

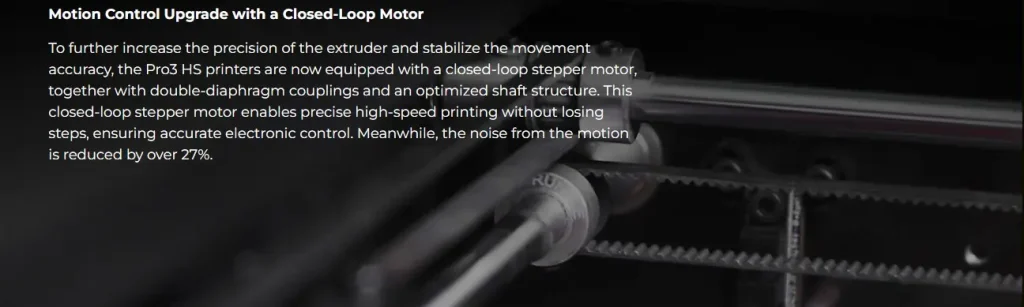

Closed-loop Stepper Motor
Optimized Shaft

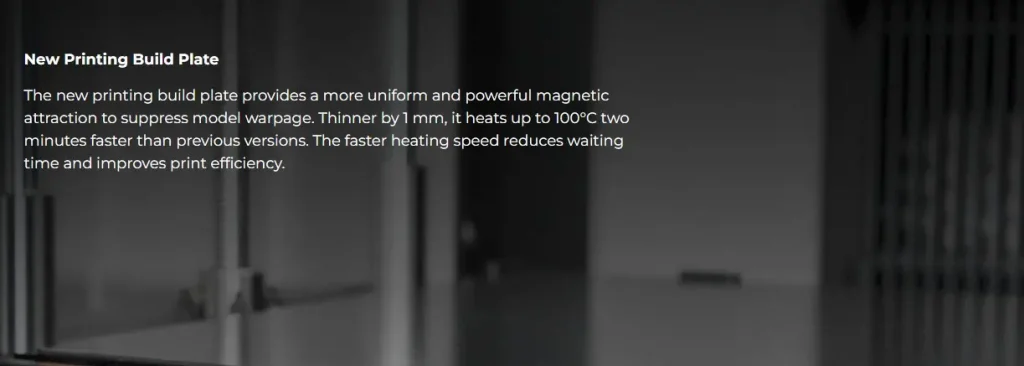

New Printing Build Plate
Longer-Lasting Reliability and Durability
Designed for high-volume industrial printing applications, the Raise3D Pro3 HS Series has been further optimized to enhance its reliability. Its strengthened hot end and all-metal nozzle, combined with a proven all-metal frame and dual-gear extruder, enable production for long hours. Optimized double-diaphragm couplings provides better strength and longer service life.
Double-diaphragm couplings

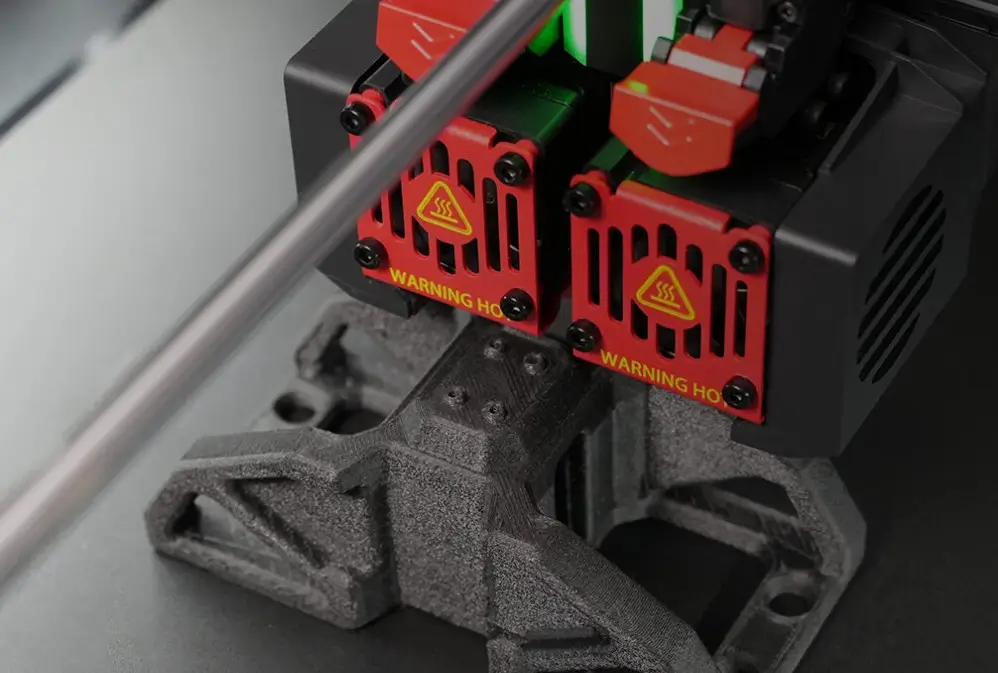

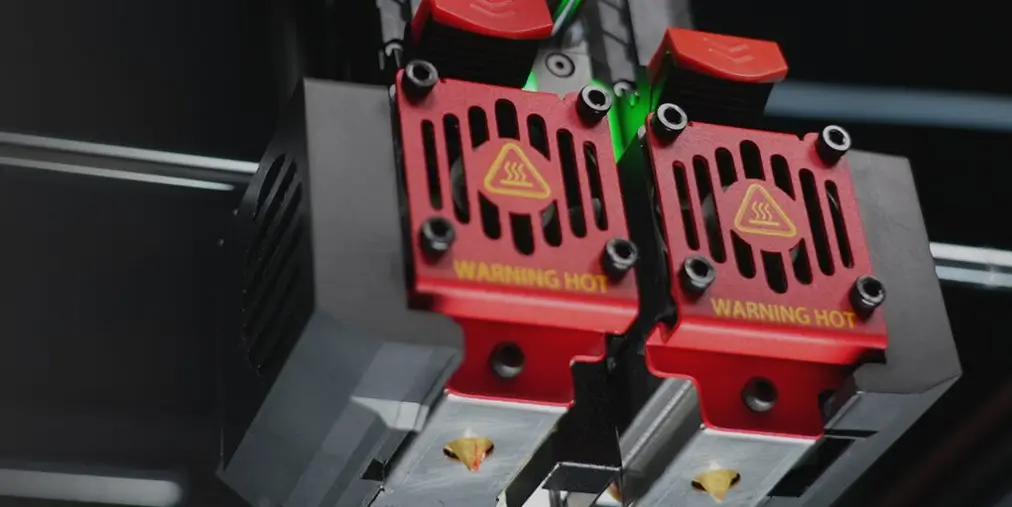

Strengthened All-Metal Hot Ends and Nozzles
Maximize Production Efficiency with Minimal Manual Intervention
The Raise3D Pro3 HS Series features an auto filament switching function, enabling uninterrupted production. With the capability to print using two larger 2.5 kg filament spools, this machine can now continuously print with up to 5 kg of material. The newly-added RFID filament sensor identifies the filament and verifies the necessary parameters to prevent incorrect material usage. Resulting in higher production efficiency and lower need for manual labor.

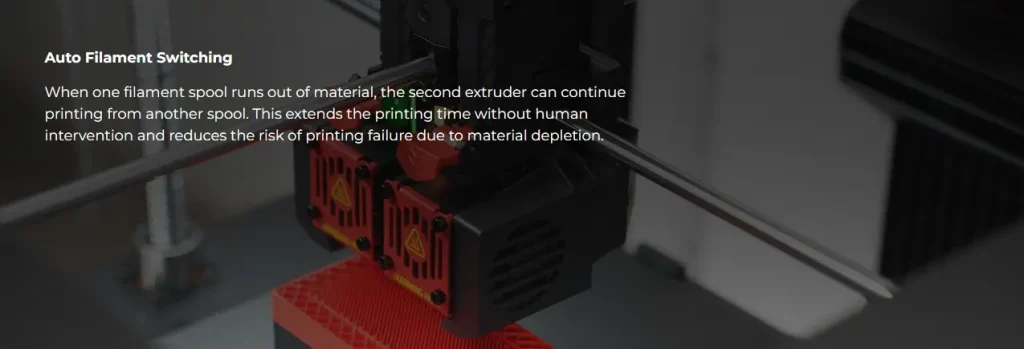

- Auto Filament Switching

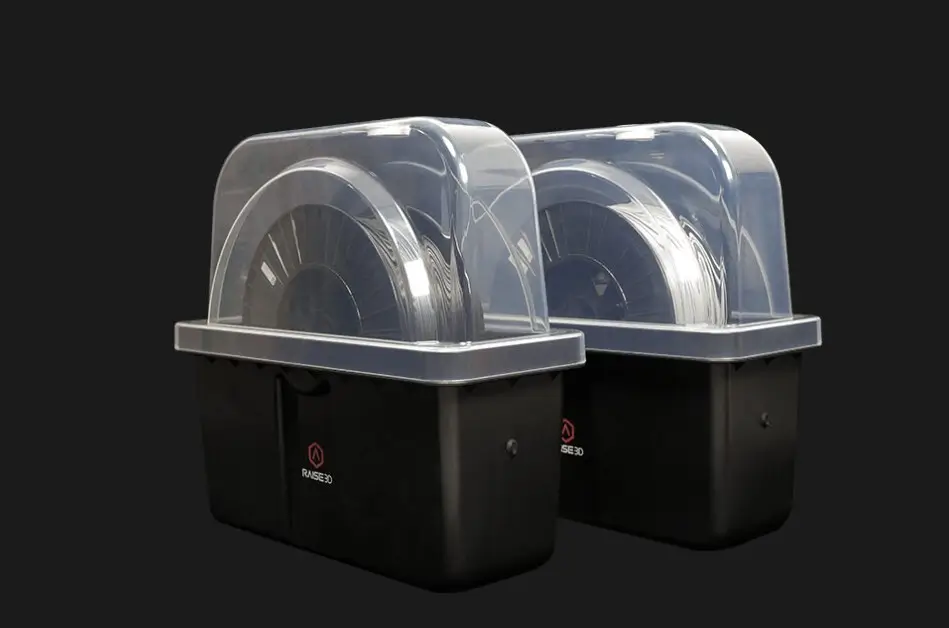

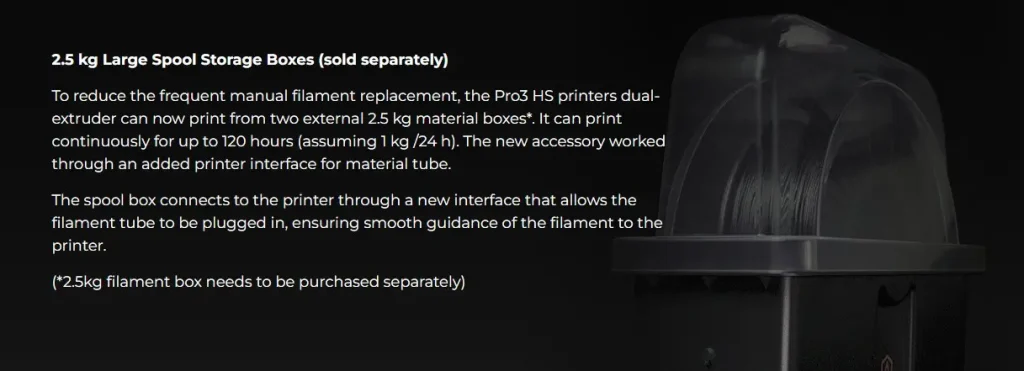

- 2.5 kg Large Spool Storage Boxes (sold separately)

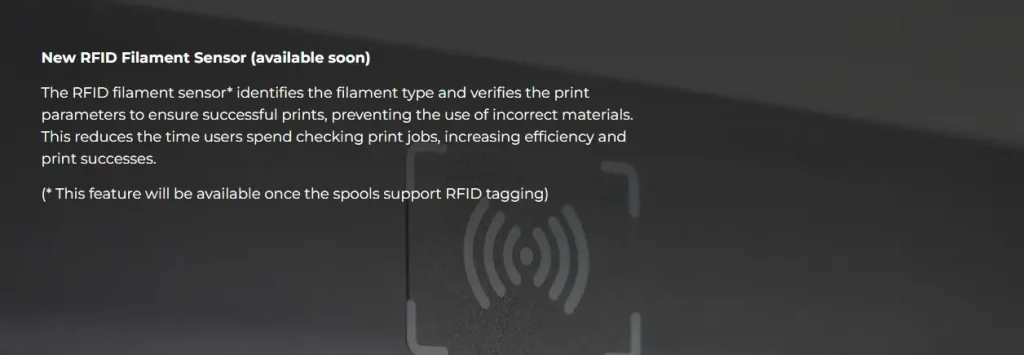

- New RFID Filament Sensor*
(* This feature will be available once the spools support RFID tagging)
Industrial Applications of PPA CF25
The combination of speed and high-performance material properties makes the Pro3 HS and PPA CF25 ideal for several demanding industrial use cases:
- Automotive and Aerospace: Creating lightweight, strong, and heat-resistant components like under-the-hood parts, end-use parts for general equipment, and interior components for prototyping.
- Manufacturing Aids: Rapidly producing high-strength jigs, fixtures, and tooling that require precision and durability on the shop floor.
- Functional Parts: Producing small-batch, end-use parts that require chemical resistance and excellent mechanical stability in challenging environments.
Raise3D Key New Upgrades
Sample Parts
Filament: Hyper Core PPA CF25
Model Size: 145*140*55 mm
Model Weight: 233.3 g
Layer Height: 0.2 mm
Print Time: 8 hours, 44 minutes
Application: Automotive Manufacturing Jigs and Fixtures
Requirements: High Strength, Precision and Durability, Light Weight, Customization
Filament: Hyper Core ABS CF15
Model Size: 160*160*24 mm
Model Weight: 77.2 g
Layer Height: 0.2 mm
Print Time: 6 hours, 9 minutes
Application: End-Use Parts for General Industrial Equipment
Requirements: High Strength, Precision and Durability, Light Weight, Customization

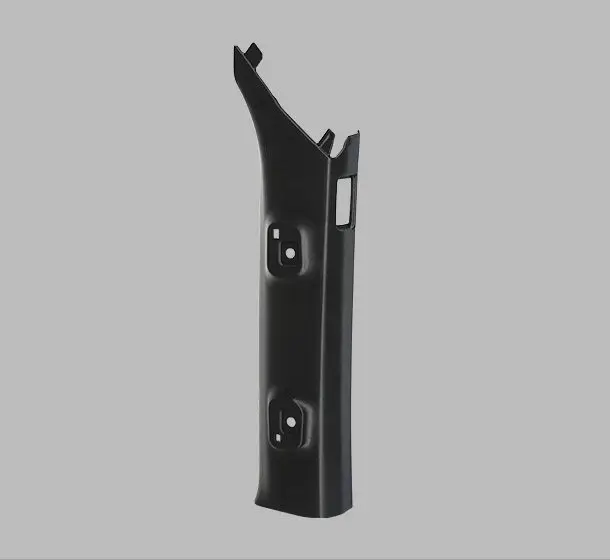

Filament: Hyper Core ABS CF15
Model Size: 131*96*487 mm
Model Weight: 314 g
Layer Height: 0.2 mm
Print Time: 17 hours, 39 minutes
Application: Automotive Interior Component Prototyping
Requirements: High Strength, Precision and Durability, Light Weight

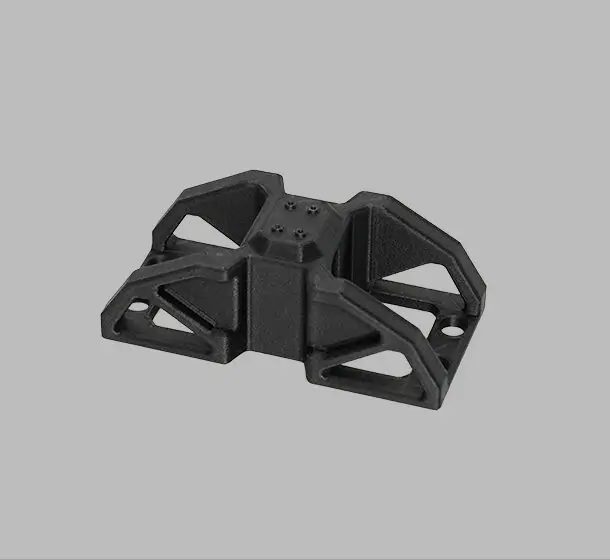

Filament: Hyper Core PPA CF25
Model Size: 120*60*45 mm
Model Weight: 68.7 g
Layer Height: 0.2 mm
Print Time: 3 hours, 43 minutes
Application: Jigs and Fixtures
Requirements: High Strength, Precision and Durability, Light Weight, Customization
Technical Specifications
| Specification | Pro3 HS | Pro3 Plus HS |
|---|---|---|
| Build Volume (W × D × H) | Single: 300 × 300 × 300 mm (11.8 × 11.8 × 11.8″) Dual: 255 × 300 × 300 mm (10 × 11.8 × 11.8″) |
Single: 300 × 300 × 605 mm (11.8 × 11.8 × 23.8″) Dual: 255 × 300 × 605 mm (10 × 11.8 × 23.8″) |
| Machine Size (W × D × H) | 620 × 626 × 760 mm (24.4 × 24.6 × 29.9″) | 620 × 626 × 1105 mm (24.4 × 24.6 × 43.5″) |
| Net Weight | 54 kg (119 lbs) | 64 kg (141 lbs) |
| Gross Weight (Carton with Pallet) | 75.7 kg (166.9 lbs) | 88.7 kg (195.5 lbs) |
| Print Technology | Fused Filament Fabrication (FFF) | |
| Print Head System | Dual-head with Electronic Lifting System | |
| Filament Diameter | 1.75 mm | |
| XYZ Step Size | 0.78125, 0.78125, 0.078125 micron | |
| Max Printing Speed | 500 mm/s | |
| Build Plate | Flexible Steel Plate with Buildtak | |
| Build Plate Leveling | Mesh-leveling with Flatness Detection | |
| Heated Bed Material | Silicone | |
| Max Build Plate Temperature | 120ºC | |
| Nozzle Diameter | 0.4 mm (Default), 0.2/0.6/0.8/1.0 mm (Available) | |
| Max Nozzle Temperature | 320ºC | |
| Layer Height | Compatible with 0.2–1.0 mm nozzles; 0.05–0.6 mm layer height. Recommended 0.1–0.3 mm with 0.4 mm nozzle. | |
| Filament Run-out Sensor | Available | |
| Filter | HEPA Filter with Activated Charcoal | |
| EVE Smart Assistant | Available | |
| Connectivity | Wi-Fi, LAN, USB port, Live Camera | |
| Noise Emission (Acoustic) | ＜55 dB(A) When Building | |
| Operating Ambient Temperature | 15–30ºC, 10–90% RH non-condensing | |
| Storage Temperature | -25℃ to +55℃, 10–90% RH non-condensing | |
| ELECTRICAL | ||
| Power Supply Input | 100–240 V AC, 50/60 Hz, 230 V @ 3.3 A | |
| Power Supply Output | 24 V DC, 600 W | |
| MATERIAL | ||
| Material Type |
Hyper Core: PPA CF, PPA GF, ABS CF Hyper Speed: PLA, ABS Industrial: PPA CF, PPA GF, PET CF, PET GF, PETG ESD, PET Support, PPA Support Premium: PLA, ABS, ASA, PETG, PC, TPU-95A, PVA+ |
|
| Third Party Material | Supported via Raise3D OFP (Open Filament Program) | |
| SOFTWARE | ||
| Slicing Software | ideaMaker | |
| Supported File Types | STL, OBJ, 3MF, OLTP, STEP, STP, IGES, IGS | |
| Supported OS | Windows, macOS, Linux | |
| Machine Code Type | GCODE | |
| PRINTER CONTROLLER | ||
| User Interface | 7-inch Touch Screen | |
| Network | Wi-Fi, Ethernet | |
| Power Loss Recovery | Available | |
| Screen Resolution | 1024 × 600 | |
| Motion Controller | Atmel ARM Cortex-M4 120 MHz FPU | |
| Logic Controller | NXP ARM Cortex-A9 Quad 1 GHz | |
| Memory | 1 GB | |
| Onboard Flash | 16 GB | |
| OS | Embedded Linux | |
| Ports | USB 2.0 × 2, Ethernet × 1 | |
Frequently Asked Questions
What is the primary advantage of the Raise3D Pro3 HS Series over the standard Pro3 Series?
The primary advantage is speed and composite material capability. The Pro3 HS is built-in with Hyper FFF® Technology and a closed-loop stepper motor, allowing it to print at standard speeds of 300 mm/s and high-performance composite materials (like Hyper Core) at 200-300 mm/s. This can reduce printing time by 30% to 70% compared to the previous series.
What is Hyper FFF® Technology and how does it achieve high speeds without sacrificing quality?
Hyper FFF® is an integrated ecosystem of hardware, software, and materials. It achieves high speed by:
Hyper Speed/Core Filaments: Materials formulated for faster melting and cooling.
Active Vibration Reduction Algorithm: Software calculates and cancels out vibrations caused by rapid print head movements.
High-Flowrate Hot End: Ensures faster melting and extrusion.
Closed-Loop Stepper Motors: Prevents step loss, ensuring accuracy at high speeds.
What are the Hyper Core filaments and why are they needed for high-speed printing?
Hyper Core filaments (e.g., PPA CF25, ABS CF15) are a new line of professional, fiber-reinforced composite materials. They are engineered with a fiber-rich inner core that increases heat conductivity, allowing the filament to melt and cool faster and more uniformly. This optimizes the material flow for high-speed extrusion while ensuring excellent interlayer bonding and part strength (especially Z-direction strength).
How does the Pro3 HS maximize production efficiency?
It uses several features to minimize manual intervention:
- Auto Filament Switching: The dual extruder automatically switches spools when one runs out.
- Large Spool Support (5 kg total): Reduces the frequency of material loading.
- New RFID Filament Sensor: Identifies material and loads correct print profiles.
- Auto Filament Unloading.
Which software is used with the Pro3 HS Series?
The Pro3 HS is part of the Raise3D ecosystem, utilizing:
- ideaMaker: The powerful slicing software.
- RaiseCloud: Cloud-based software for remote print management and monitoring.
- EVE Smart Assistant: An on-board system for smart problem diagnosis and assistance.
