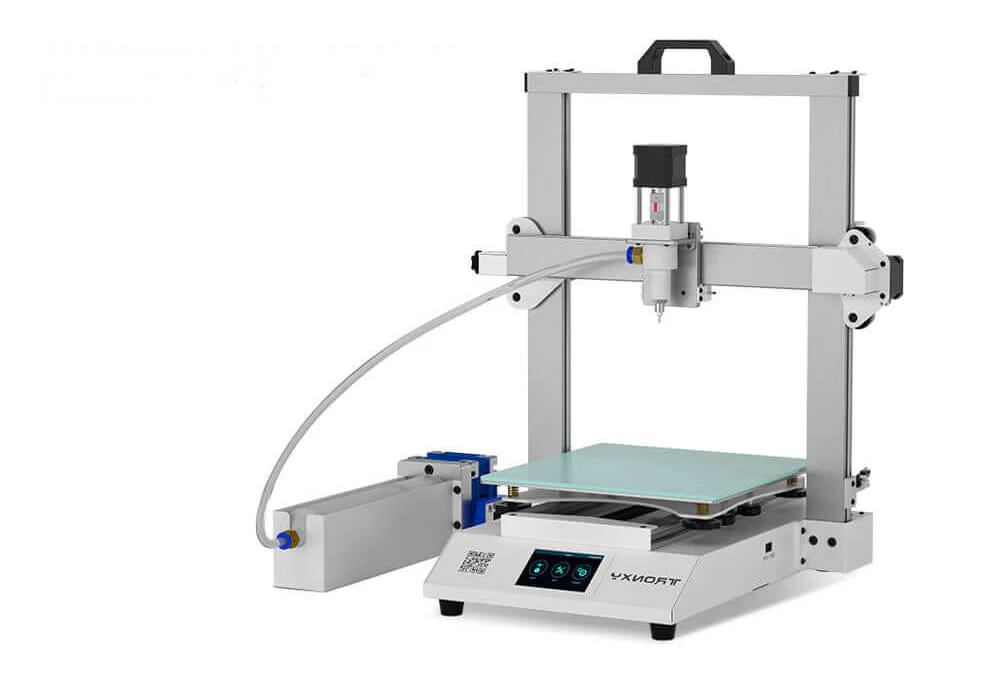

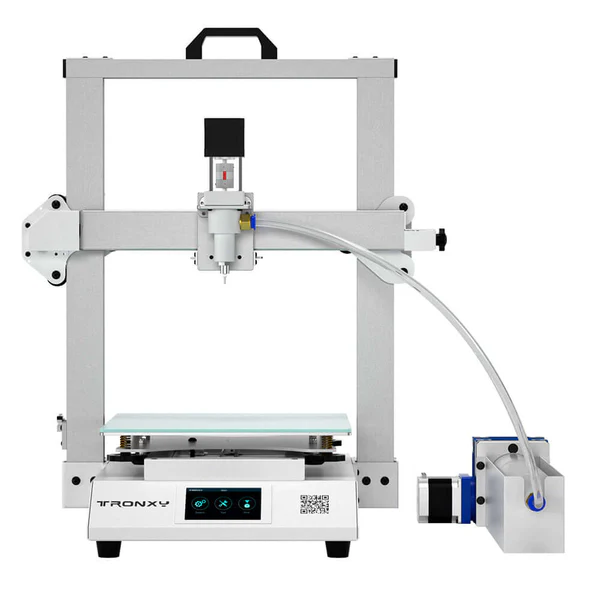

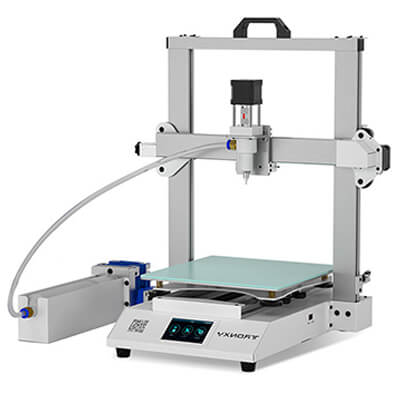

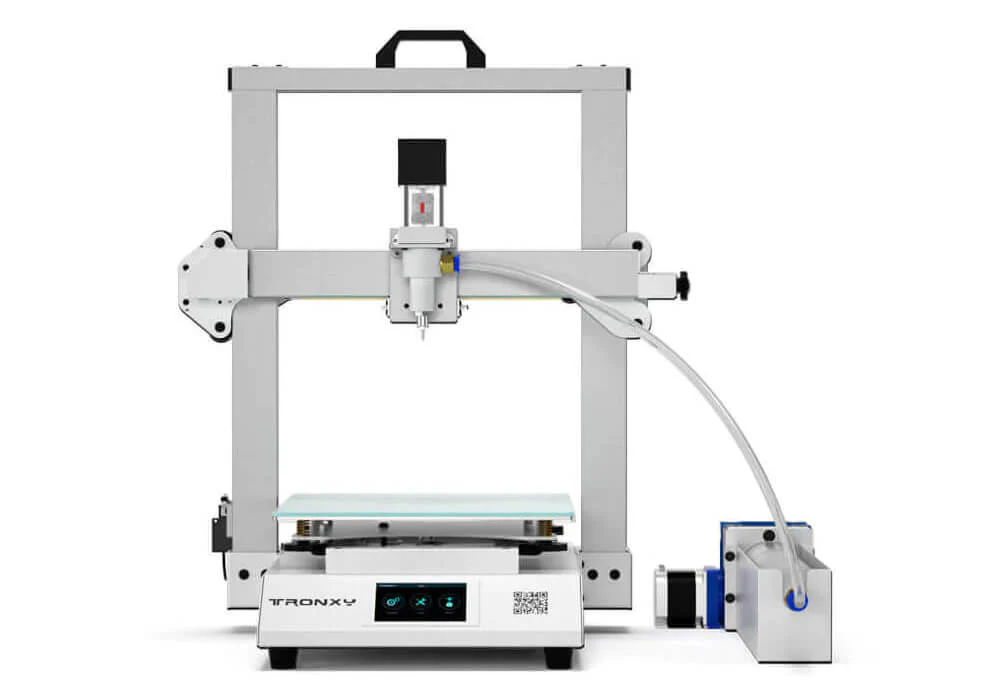

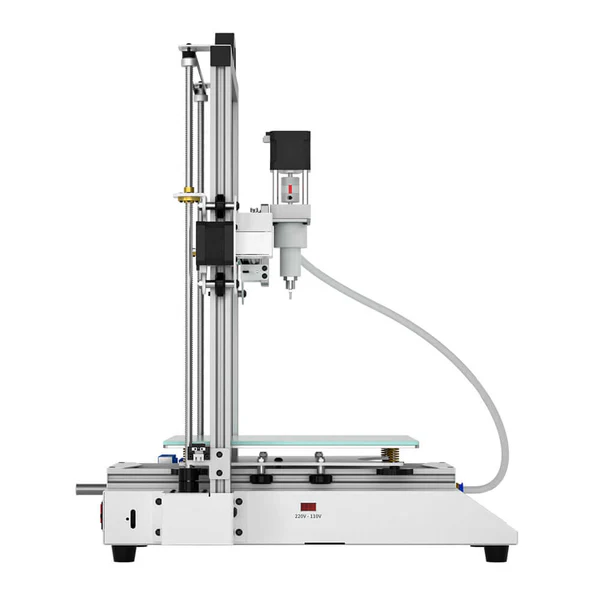

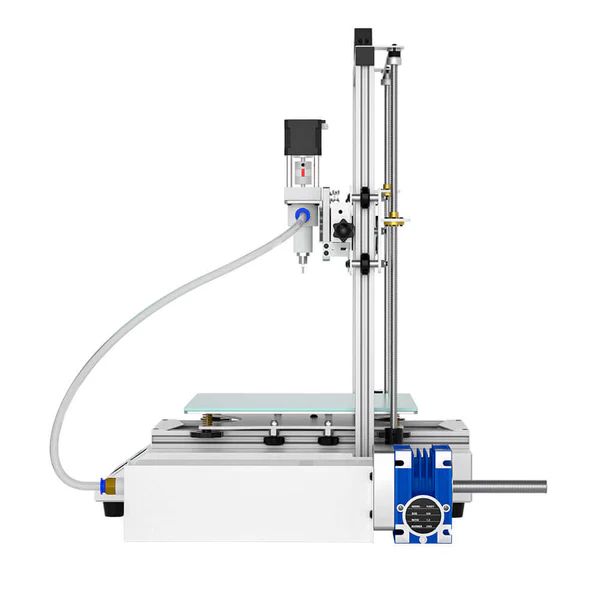

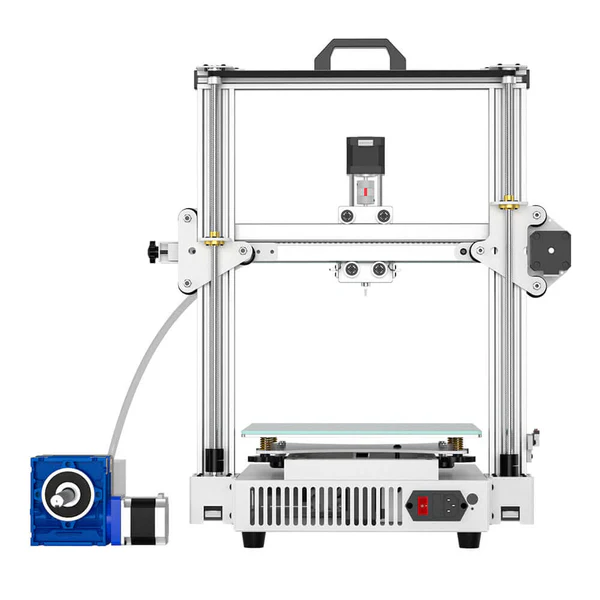

The TRONXY Moore 2 Pro is a desktop 3D printer designed for printing with clay and other liquid-flowing ceramic materials. Unlike filament-based printers, it uses Liquid Deposition Modeling (LDM) technology and an electric putter system for smooth, compressed air-free extrusion.
The Tronxy Moore 2 Pro Ceramic 3D Printer, featuring clay 3D printing with a 255mm feeding system powered by an electric putter, showcases cutting-edge 3D printing technology from Tronxy.
About this Moore 2 PRO clay ceramic 3d printer:
【Model: Moore 2 PRO】
【1. Building Size: 255mm*255mm*260mm 】
【2. LDM Exruder】
【3. Materials: Clay, Ceramics slurry, Red Porcelain, and various liquid flowing materials】
【4. Feeding mode: Electric push rod + screw extrusion】
【5. Exclusive OSG Dual Core Guide Rail】
【6. 3.5 Inch Touch Screen 】
【7. 32 Bit Silent Mainboard】
Details
Versatile Printing Capabilities
The Tronxy Moore 2 Pro is designed for printing with ceramic and clay materials, enabling you to create intricate, customized designs. The spacious print area of 255mm x 255mm x 260mm offers the flexibility to work on a range of projects, from artistic sculptures to functional items.
User-Friendly Feeding System
Equipped with an advanced feeding system, the Tronxy Moore 2 Pro ensures a smooth, consistent flow of material. The electric putter enhances printing efficiency, minimizing jams and maximizing productivity.
Sturdy Construction
Built with high-quality materials, the printer exhibits exceptional durability and stability. This robust design not only enhances print quality but also prolongs the printer’s lifespan, making it an excellent investment for both hobbyists and professionals.
Enhanced Precision and Accuracy
Experience remarkable precision with the Tronxy Moore 2 Pro. By utilizing cutting-edge technology, this printer achieves precise layer adhesion and accurate detailing, resulting in stunning end products that exceed expectations.
Easy Setup and Operation
The Tronxy Moore 2 Pro is designed for hassle-free setup and operation. With a user-friendly interface and straightforward instructions, even beginners can quickly learn to produce high-quality prints like seasoned professionals.
Innovative Design Features
Incorporating innovative design features, the Tronxy Moore 2 Pro enhances the user experience. From its sleek appearance to thoughtfully arranged components, every detail is aimed at ensuring easy access, maintenance, and usability.
- Steps/mm: 0.7
- Extruder design files are not open source.
- The 3d printer already includes each item. If you need the extra tube, nozzle, needle, printing head, microwave kiln, clay, etc, you can purchase them with the 3d printer.

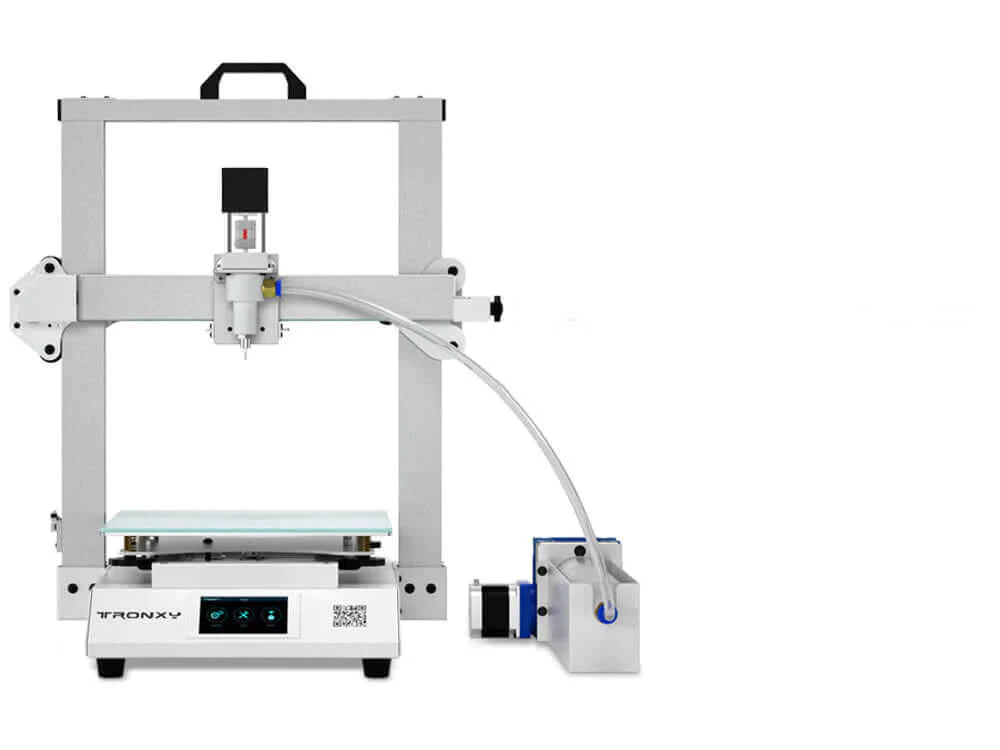

TRONXY MOORE 2 PRO CERAMIC & CLAY 3D PRINTER
Touch screen, Resume after power failure, Clay, ceramic slurry, and various liquid flowing materials, Feeding system electric putter 32-bit Silent Mainboard, Exclusive OSG Dual Core Guide Rail
High Efficiency And Quality
Inheritance & Technology & Innovation. The design requires careful attention to every detail to make the best clay 3D printer. To provide customers with a better experience.
Pottery Heritage Technological innovation
Inheritance & Technology & Innovation
3D Printer Specifications
| Printing Principle: | Liquid Flow Stacked Molding (LDM) |
| Printing Thick Layers: | 0.3-3.0mm |
| Positioning Accuracy: | X/Y: 0.00625mm; Z: 0.00125mm |
| Printing Speed: | 10-40mm/s (20mm/s is recommended) |
| Display Screen: | Full Color Touch Screen |
| Nozzle Diameter: | 1.0-3.0mm (optional) |
| Number of Nozzles: | Single Nozzles |
| Print Volume: | 255*255*260mm |
| Materials: | Pottery Clay, Porcelain Clay, Purple Sand, Other Liquid Flowing Material |
| Colour: | White |
| Language: | Eight Languages |
| Material: | Sheet Metal |
| Input Format: | .stl / .obj / .dae / .amf |
| Slicing Software: | Cura / Repetier-Host |
| Output Format: | Gcode |
| Printing Method: | USB Cable, TF Card |
| Machine Weight: | 18.5KG + 3.5KG = 22KG |
| Package Size: | 740*532*215mm |
| Machine Size: | 410*414*510mm |
| Barrel Capacity: | 500ml |

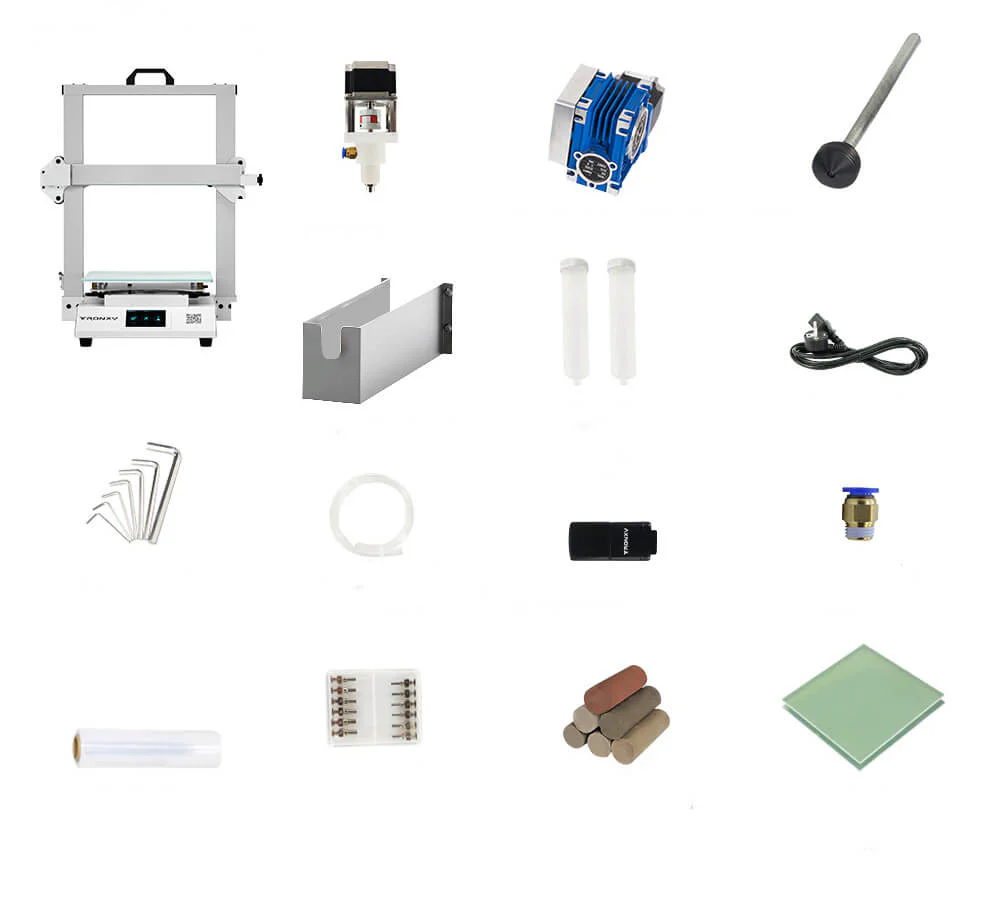

Packing List / Included Items
- • Clay 3D Printer Body * 1
- • Screw Print Head * 1
- • Feed Transmission * 1
- • M18 Extrusion Screw * 1
- • Allen Wrench * 1
- • Barrel Holder * 1
- • Barrel (500ml) * 2
- • Power Cable * 1
- • Plastic Wrap * 1
- • Material Pipe ($\phi$10*8mm) * 1
- • TF Card and Card Reader * 1
- • Spare Nozzle ($\phi$10*8mm) * 2
- • Pottery Clay Printing Needle (12pcs) * 1
- • Ceramic Mud (2KG) * 1
- • Fiberglass Board (2pcs) * 1
Specification
Print size: 255*255*260mm
Print speed: 10-40mm/s (20mm/s is preferred)
Print thickness: 0.3-3mm (Optional)
Positioning accuracy: X/Y:0.00625mm; Z:0.00125mm
Nozzle size: 1-3 mm (Optional)
Materials support: Clay, Ceramics slurry, Red Porcelain and various liquid flowing materials
Machine weight: 15 kg + 3.5kg
Machine size: 410mm * 414mm * 510mm
Package Size: 740mm * 532mm * 215mm
Barrel Capacity: 500ml
What is the most suitable viscosity for mix mud for Tronxy Moore Clay 3d printer?
Usually, our customer mixes the mud already too dry or too wet. What viscosity of mud is most suitable for printing on our clay 3D printer? Pls follow the first video guide above for Moore 1, Moore 2, and Moore 2 pro.
Software And Other Paramenters
Slicing software: Cura
Output format: G-Code
Operation software: Repetier-Host/Cura
Operating system: Windows
Connection: USB cable, TF card
Power input: 100V/220V, 50/60Hz
Power output: 24V/360W
Input format: .stl, .obj
Language: Eight Language
Packing list
GantryBaseScrew printer headFeeding System (Trasmmision + M18 extusion screw)Barrel holder & Barrels * 2pcsFiber Glass PlateReader with 8G TF cardCeramic Mud 2kgPipes (Φ10 * 8mm)Pottery clay printer needle (1 box) + Spare pneumatic connector)Tools（ Power cable, manual, plastic wrap, etc)
MORE STABLE OSG Guide Rail
Exclusive OSG Dual Core Guide RailOSG Guides More Stable and High Precision Extended Service life.
Mute Motherboard No Noise in Printing
Easy to operate with a touch screen. One-key quick printing.
User Manual Documentation
Clay 3D Printer Applications
Art work
Pottery bar
Sculpture art
Cultural relic restoration
IP animation
Ceramic art customization
Once You Have It
The integration of creativity and technology greatly shortens the creative cycle.

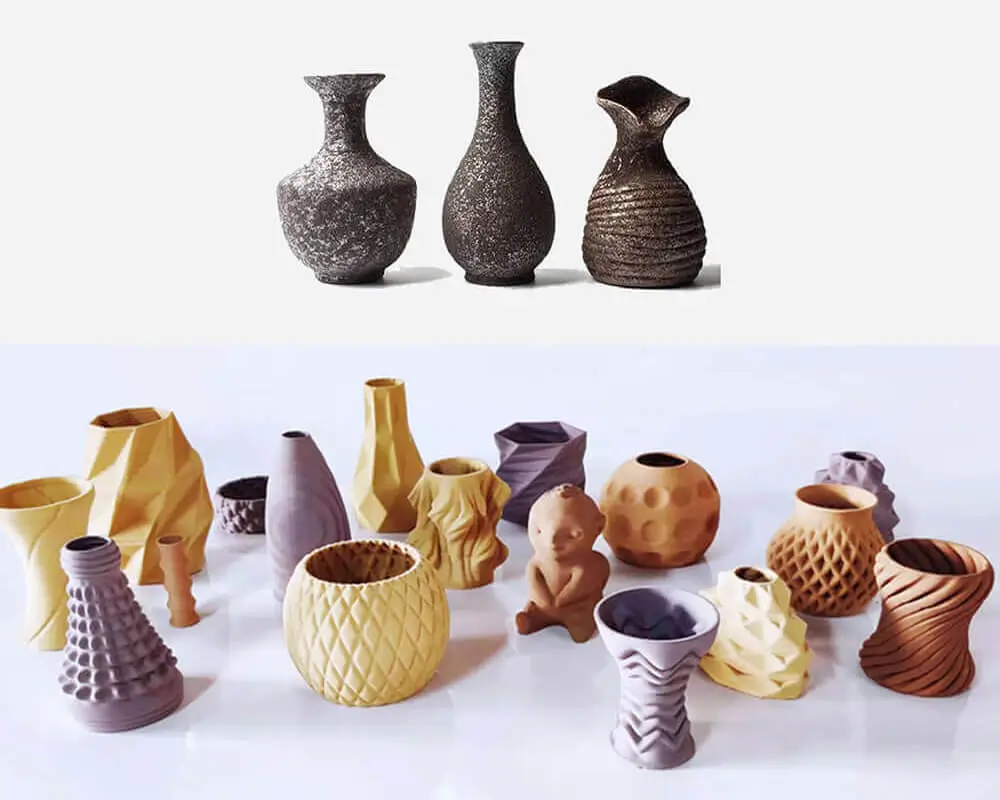

Sketch printing products
The artistic combination of clay and line.

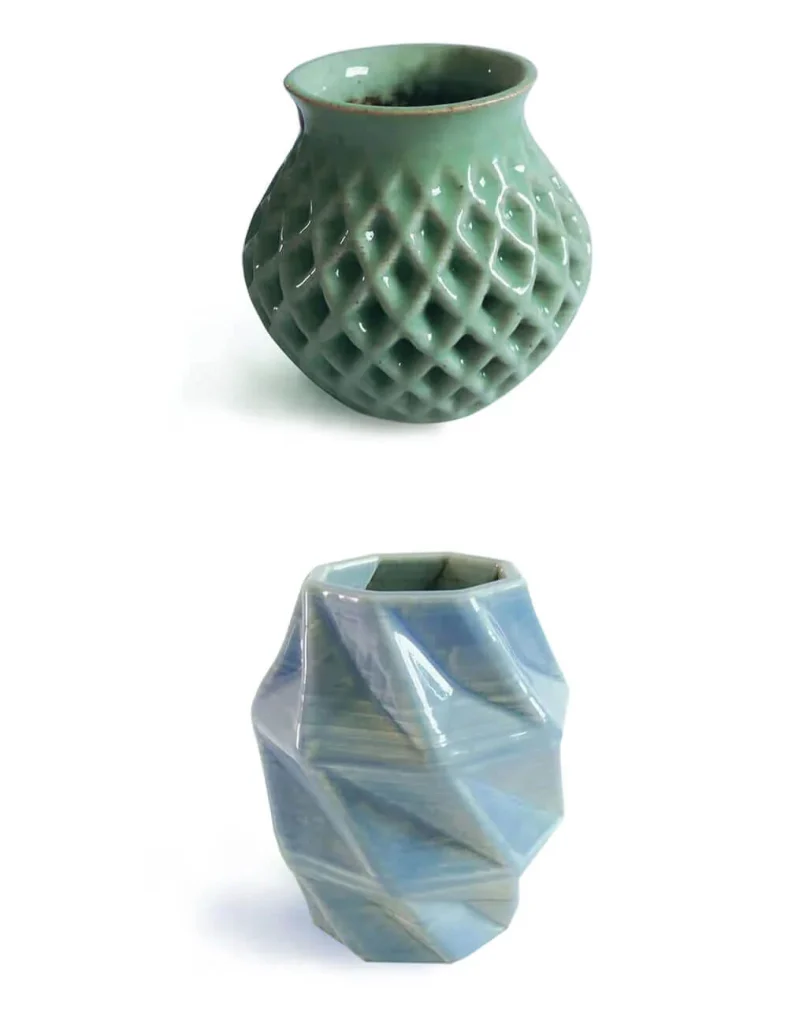

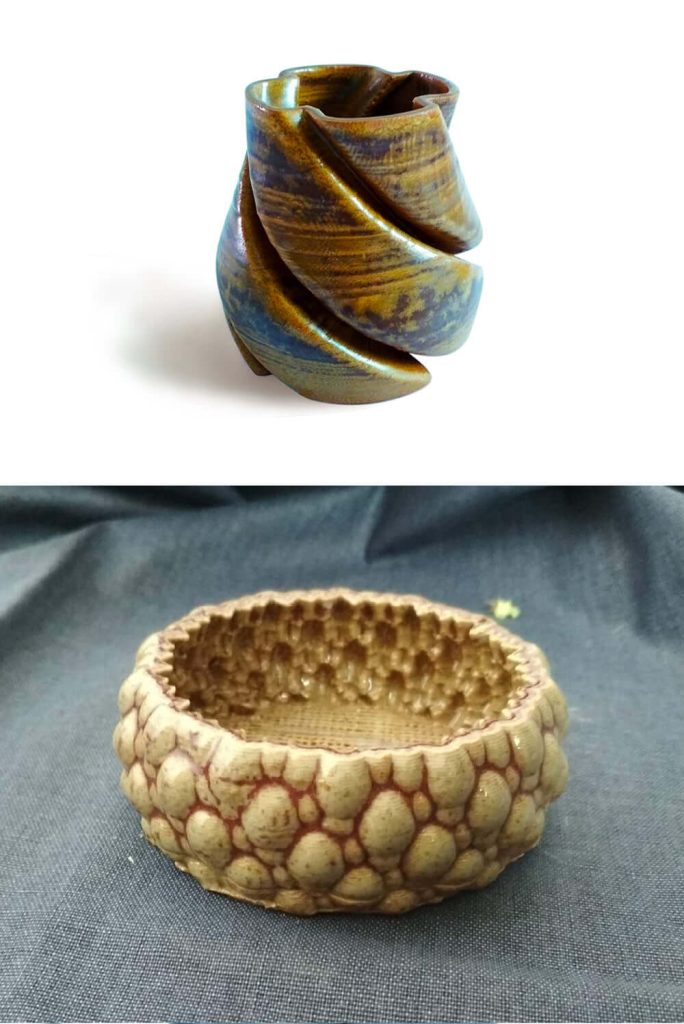

Glaze Firing Effect
One color in the kiln, Out of the Kiln Mutiple Colors.
Achieves the Future Creative possibilities
Complete Constant Temperature Clay 3D Printers
| Black and White Color 2 Options | |
|---|---|
| Model | Print Size (mm) |
| Moore X2525 | 255x255x260 |
| Moore X2540 | 255x255x400 |
| Moore X3350 | 330x330x500 |
| Moore X4060 | 400x400x600 |
| Moore X4080 | 400x400x800 |
| Moore X5070 | 500x500x700 |
| Moore X50100 | 500x500x1000 |
| Moore X6080 | 600x600x800 |
| Moore X60100 | 600x600x1000 |
| Moore X60120 | 600x600x1200 |
| Moore X80120 | 800x800x1200 |
| Moore X80160 | 800x800x1600 |
| Moore X100160 | 1000x1000x1600 |
| Moore X100200 | 1000x1000x2000 |
Frequently Asked Questions
What is the Tronxy Moore 2 Pro Clay 3D Printer?
The Tronxy Moore 2 Pro Clay 3D Printer is a specialized printer that uses clay rather than standard plastic to create 3D objects. It has a feeding system that helps move the clay smoothly, making it easier to print beautiful and detailed designs.
How does the feeding system work?
The feeding system in the Tronxy Moore 2 Pro is like a strong push that helps the clay get into the printer. This system ensures the right amount of clay is used, helping create sharp, clear shapes. It’s similar to how a play dough machine works!
What materials can I use with this printer?
You can use different types of 3D-printing clay with the Tronxy Moore 2 Pro. It’s important to choose clays that are compatible with the printer to achieve the best results in your creations.
What kind of projects can I make with this printer?
With the Tronxy Moore 2 Pro, you can create various projects like vases, figurines, and decorative pieces! If you can imagine it, you can probably print it! Just remember to think about how much clay you will need for bigger projects.
Does the printer require any maintenance?
Yes, like any machine, the Tronxy Moore 2 Pro will need some regular maintenance. This includes cleaning the nozzle and checking the feeding system. Keeping it in good shape will help ensure your printer works well for a long time!
