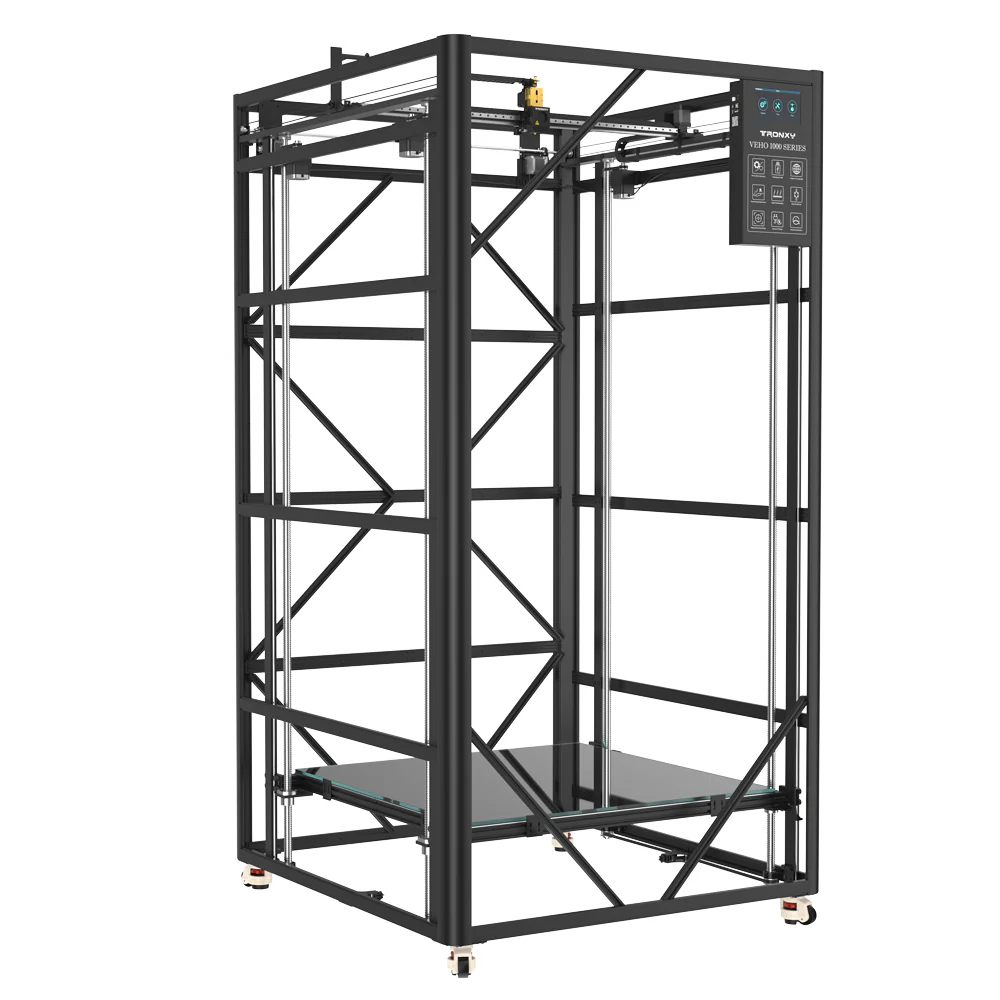

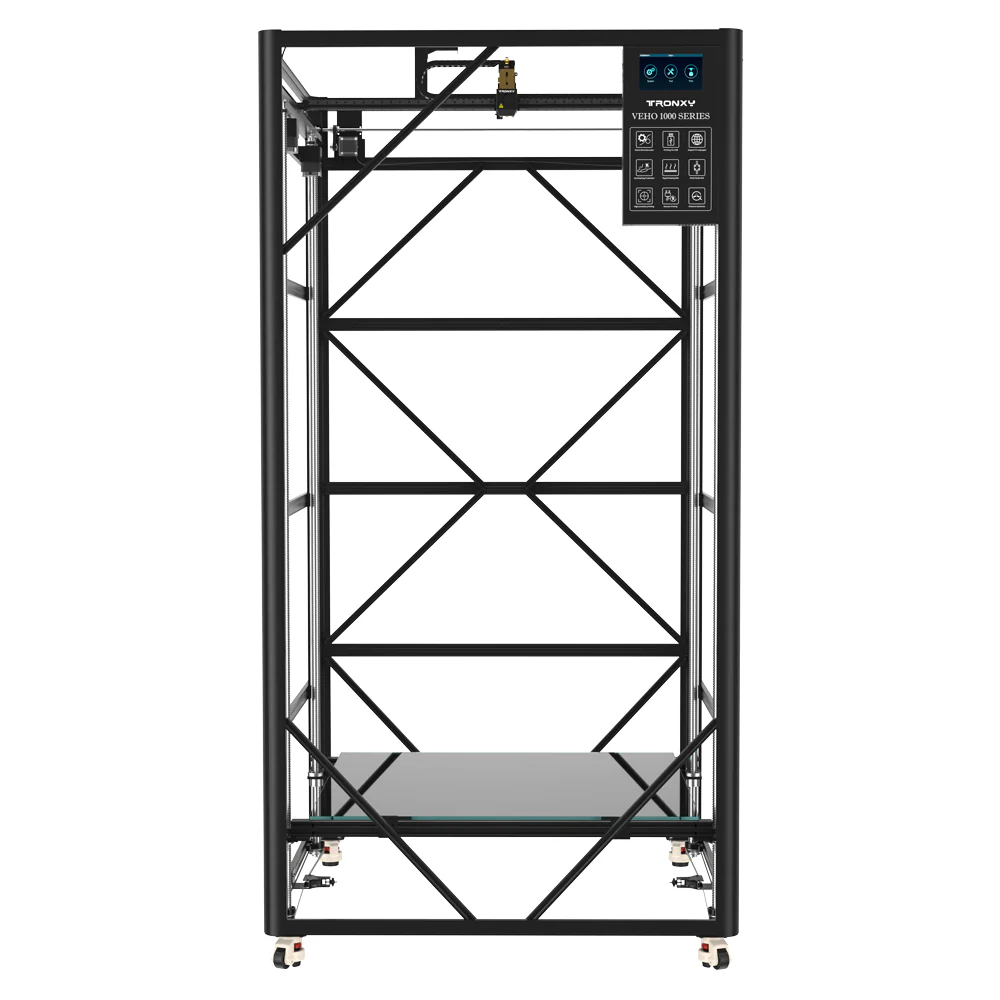

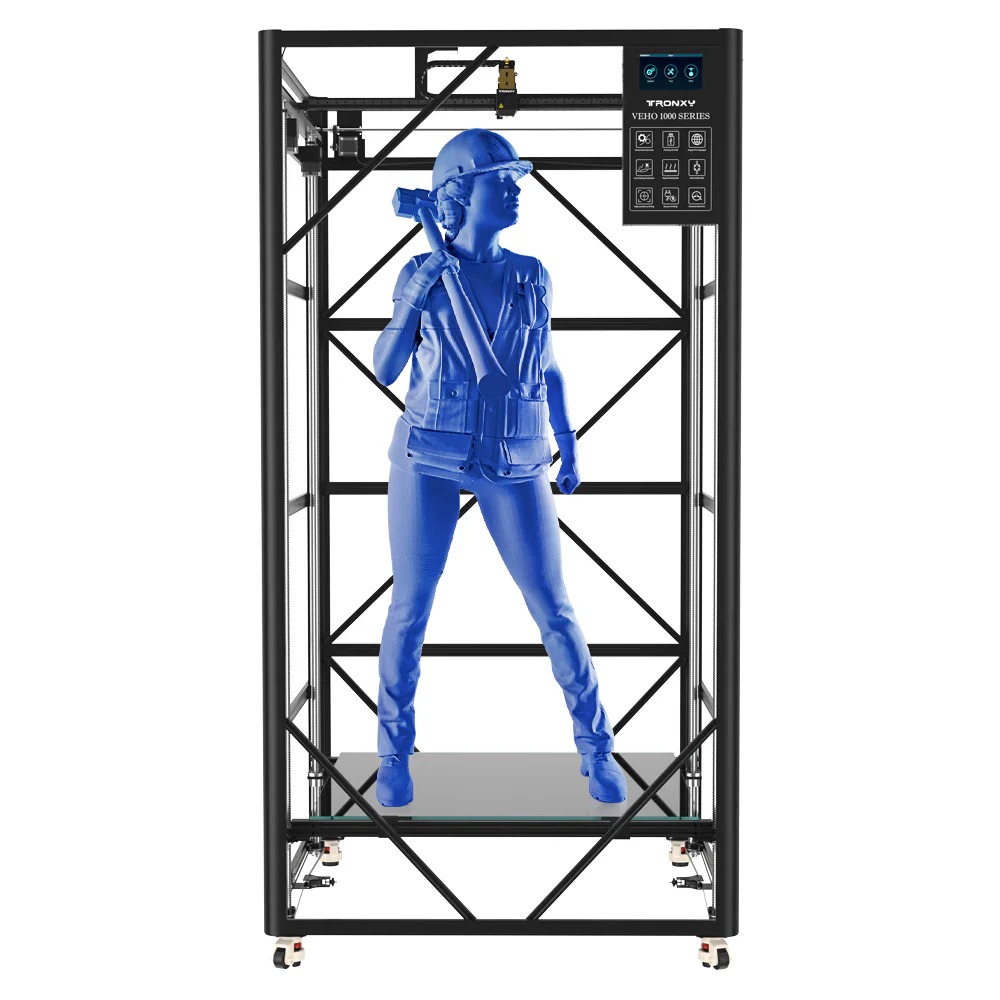

Tronxy VEHO-1000-20 Direct Drive Large 3D Printer

The Tronxy VEHO-1000-20 is an industrial-grade FDM 3D printer defined by its massive 1 cubic meter build volume (1000×1000×2000 mm), Direct Drive extrusion, and ability to handle high-temperature filaments (up to 320∘C). It targets professional users needing to print full-scale or very large-volume parts in a single piece. The newer PRO version integrates Klipper Firmware for enhanced speed and control.

Visit Tronxy VEHO-1000-20 3D Printer delivers large build volume, stable performance, and high precision for professional 3D printing projects.

Related internal pages:

• tronxy-veho-800-pro-3d-printer/
• tronxy-veho-1000-16-pro-review/
• ultimaker-s8-3d-printer/
• t500-3d-printer/
• t300-3d-printer/

Key Features VEHO-1000-20 3D Printer

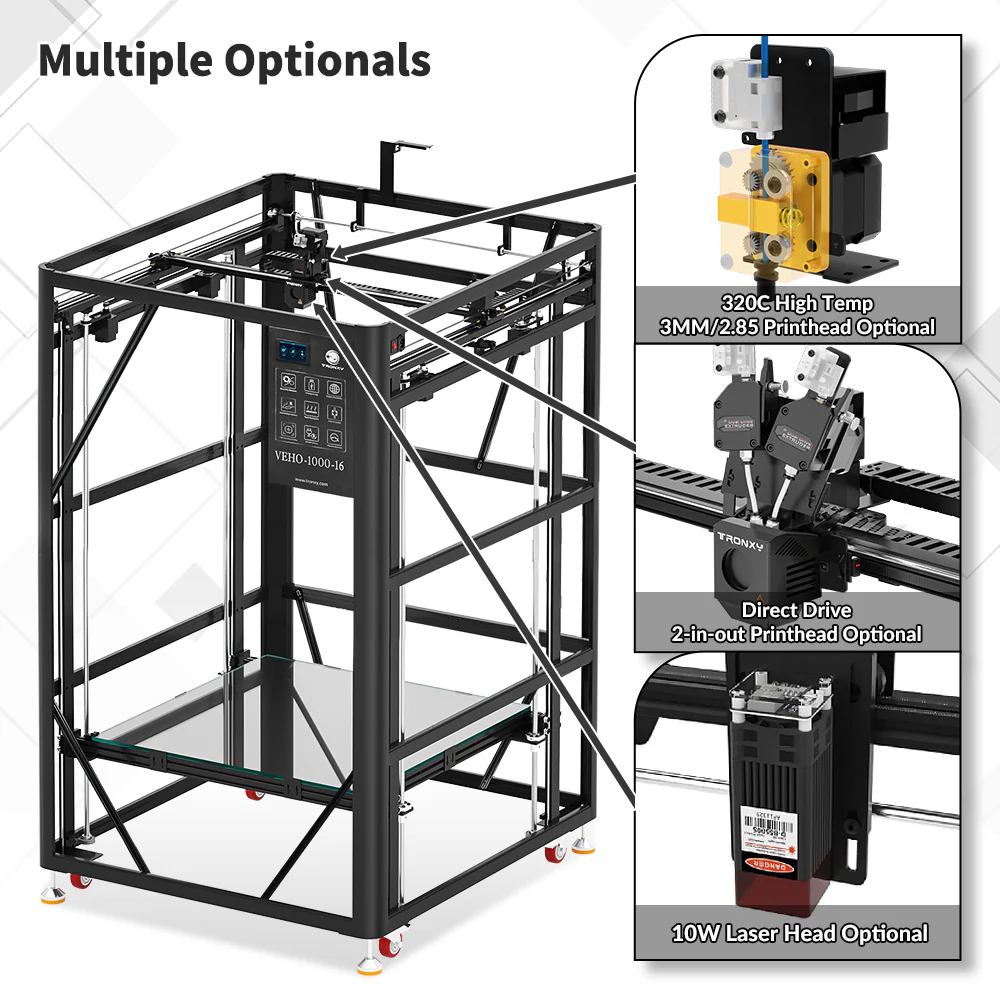

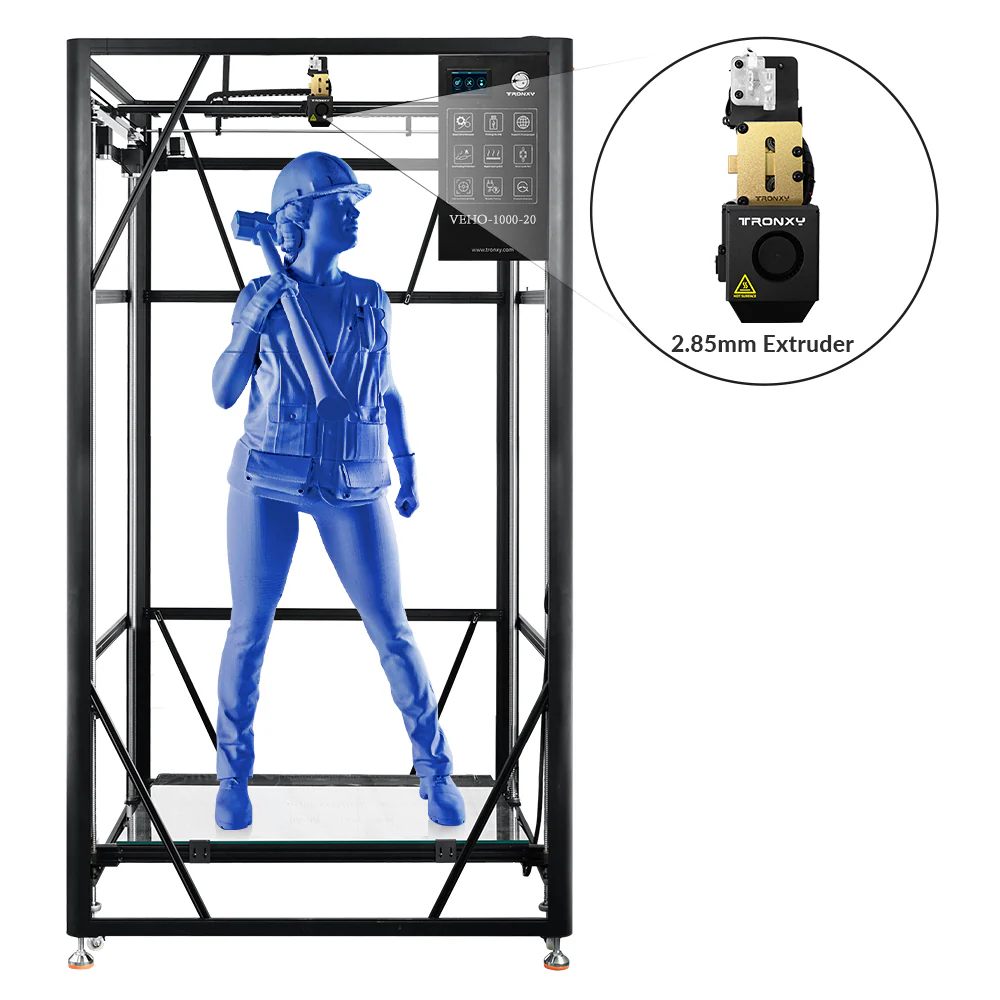

• 2.85mm High Temperature Heating Component Direcet Drive Extrusion is optional

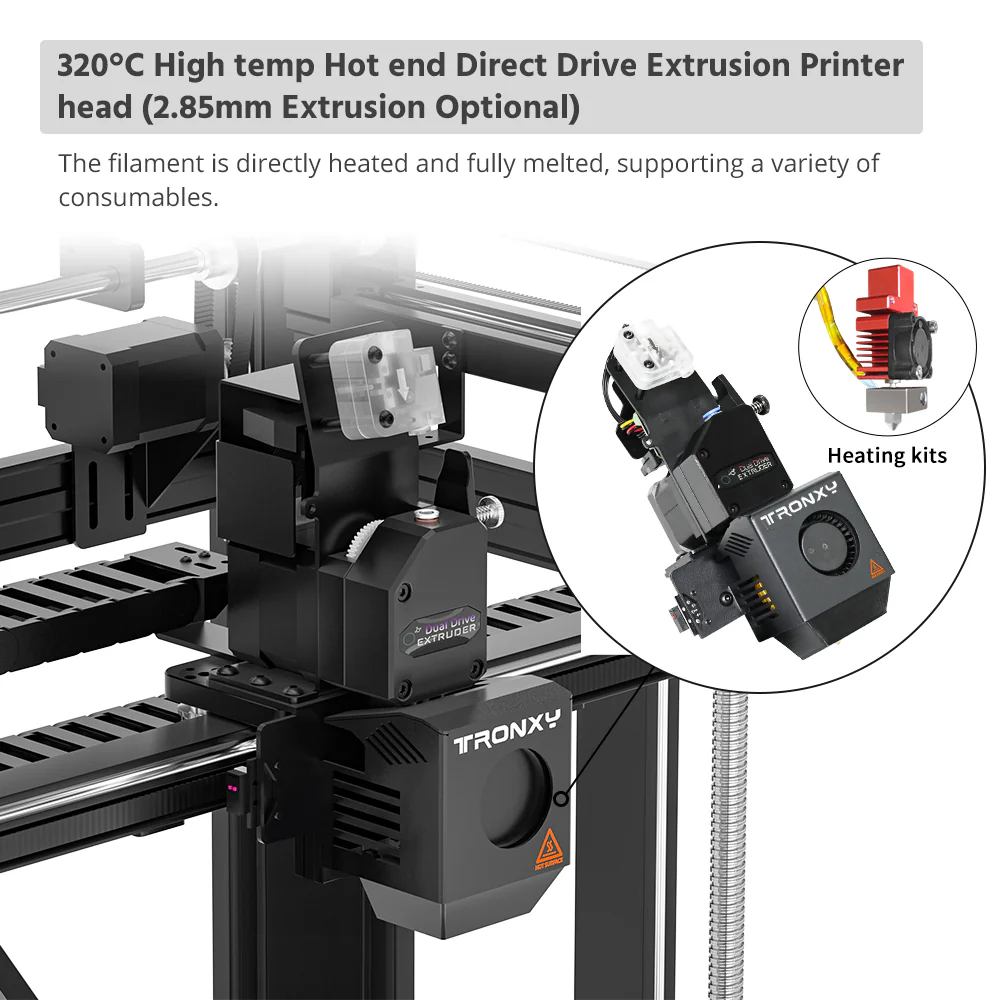

• 320c High temp Hotend Direct Drive Extrusion Printer head
• Silicone heating bed + Tempered glass panel + Insulation cotton
• PEI magnetic sticker optional, smooth and easy to take model
• 4 set of Independent Z axis Ball Lead Screw Rod

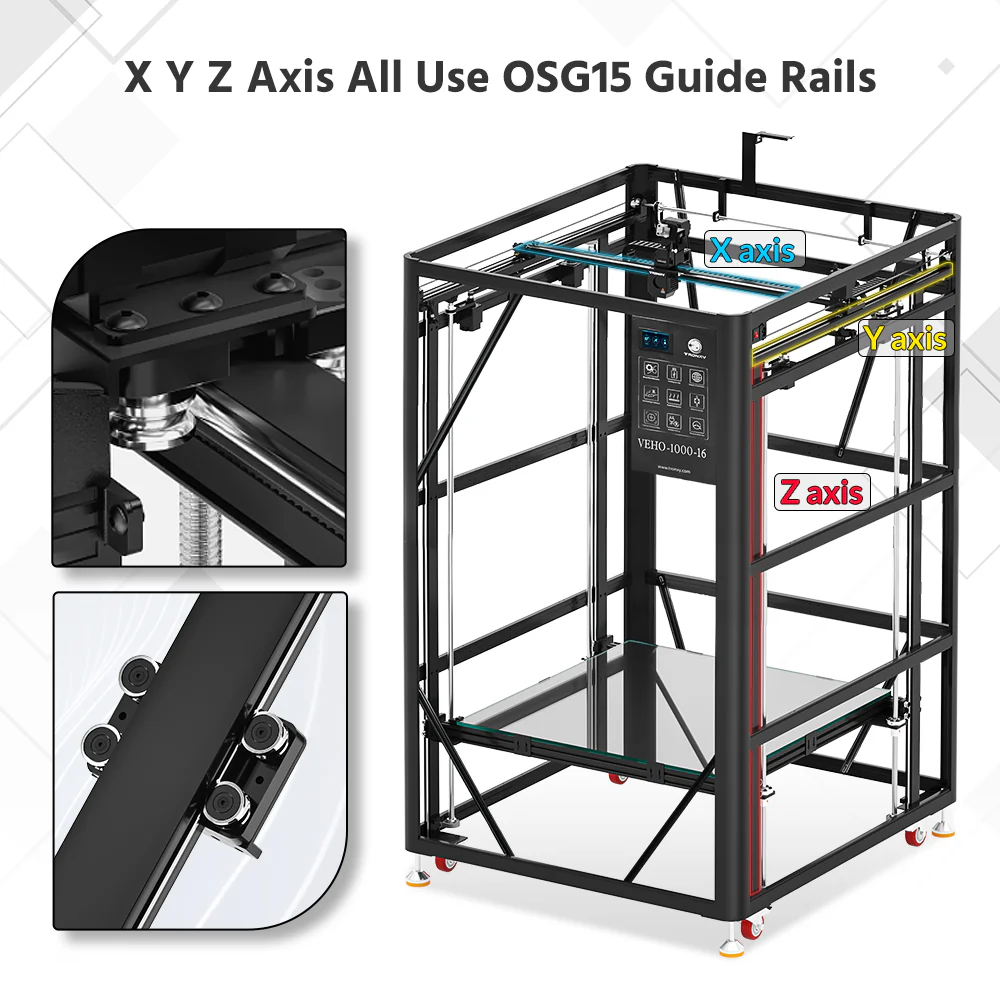

• X Y Z axis all use OSG15 Guide rails
• External High-power Independent Driver DM542
• 8-Languages Support and Multiple connection

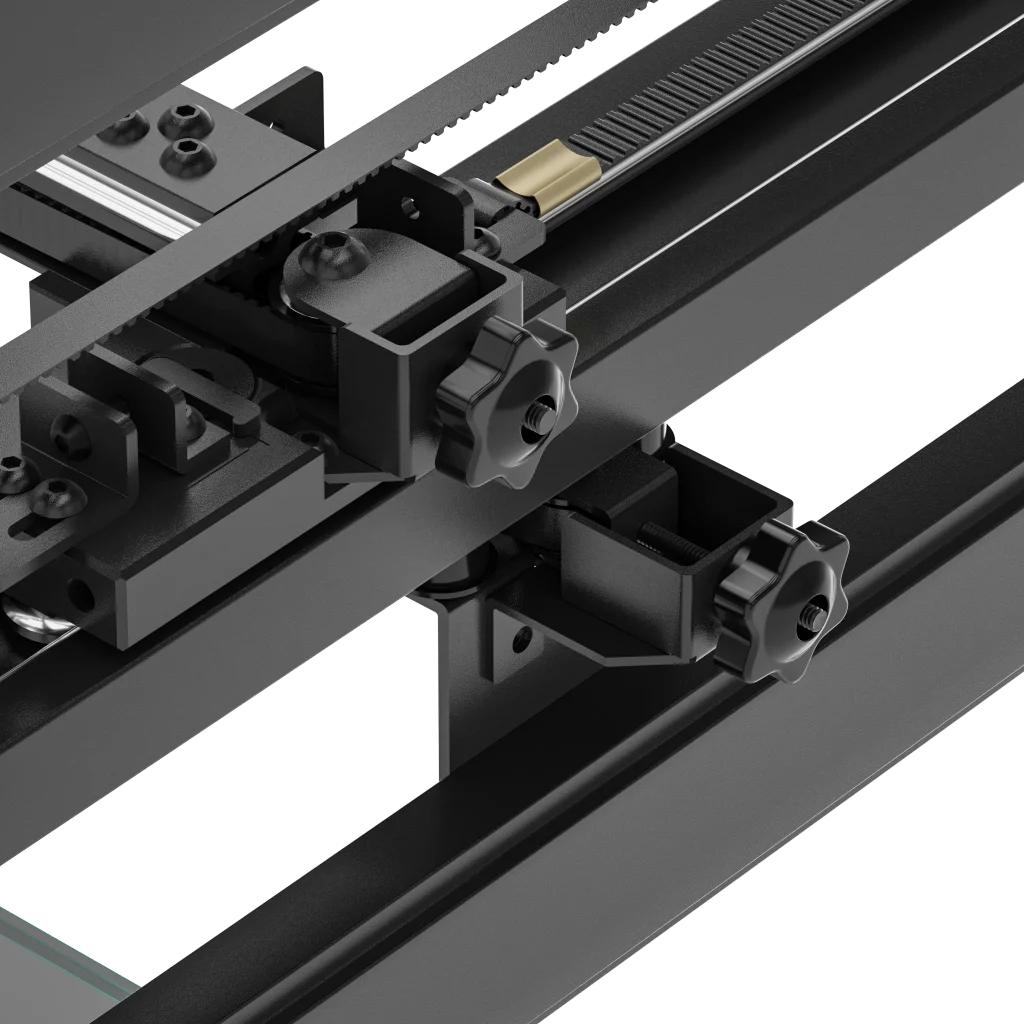

• Manual adjustment nut for belts

Remark: VEHO-1000-20 just can shipping by sea, the price is shipping by sea shipping free price. Tariffs are not necessarily included, the details of including tariffs or not depend on the country of the order. Please inquiry to monica@tronxy.com before you order.

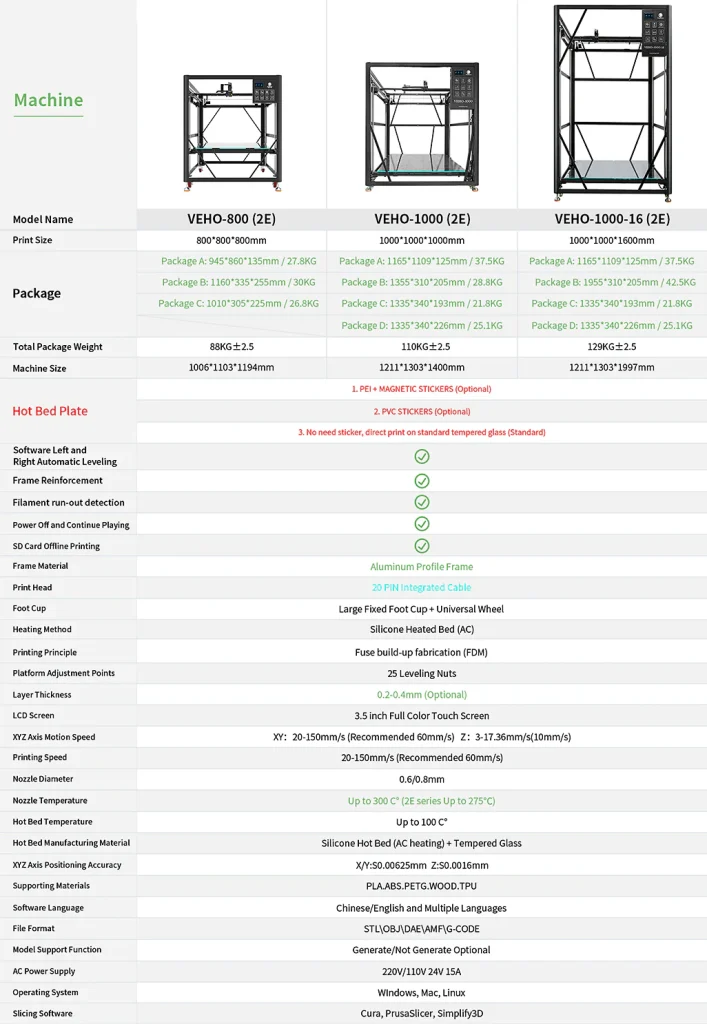

Core Specifications & Build Volume (Topic: Specifications)

The VEHO-1000-20 is a large-format Fused Deposition Modeling (FDM) machine, part of the Tronxy VEHO series.

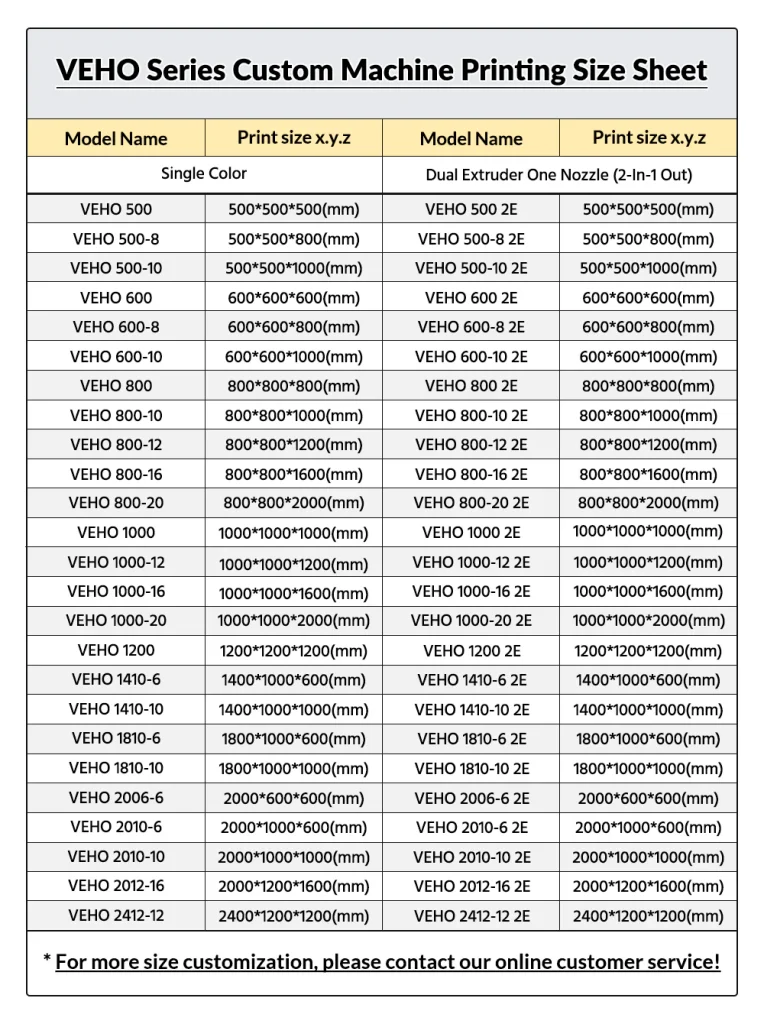

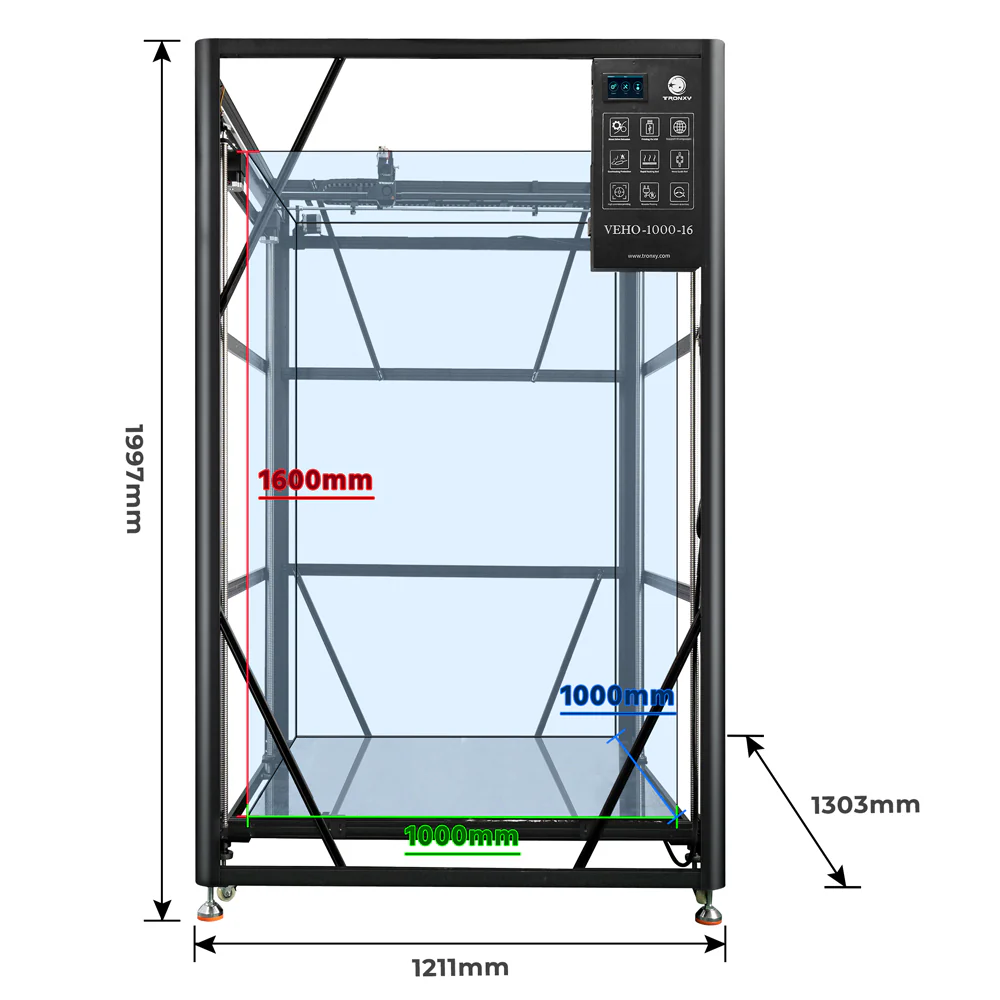

• Print Size (Build Volume):
  • 1000×1000×2000 mm (1 meter wide, 1 meter deep, 2 meters tall).
  • This capacity is designed for printing extremely large objects like car prototypes, full-size sculptures, and large-scale industrial components in one piece.
• Print Principle: FDM (Fused Deposition Modeling).
• Frame Structure: Sturdy profile frame (often an all-metal, fully enclosed design is mentioned for stability and temperature control).
• Motion System: The X, Y, and Z axes utilize high-quality OSG15 Dual-Axis Guide Rails for smooth, precise, and stable movement.

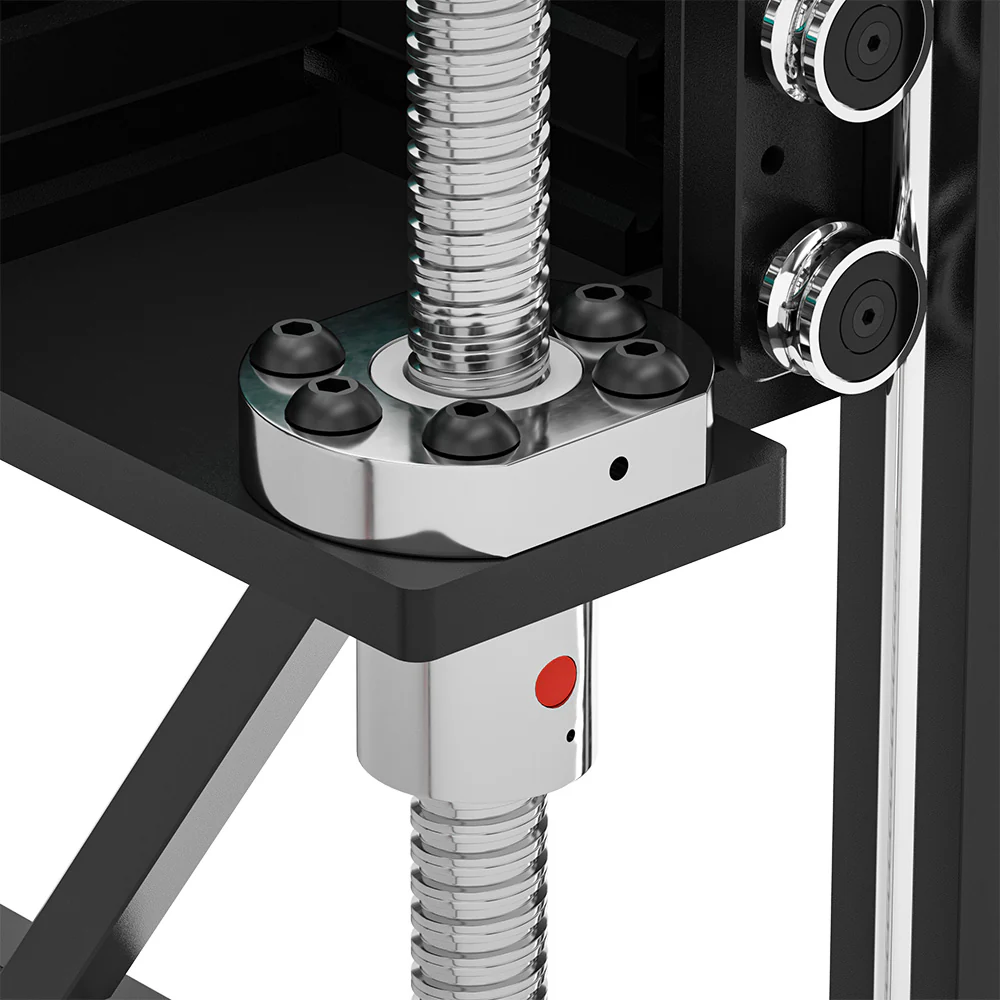

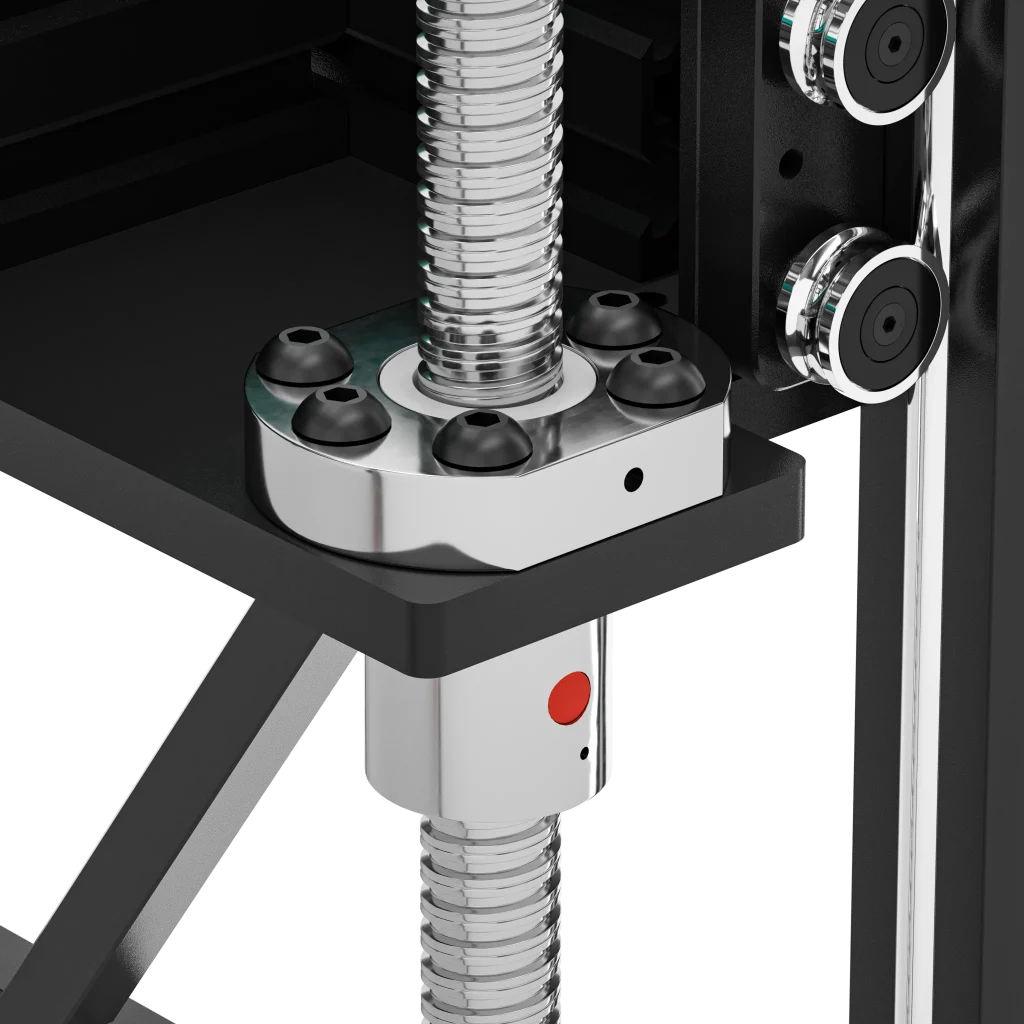

• Z-Axis System: Features 4 independent Z-axis Ball Lead Screw Rods (Ball Screw Lead Rods are often noted for high precision). The PRO version includes Intelligent Leveling 3.0 to manage the height correction of the massive bed.

Extrusion and Temperature Capability (Topic: High-Temperature Printing)

The Direct Drive system and high-temperature hotend enable a wider range of industrial material use.

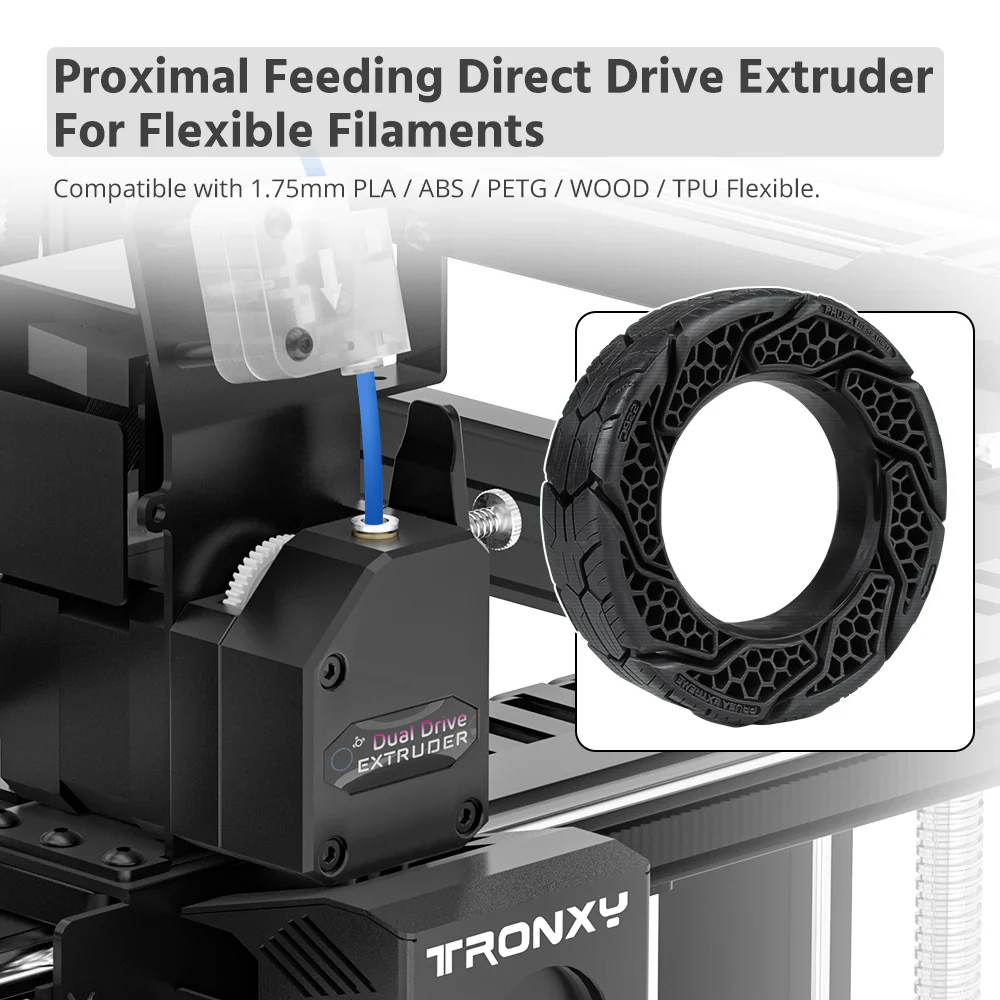

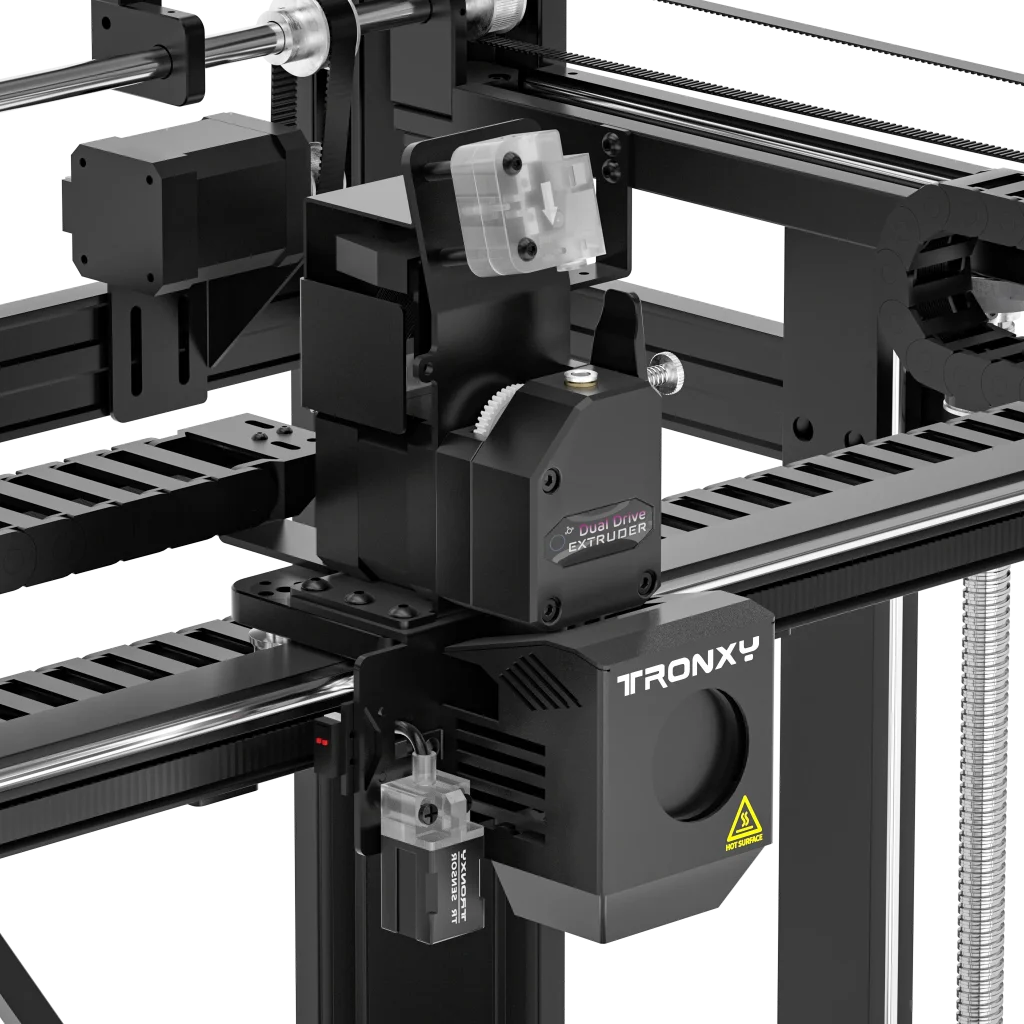

• Extrusion Type:Direct Drive Extrusion Head.
  • Benefit: Provides excellent control over filament feeding and retraction, especially crucial for printing flexible filaments like TPU.
• High-Temperature Hotend:
  • Standard VEHO 1000-20 (Single Color): Maximum temperature of 320∘C.
  • VEHO 1000-20 2E (Multicolor/Dual-Color): Max temperature of 275∘C (uses a 2-in-1-out hotend).
  • Material Compatibility: Supports engineering and high-performance filaments like PC, Nylon/PA, ABS, ASA, PETG, in addition to standard PLA/TPU/WOOD.
• Heated Bed:
  • Max Temperature: 100∘C (Necessary for adhesion on such a large scale).
  • Material: 800W Silicone Heating Pad combined with a Tempered Glass plate (PEI magnetic stickers are optional).

Electronics, Software, and Features (Topic: Klipper and Intelligent Features)

Newer models (PRO) are optimized for speed and user experience.

• Firmware:
  • PRO Version: Equipped with Klipper Firmware for maximum speed, acceleration, and advanced features (e.g., Input Shaping).
  • Print Speed (PRO): Max print head movement up to 300 mm/s (Acceleration up to 10000 mm/s$^2$).
  • Standard Print Speed: Advertised range of 20−150 mm/s (Advisable print speed around 60 mm/s).
• Control/Interface: 7-inch Full-Color Touch Screen (for PRO) or 3.5-inch/4.3-inch (Standard). Supports multiple languages.
• Key Intelligent Features:

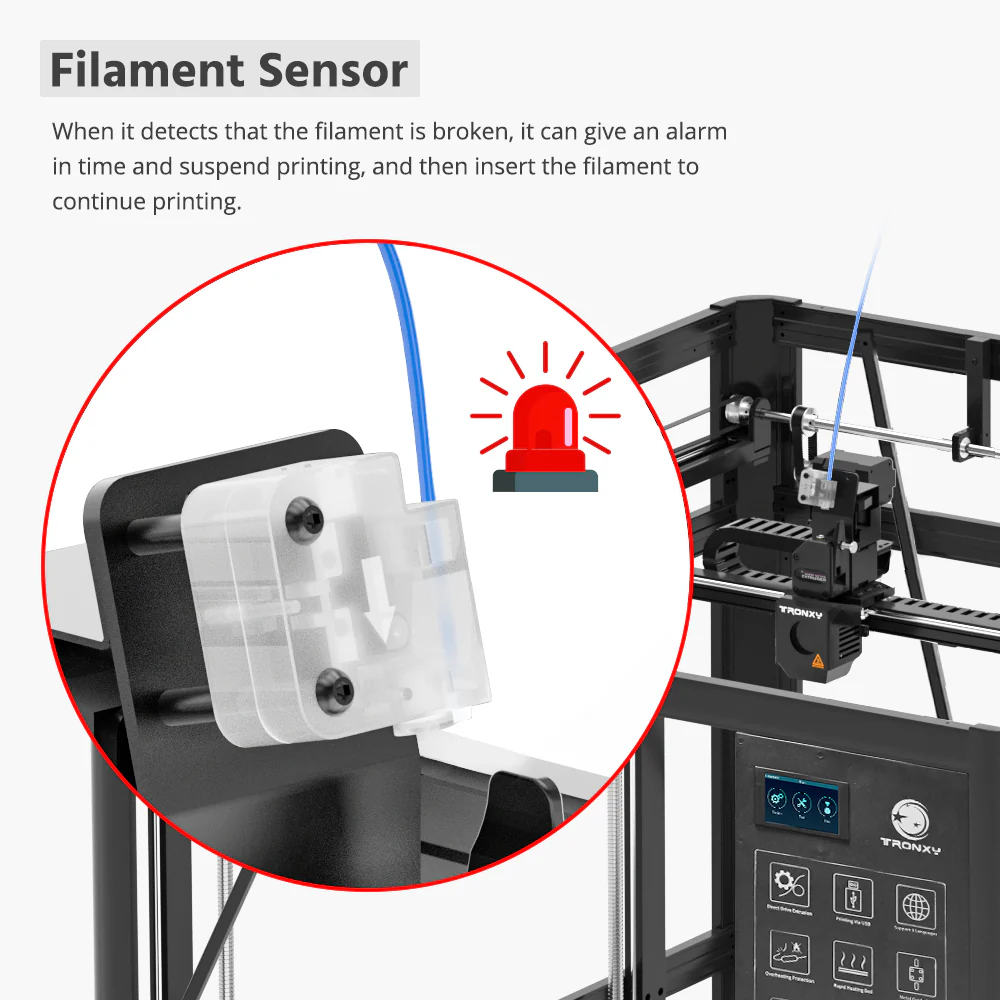

  1. Material Breaking Detection: Automatically pauses printing when filament runs out or breaks.

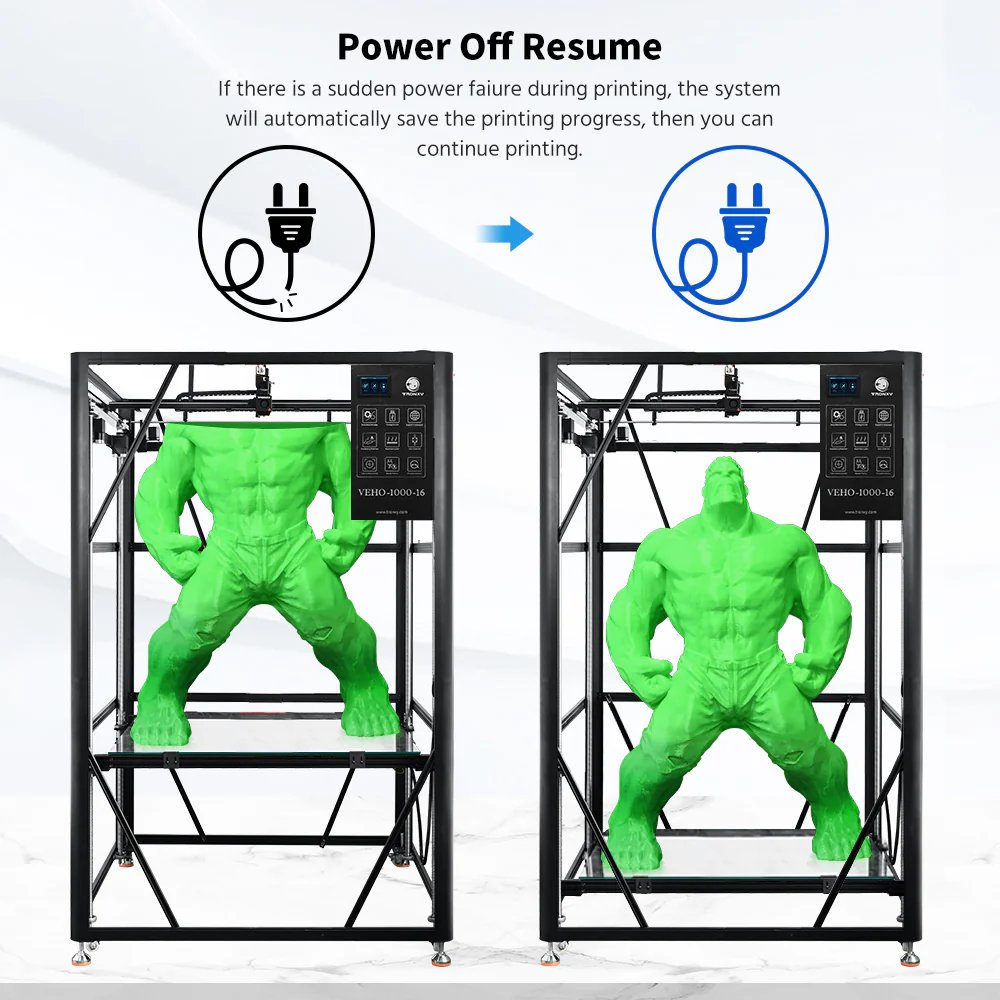

  2. Power-Off Continuation: Resumes printing after a power interruption.

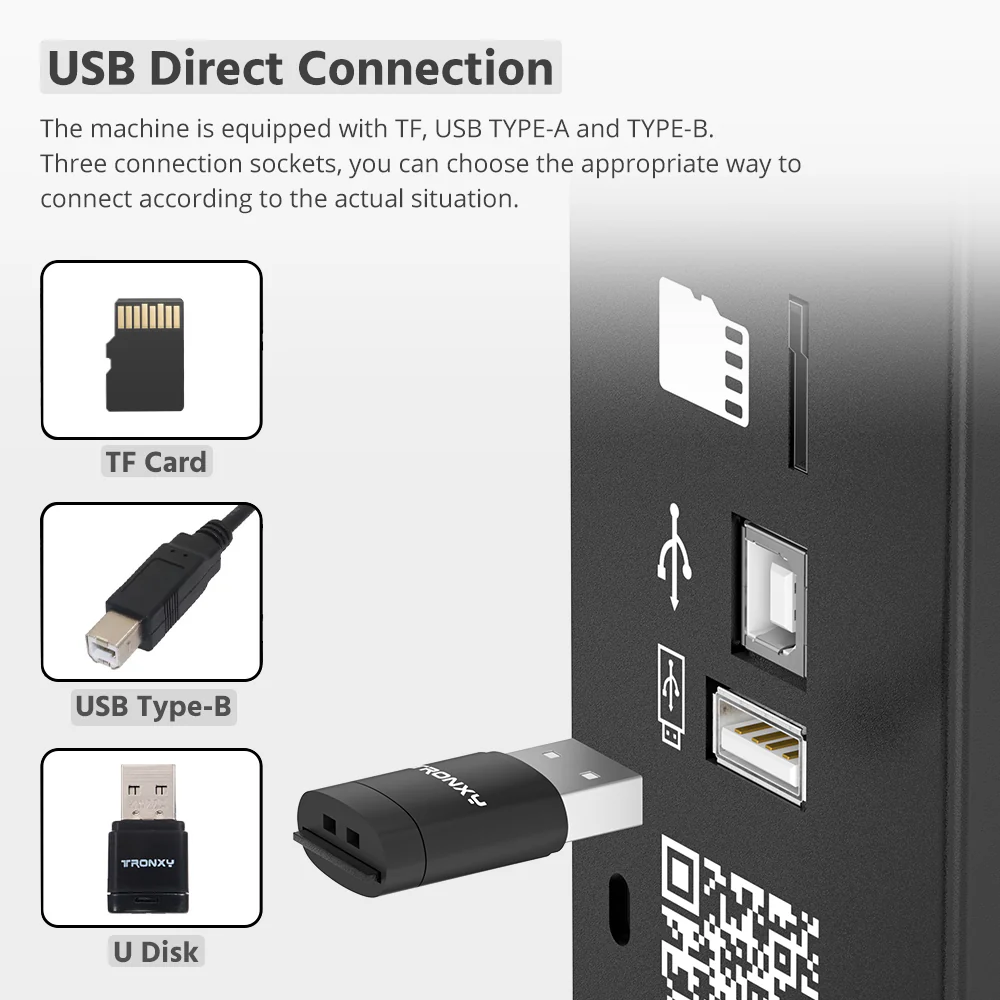

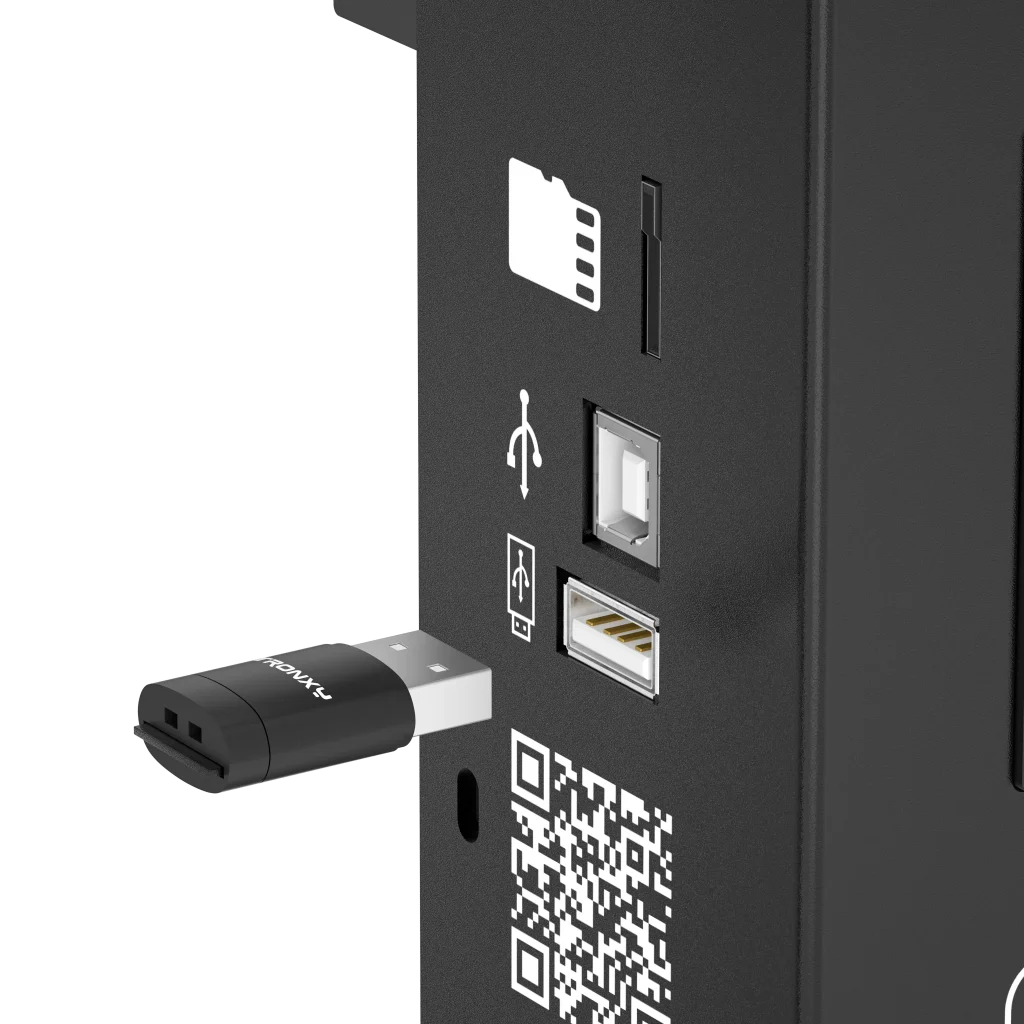

  3. Multiple Connection: Supports U Disk, TF Card, Type-B Socket, and often WIFI/RJ45 Ethernet interface (PRO versions).
• Software Compatibility: Works with popular slicers like Cura, Repetier-Host, Simplify3D, and PrusaSlicer.

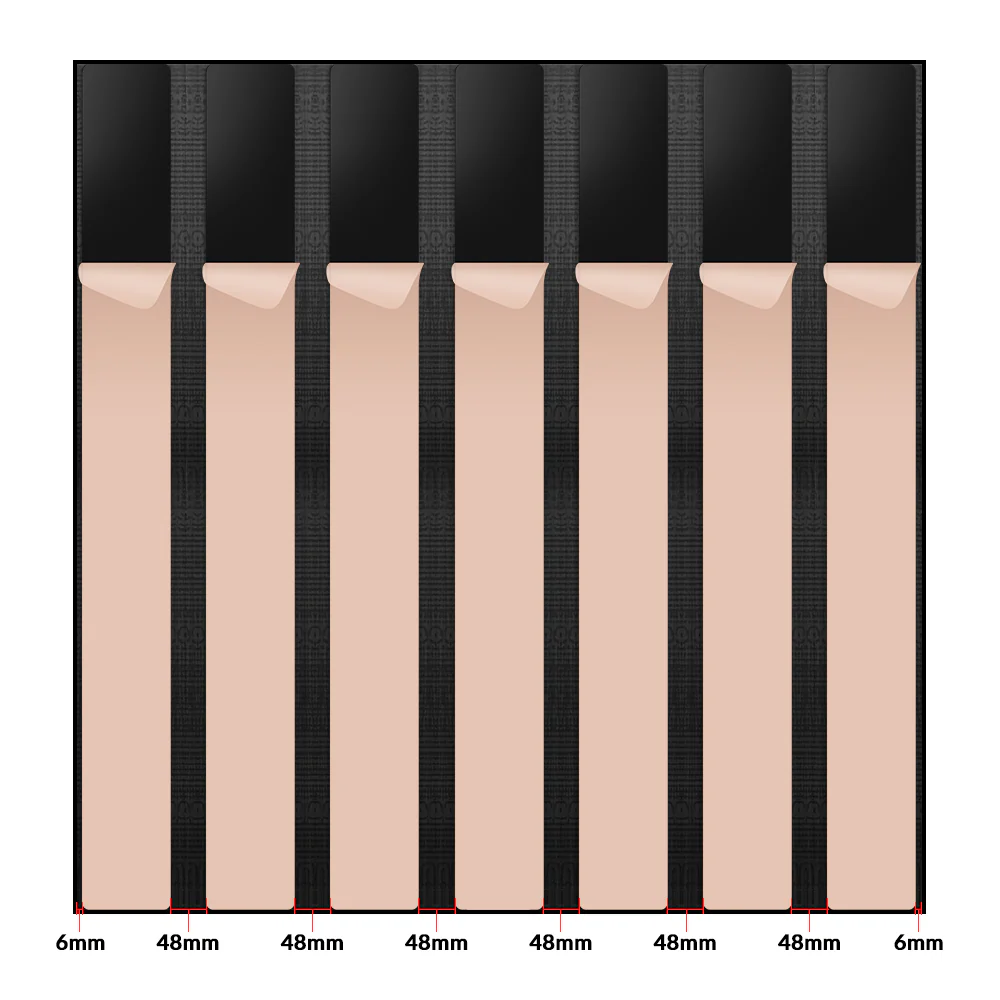

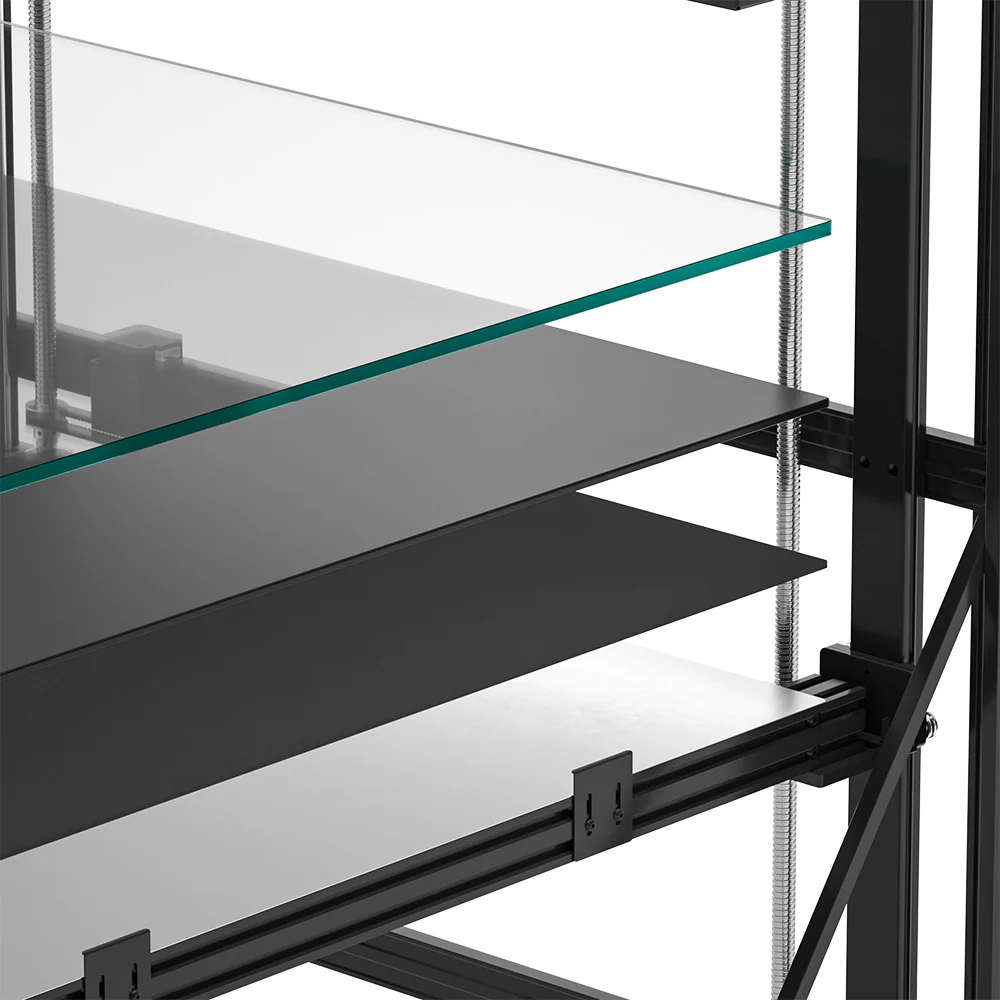

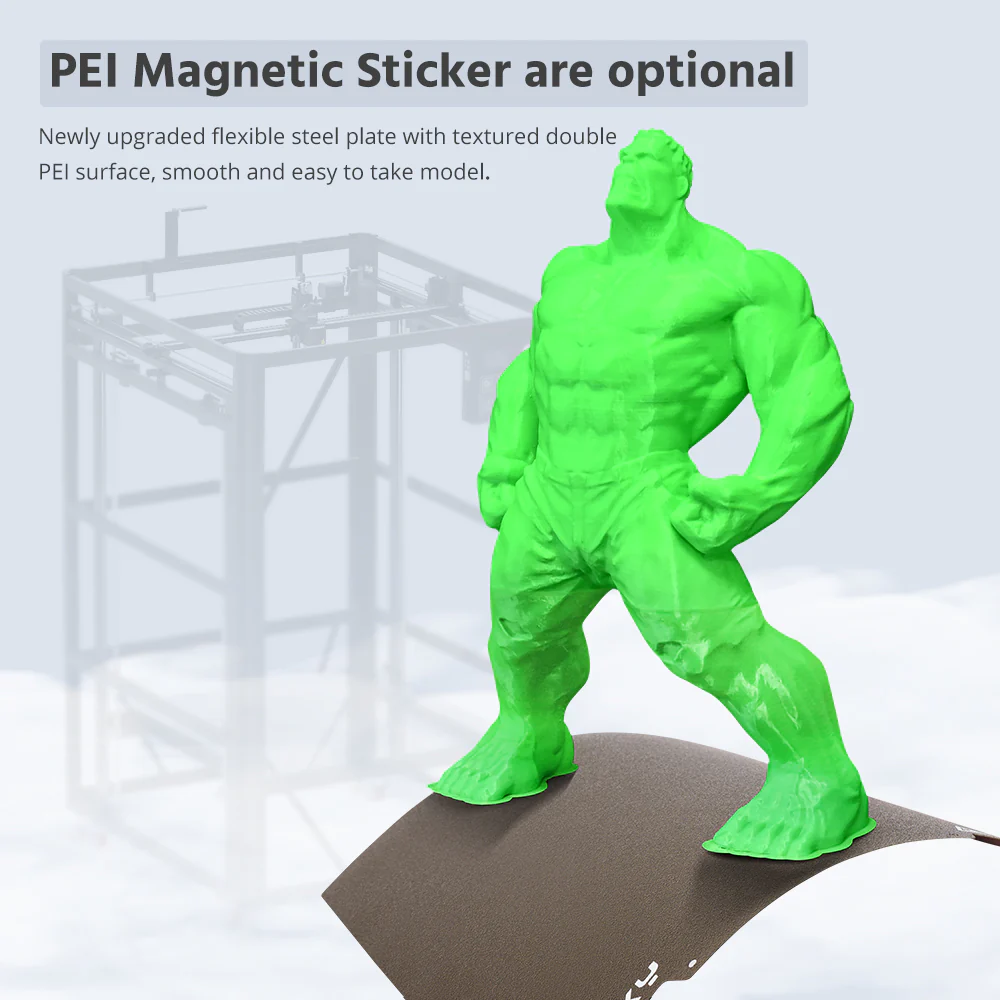

Optional: PEI magnetic sticker, three-layer efficient platform,  PEI magnetic sticker or PVC sticker are optional

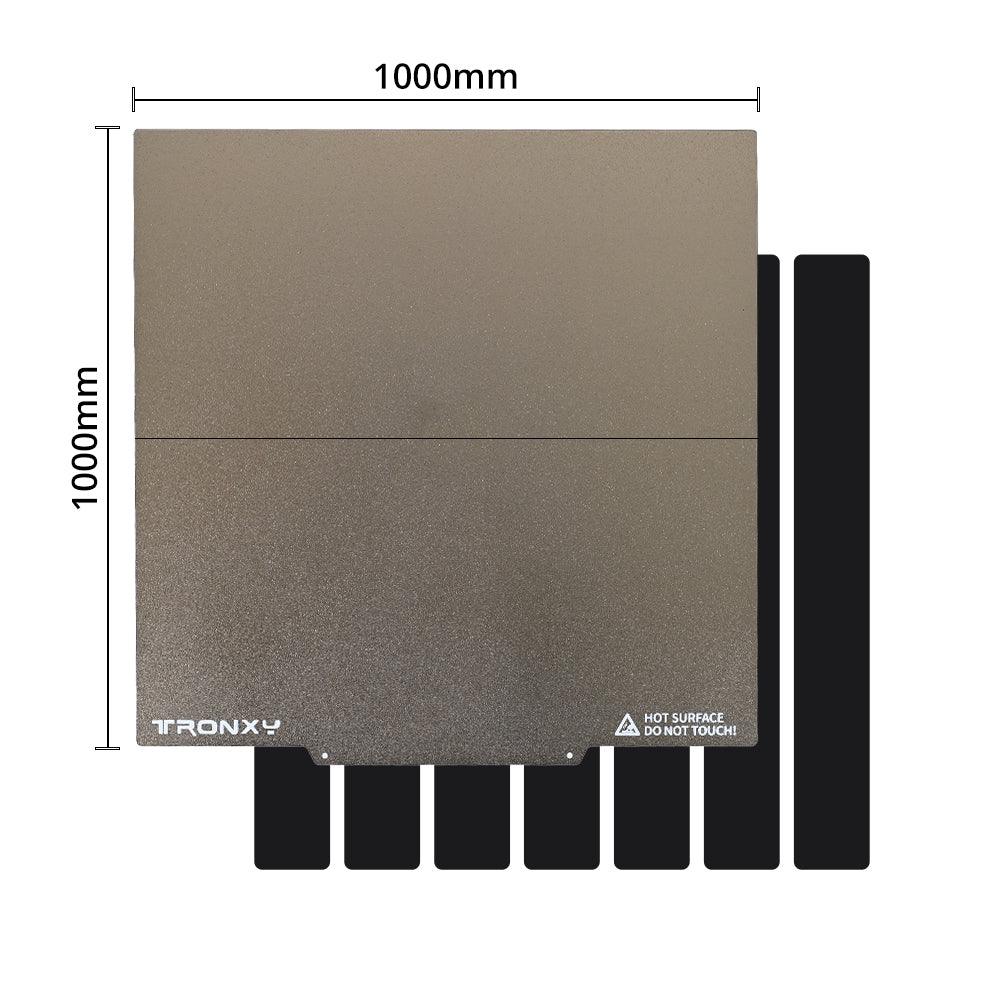

VEHO-1000 Series PEI magnetic sticker

Target Applications (Topic: Applications)

The scale and material capability of the VEHO-1000-20 make it suitable for various industries:

• Automotive/Aerospace: Printing full-scale prototypes, jigs, fixtures, and large tooling in high-temperature, strong materials (PC, Nylon).
• Art and Sculpture: Creating 2-meter-tall statues or complex artistic installations in a single print, eliminating the need for bonding sections.
• Architecture and Construction: Producing large architectural models or full-scale mock-ups of building elements.
• Theming and Display: Fabricating large props, commercial displays, or movie sets.
