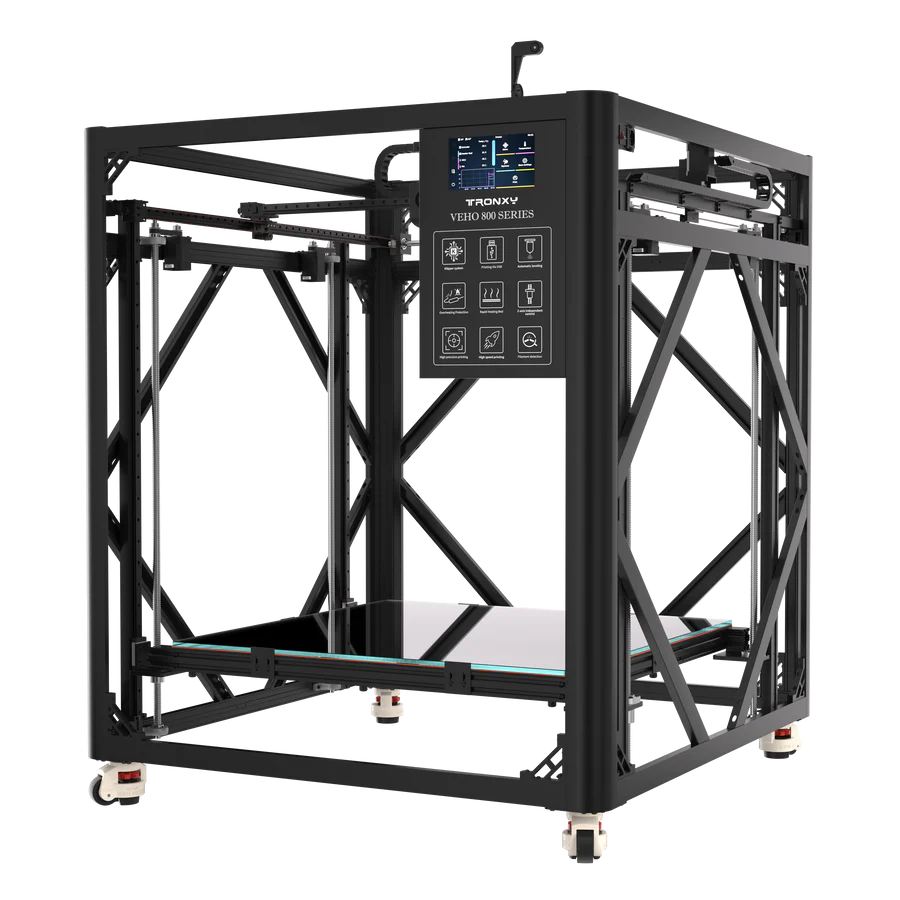

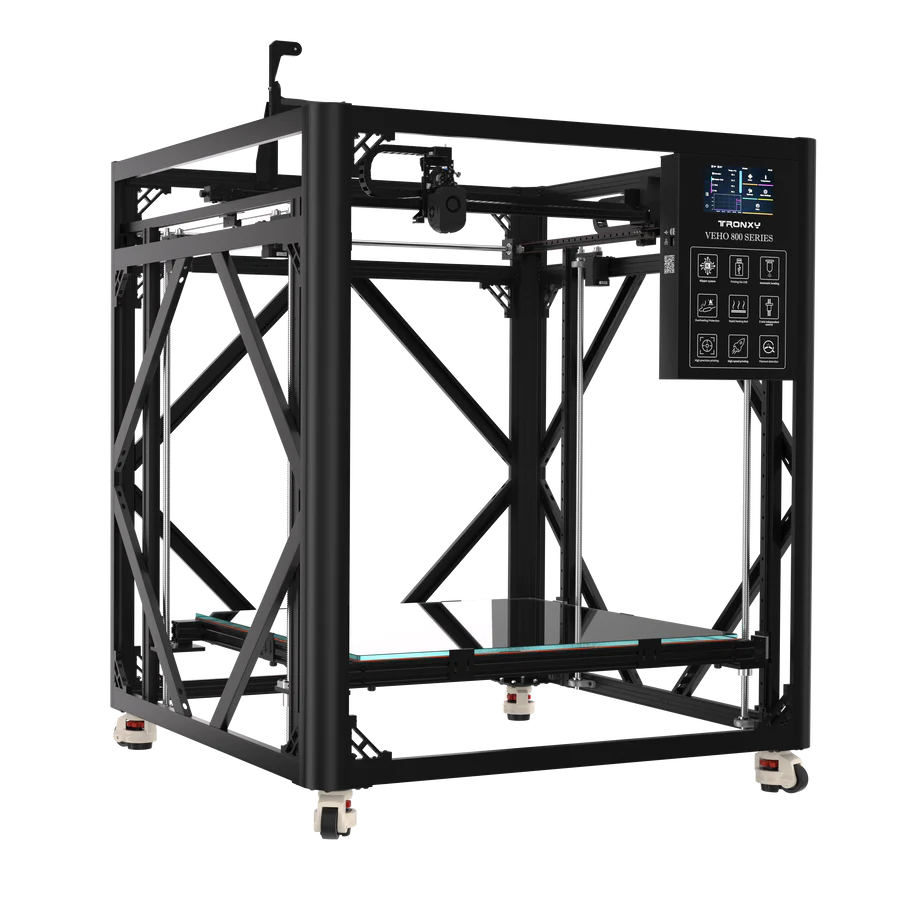

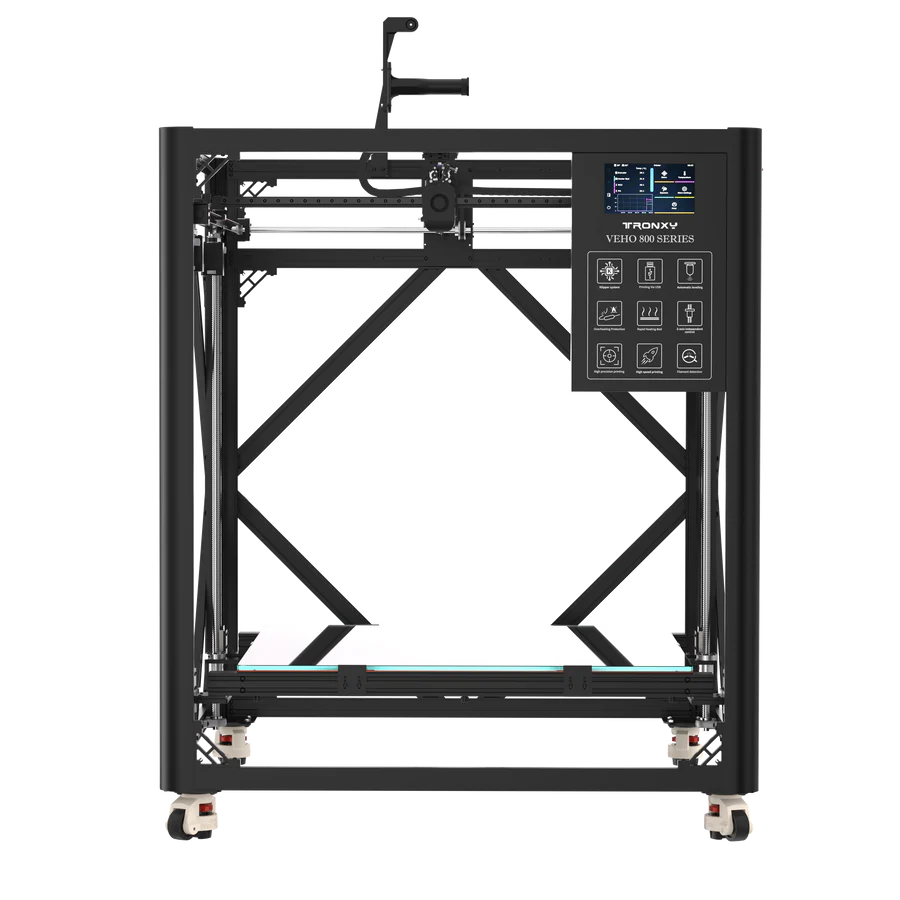

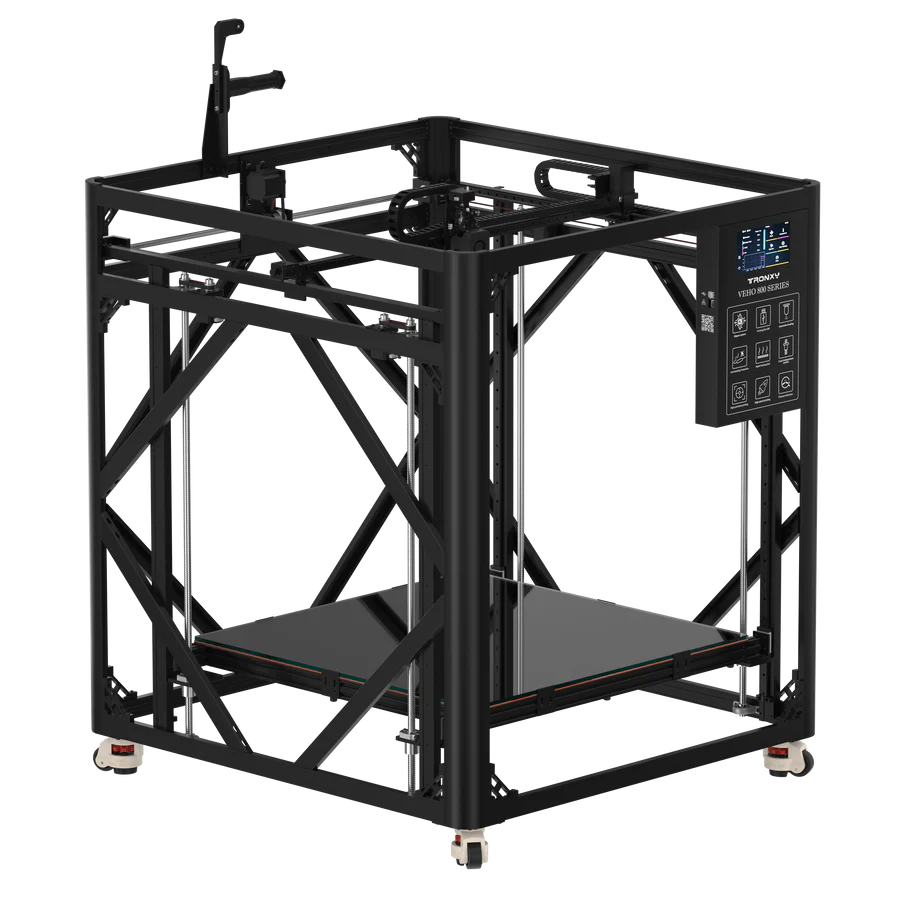

New Upgrade Tronxy VEHO 800 PRO Klipper Firmware Direct Drive 3D Printer

The VEHO 800 PRO represents a significant upgrade in the large-format Fused Deposition Modeling (FDM) 3D printer line by Tronxy, shifting from a traditional firmware (like Marlin in earlier models) to the high-performance Klipper Firmware. This move leverages Klipper’s advanced motor control for dramatically increased printing speeds and precision, crucial for a machine with its substantial 800×800×800 mm build volume.

Visit Tronxy VEHO 800 PRO delivers massive 3D prints, high precision, and stable performance for professional creators and businesses.

Related internal pages:

• tronxy-veho-1000-20-3d-printer/
• tronxy-veho-1000-16-pro-review/
• ultimaker-s8-pro-bundle/
• sovol-sv01-pro-3d-printer-review/
• anycubic-ace-pro/

Key Feature of New Upgrade VEHO 800 PRO

• Using Klipper System,
• Powerful integrated motherboard, board-to-board design, rich expansion interface,
• Fully automatic leveling, one-button hot bed tilt correction, net bed leveling printing,
• USB flash drive/USB-B data cable/WIFI/RJ45 Ethernet interface,
• Print head maximum moving speed 300mm/s, maximum moving acceleration 10000mm/s²,
• Large-caliber, large-flow, long hard steel copper-plated nozzle,
• Large gear dual-drive proximal extruder, stable and fast extrusion of consumables, compatible with 1.75mm,
• X/Y/Z axes all use customized AL profiles + linear guides,
• 7-inch full-color touch screen, sensitive touch, capacitive touch 5-point touch tempered glass panel,
• All-metal detachable integrated print head Ceramic heating Stable heating and fast heating speed Maximum temperature 320℃  .

VEHO 800 PRO

Remark: 1.VEHO-1000-20 PRO just can shipping by sea, the price is shipping by sea shipping free price;Tariffs are not necessarily included, the details of including tariffs or not depend on the country of the order. Please inquiry to monica@tronxy.com before you order.

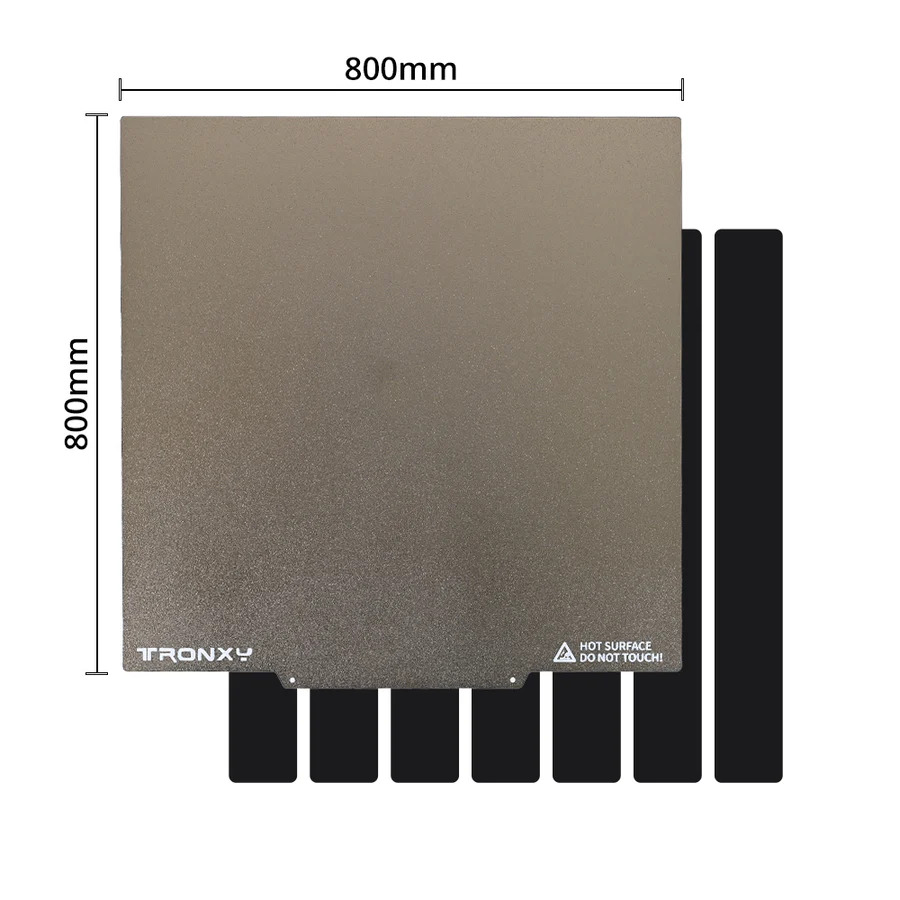

2.PEI1000 + Magnetic sticker sent with the printer, Pls choose the optional “with VEHO series”, if you only want to order PEI1000 + Magnetic sticker , pls choose the option “China by air”

3.For some special countries (please consult monica@tronxy.com), by Sea is only available to the port, so you will pick up the goods yourself, or choose to ship by Air, It can reach the door

WHY CHOOSE US

Key Technology and Performance Specifications

Klipper Firmware Integration

• Topic: Klipper Firmware
• Detail: The core upgrade enables high-speed printing and advanced features like Input Shaping and Pressure Advance for improved print quality at faster rates.
• Control: Offers flexibility for open-source modification and remote control via interfaces like Fluidd or Mainsail (typical Klipper ecosystem).

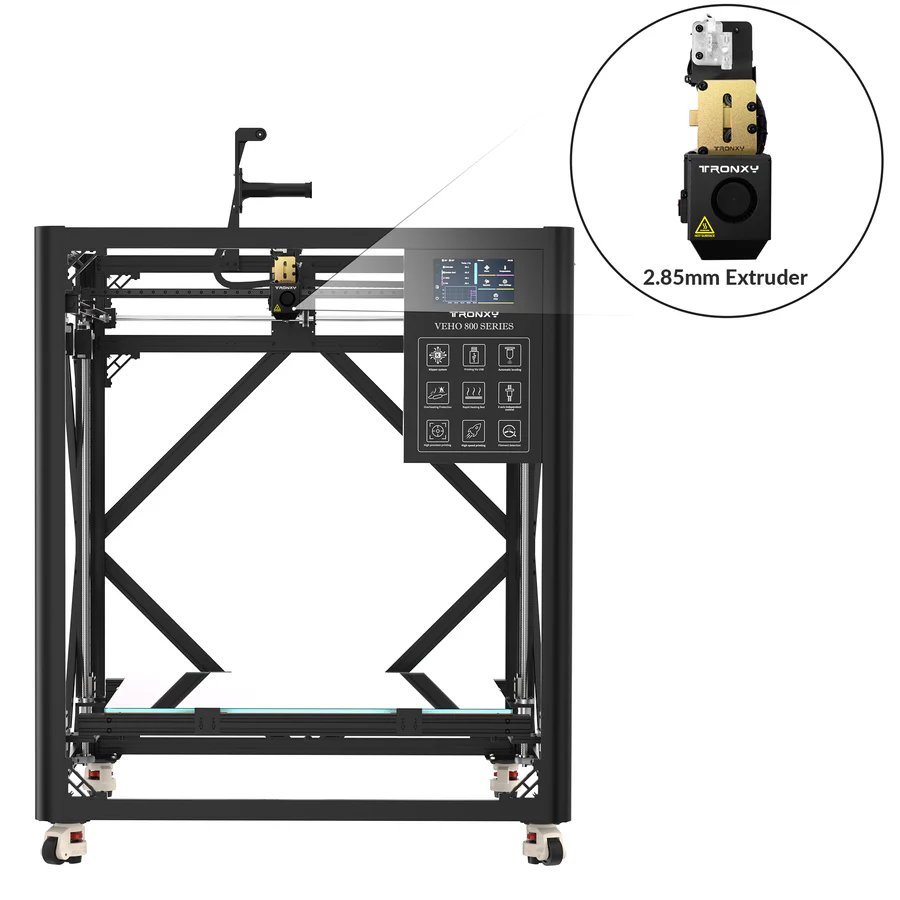

Direct Drive Extrusion System

• Topic: Direct Drive Extruder

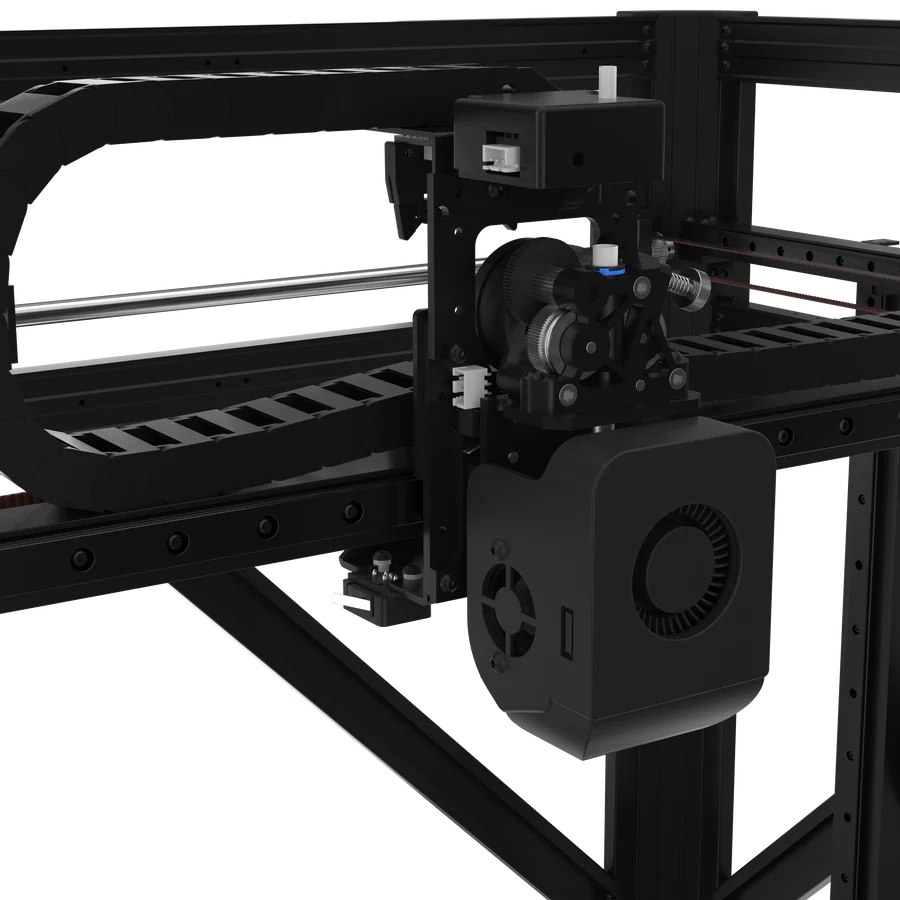

• Detail: Utilizes a Large gear dual-drive proximal extruder with an All Metal Mini Extruder for stable, fast extrusion.
• Filament Compatibility: Superior handling of flexible filaments (e.g., TPU) compared to Bowden systems.

High-Speed Performance

• Topic: High Speed Printing

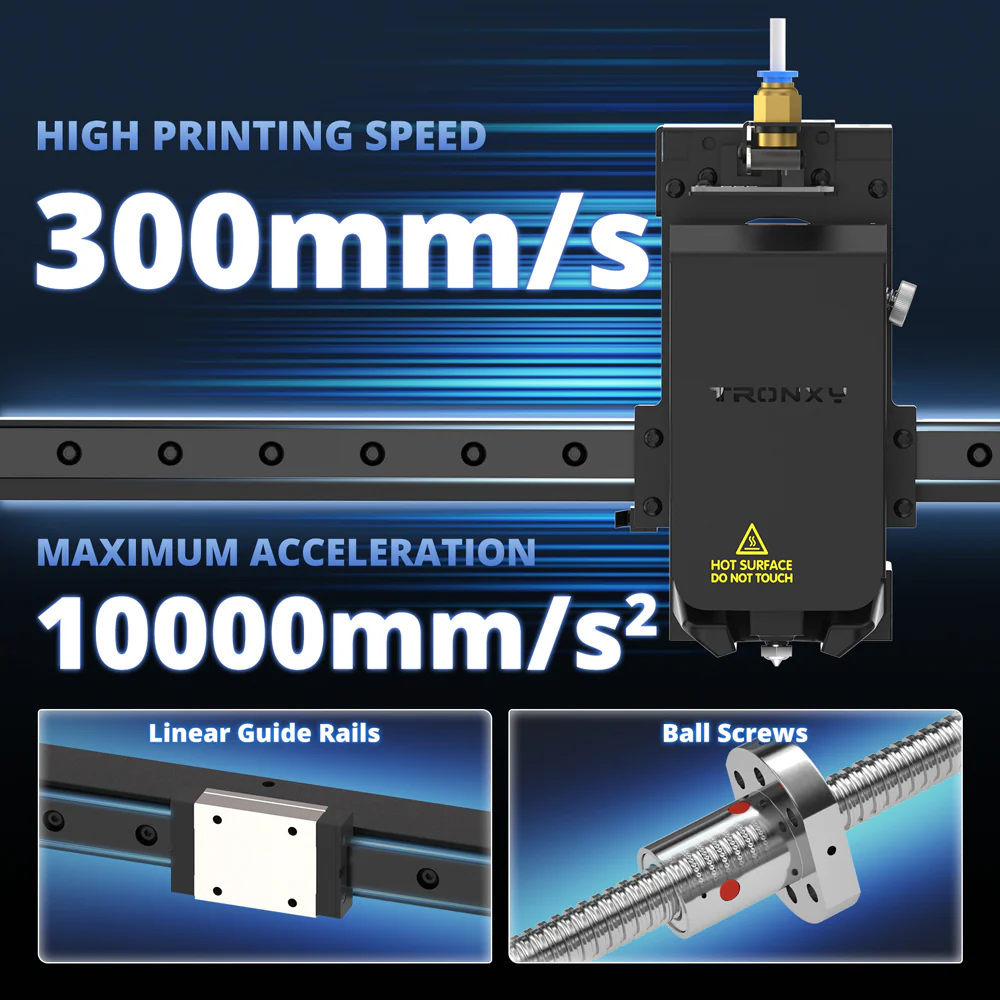

• Max Speed: Print head maximum movement speed is 300 mm/s.
• Max Acceleration: Maximum movement acceleration is 10000 mm/s$^2$.
• Structure: Supported by the robust CoreXY Printing Structure for stability during high-speed moves.

Structural and Mechanical Enhancements

Massive Build Volume

• Topic: Large 3D Printer / Print Volume
• Size: 800×800×800 mm (512 Liters). Suitable for printing large prototypes, industrial components, and artistic sculptures.

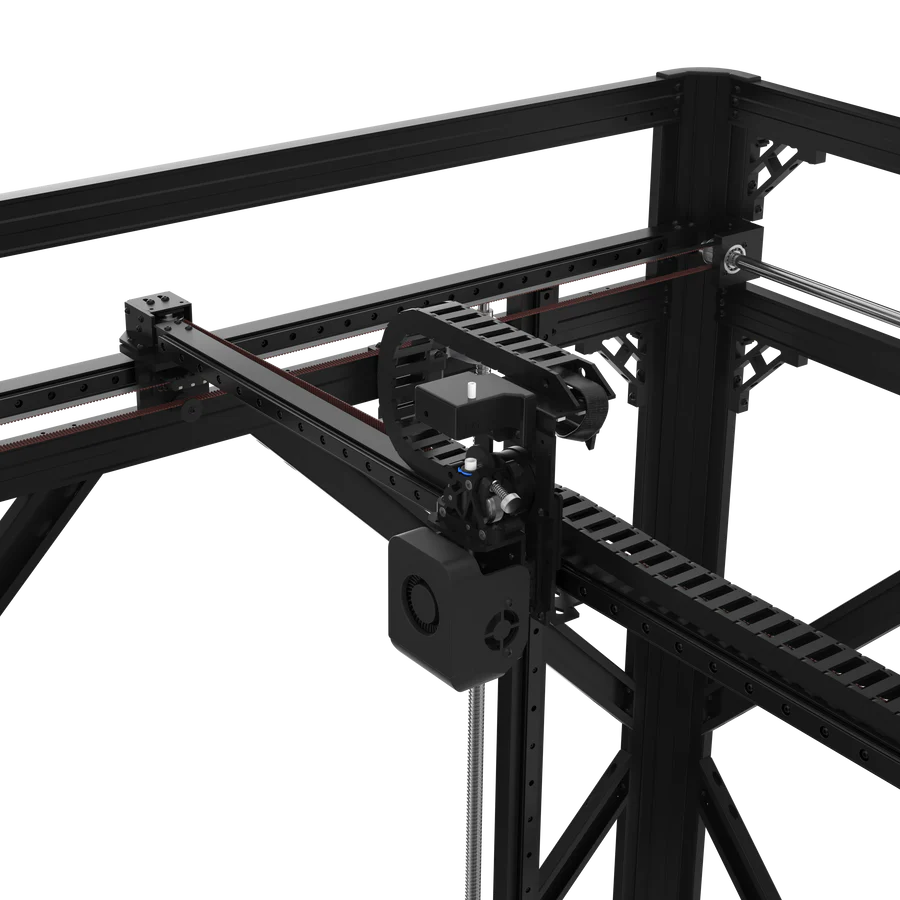

Motion System

• Topic: Motion Components
• Axes: X/Y/Z axes all use customized AL profiles + linear guides (or OSG 15 Guide Rails) for smooth, high-speed movement and reduced friction/wear.

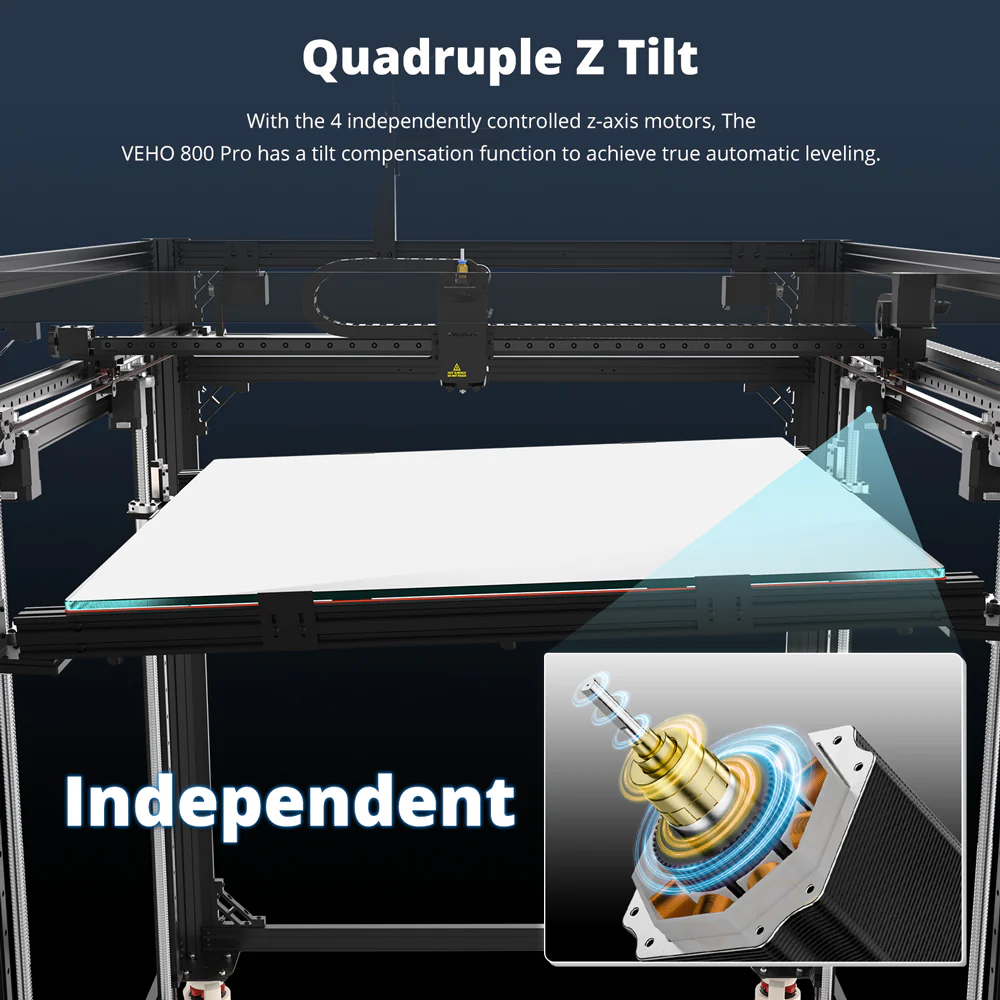

• Z-Axis: Configured with Four Ball Screws (Quadruple Z Tilt) for precise micro-feed control and stability.

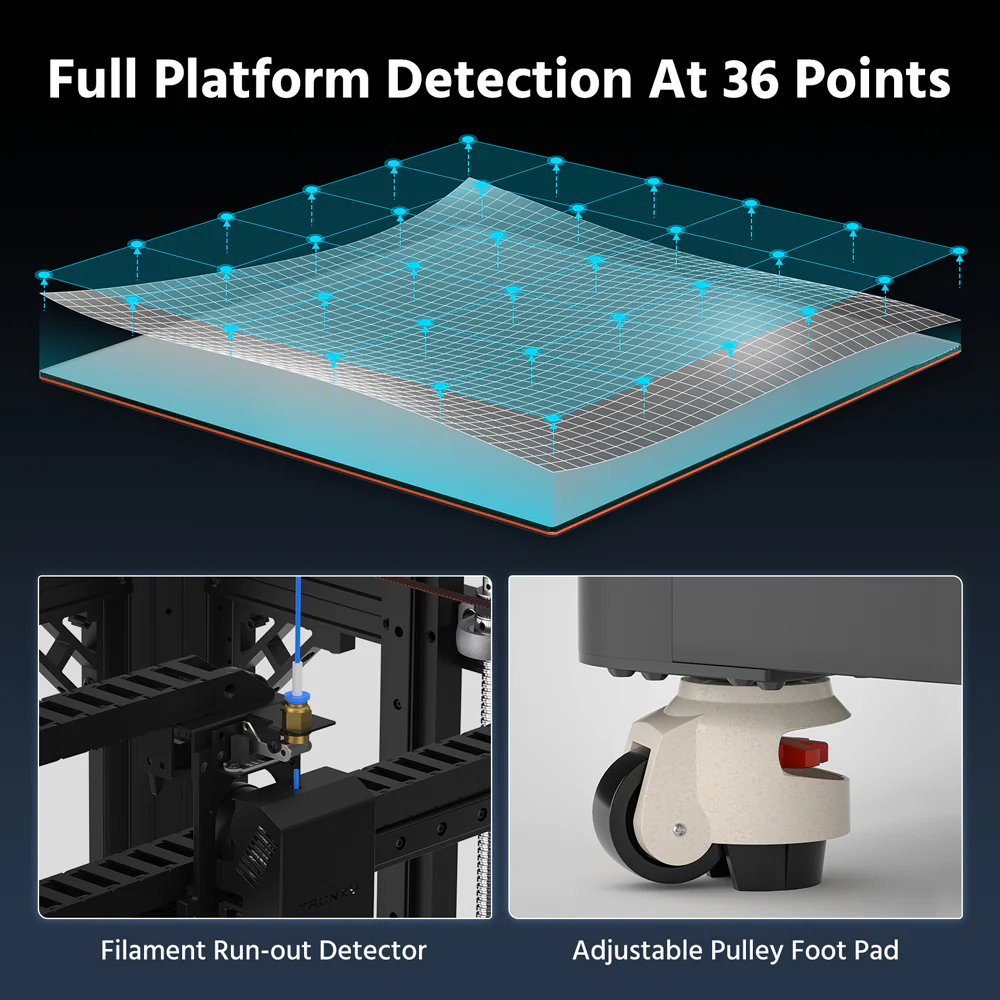

Advanced Leveling

• Topic: Intelligent Leveling 3.0
• Mechanism: True fully automatic leveling via four screw independent control and a special module for intelligent correction of the Z-axis.
• Benefit: Eliminates tedious manual leveling and improves printing accuracy.

NEW TECHNOLOGY BEHIND

9 Features Functions

Material Compatibility and Hotend Specifications

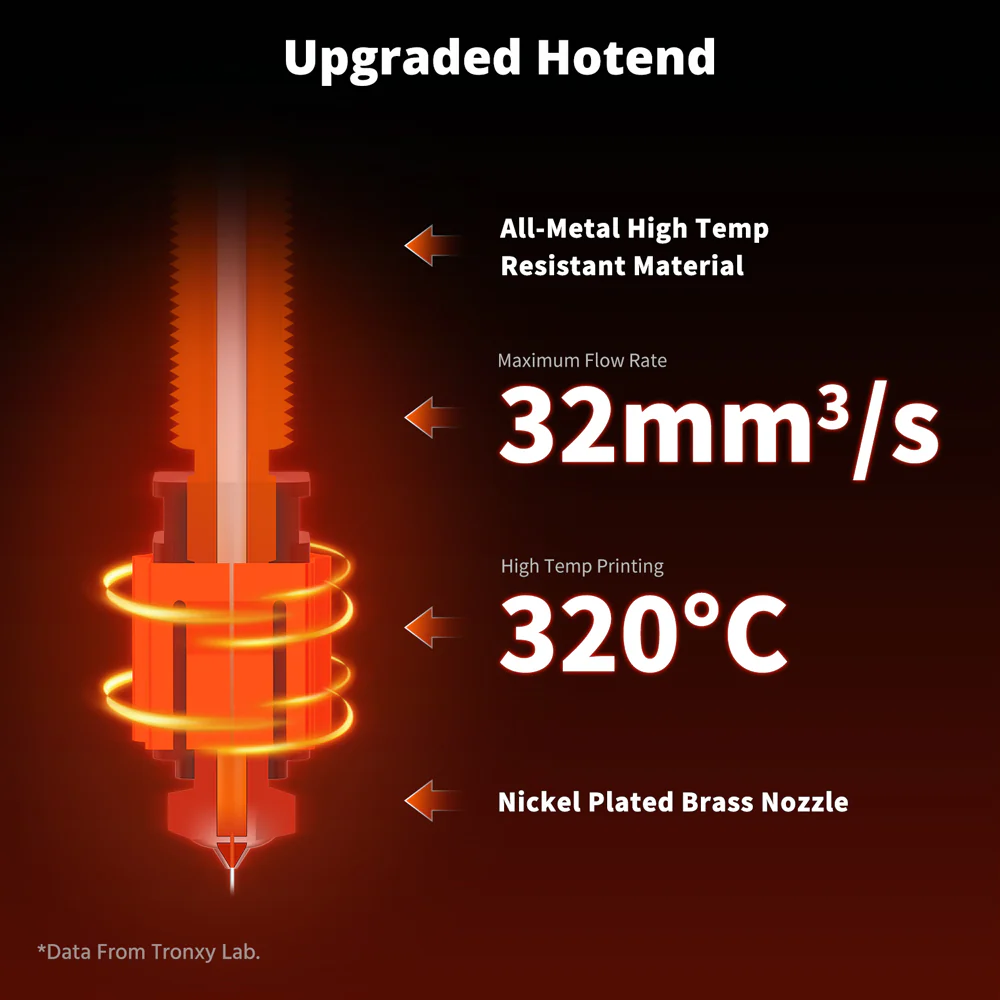

High-Temperature Hotend

• Topic: High-Temp Printing
• Max Temperature: Print head maximum temperature is 320∘C.

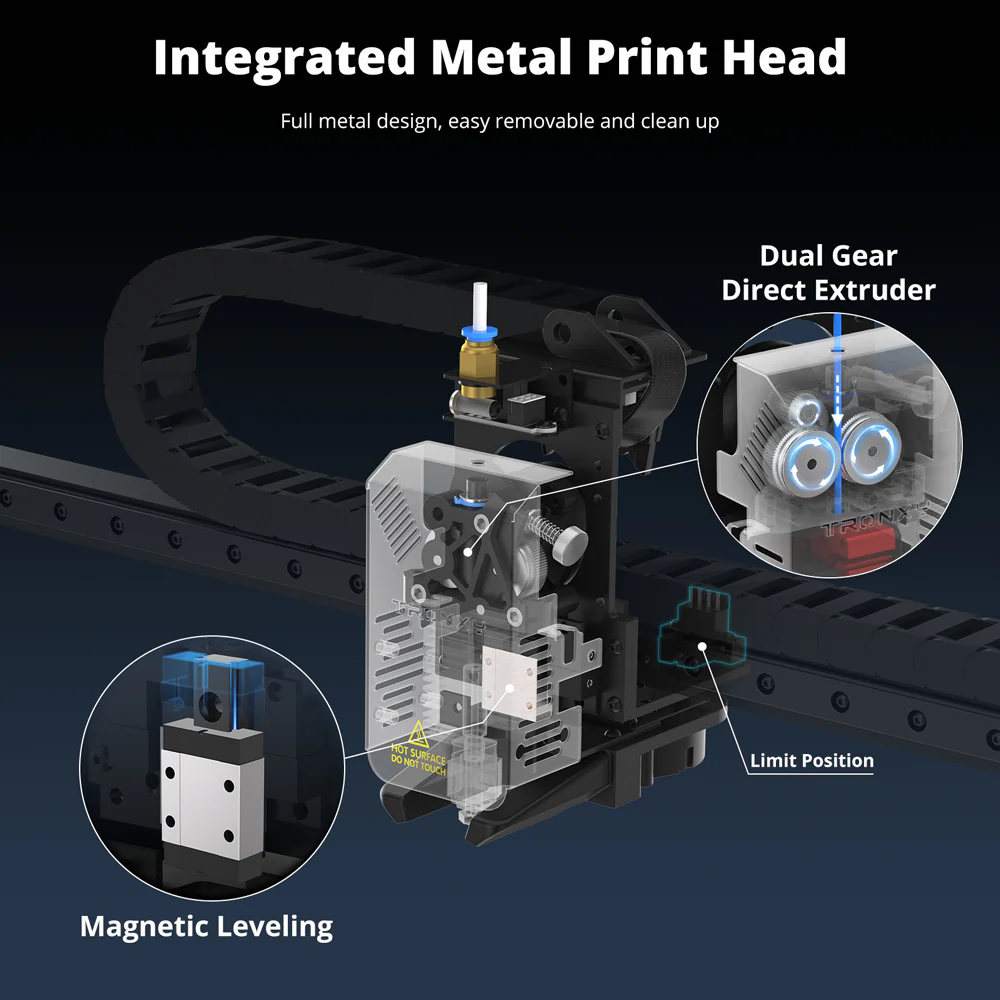

• Heating: Features an All-metal detachable integrated print head with Ceramic heating for stable and fast temperature increases.
• Nozzle: Uses a Large-caliber, large-flow, long hard steel copper-plated nozzle.

Filament Support

• Topic: Filament Compatibility
• Supported Materials: PLA, ABS, PETG, TPU, WOOD, and high-temperature filaments such as PC, Nylon/PA, PA-CF, and ASA.

User Interface and Connectivity

Display

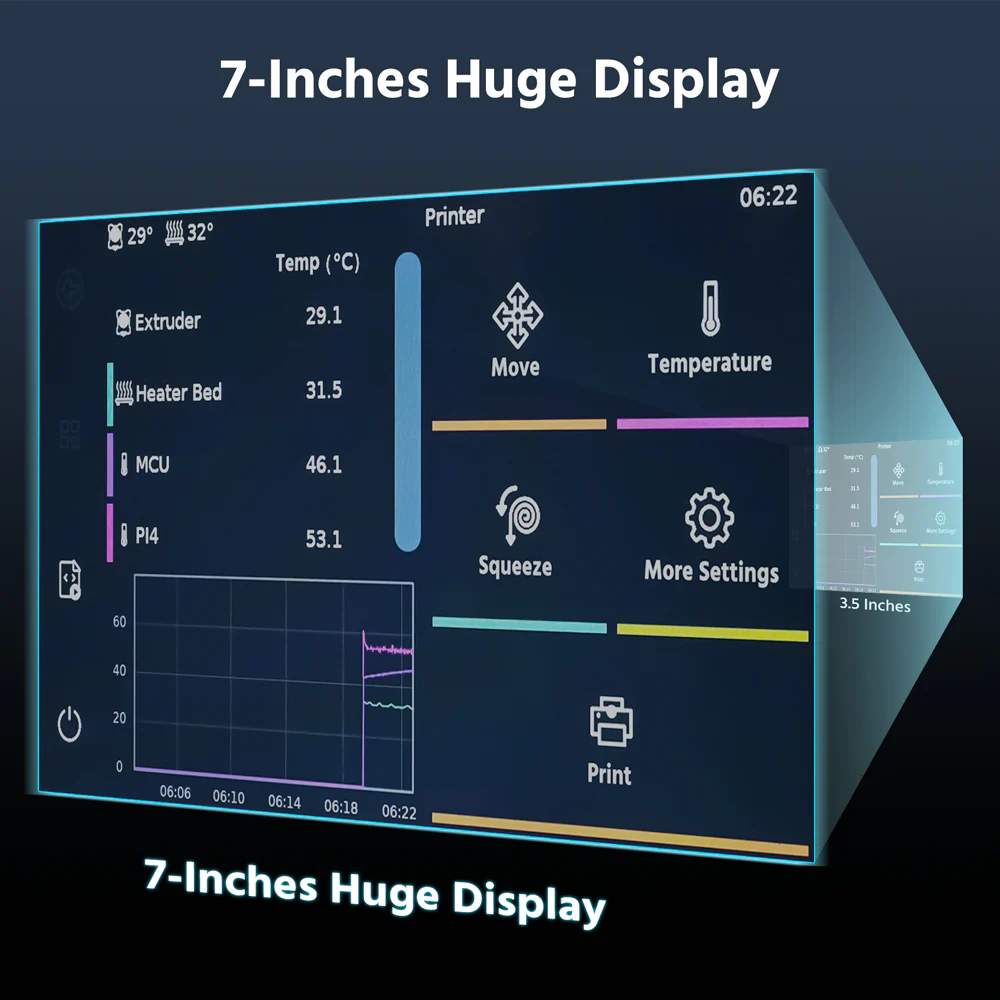

• Topic: 7-Inches Huge Display
• Detail: 7-inch full-color touch screen with sensitive, capacitive touch tempered glass panel for an improved user experience.

Connectivity

• Topic: Multiple Connection
• Options: WIFI, LAN, Ethernet Cable, USB flash drive/USB-B data cable. Klipper’s connectivity facilitates remote monitoring and control.

Additional Features

• Topic: Noteworthy Features

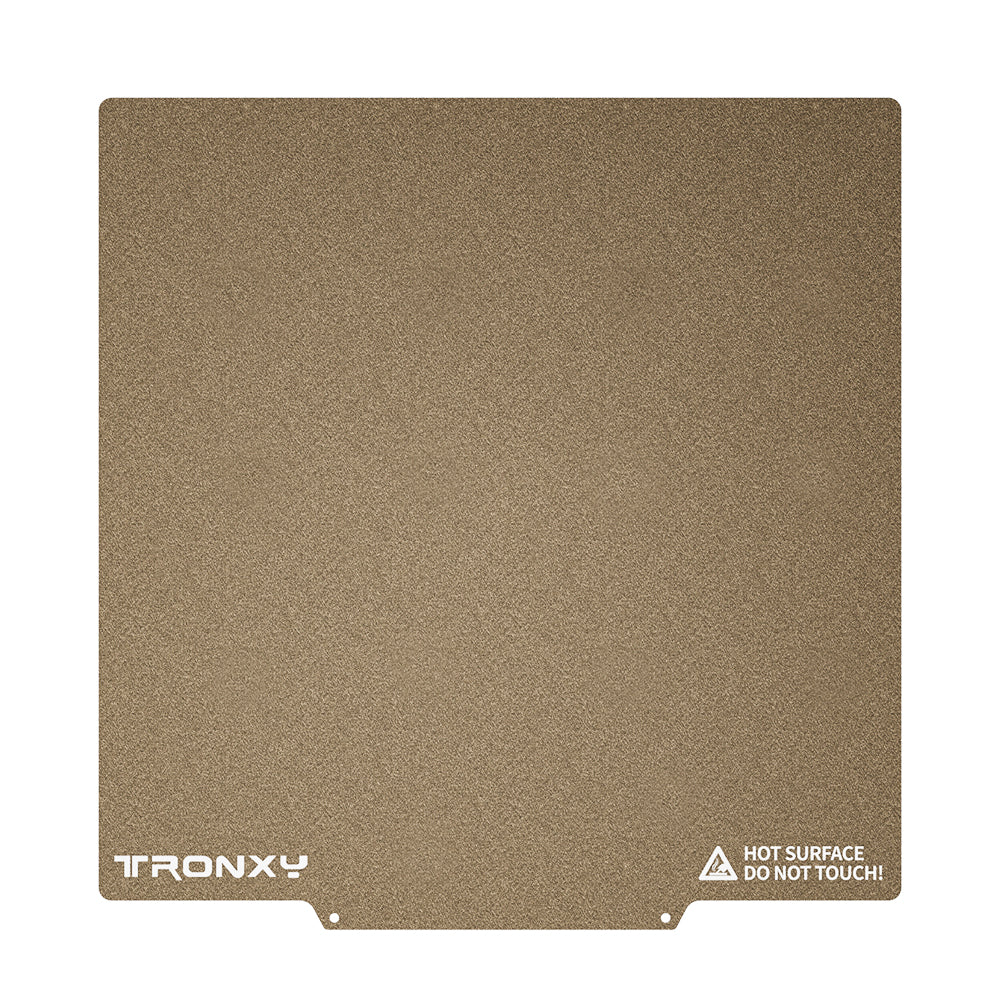

• Bed: AC hot bed for fast and uniform preheating; options include Glass, PEI (optional), or PVC stickers.
• Lighting: Built-in LED lighting strips for clear observation of printing details.
• Safety: Filament Run-out Detector and Resume Print after Power Failure functions.

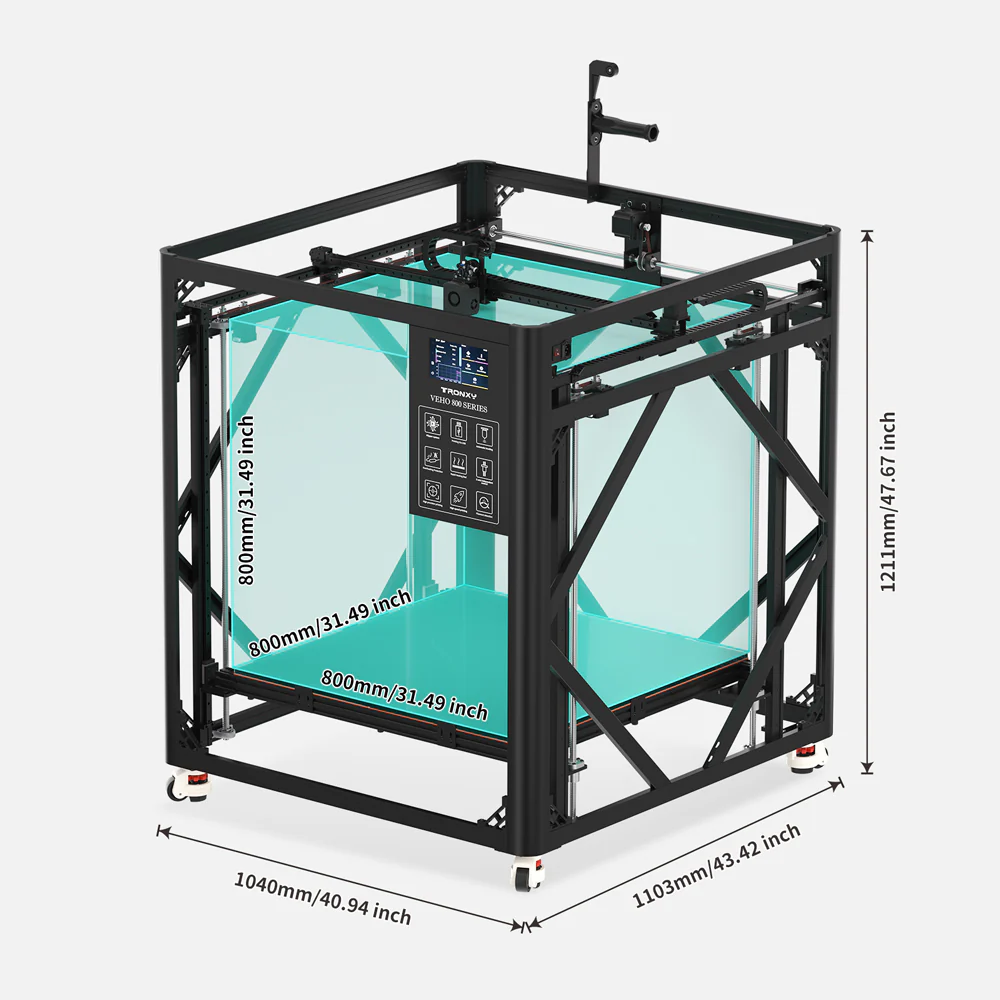

VEHO-800 PRO MACHINE SIZE & PRINTING SIZE

VEHO 800 PRO Klipper Firmware Direct Drive 3D Printer: Pros and Cons

More details about packaging

These are some photoes of the model VEHO 2010-10A ordered by our customer， It is large in size， For safe transportation, we will put it on a wooden frame to better protect the package and prevent damage during transportation，It can be safely delivered to our customers.

Specific features

• Klipper firmware: The printer uses the Klipper system, which is a firmware that enhances speed and performance by distributing the workload between a general-purpose computer (like a Raspberry Pi) and the printer’s microcontroller.
• Direct-drive extruder: The direct-drive system provides precise control over filament extrusion and is well-suited for printing flexible filaments. The extruder features a large gear, dual-drive mechanism for stable and fast extrusion.
• High-speed printing: According to Tronxy, the print head can achieve a maximum moving speed of 300 mm/s and a maximum acceleration of 10,000 mm/s², allowing for fast printing.
• Large build volume: The spacious build area of 800 x 800 x 800 mm makes it possible to print large models, prototypes, and art pieces.
• High-temperature printing: The all-metal, detachable print head can reach temperatures of up to 320°C, enabling it to print with high-temperature materials like PC, Nylon, and ABS.
• Auto-leveling: The printer includes a fully automatic leveling system with one-button bed tilt correction, which helps improve printing accuracy and efficiency.
• Sturdy construction: The printer’s structure is built with custom-made aluminum profiles and linear guides on all axes (X, Y, and Z), which contributes to stability and durability.
• Interface options: Connectivity options include USB, USB-B data cable, Wi-Fi, and an RJ45 Ethernet interface. It is operated via a 7-inch full-color, capacitive touch screen.
