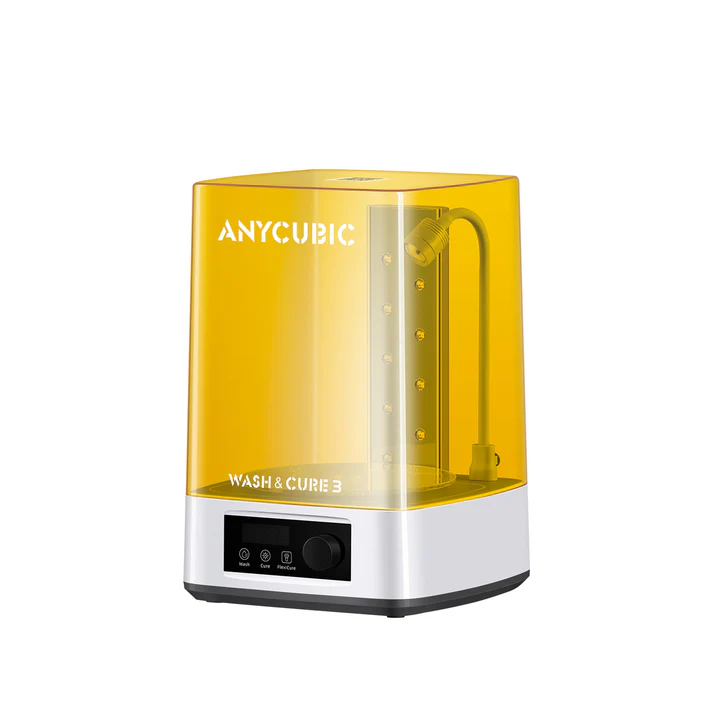

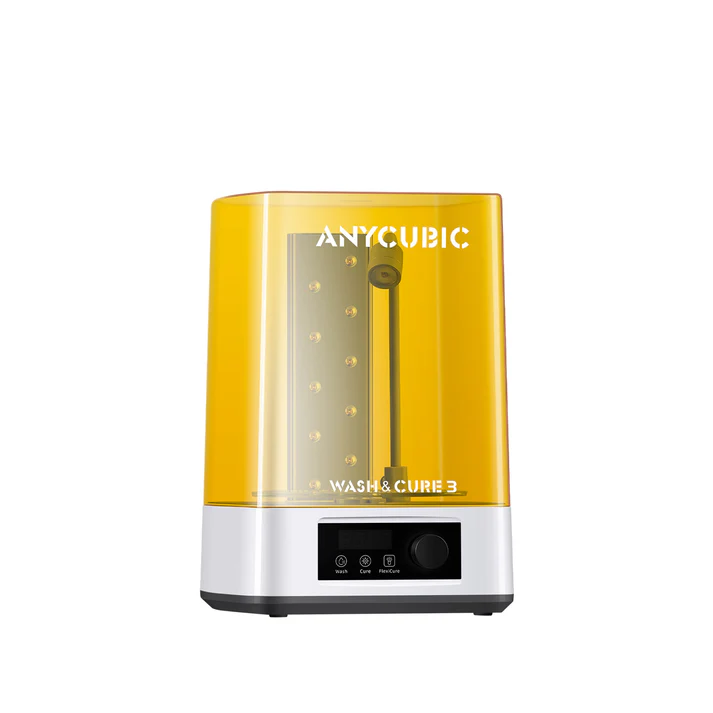

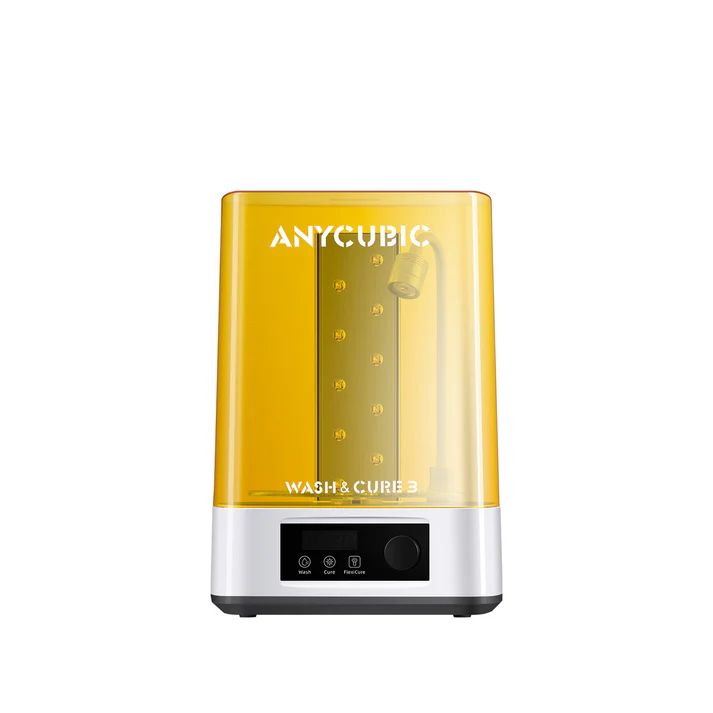

The Anycubic Wash & Cure 3 is an upgrade to the company’s 2-in-1 post-processing machine for resin 3D printing, featuring a larger washing volume, an adjustable gooseneck light for detailed curing, and a more efficient design. It is designed to be quieter and more user-friendly than its predecessor, the Wash & Cure 2.0.
Simplify resin printing with Anycubic Wash & Cure 3 – fast, efficient cleaning and curing for flawless 3D prints every time.
Related internal pages:
- anycubic-wash-cure-3-plus/
- anycubic-wash-cure-3-max/
- anycubic-high-speed-pla-filament/
- experience-resin-bundle/
- anycubic-photon-mono-4/
Product Features
● 4L Extra-Large Cleaning Bucket Size
● Gooseneck Light: Localized Strengthening, Uniform Curing
● Dual-layer Design, IPA Savi
Key Features and Specifications
The Wash & Cure 3 introduces significant improvements and functionalities for superior post-processing.
- Integrated Washing and Curing Functions: The device combines two crucial post-processing steps:
- Washing: Removes uncured resin from printed models using a solvent (e.g., isopropyl alcohol).
- Curing: Exposes cleaned models to UV light to fully harden the resin, enhancing durability and surface finish.
- Larger Washing Volume: Compared to previous models, the Wash & Cure 3 features an increased maximum washing volume of 3.0 liters. This allows for processing larger prints or multiple smaller prints simultaneously.
- Enhanced Curing Performance:
- L-shaped UV Light Array: Utilizes an L-shaped UV light array to ensure more uniform and complete curing, even on complex geometries.
- Higher UV Power: Delivers more powerful UV illumination for faster and more thorough curing, reducing stickiness and improving mechanical properties.
- Improved User Experience & Safety:
- Sealed Washing Container: A transparent, sealed container minimizes solvent evaporation and odors, creating a safer and less messy environment.
- Safety Features: Includes an automatic pause function when the cover is opened during curing to prevent UV exposure, and a secure lid for the washing container to prevent spills.
- User-Friendly Interface: An intuitive control panel with a single knob allows for easy selection of modes (wash/cure) and time settings.
- Compatibility: Designed to be compatible with most LCD/DLP/SLA 3D printers, particularly Anycubic’s Photon series, supporting models with print sizes up to approximately 220 x 120 x 260 mm for washing and 220 x 120 x 260 mm for curing.
- Quiet Operation: Optimized design for reduced noise during both washing and curing cycles.
Why Upgrade Your Post-Processing?
Effective post-processing is paramount for successful resin 3D printing. The Wash & Cure 3 addresses common challenges:
- Resin Residue: Uncured resin is sticky, toxic, and degrades print quality. Washing removes this residue, leading to cleaner, non-tacky prints.
- Print Durability: Prints cured with UV light are significantly stronger and more resistant to warping or breaking than inadequately cured models.
- Surface Finish: Proper washing and curing contribute to a smoother, more professional surface finish, ready for painting or further treatment.
- Safety & Convenience: Manual washing and curing can be messy and expose users to resin fumes and UV light. The Wash & Cure 3 automates and contains these processes, improving safety and convenience.
- Consistency: Automated processes ensure consistent results across all prints, reducing variation and rework.
Upgraded Capacity
The curing size has increased by 15%, up to 160*180 millimeters, to accommodate larger and more models for single post-processing session.
Simple Operation

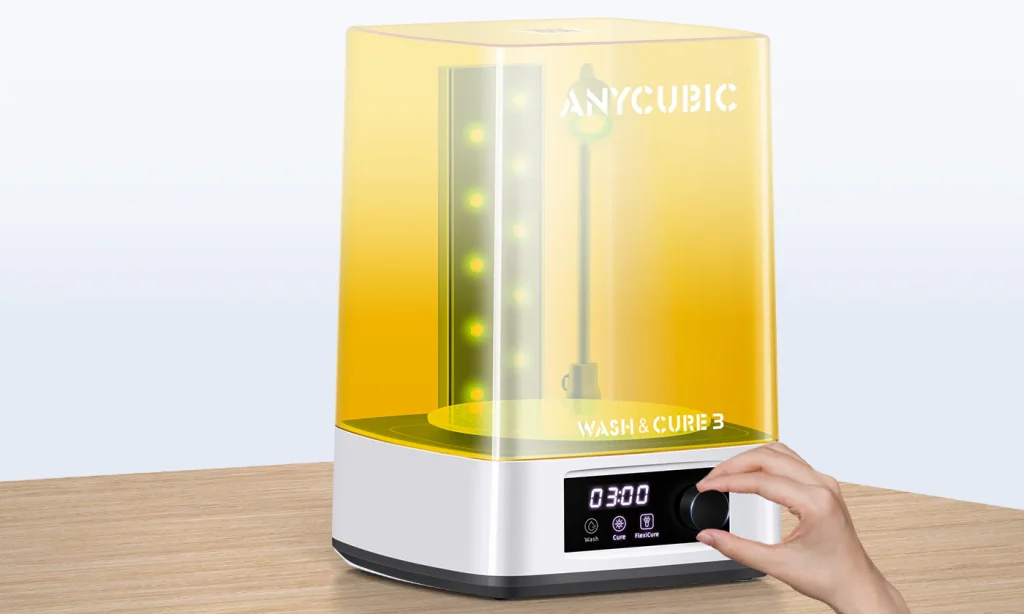

Cleaning and curing dual modes, easily selected with one click; Enhanced Gooseneck light curing mode can be easily toggled on and off with one click—infinite rotary knob control, adjustable from 1 to 30 minutes at will.

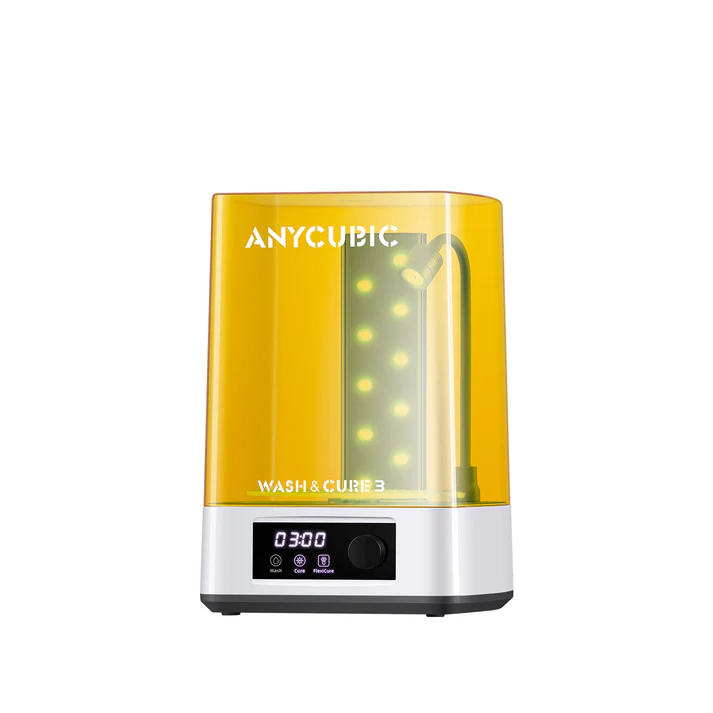

Uniform Curing
By adopting a brand new arrangement of light beads and lens light source, Anycubic Wash & Cure 3’s curing uniformity has been enhanced by 20% compared to its predecessor 2.0. This results in a more thorough and comprehensive curing of the entire model.

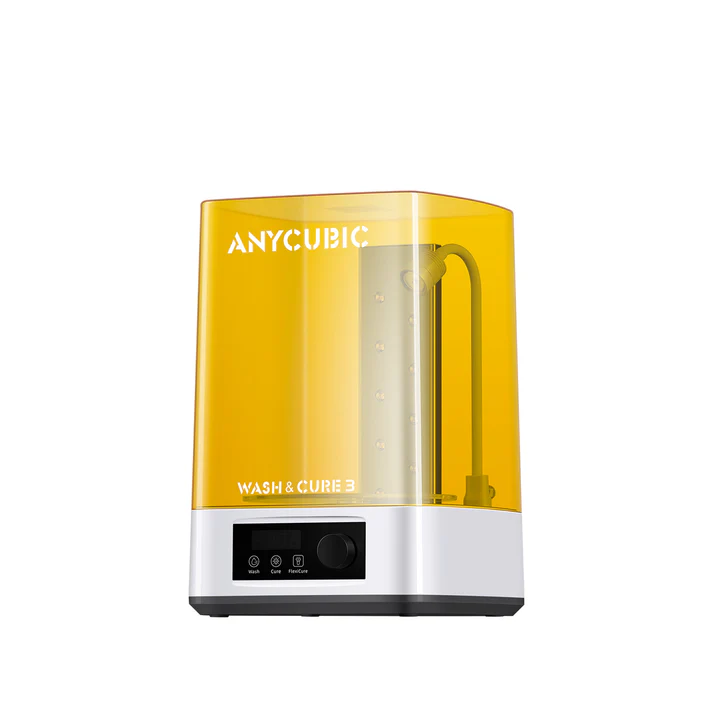

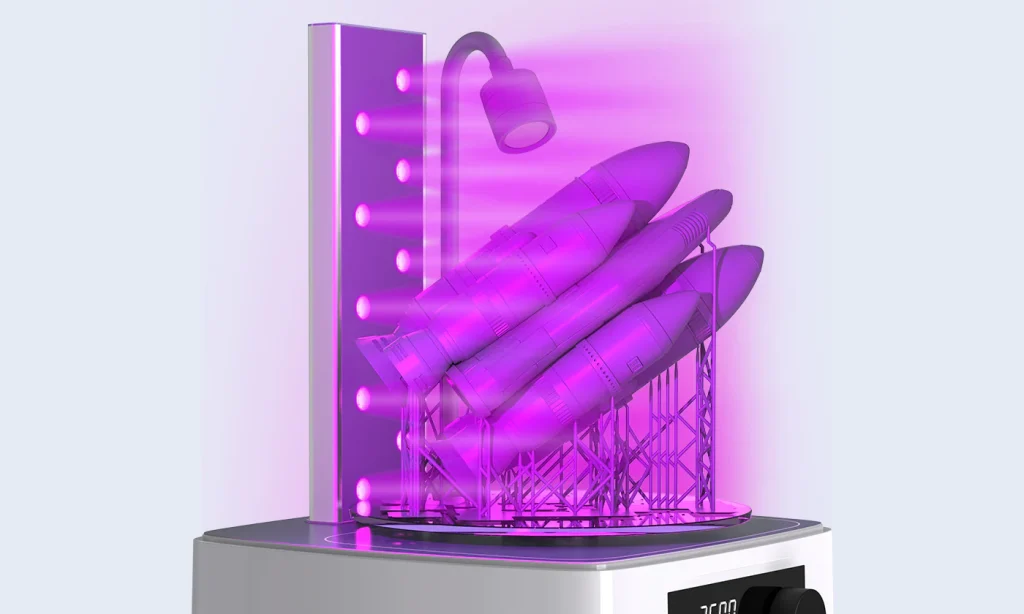

Gooseneck Light Design

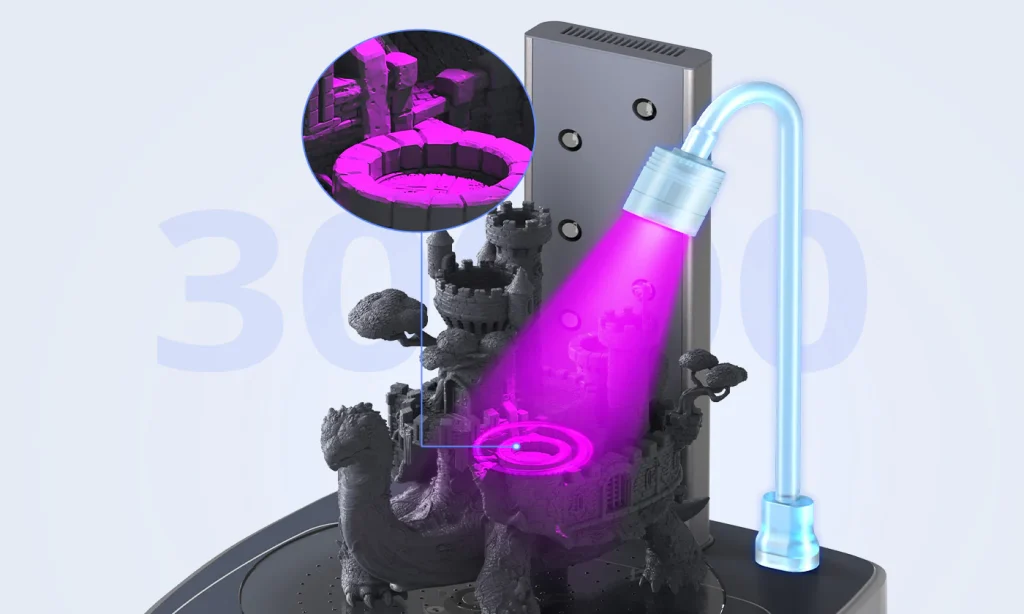

Increases the energy value by 30,000uW/cm² within a 1-3 cm irradiation range, significantly strengthening the curing effect on subtle areas such as the top of models and the hem of garments.

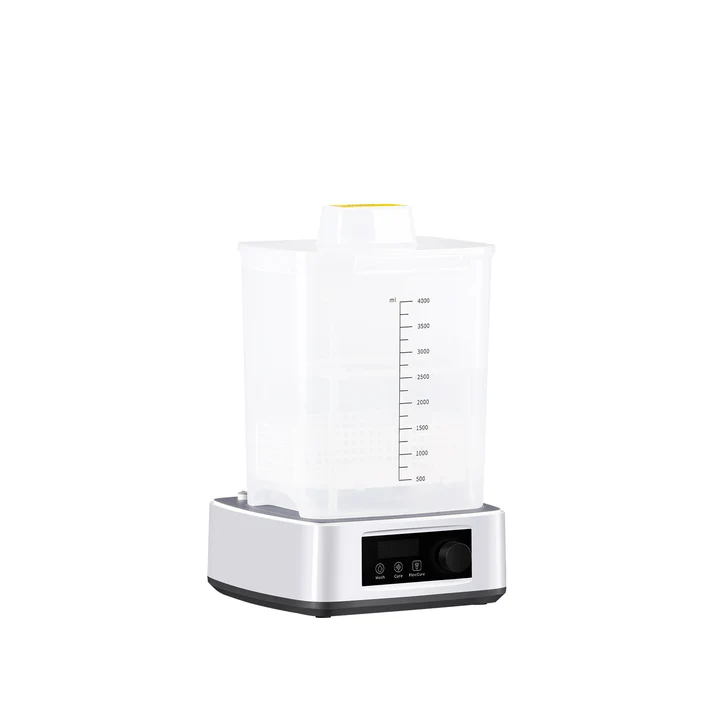

Dual-layer Design

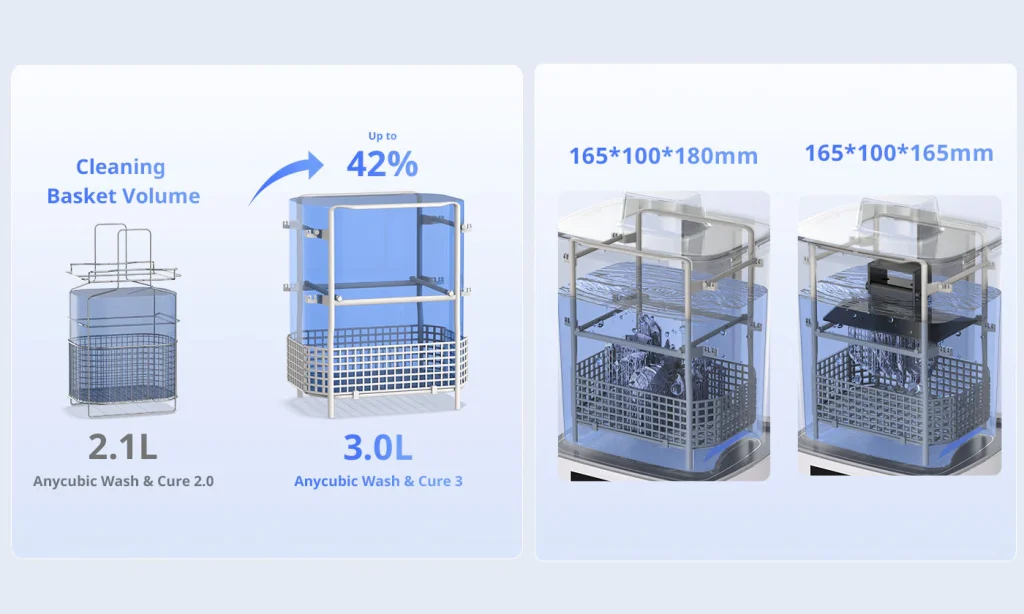

Dual-layered PP cleaning basket for simultaneous cleaning with platform. Adjustable heights (100mm, 165mm) accommodate platforms 5.9″ to 7.3″. Efficient IPA usage maximized.
Key Points
- Anycubic Wash & Cure 3 is a 2-in-1 station that cleans resin 3D prints with alcohol and cures them with UV light.
- Cleans up to a 3 L basket, curing size ~160×180 mm.
- Features include: gooseneck “Flexicure” light (30,000 µW/cm² at 1-3 cm), improved curing uniformity (~20% better than predecessor), dual-layer basket to save alcohol.
- Best for users with resin LCD printers up to ~7.3″ and who want faster, more precise, cleaner post-processing.
Specifications
| Core Cleaning Performance | |||
| Maximum Curing Volume 3.18L | Maximum Cleaning Volume 165*100*180 mm | Cleaning Method Alcohol Soaking | Time Setting Range 1–30 mins |
| Cleaning Basket Capacity 3L | |||
| System & Mechanical Design | |||
| UV Light Configuration 10pcs*405nm LEDs + Gooseneck Light | Power Supply 36W | ||
| User Experience & Features | |||
| Control Interface Touch Buttons | Machine Weight 2.7kg | Package Weight 3.6kg | Product Dimensions 216*217*310mm |
| Packaging Dimensions 420*290*290mm |
Benefits for Users
- Efficiency: Washing + curing in one device saves time and handling.
- Detail & Quality: Better light uniformity + Flexicure light helps with overhangs, thin features and reduces curing defects.
- Cost Savings: Using less isopropyl alcohol (IPA) and optimized basket/platform setup reduces solvent waste.
- Cleaner Workflow: Enclosed unit, safer UV exposure, less mess.
- Larger Capacity: Bigger parts or multiple prints in one cycle. Good for hobbyists or small shops.

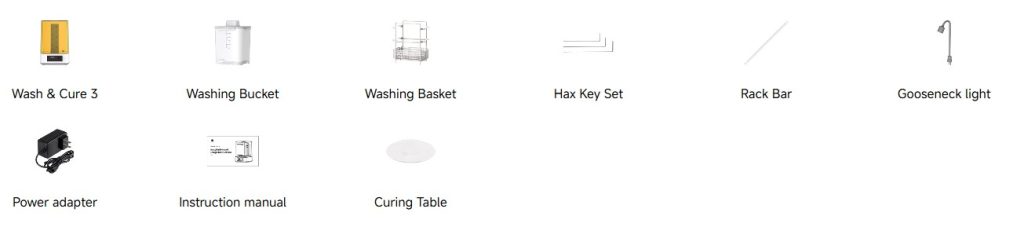

What’s In Box
Limitations & Considerations
- Despite improvements, IPA safety and disposal still matters. Must ensure proper ventilation.
- If prints are very large beyond ~160×180 mm cure area or beyond basket dimensions, may still require multiple cycles or a larger unit.
- UV curing still has limitations: deeply nested supports or internal cavities may still get under-cured. Flexicure helps but may not solve all.
- Noise <65 dB is decent but still noticeable in quiet rooms.
Wash & Cure Series Tech Specs
| Anycubic Wash & Cure 3 Plus | Anycubic Wash & Cure 3 | Anycubic Wash & Cure 3 Max | |
| Core Cleaning Performance | |||
| Maximum Curing Volume | 9L | 3.18L | 15.1L |
| Maximum Cleaning Volume | 230*140*260mm | 165*100*180 mm | 305*165*300mm |
| Cleaning Method | Alcohol Soaking | Alcohol Soaking | Alcohol Soaking + Spray Rinse |
| Time Setting Range | 1–30 mins | 1–30 mins | 13-42.5 mins (Auto mode), 10-39.5 mins (Wash mode), 0.5-30 mins (Cure mode) |
| Cleaning Basket Capacity | 7.6L | 3L | 20L |
| System & Mechanical Design | |||
| UV Light Configuration | 10pcs*405nm LEDs + Gooseneck Light | 10pcs*405nm LEDs + Gooseneck Light | 20pcs*405nm LEDs + Gooseneck Light |
| Power Supply | 36W | 36W | 120W |
| User Experience & Features | |||
| Control Interface | Touch Buttons + Rotary Knob | Touch Buttons | Touch Buttons |
| Machine Weight | 6.5kg | 2.7kg | 13.5kg |
| Package Weight | 7.2kg | 3.6kg | 19.1kg |
| Product Dimensions | 434*312*267mm | 216*217*310mm | 434*434*556mm |
| Packaging Dimensions | 540*350*400mm | 420*290*290mm | 505*500*620 mm |
Tips for Best Use
- Use Flexicure for difficult geometries (deep undercuts, small details).
- Adjust basket height to match build plate or part size to minimize needed IPA volume.
- After washing, ensure prints are properly dried before curing to avoid cloudy or uneven cure.
- Perform regular cleaning of basket, light lenses or gooseneck lamp to maintain UV intensity.
- Keep spare parts like PP basket or buckets; reuse mature ones smartly.
FQAs
Can I wash parts with the build plate still attached?
Yes — the dual-layer basket design supports printing platforms (build plates) up to ~7.3″ so you can wash without removing the build plate.
What printers is it compatible with?
It is designed to work with LCD resin 3D printers whose build area is ≤7.3″. Larger models might physically not fit.
How long do washing and curing cycles take?
Timer works 1-30 minutes per mode. Actual time depends on the resin, print size, and how thorough you want to be.
How safe is the UV exposure?
The top cover blocks >99.9% of UV radiation. The machine is designed so opening the cover during curing stops UV exposure.
What is the primary benefit of using a Wash & Cure station?
The main benefit is the automation and standardization of resin print post-processing, leading to cleaner, stronger, and more consistent final prints while improving safety and reducing mess.
What kind of liquid is used for washing?
Isopropyl alcohol (IPA) is the most common and recommended solvent. Other resin cleaners may also be compatible.
How long does a typical wash or cure cycle take?
Wash cycles typically range from 2 to 10 minutes, depending on the print size and resin type. Curing cycles usually range from 1 to 5 minutes. The specific times will vary based on the resin manufacturer’s recommendations and personal preference.
