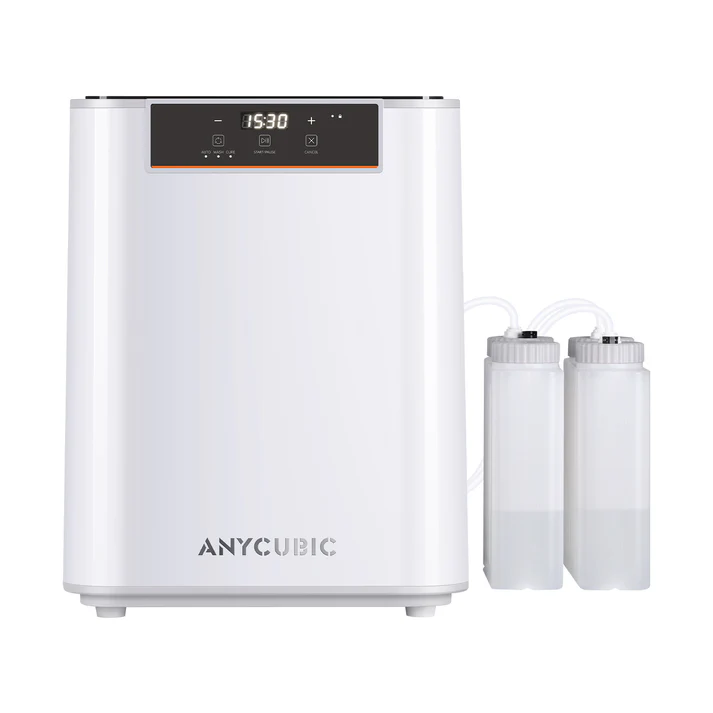

The Anycubic Wash & Cure 3 Max is an ultra-large, all-in-one station for post-processing resin 3D prints. It is designed to simplify and automate the washing and UV-curing of models, saving time and effort, particularly for users with larger prints or higher production volumes.
Anycubic Wash & Cure 3 Max delivers faster, larger, and safer resin washing & curing for 3D prints—perfect for professionals and hobbyists alike.
Related internal pages:
- anycubic-wash-cure-3-plus/
- anycubic-wash-cure-3/
- anycubic-kobra-2-max/
- anycubic-kobra-3-max-combo/
- anycubic-photon-mono-4-ultra/
Product Features
• 15.1L Ultra-large Capacity
• Wash & Cure All-in-1
• Customizable Wash & Cure
• Dual-mode Cleaning & Conserving IPA
• Intelligent Monitoring
Key features
- 15.1L ultra-large capacity: The unit’s large wash tank and a maximum wash capacity of 305 x 165 x 300 mm can handle substantial 3D prints. It is compatible with most resin printers with a build volume of 13.6 inches or less.
- 1-Click automated wash and cure: In its “Auto” mode, the machine performs both the washing and curing processes in a single, automated cycle. This feature streamlines the workflow and minimizes user intervention.
- Dual-mode cleaning system: The Wash & Cure 3 Max uses a combination of 360° spray rinsing and bottom immersion to effectively clean models. This dual system is designed to save up to 50% on cleaning detergent (like IPA) compared to traditional immersion-only stations.
- 360° dimensional curing: For the curing phase, the machine features a rotating platform that exposes the model to high-intensity 405nm UV LEDs. This ensures a comprehensive and even cure from all angles.
- Customizable settings: For more control, the unit offers independent wash and cure modes, allowing users to adjust the duration of each process based on their specific needs.
- Intelligent monitoring: Built-in sensors provide alerts for user safety and process control. These can detect if the cover is open or if there are issues with the liquid flow, preventing the machine from starting.

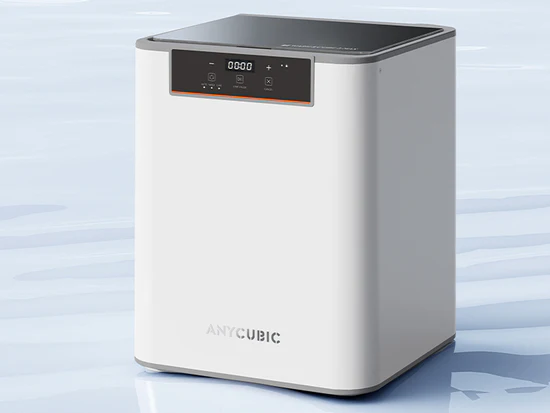

- Simple design: The station features a clean, minimalist aesthetic with a transparent, flip-open lid and an easy-to-use touch control panel.
Why Choose Wash & Cure 3 Max?
Technical specifications
- Maximum wash capacity: 305 x 165 x 300 mm
- Container capacity: 20L
- Cleaning method: Spray rinse + bottom section immersion
- UV lights: 405nm LEDs
- Product dimensions: 434 x 434 x 556 mm
- Machine weight: 13.5 kg

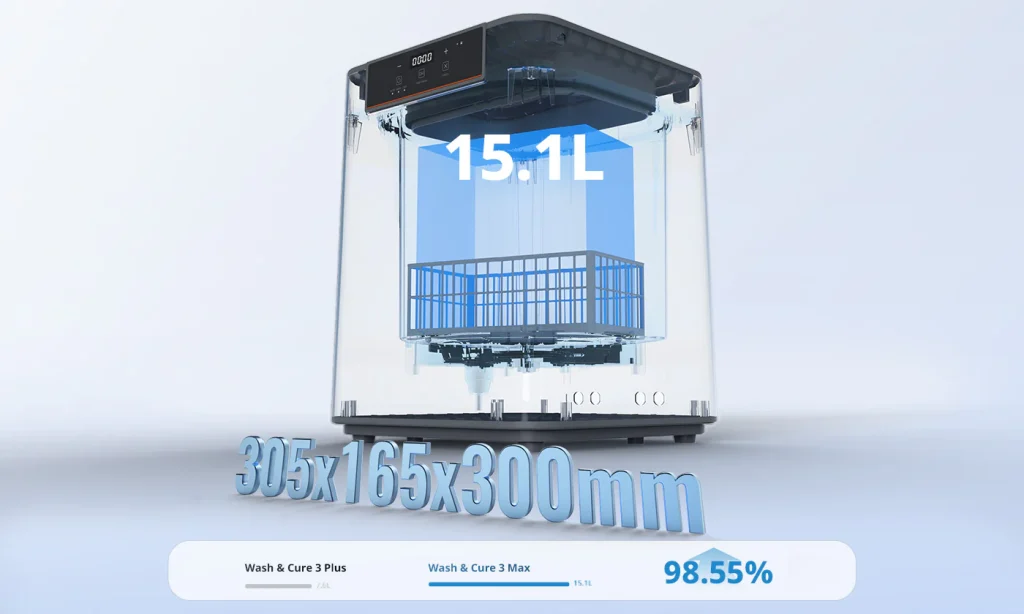

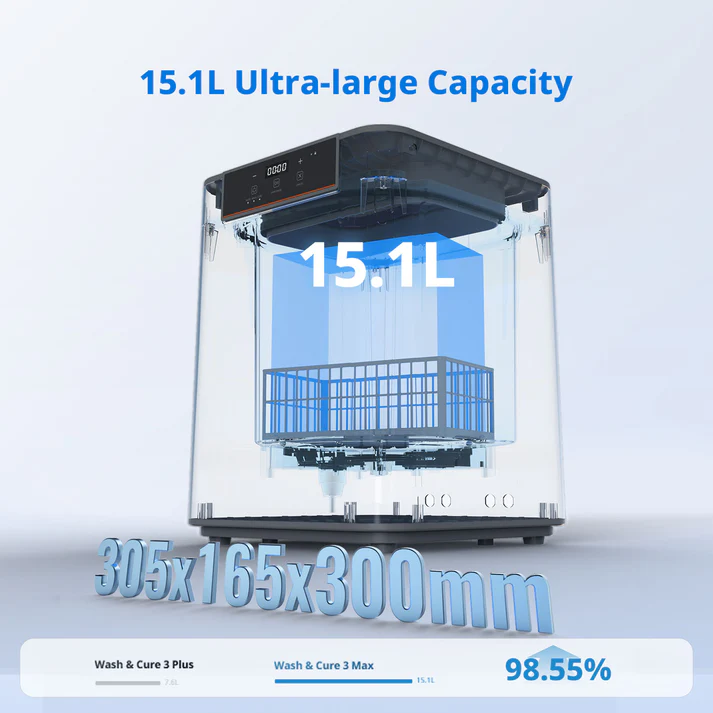

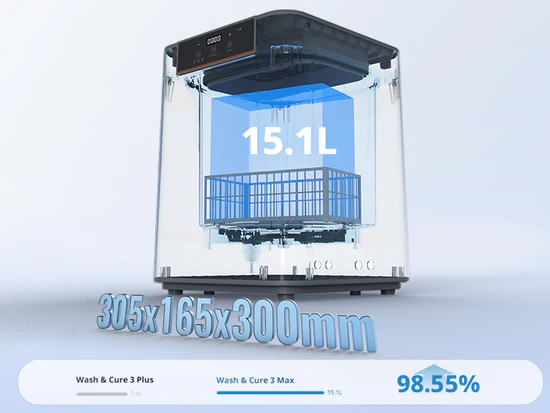

Extra-large, Ultra-capable
Compatible with LCD 3D printers with a build volume of 13.6 inches or smaller
Maximum wash capacity: 305×165×300 mm
98.55% larger wash capacity than the Anycubic Wash & Cure 3 Plus

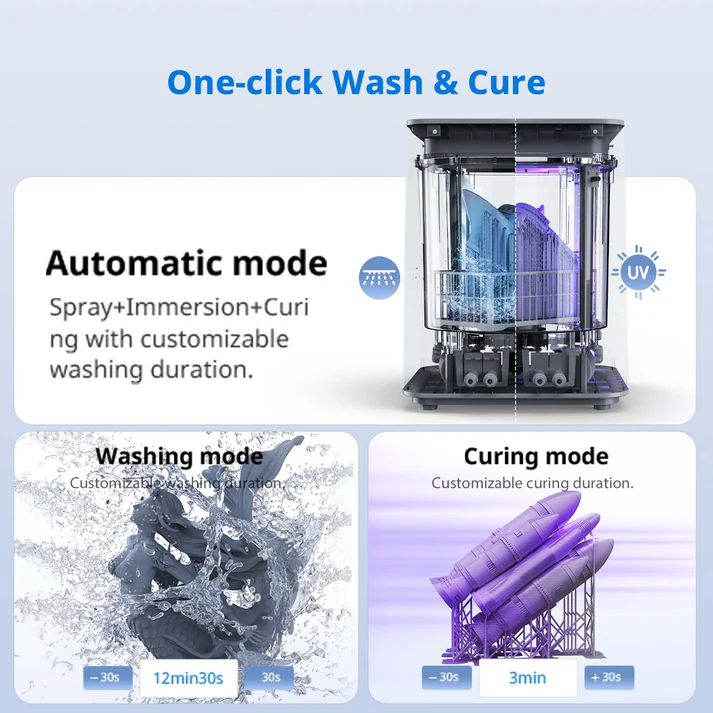

Fully Automated All-in-1 Cleaning Station
One-click fully automated washing & curing—no more dirty hands.
Core Functionality and Design
The machine’s design is akin to a miniature washing machine, with a large chamber for the cleaning and curing processes. It operates on a dual-mode cleaning system to ensure thorough post-processing of prints, particularly large or intricate models.

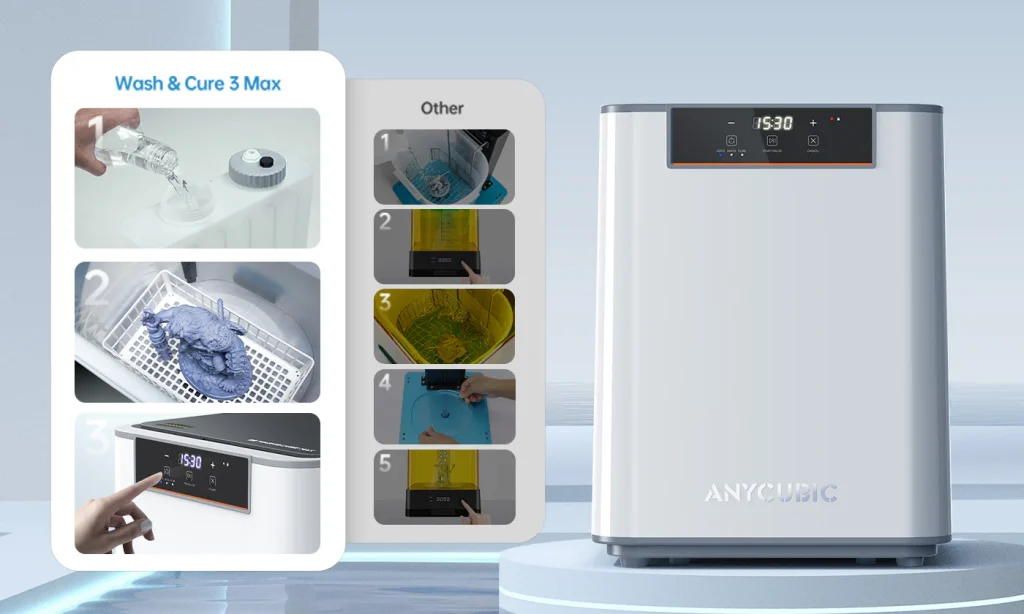

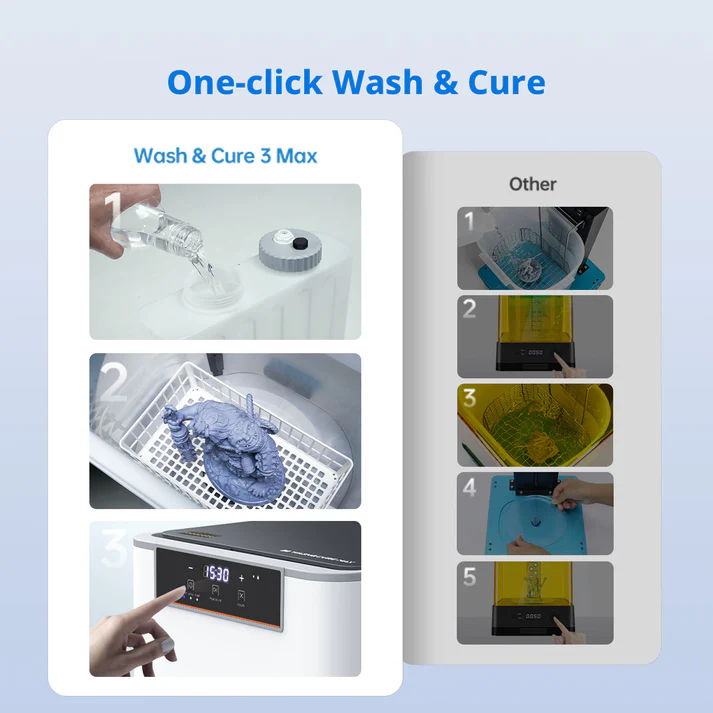

- 1-Click Automated Process: The AUTO mode simplifies the entire workflow. With a single button press, the machine performs a sequential cycle:

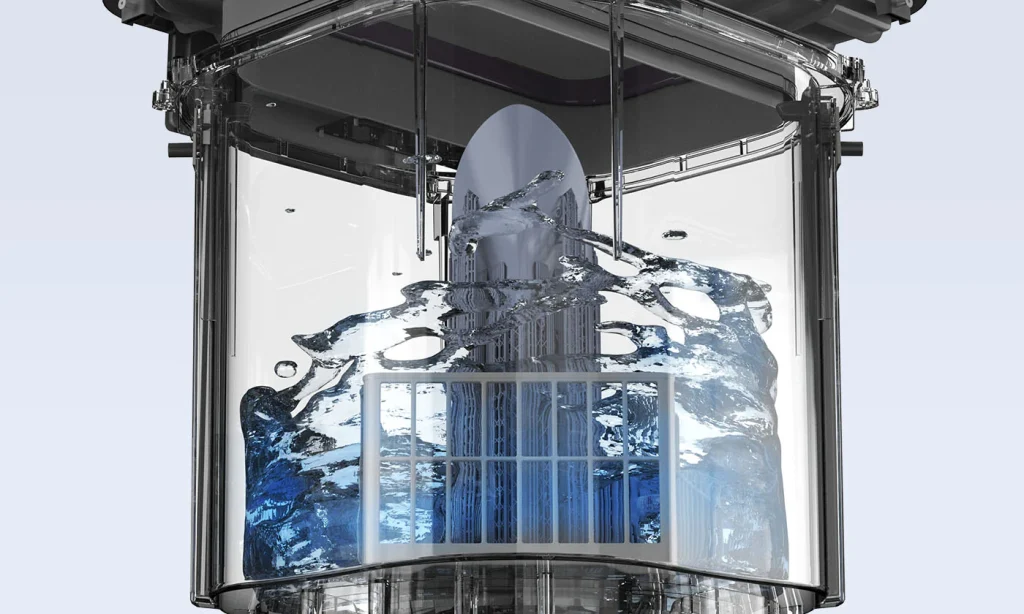

- Spray Cleaning: A powerful 360° jet spray removes uncured resin from the surface of the print.
- Bottom Section Immersion: The lower part of the model is submerged to clean intricate details and heavy residue.
- UV Curing: After the wash cycle, the machine transitions to curing.
- Dual-Mode Cleaning: This system combines a 360° spray for wide-surface cleaning and a bottom-section immersion for heavy residue, ensuring thorough cleaning with minimal cleaning agent usage.
- 15.1L Ultra-Large Capacity: The machine has a maximum cleaning volume of 305 x 165 x 300 mm, making it compatible with most large-format LCD 3D printers up to 13.6 inches, such as the Anycubic Photon M3 Max. The basket can hold a load of up to 3kg.
- IPA Conservation: The design is optimized for efficiency, with a reported IPA (Isopropyl Alcohol) consumption of ≤20ml per use. This is a significant improvement over previous models, reducing operating costs.
- Powerful and Uniform Curing: The curing chamber features a 360° rotating platform and a total of 20 405nm LEDs, along with a specialized gooseneck light. The high-density UV light, reaching up to 25,000 μW/cm² at 18 cm, ensures a uniform and efficient cure, preventing sticky spots and under-cured interiors.
Customizable Wash & Cure Process
About this item:
- 【Larger Size for Upgraded Capacity】Compared to Anycubic Wash & Cure 2, Wash and Cure 3 has an impressive 42% increase in cleaning basket capacity, this makes it perfectly tailored for LCD (light-curing) 3D printers with a size of 7.3 inches or less. The volume of the cleaning bucket has also increased to 4L, meeting the cleaning needs of larger and more 3d models
- 【Gooseneck light design】The “Innovative Flexicure Gooseneck Light Design” of ANYCUBIC increases the energy value by 30,000uW/cm² within a 1-3 cm irradiation range, significantly strengthening the curing effect on subtle areas such as the top of models and the hem of garments
- 【Dual-layer Design, IPA Saving】The double-layered PP material cleaning basket is designed to support cleaning with defferent platforms. It features two adjustable heights at 100mm and 165mm, providing flexibility to accommodate printing platforms ranging from 5.9 inches to 7.3 inches. This design also maximizes the efficiency of IPA usage
- 【Enhanced Curing Power】By utilizing a new bead arrangement and lens light source, Wash & Cure 3.0 offers a 20%* improvement in curing uniformity over the previous generation 2.0. This results in a more thorough and comprehensive curing of the entire model
- 【Quiet and Simple】Cleaning and curing dual modes, easily selected with one click; Gooseneck light curing mode can be easily toggled on and off with one click. Adjustable from 1 to 30 minutes at will. After the closed structure design and software optimization, machine can effectively reduce the cleaning, curing noise interference, to create a quieter and more comfortable working environment

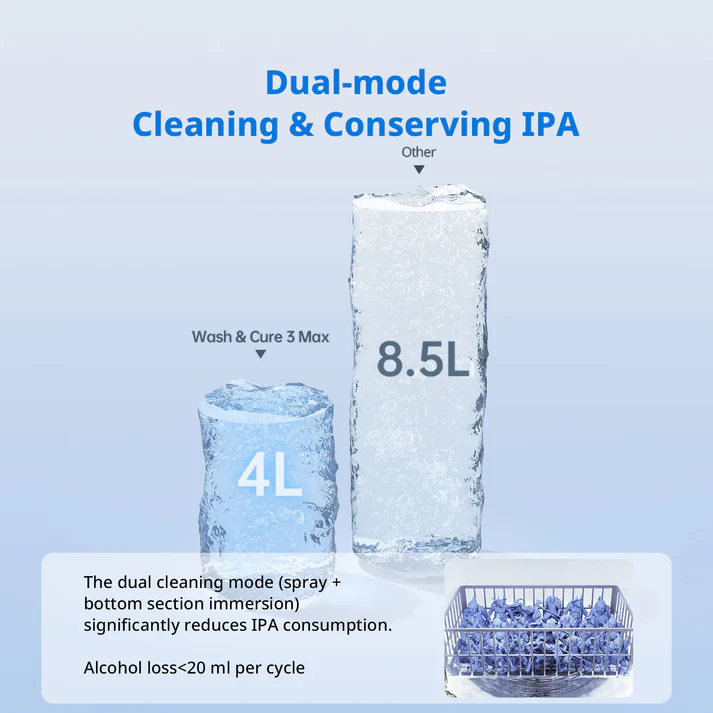

Powerful Cleaning, IPA Saving
Comparison with Anycubic Wash & Cure Max
The Wash & Cure 3 Max represents a significant upgrade over its predecessor, the Wash & Cure Max.
- Modes and Customization: The Wash & Cure 3 Max offers more adjustable and diverse modes. It provides variable time settings for AUTO (13-42.5 minutes), WASH (10-39.5 minutes), and CURE (0.5-30 minutes) modes. The previous Wash & Cure Max had a fixed AUTO mode (15.5 minutes) and a less adjustable CURE mode (1-60 minutes).
- Consumable Savings: The new model is more efficient, with a lower per-use IPA consumption (≤20ml) compared to the older model (≤50ml).

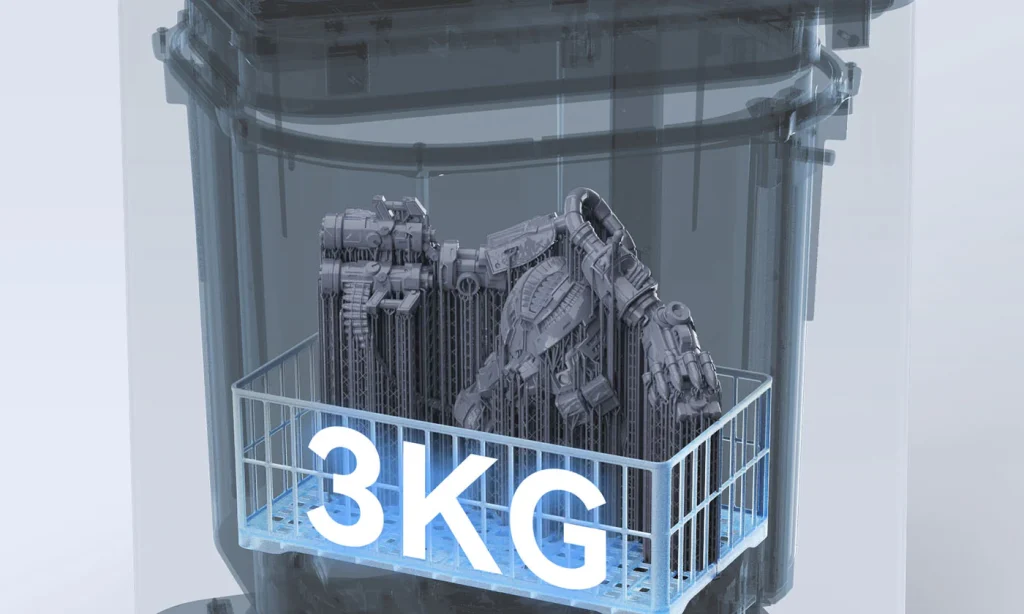

- Load Capacity: The Wash & Cure 3 Max can handle a center position load of up to 3kg, whereas the previous model was limited to 1.2kg.
- Cleaning Power: The Wash & Cure 3 Max features a more powerful jet spray with wider coverage, enhancing the cleaning effectiveness.
Power Density up to 25000μW/cm²
Featuring a 360° rotating curing platform with a maximum power density of 25,000 μW/cm² at an irradiation distance of 18 cm, Wash & Cure 3 Max ensures an efficient curing effect.

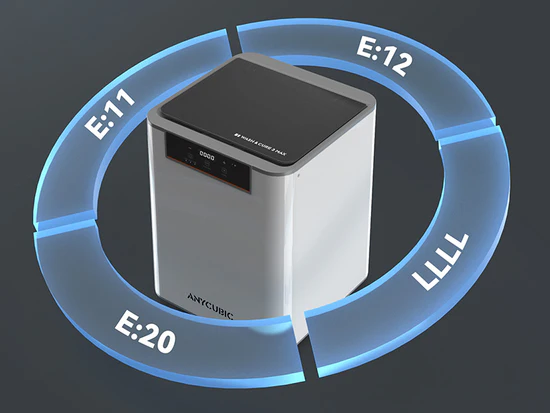

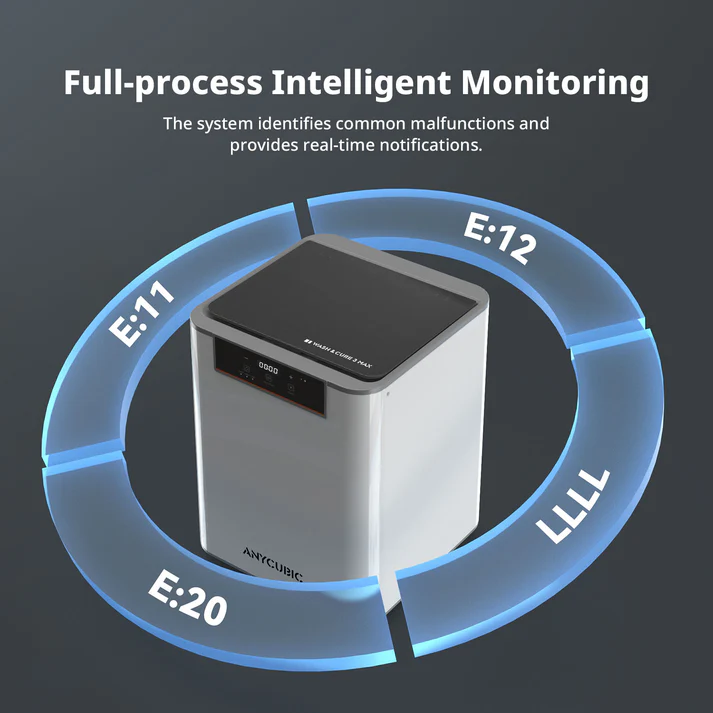

Full-process Intelligent Monitoring
Anycubic Wash & Cure 3 Max: Pros and Cons
Aesthetic & All-in-one
Specifications
| Core Cleaning Performance | |||
| Maximum Curing Volume 15.1L | Maximum Cleaning Volume 305*165*300mm | Cleaning Method Alcohol Soaking + Spray Rinse | Time Setting Range 13-42.5 mins (Auto mode), 10-39.5 mins (Wash mode), 0.5-30 mins (Cure mode) |
| Cleaning Container Capacity 20L | |||
| System & Mechanical Design | |||
| UV Light Configuration 20pcs*405nm LEDs + Gooseneck Light | Power Supply 120W | ||
| User Experience & Features | |||
| Control Interface Touch Buttons | Machine Weight 13.5kg | Package Weight 19.1kg | Product Dimensions 434*434*556mm |
| Packaging Dimensions 505*500*620 mm |

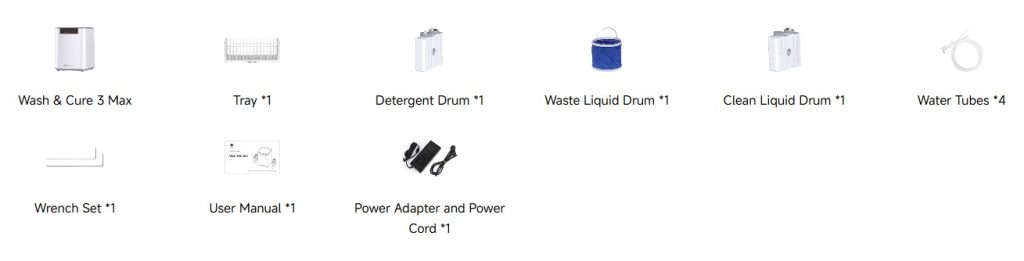

What’s In Box
Wash & Cure Series Tech Specs
| Anycubic Wash & Cure 3 Max | Anycubic Wash & Cure 3 Plus | Anycubic Wash & Cure 3 | |
| Core Cleaning Performance | |||
| Maximum Curing Volume | 15.1L | 9L | 3.18L |
| Maximum Cleaning Volume | 305*165*300mm | 230*140*260mm | 165*100*180 mm |
| Cleaning Method | Alcohol Soaking + Spray Rinse | Alcohol Soaking | Alcohol Soaking |
| Time Setting Range | 13-42.5 mins (Auto mode), 10-39.5 mins (Wash mode), 0.5-30 mins (Cure mode) | 1–30 mins | 1–30 mins |
| Cleaning Container Capacity | 20L | 7.6L | 3L |
| System & Mechanical Design | |||
| UV Light Configuration | 20pcs*405nm LEDs + Gooseneck Light | 10pcs*405nm LEDs + Gooseneck Light | 10pcs*405nm LEDs + Gooseneck Light |
| Power Supply | 120W | 36W | 36W |
| User Experience & Features | |||
| Control Interface | Touch Buttons | Touch Buttons + Rotary Knob | Touch Buttons |
| Machine Weight | 13.5kg | 6.5kg | 2.7kg |
| Package Weight | 19.1kg | 7.2kg | 3.6kg |
| Product Dimensions | 434*434*556mm | 434*312*267mm | 216*217*310mm |
| Packaging Dimensions | 505*500*620 mm | 540*350*400mm | 420*290*290mm |
FAQs
Is the Anycubic Wash & Cure 3 Max compatible with my 3D printer?
It is compatible with LCD 3D printers that have a build volume of 13.6 inches or smaller, including models like the Photon M3 Max.
How does the “1-Click Cleaning” process work?
In AUTO mode, the machine sequentially sprays the parts with cleaning fluid, performs a bottom-section immersion, and then cures the model. The entire process is automated with a single button press.
How does the Wash & Cure 3 Max differ from the Wash & Cure Max?
The Wash & Cure 3 Max has a larger load capacity, more customizable modes (with adjustable wash, cure, and auto times), improved IPA consumption, and a more powerful jet spray for cleaning.
What is the main advantage of the spray cleaning method?
The spray cleaning method is efficient and uses less cleaning agent compared to full immersion or ultrasonic methods while achieving a similar level of cleanliness.
